| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | ID6001 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200SETS PER MONTH |
| Product Name: | Packaging Incline Impact Testing Machine | Model: | ID6001 |
|---|---|---|---|
| Testing Standard: | ISO 10531:1992 ;GBT-4857.22 | Max. Weight Of Bearing Specimen: | 1500kg |
| Max. Size Of Test Piece Allowed: | 1600x1600x1600（ L×W×H ） | Impact Speed Range: | 1.305 ～ 3.7８ M/s |
| Power: | Electronic | Warranty: | 1 Year |
| Highlight: | Packaging Incline Impact Testing Machine,GBT-4857.22 Impact Testing Machine,1.305～3.78m/s Impact Testing Machine |
||

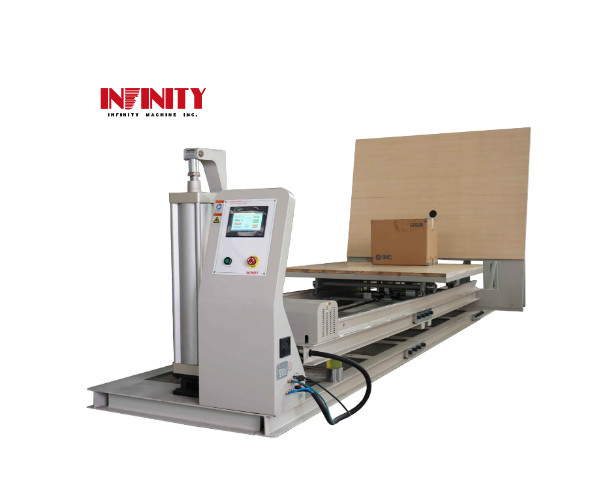

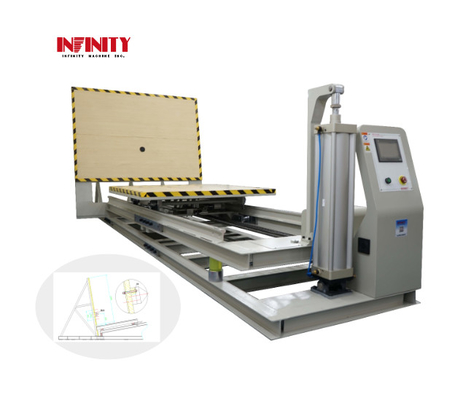

GBT-4857.22 Impact Speed 1.305～3.78m/s Packaging Incline Impact Testing Machine
Model Number:ID6001
Application of equipment:
It is suitable for product packaging boxes to simulate the slope impact test caused by the package tilting and sliding during transportation or dock handling to test the reliability of the packaging.
Testing standard:

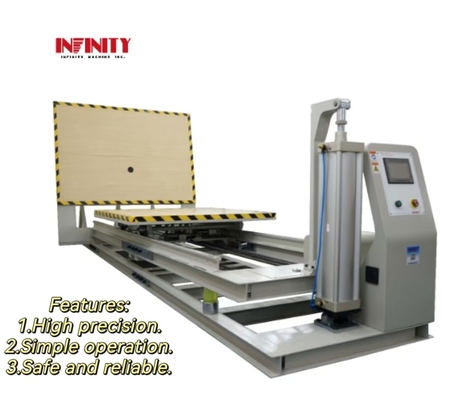

Features:
Specification parameter:
|
Projects |
Specifications |
|
Max. weight of test piece |
1500kg |
|
Max. size of test piece allowed |
1600x1600x1600( L×W×H ) |
|
The angle between the impact surface and the track plane |
90±1° |
|
Maximum sliding length of test piece |
4000mm (or Customized) |
|
Impact speed range |
1.305 ～ 3.78 m/s |
|
Impact velocity error |
≤±5% |
|
Impact plate size |
W1600×H1600 mm |
|
Impact plate description |
1.The surface of the impact baffle should be flat and its size should be larger than the size of the impacted part of the test sample. 2.The impact surface must be sufficiently hard. 3.When its surface bears a load of 200kg, the deformation shall not exceed 2mm. 4.A damper is installed on the baffle structure frame to prevent secondary impact. |
|
Equipment size |
L7600× W1600× H 1950 mm |
|
Device power supply |
AC220V 50HZ(or specify) |
Device control interface:
Related product recommendation:
1.IZOD digital impact testing machine:This device is used to measure the impact resistance of various tough material specimens under specific angles and loads.
2.Falling ball impact testing machine:This machine adopts PLC control mode, and the suction nozzle uses vacuum negative pressure to clamp steel balls of different sizes. When the drop button is pressed, the suction nozzle clamps and instantly releases the steel ball. The steel ball will undergo a free fall test to impact the surface of the sample and test its impact resistance. It is suitable for impact testing of electronic products such as mobile phones, tablets, and speakers.
3.Glass Shot Bag Impact Testing Machine:This device is designed according to the GB/T962-1999-6.11 standard and meets the impact test requirements for safety laminated glass used in buildings, testing the impact resistance of safety laminated glass.
Our services:
Implementation Assistance,Installation,Training,Calibration,Preventive Maintencance,Technical Support,Upgrade,Repair & Parts.
Product Packaging:
The Impact Testing Machine will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
