Name: Test Speed 10～60 Times/min LCD Touch Screen Headphone Torsion Life Testing Machine
Brand: Infinity Machine International Inc.
SKU: IZ1011
Price: negotiable USD
Availability: InStock

Home Products Torsion Testing Machine

Test Speed 10～60 Times/min LCD Touch Screen Headphone Torsion Life Testing Machine

Product Details:

Place of Origin:	Made In China
Brand Name:	Infinity
Certification:	CE ISO
Model Number:	IZ1011

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiate
Packaging Details:	Clear sheet+sponge+wood carton
Delivery Time:	20-30 days after order confirmed
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 sets / month

Contact Now

Detailed Product Description

Product Name:	Headphone Torsion Life Testing Machine	Product Model:	IZ1011
Drive:	AC Servo Motor	Test Angle:	5~360° Can Be Set
Test Speed:	From 10 To 60 Times / Min	Test Times:	1~999999 Times Can Be Set
Power:	Electronic	Warranty:	1 Year
Highlight:	Headphone Torsion Life Testing Machine , Headphone Torsion Life Tester , LCD Headphone Torsion Life Tester

Test Speed 10～60 times/min LCD Touch Screen Headphone Torsion Life Testing Machine

Product model:IZ1011

Application:

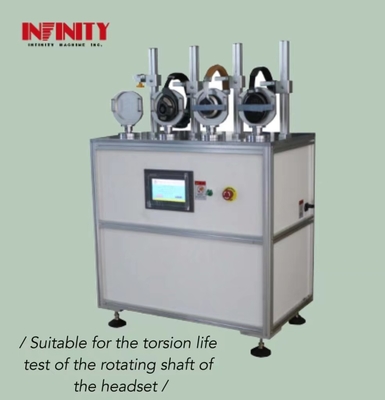

It is suitable for the torsion life test of the rotating shaft of the headset. The torsion test method is: the left and right receiver of the earphone is fixed on the torsion fixture, the head band is fixed on the support frame, and the test Angle and rotation speed are set. After many tests, remove the earphone to detect the performance of the rotating shaft.

Test Speed 10～60 Times/min LCD Touch Screen Headphone Torsion Life Testing Machine 0

Features:

Using TFT 7 inch true color LCD touch screen and Mitsubishi programmable controller for action control.
Set rotation angle, test speed, test times, and pause time of test interval can be set.

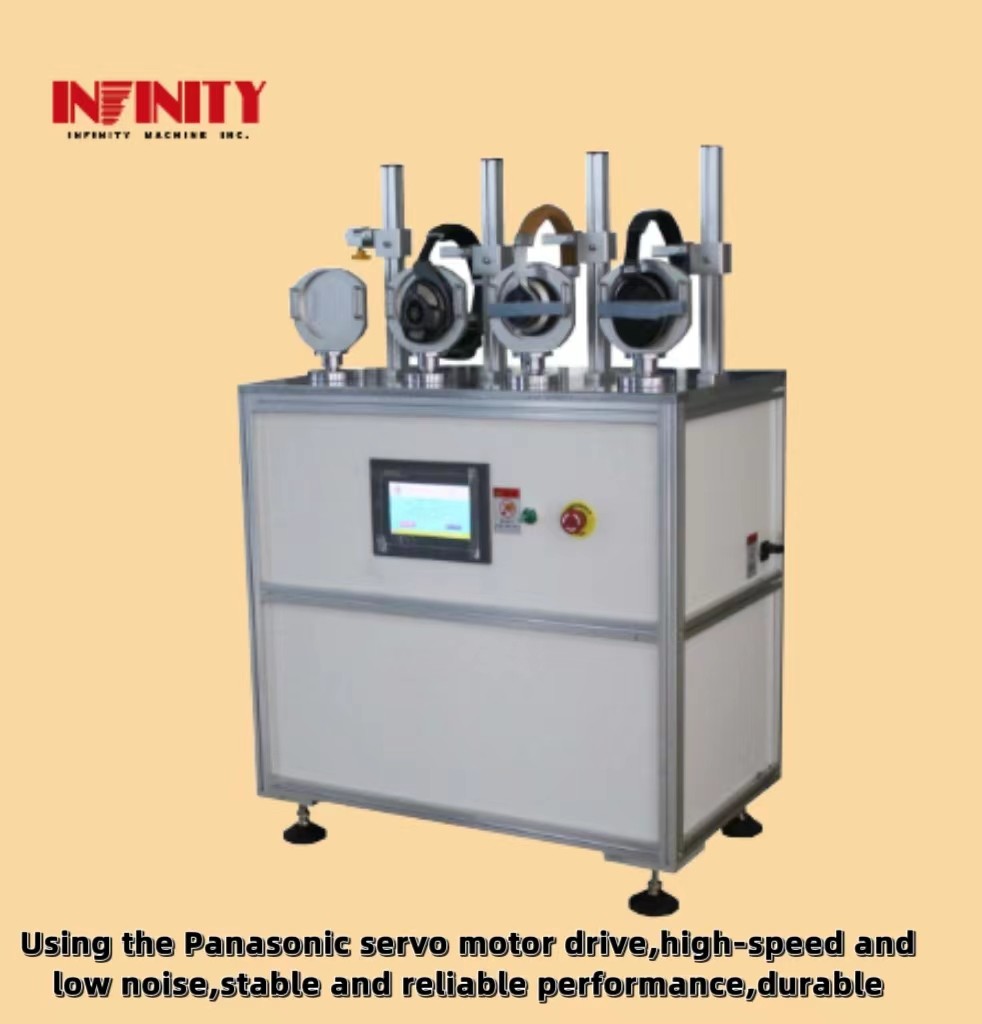

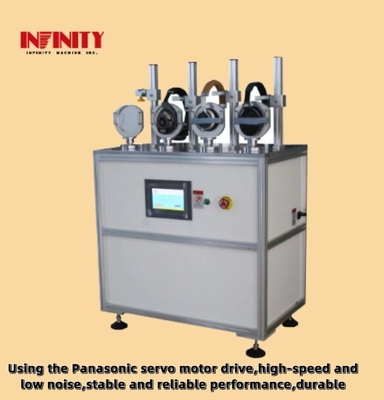

Using the Panasonic servo motor drive, high-speed and low noise, stable and reliable performance, durable.
It can synchronously test the twist of 4 groups of headsets, and the twist Angle is accurate and adjustable.

Technical parameter:

Model	IZ1011
Drive	AC servo motor
Test Angle	5~360° can be set
Test speed	From 10 to 60 times / min
Test times	1~999999 times can be set
Unit Size: (WxDxH)	About W850 x D360 x H 1200mm
Weight	About 125kg
Source	AC220V 3A or is specified

Support and Services:

Implementation Assistance,Installation,Training,Calibration,Preventive Maintencance,Technical Support,Upgrade,Repair & Parts.

Product Packaging:

The Torsion Testing Machine will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
