| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IE2 series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200SETS PER MONTH |
| Product Name: | Precision High Temperature Aging Test Chamber | Model: | IE2 Series |
|---|---|---|---|
| Application: | Suitable For High Temperature Aging Reliability Test Of Industrial Products. | Standards：: | GB-2423.2-89(IEC68-2-2);GBJ150.3(MIL-STD-810D);GJB360.8-87(MIL-STD-202F) |
| Capacity: | 100L,150L,225L,408L,800L | Temperature Range: | RT+10℃～+250℃ |
| Power: | Electronic | Warranty: | 1 Year |
| Highlight: | High Temperature Aging Reliability Test Chamber,High Temperature Aging Environmental Test Chamber,High Temperature Environmental Test Chamber |
||

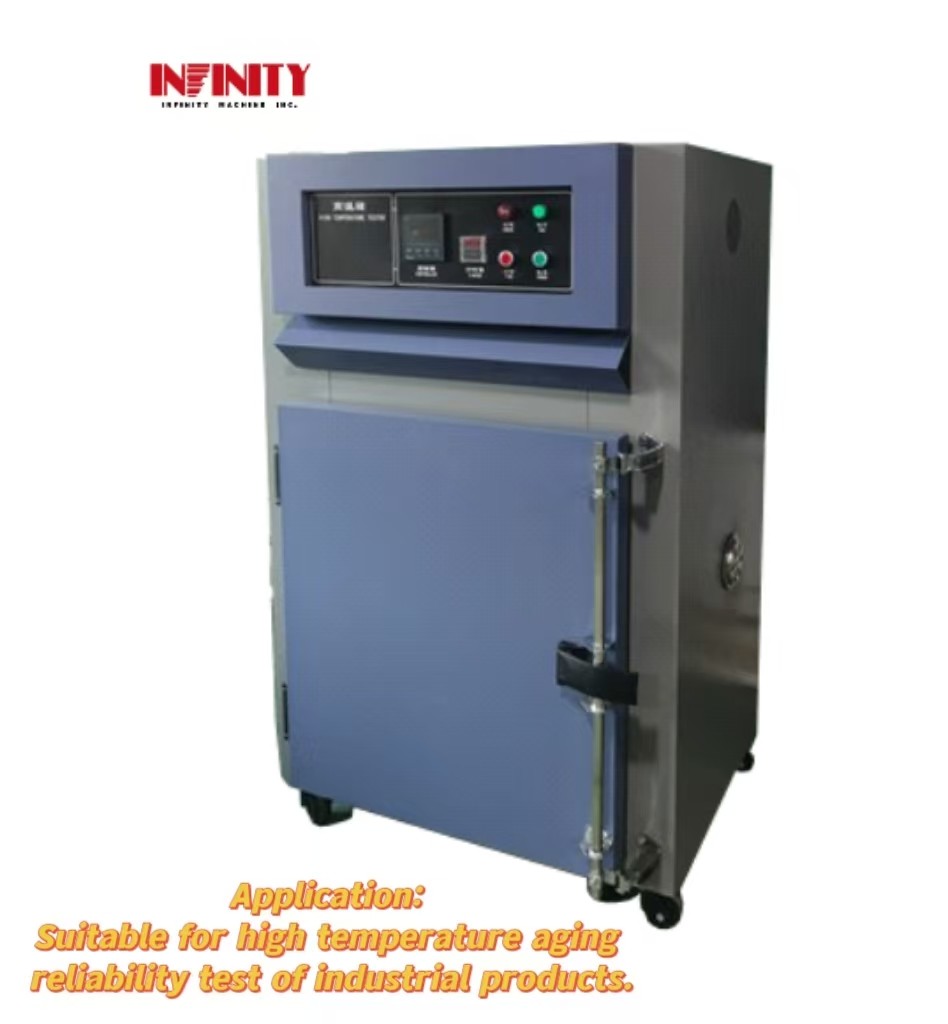

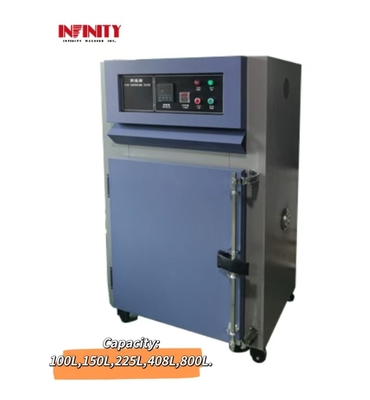

Environmental Test Chamber Suitable for High Temperature Aging Reliability Test
This series of high temperature chamber is suitable for high temperature aging reliability test of industrial products.
Standards:
GB-2423.2-89(IEC68-2-2);GBJ150.3(MIL-STD-810D);GJB360.8-87(MIL-STD-202F)
Features:
Specification parameters:
| Model |
IE2100L |
IE2150L |
IE2225L |
IE2408L |
IE2800L |
|||||
| Temperature range |
RT+10℃～+250℃ |
|||||||||
| Temperature fluctuation |
±1℃ |
|||||||||
| Temperature uniformity |
≦2.0℃ |
|||||||||
| Heating rate |
About 5 ℃/min (when unloaded, ambient temperature+25 ℃) |
|||||||||
| Time setting range |
0~9999 hours, minutes, seconds |
|||||||||
| Inner box size: WxDxH (mm) |
500x400x500 |
500x500x600 |
600×500×750 | 800×650×800 | 1000×1000×800 | |||||
| Outer box size: WxDxH (mm) |
780×650×1200 |
900×850×1300 |
900×850 ×1450 | 1200×950 ×1600 | 1450×1480 ×1700 | |||||
| Box |
● Inner wall material: matte stainless steel plate ● Insulation material: High quality cold steel plate (spray coated 1.2mm thick) |
|||||||||
| Sample holder | The work compartment is divided into 2 layers of pallets, which are sturdy and not easily dislodged, and can be freely disassembled and assembled in a rack style; The tray is made of SUS304 # grid style stainless steel, which is sturdy and easy to clean | |||||||||
| Safety protection devices | Motor overload protector; Air burning prevention protector; Over-temperature protector; Power supply under phase, reverse phase protector; Buzzer alarm. | |||||||||
| Power supply | AC220V;50Hz;3.5KW | AC380;V50Hz;4KW | AC380;V50Hz;4KW | AC380;V50Hz;7KW | AC380;V50Hz;9KW | |||||
Support and Services:
Implementation Assistance,Installation,Training,Calibration,Preventive Maintencance,Technical Support,Upgrade,Repair & Parts.
Product Packaging:
The Environmental Test Chamber will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
