| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IN-8220LQ |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets / month |
| Product Name: | Laminated Glass Falling Ball Impact Tester | Model: | IN-8220LQ |
|---|---|---|---|
| Standard: | JIS R 3205:1989、ISO/DIS12542 1，12543-6:1997、AS/NZS2208:1996、GB/T9962-1999 | Impact Height: | 200～1500mm Adjustable |
| Specimen Size: | 610x610mm | Steel Ball Falling Direction: | Vertically 90°±3°to The Specimen |
| Power: | Electronic | Warranty: | 1 Year |
| Highlight: | Architecture Laminated Glass Impact Test Machine,GB/T9962-1999 Impact Testing Machine,Architecture Laminated Glass Impact Testing Machine |
||

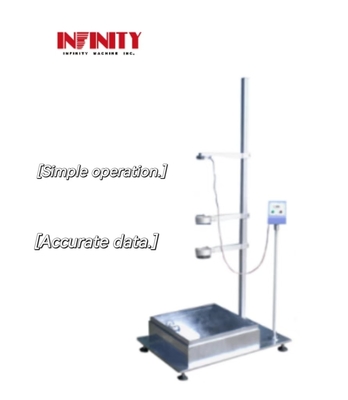

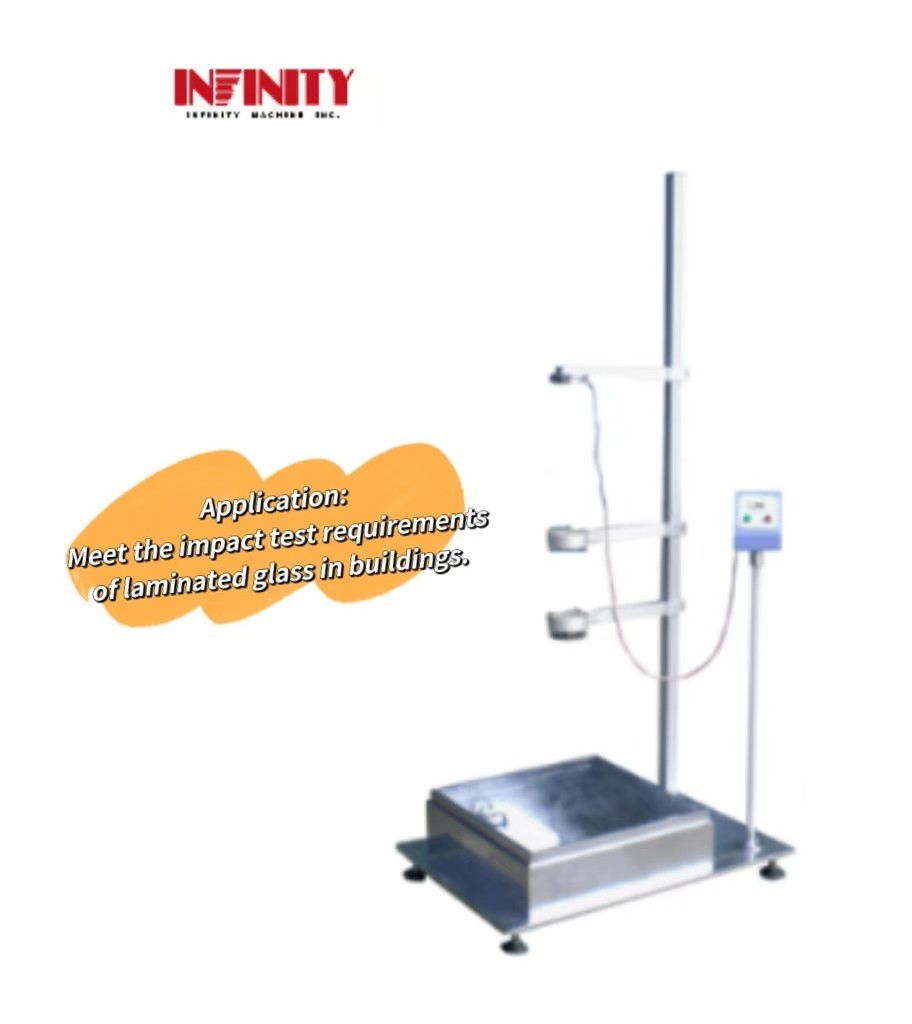

GB/T9962-1999 Impact Testing Machine Used for Architecture Laminated Glass Impact Test
Model: IN-8220LQ
Application:
This tester is design according to the standard GB/T9962-1999- 6.11, It satisfys the Architecture laminated glass impact testing requirement.
Standard:
JIS R 3205:1989,ISO/DIS12542 1,12543-6:1997,AS/NZS2208:1996,GB/T9962-1999
Specification:
| Model | IN-8220LQ |
| Impact height | 200～1500mm adjustable |
| Impact steel ball | 1040g±10g(∮63.5mm) |
|
2260g±20g(∮82.5mm) |
|
| Specimen size | 610x610mm |
| Steel ball falling direction | Vertically 90°±3°to the specimen |
| Counting cycles | 0～999,999times |
| Sucking way | DC electromagnetic sucker |
| Dimension (WxDxH) | 1000X700x2000mm |
| Weight | About 300kg |
| Power | 1∮ AC220V 5A or specified by user |
Related product recommendation:
Support and Services:
Implementation Assistance,Installation,Training,Calibration,Preventive Maintencance,Technical Support,Upgrade,Repair & Parts.
Product Packaging:
The Impact Testing Machine will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
