| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IE31A1 series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200SET PER MONTH |
| Product Name: | Programmable Cold And Hot Shock Chamber | Model: | IE31A1 Series |
|---|---|---|---|
| Capacity: | 225L (Customizable) | Temperature Range: | -65℃ ～ +150℃ |
| Temperature Recovery Time: | Within 5 Min | Heating Rate: | Up From RT To +150℃ About 55min Is Required |
| Cooling Rate: | Down From RT To-55℃ About 75min Is Required | Power: | Electronic |
| Warranty: | 1 Year | ||
| Highlight: | 225L Thermal Shock Test Chamber,Programmable Thermal Shock Test Chamber,Three Box Thermal Shock Test Chamber |
||

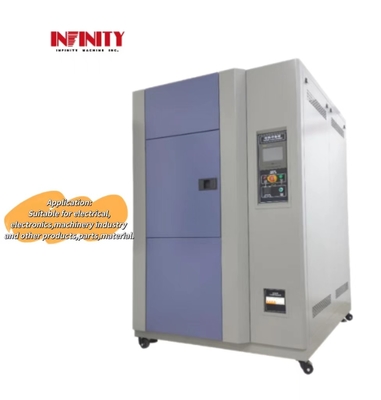

Three-box Type Programmable Thermal Shock Test Chamber Temperature Range -65℃ ～ +150℃
Product model: IE31A1 series
Equipment overview:
For users to the whole machine (or parts), electrical appliances, instruments, materials, coating, coating for the corresponding climate mutation test, suitable for electrical, electronics, machinery industry and other products, parts, materials, such as high and low temperature, humidity test, simulate the temperature and humidity changes under the condition of cold and hot impact test, so as to evaluate the quality of the test products.
Standards:
GB/T2423.1-2001 Low temperature test method; GB/T2423.2-2001; GB/T2423.22-1989 temperature change test; military standard GJB150.3-86; military standard GJB150.4-86; military standard GJB150.5-86; GJB150.5-86 temperature impact test; GJB360.7-87 temperature shock test; GJB367. 2-87 405 Temperature shock test; J / T10187-91Y73 series temperature change test box-three box type; meet the standard IEC68-2-14_ test method N_ temperature change.
Features:
Energy saving and consumption reduction: use gas-liquid bypass mode to adjust the cooling capacity to achieve constant temperature and humidity.Simple operation: programmed color LCD touch controller reference group PID control; experimental data recording and processing mode is flexible.High reliability: the key parts are imported parts to ensure the service life and reliability.Specification :
|
Model |
IE31A1225L |
|
Temperature range |
-65℃ ～ +150℃ |
|
Temperature fluctuation |
±1℃ |
|
Temperature uniformity |
≦2.0℃ |
|
Temperature recovery time |
Within 5 Min |
|
Heating rate (heat storage area) |
Up from RT to + 150℃ About 55min is required |
|
Cooling rate (cold storage area) |
Down from RT to -55℃ About 75min is required |
|
Innerl box size:WxHxD(mm) |
500x750x600 |
|
Outer box size:WxHxD(mm) |
1600×1900×2250 |
|
Thermal insulation box |
● Outer wall material: high quality carbon steel plate, the surface for electrostatic color spray plastic treatment. The left side diameter of the box is φ 50mm hole ● Inner wall material: SUS304 # fog surface stainless steel plate. ● Thermal insulation material: hard polyurethane foam thermal insulation layer + glass fiber. |
|
Box door |
Open the door alone, add the door frame heating wire at the door frame to prevent condensation at the door frame at low temperature. |
|
Observation window |
W300 H400mm observation window is installed on the box door. Multi-layer insulating electric thermal coated glass can effectively provide heat preservation and prevent condensation. |
|
Specimen holder |
Stainless steel sample frame 2 layers, adjustable height, bearing weight of 30kg / layer. |
|
Refrigeration compressor |
German Bitzer Half-compact compressor |
|
Cooling medium |
Non-fluorine environmental protection refrigerant R404A R23 comply with environmental protection regulations, safe and non-toxic |
|

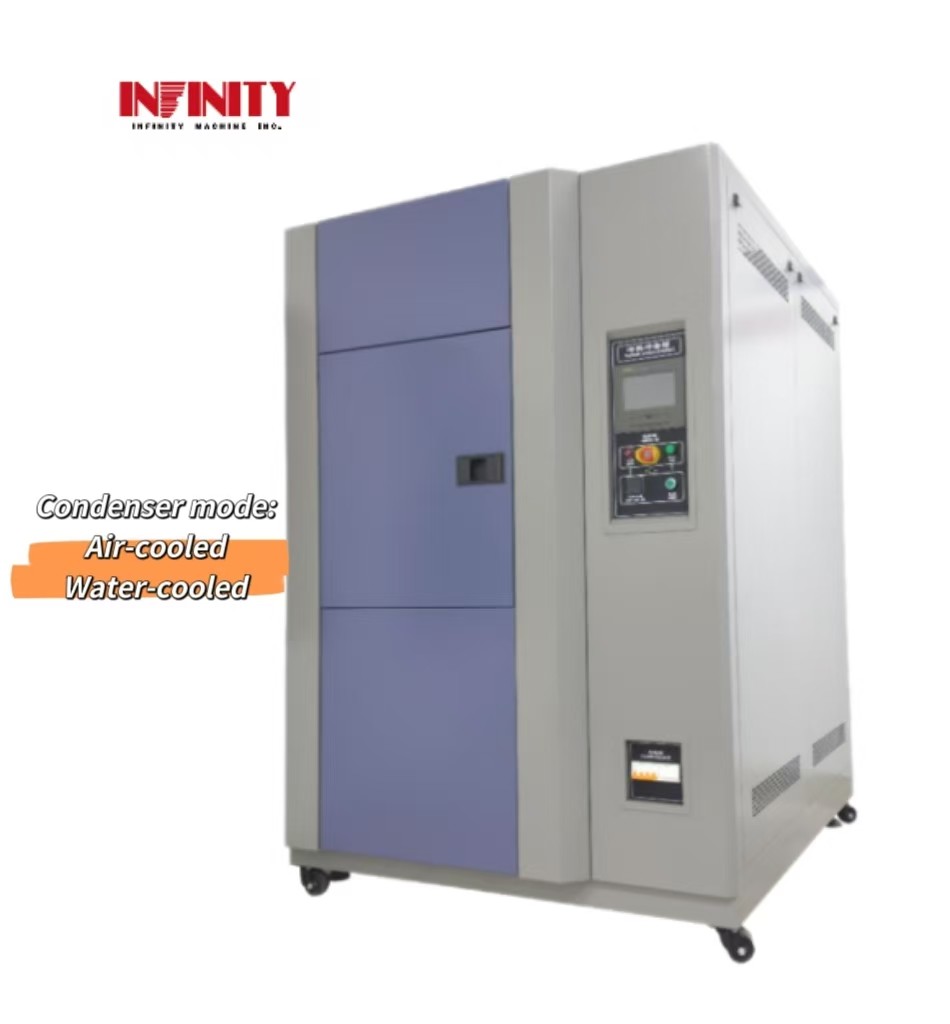

Condenser mode |
water-cooled |
|
Safety protection device |
Heater air defense incineration protection; heater over current protection; circulation fan over current overload protection; compressor high pressure protection;. Compressor overheating protection; compressor over current protection; over voltage under reverse phase protection; circuit breaker; leakage protection. |
|
Source |
AC380;V50Hz;22KW |
Our services:
Implementation Assistance,Installation,Training,Calibration,Preventive Maintencance,Technical Support,Upgrade,Repair & Parts.
Product Packaging:
The Environmental Test Chamber will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
