| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IE44 series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200SET PER MONTH |
| Product Name: | Salt Spray Test Chamber | Model: | IE44 Series |
|---|---|---|---|
| Applicable Standard: | GB/T242317-2008 Salt Spray Test Method | Laboratory Temperature Range: | RT+5℃~60℃ |
| Spray Mode: | Continuous Spray+intermittent Spray | Capacity: | 60L,90L,120L,160L,200L |
| Power: | Electronic | Warranty: | 1 Year |
| Highlight: | Electronic Salt Spray Test Chamber,Corrosion Test Salt Spray Test Chamber,PVC Material Salt Spray Test Chamber |
||
PVC Material Salt Spray Test Chamber Used for Electronic Salt Spray Corrosion Test
Model:IE44 series
Equipment Overview:
This series of equipment simulates the dispersion system composed of tiny salt droplets in the atmosphere, and is widely used to conduct salt spray corrosion tests on products in industries such as electronics, electrical engineering, automotive, motorcycle, hardware, plastics, FPC soft boards, etc. after electroplating, painting, coating, and anodizing to evaluate their surface corrosion resistance.
Applicable standards:
Features:
Specification parameter:
| Model |
IE4460L |
IE4490L |
IE44120L |
IE44160L |
IE44200L |
|
| Laboratory temperature range |
RT+5℃~60℃ |
|||||
| Pressure barrel temperature range |
RT+5℃~70℃ |
|||||
| Temperature fluctuation |
±0.5℃ |
|||||
| Temperature uniformity |
≦1.0℃ |
|||||
| Salt spray deposition amount |
1～3ml/h.80cm² |
|||||
| Spray Pressure |
1.00±0.01kgf/cm² |
|||||
| Spray mode |
Continuous spray+intermittent spray |
|||||
| Experimental effective internal volume |
150L |
270L |
576L |
800L |
1200L |
|
|
Inner box size: WxHxD(mm) |
600*450*400 |
900*600*500 | 1200*800*600 | 1600*1000*500 | 2000*1000*600 | |
|
Outer box size: WxHxD(mm) |
1050*700*950 | 1400*850*1100 | 2080*1050*1300 | 2430*1250*1400 | 2730*1250*1400 | |
| Box Structure |
●Indoor and outdoor chambers: The indoor and outdoor chambers are made of A-grade PVC polyethylene board, with a total thickness of 8mm, and are resistant to acid, alkali, and temperature up to 78 ℃. ●Laboratory sealing cover: The laboratory sealing cover is made of Grade A PVC board, with a thickness of 8mm and surrounding reinforcement of 13mm. It is resistant to acid, alkali, and temperature of 78 ℃ |
|||||
| Opening method |
Manual opening |
One-click automatic cover opening |
||||
| Water refill method | Automatic/manual dual water supply mode, with one set of automatic inlet water purifier | |||||
| Sample Holder | The laboratory basket frame adopts a plane indexing frame, the placing Angle is 15 degrees and 30 degrees, and the direction of falling fog and receiving fog is completely the same. | |||||
| Safety protection devices |
●When the salt water is low, the heater power is automatically cut off. ●When the temperature exceeds, the heater power supply is automatically cut off. ●When the laboratory water level is low, the heater power supply is automatically cut off. |
|||||
| Power supply | AC220V;50Hz;1.5KW | AC220;V50Hz;2.5KW | AC220;V50Hz;3.5KW | AC220;V50Hz;4.5KW | AC380;V50Hz;5KW | |

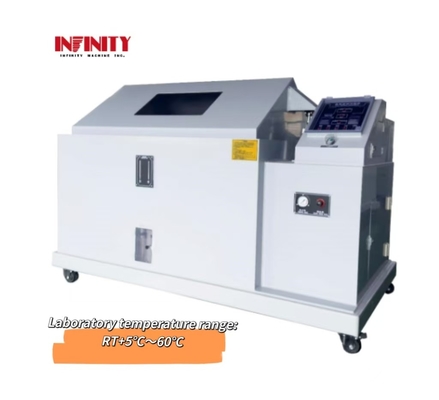

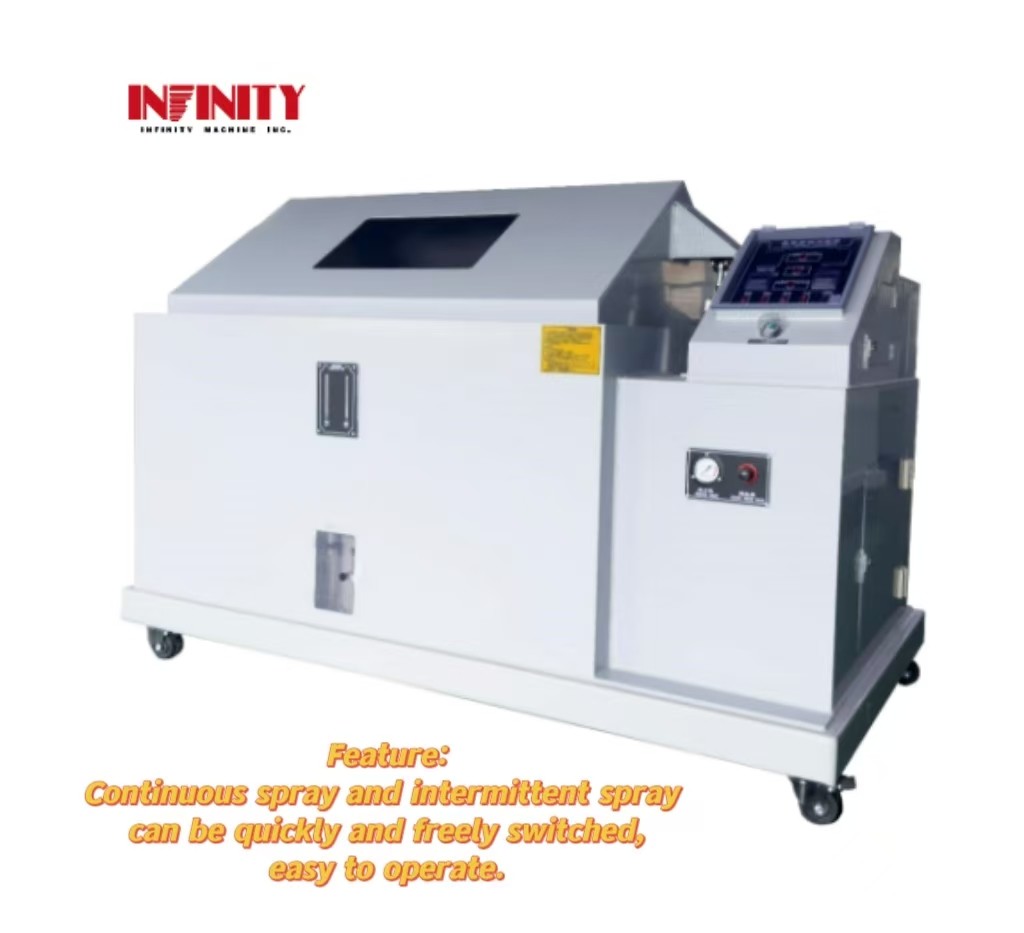

Equipment picture:
