| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | ID6500 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200SET PER MONTH |
| Product Name: | Packaging Incline Impact Testing Machine | Model: | ID6500 |
|---|---|---|---|
| Maximum Weight Of Test Piece: | 2000Kg | Maximum Allowable Specimen Size: | 1600x1600x1600（ L×W×H ） |
| Maximum Sliding Length Of The Specimen: | 7500mm | Impact Speed Range: | 1.305 ～ 5m/s |
| Impact Velocity Error: | ≤±5% | Power: | Electronic |
| Warranty: | 1 Year | ||
| Highlight: | Packaging Incline Impact Testing Machine,5m/s Incline Impact Testing Machine |
||

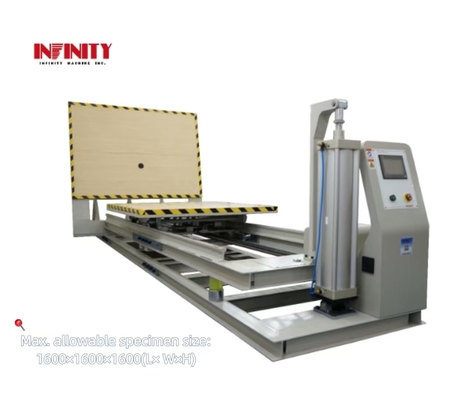

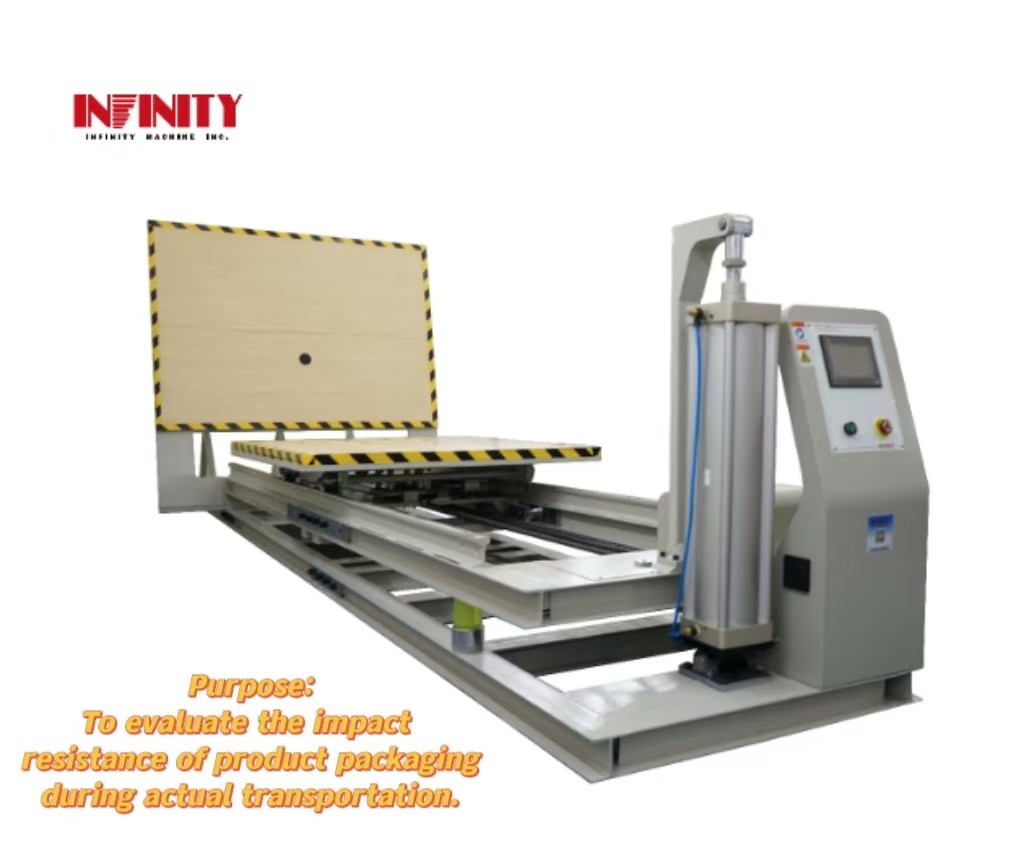

Packaging Incline Impact Testing Machine Impact Speed Range 1.305 ～ 5m/s
Model:ID6500
Application of equipment:
It is suitable for product packaging boxes to simulate the slope impact test caused by the package tilting and sliding during transportation or dock handling to test the reliability of the packaging.
Testing standards:
Features:
Specification parameters:
|
Project |
Specification |
| Maximum weight of test piece |
2000kg |
| Maximum allowable specimen size |
1600x1600x1600( L×W×H ) |
| Angle between impact surface and track plane |
90±1° |
| Maximum sliding length of the specimen |
7500mm |
| Impact speed range |
1.305 ～ 5m/s |
| Impact velocity error |
≤±5% |
| Impact plate size |
W1600×H1600 mm |
| Impact board description: |
1.The surface of the impact baffle should be flat, and its size should be larger than the size of the impacted part of the test sample. 2.The impact surface must have sufficient hardness. 3.When subjected to a load of 200kg on its surface, the deformation shall not exceed 2mm. 4．Install dampers on the baffle structure frame to prevent secondary impact. |
| Equipment size |
Length 11000 x Width 1600 x Height 1950mm |
| Device power supply |
AC220V 50HZ(or specify) |
Device control interface:
Support and Services:
Implementation Assistance,Installation,Training,Calibration,Preventive Maintencance,Technical Support,Upgrade,Repair & Parts.
Product Packaging:
The Impact Testing Machine will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
