| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IE10A series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 200SET PER MONTH |
| Product Name: | Programmable Constant Temperature And Humidity Test Chamber | Model: | IE10A Series |
|---|---|---|---|
| Temperature Range: | -70℃ ～ +150℃ | Humidity Control Range: | 20%R.H～98%R.H |
| Capacity: | 225L(Customizable) | Inside Dimensions: WxHxD(mm): | 500x750x600(Customizable) |
| Outside Box Size: WxHxD(mm): | 720×1650×1370(Customizable) | Power: | Electronic |
| Warranty Period: | 1 Year | ||
| Highlight: | Energy Saving Environmental Test Chamber,Temperature Humidity Test Chamber,Temperature And Humidity Environmental Test Chamber |
||
Energy Saving Environmental Test Chamber Suitable for Temperature and Humidity Test
Product model: IE10A series
Equipment Overview:
This series of constant temperature and humidity box is suitable for environmental simulation reliability test of industrial products, with the characteristics of temperature and humidity control accuracy and wide control range, and the performance indicators meet the requirements of GB5170.2.3.5.6-95 "Low temperature, high temperature, constant wet heat, alternating-wet heat test equipment for environmental test equipment of electrical and electronic products basic Parameter Verification Method".
Range of application:
Suitable for electrical, electronic, mechanical and other products, parts, materials and other products, high and low temperature, wet and hot test, simulate the temperature and humidity change conditions of products, parts, materials and other quality and reliability test.
Applicable standards:
Specification parameter:
|
Model |
IE10A225L |
|
Temperature range |
-70℃ ～ +150℃ |
|
Temperature fluctuation |
±0.5℃ |
|
Temperature uniformity |
≦2.0℃ |
|
Heating rate |
From -70℃ to +100℃ within 90min (No load, ambient temperature +25℃) |
|
Temperature decrease rate |
From +20℃ to -70℃ within 90min (No load, ambient temperature +25℃) |
|
Humidity control range |
20%R.H～98%R.H |
|
Humidity deviation |
±3.0％RH(＞75％RH)；±5.0％RH(≤75％RH) |
|
Humidity uniformity |
±3.0％RH (no load) |
|
Humidity fluctuation |
±1.0％RH |
|
Inside dimensions: WxHxD(mm) |
500x750x600 |
|
Outside box size: WxHxD(mm) |
720×1650×1370 |
|
Warm-keeping box |
● Outer wall material: high quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole ● Inner wall material :SUS304# stainless steel plate. ● Insulation material: hard polyurethane foam insulation layer + glass fiber. |
|
Door |
For a single door, install a heating wire in the door frame to prevent condensation in the door frame at low temperature. |
|
Inspection window |
The W300×H400mm observation window is installed on the door of the box, and multi-layer hollow electrothermal coated glass can effectively keep heat and prevent condensation. |
|
Lighting device |
1 LED lighting device, installed on the window. |
|
Sample holder |
Stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer. |
|
Refrigeration compressor |
France Tecumseh fully closed compressor(2 sets) |
|
Coolants |
Non-fluorine environmental refrigerant R404A, in line with environmental regulations, safe and non-toxic |
|
Condenser system |
Air-cooled |
|
Safety protection device |
Heater anti-burning protection; Humidifier anti-burn protection; Heater over-current protection; Humidifier over-current protection; Circulating fan over-current overload protection; Compressor high pressure protection; Compressor overheat protection; Compressor over-current protection; Over-voltage underinverse-phase protection; Circuit breaker; Leakage protection; Humidifier low water level protection; Tank low water level warning. |
| Power source |
AC380;V50Hz;7KW |

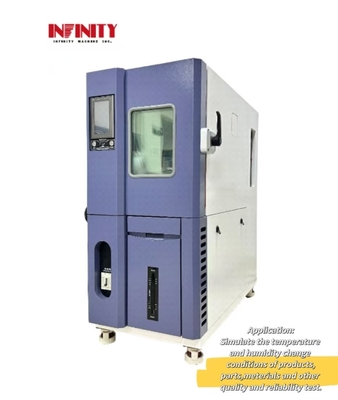

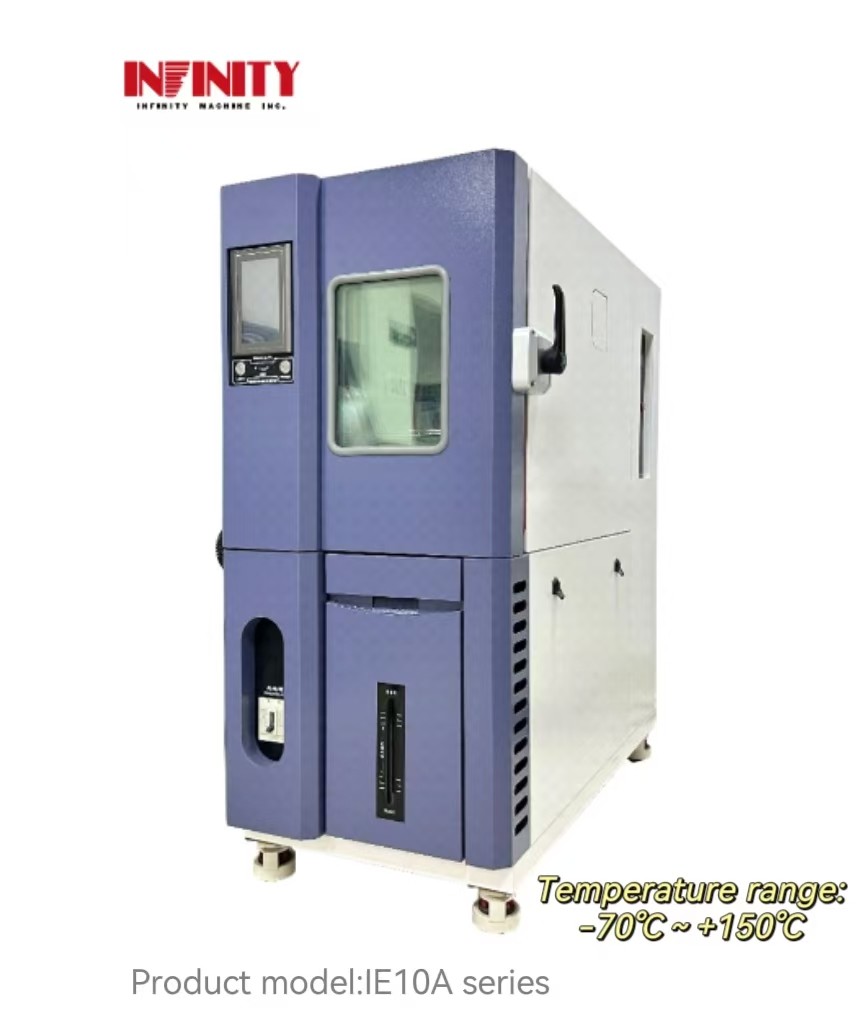

Equipment picture:
Support and Services:
The Environmental Test Chamber product technical support and services include:
- Installation and setup guidance
- Calibration and maintenance services
- Troubleshooting and repair assistance
- Software updates and upgrades
- Training and education on machine operation and safety
- Consultation on testing standards and procedures
