High Precision Rain Test Chamber For Rain Test Of Outdoor Lamps

                                           High Precision Rain Test Chamber Suitable for Rain Test of Outdoor Lamps

                                                                                             Model:IE50

Equipment Overview:

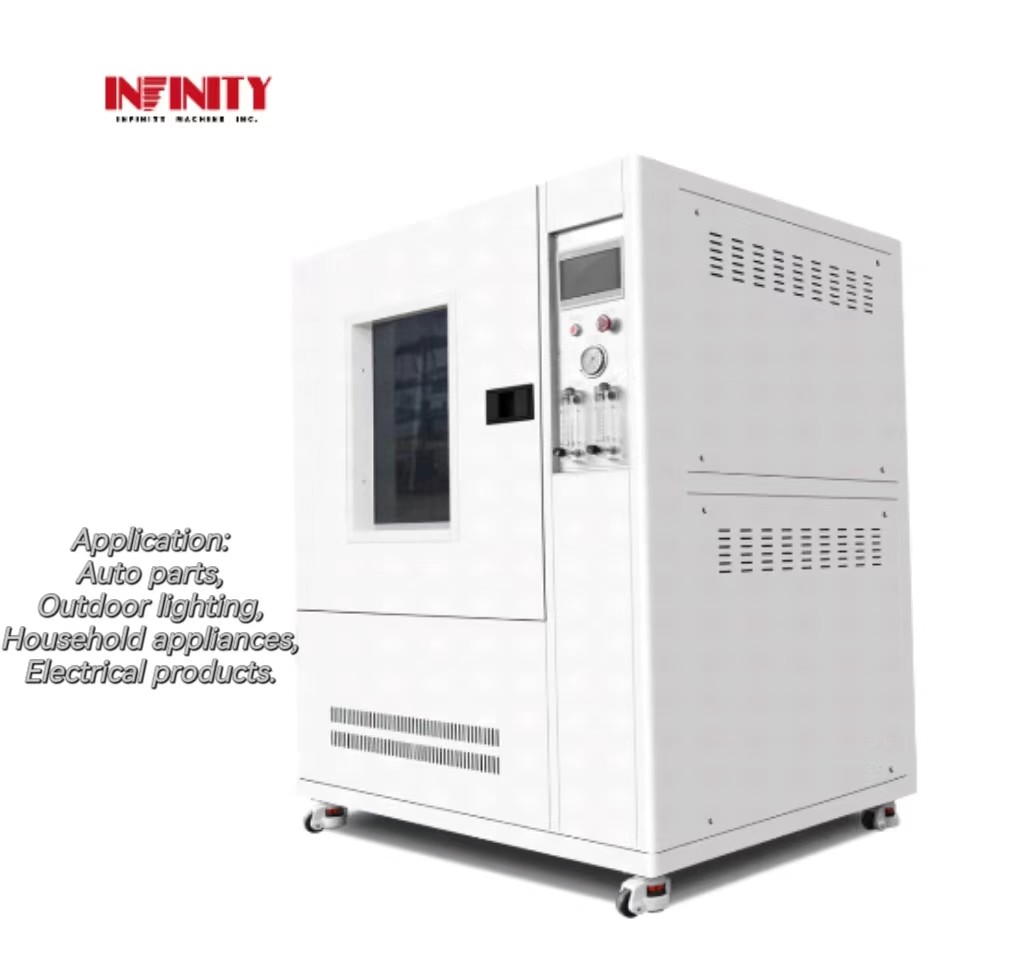

Application areas: outdoor lighting, household appliances, auto parts and other electronic and electrical products.
Equipment function: The main function of this equipment is to use it for electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and other products under simulated rain and splashing water climate conditions to affect the physical and physical properties of the products. Other related performance tests. After testing, verification is used to determine whether the performance of the product meets the requirements, so as to facilitate product design, improvement, verification and factory inspection.

Carried Standard:
Comply with IEC60529:1989 +A1:1999 +A2: 2013 "Degrees of protection provided by enclosures (IP Code)", GB4208-2017 "Enclosure Protection Levels (IP Code)" 14.2.1, 14.2.2, 14.2.3, 14.2 .4 Clauses and requirements of Figures 3 and 4.

Features:

• Suitable for IPX1, IPX2, IPX3, IPX4 waterproof grade testing of products.
• The shell is made of domestic high-quality steel plates, and the surface is spray-painted, making it beautiful and durable.
• The inner box, turntable, swing tube, etc. are all made of SUS304# stainless steel plates to ensure that they will not rust after long-term use.
• Box structure; built-in water tank, recycled water; automatic control of water inflow, and low water level alarm detection.
• There is a transparent observation window (made of tempered glass) on the door, and LED lighting is installed inside the box to facilitate observation of internal testing conditions.
• IPX1,2:The drip box adopts vacuum design and is made of stainless steel; the nozzle contact position adopts a brass cone design to facilitate the installation of water spray nozzles.
• IPX1,2:It has a compressed air drying function. After the test is completed, the excess water in the drip box can be drained out to avoid water accumulation and scaling that will block the pinholes. (Note: The user needs to provide air source)
• IPX3,4:The swing tube is driven by a domestic high-quality stepper motor. The speed and angle of the swing tube are accurately adjustable, and there is no out-of-step problem (out of step: it will cause the swing tube to move abnormally and hit the middle turntable axis, causing damage to the equipment. damage)
• Filtration measures: The standard high-precision filter can effectively filter impurities in tap water; the filter element can be replaced regularly.
• Turntable drive: Using domestic high-quality stepper motors, the speed and angle can be set (adjustable) on the touch screen. It is accurately and steplessly adjustable within the standard range, and can automatically control forward and reverse rotation (forward and reverse rotation: Suitable for power-on testing with samples to prevent wire winding).
• The test chamber is equipped with a sample power socket (AC220, 10A). The sample power on and off time can be controlled by the program: power outage (0-999min) - power on (0-999min) - power outage (0-999min), suitable for samples Power needs to be turned on and off during testing.
• The test time can be set on the touch screen, and the setting range is: 0-999min (adjustable).
• The core control system uses a 7-inch touch screen + Panasonic PLC. The electrical components use imported brands such as LS and Omron. The wiring technology meets the national standards. The electrical board layout is reasonable, the wiring is firm, and the markings are clear.
• The equipment base is equipped with 4 movable casters with brakes for easy movement and fixation.
• An embedded spare parts box is installed to store commonly used spare parts (such as hexagonal screwdrivers, filter elements, needles, etc.) for the convenience of user storage and use.

Specification Parameter:

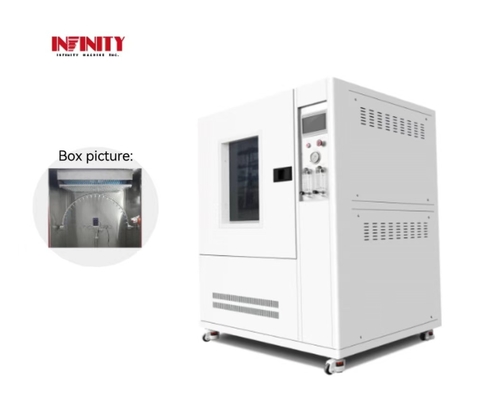

Box Picture:
