| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IZ1012A |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200SET PER MONTH |
| Product Name: | Washing Fastness Tester | Model: | IZ1012A |
|---|---|---|---|
| Application: | This Machine Is Designed For The Stability Of Textile Resistance To Water, Dry Cleaning, Soap Washing, And Color Fading After Chlorine Water Washing. | Standards: | Comply With ISO, BS, AATCC, JIS, And SDC Standards |
| Control Mode: | PLC+Touch Screen Display | Heating Rate: | 0.1-2°/min(adjustable) |
| Rotation Rate: | 40±2/rpm | Temperature Range: | Normal Temperature -95 ℃ |
| Highlight: | Easy Operation Washing Fastness Tester,Textile Test Washing Fastness Tester,Touch Screen Display Washing Fastness Tester |
||

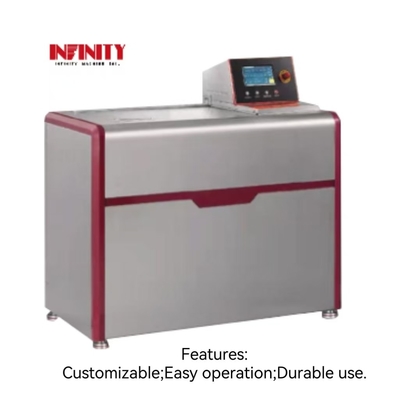

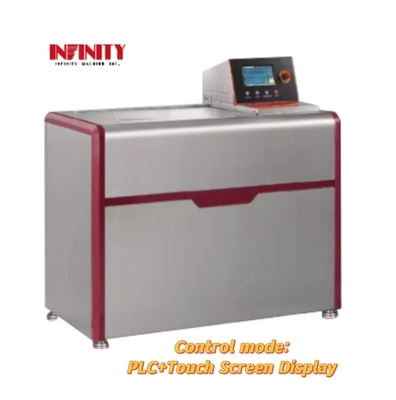

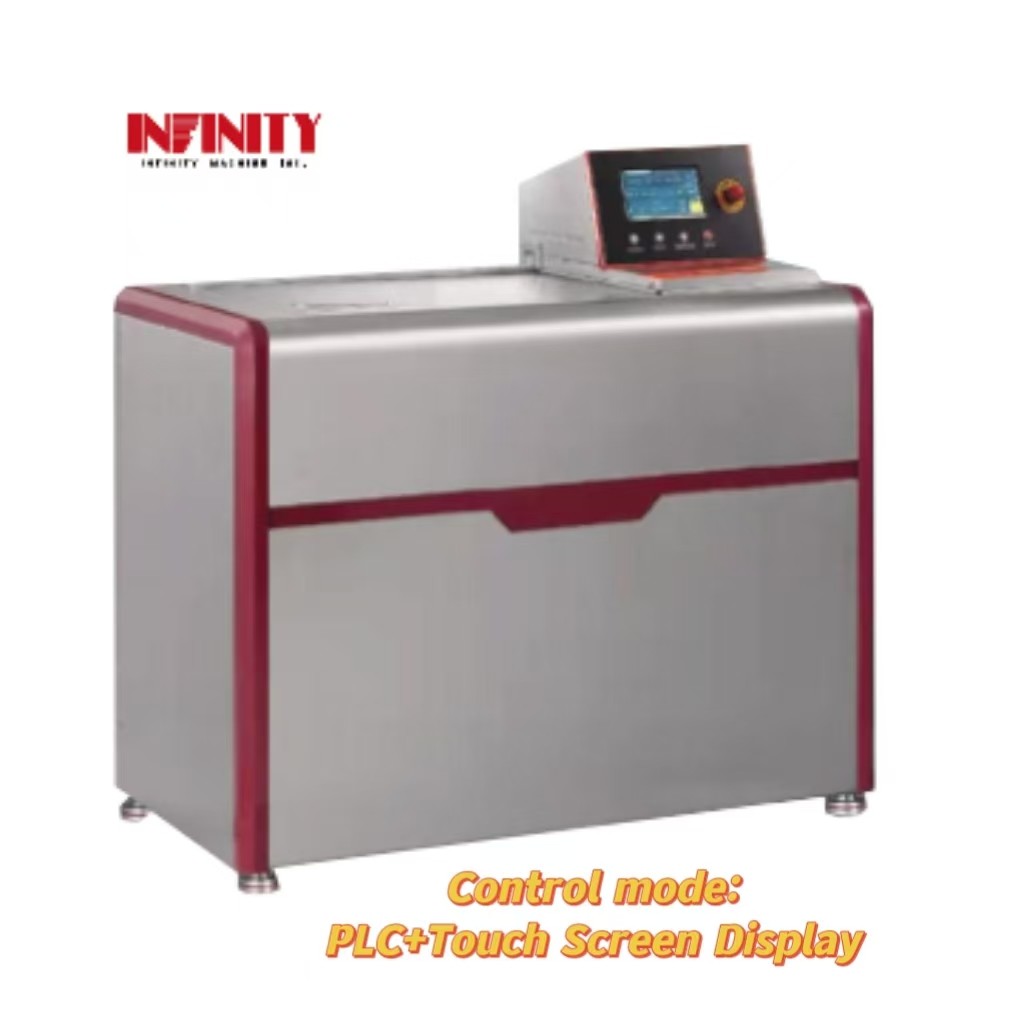

Easy Operation Touch Screen Display Washing Fastness Tester Suitable for Textile Test
Model:IZ1012A
Application:
This machine is designed for the stability of textile resistance to water, dry cleaning, soap washing, and color fading after chlorine water washing. It can also be used for testing the properties of dyeing, bleaching, and stain removers, as well as for making samples under normal temperature and pressure conditions. This test is an accelerated test aimed at understanding the color change of the tested textile in a short period of time. Each test is equivalent to approximately five daily washings of fading/discoloration.
Testing Principles:
The sample is sewn together with the specified standard lining fabric and washed under certain temperature and detergent conditions. The sample is stirred with detergent and stainless steel beads, then cleaned and dried. The discoloration of the sample and the staining of the lining fabric are evaluated using a color changing and staining gray card.
Meet testing standards:
The instrument design parameters comply with ISO, BS, AATCC, JIS, and SDC standards simultaneously.
• ISO 105 M&S C4A,5,37,
• P3B IWSTM 7,115,177,193,240,241
• AATCC 2,3,28,61,62,86,132,151,
• 190 FTMS 191-5610/5622 BS 1006 NEXT2,3,5
Features:
Specification parameters:
| Control mode |
PLC+Touch Screen Display |
| Heating rate | 0.1-2°/min(adjustable) |
| Rotation rate | 40±2/rpm |
| AATCC Steel cup capacity | 1200ml |
| ISO Steel cup capacity | 1550ml |
| Specifications: (optional) | 4(AATCC)+4(ISO)； 6(AATCC)+6(ISO) ；8(AATCC)+12(ISO) |
| Temperature range |
Normal temperature -95 ℃ |
| Temperature fluctuation | ±2℃ |
| Weight | About 90kg |
| Working power supply | AC380V 30A (50Hz or specify) |
Standard consumables: (optional)
|
Color card:
|
Attached cloth:
|
Detergent:
|
Configuration List:
1. Double cylinder water washing color fastness machine
2. 16 550ml stainless steel test cups
3. 16 1200ml stainless steel test cups
4. Wash 2000 stainless steel beads with water
5. 550ml stainless steel test cup water washed sealing gasket; 20 pieces per pack
6. 1200ml stainless steel test cup water washed sealing gasket; 20 pieces per pack
7. 550ml stainless steel test cup dry cleaning sealing gasket 20 pieces/pack
8. 1200ml stainless steel test cup dry cleaning sealing gasket 20 pieces/pack
9. 50 pieces of stainless steel dry cleaning sheets
10. DW type multi fiber lining fabric 10m/1 pack
11. American standard multi fiber lining fabric 1m/1 pack
12. ECE standard detergent B (excluding fluorescence) 2 barrels
13. 2 buckets of American standard detergent (excluding fluorescent)
