| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IZ1515 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200SET PER MONTH |
| Product Name: | Heavy-duty Simulated Transportation Vibration Test Bench | Model: | IZ1515 |
|---|---|---|---|
| Frequency Of Oscillation: | 1~300rpm | Display Frequency Accuracy: | ±1rpm |
| Testing Time: | 0~999.99 Hours | Mode Of Vibration: | Eccentric Circle Auto-cycles |
| Power: | Electronic | Warranty: | 1 Year |
| Highlight: | Vibration Frequency Digital Display Test Bench,Transportation Vibration Test Bench,Transportation Vibration Frequency Test Bench |
||

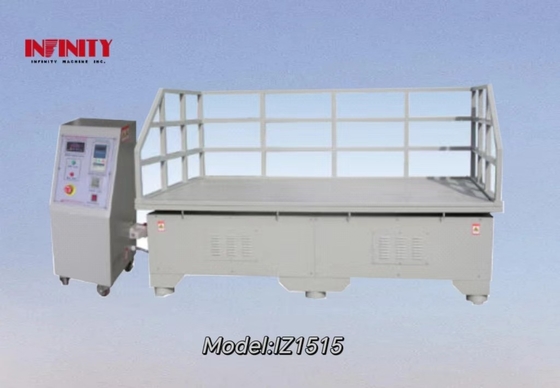

Transportation Vibration Test Bench with Vibration Frequency Digital Display
Model Number:IZ1515
Equipment use:
Suitable for transportation testing of toys, electronic parts, household items, IT, communications, furniture, gifts, and packaging that comply with U.S. and European transportation standards.
Standard test:
EN71 ISTA-1A/1B ANSI UL ASTM international shipping standards.

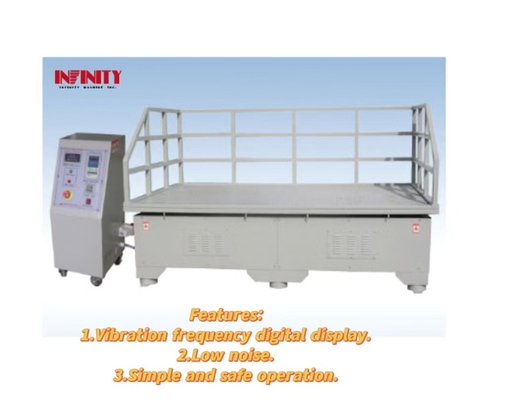

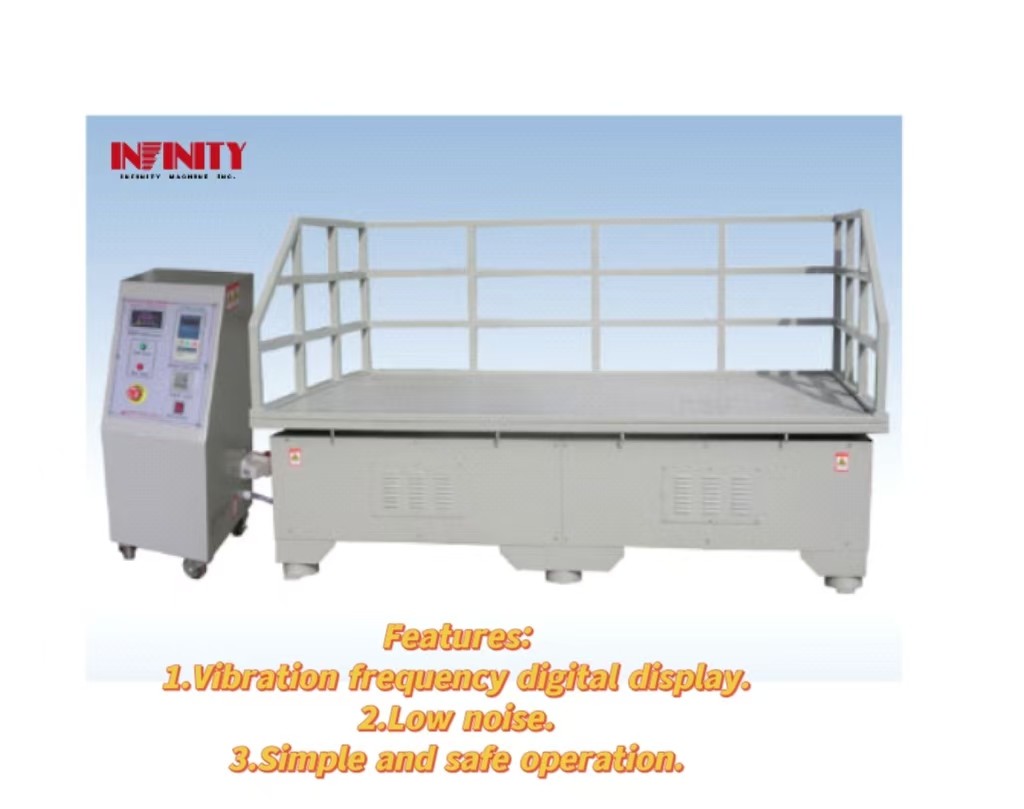

Features:
1.Vibration frequency digital display
2.Low noise: Adopt synchronous noiseless belt drive.
3.Test sample loading and unloading using slides: simple and safe operation.
4.The bottom plate of the machine is made of heavy-duty channel steel and vibration-absorbing rubber to ensure safe and stable operation.
5.Cyclic Vibration System: Meets US and European shipping standards.
Specifications:
| Model | IZ1515 |
|
Frequency of oscillation |
1~300rpm |
|
Display frequency accuracy |
±1rpm |
| Amplitude | 25.4mm (1 Inch) |
| Testing time | 0~999.99 hours |
|
Mode of vibration |
Eccentric circle auto-cycles |
| Maximum load-bearing capacity | 1000kg |
| Mesa size | 2500x 1500x 1500mm |
| Electrical machinery | 15HP (750W) |
| Equipment Size: (WxDxH) | 2600x 1600x 2150mm |
| Weight | About 3500kg |
| Source | AC220V 30A or specified by user |
The Package Test Machine product technical support and services include:
- Installation and setup guidance
- Calibration and maintenance services
- Troubleshooting and repair assistance
- Software updates and upgrades
- Training and education on machine operation and safety
- Consultation on testing standards and procedures
Packing and Shipping:
Product Packaging:
The Package Test Machine will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
Shipping:
The shipping of the Package Test Machine will be handled by a reliable and experienced shipping company. The transportation will be arranged to ensure timely delivery and safe handling of the product. The customer will be provided with the tracking information to monitor the shipment status.
