| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IE20-1800L |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 200SETS PER MONTH |
| Product Name: | Programmable Rapid Temperature Change Test Chamber | Model: | IE20-1800L |
|---|---|---|---|
| Temperature Range: | -70℃ ～ +150℃ | Humidity Control Range: | 20%R.H～98%R.H |
| Feature: | Temperature And Humidity Control Accuracy And Wide Control Range | Application: | Suitable For Electrical, Electronic, Mechanical And Other Products, Parts, Materials And Other Products |
| Power: | Electronic | Warranty: | 1 Year |
| Highlight: | Programmable Rapid Temperature Change Test Chamber,High Reliability Environmental Test Chamber,1800L Environmental Test Chamber |
||

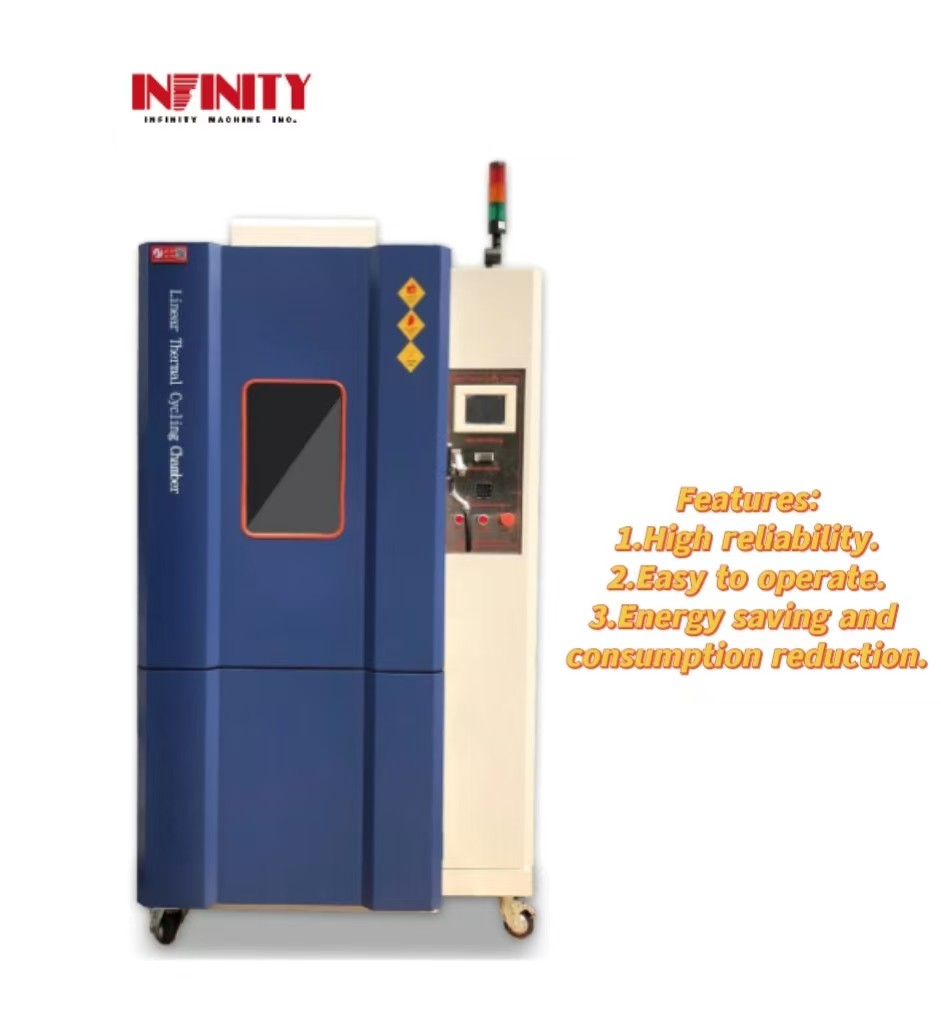

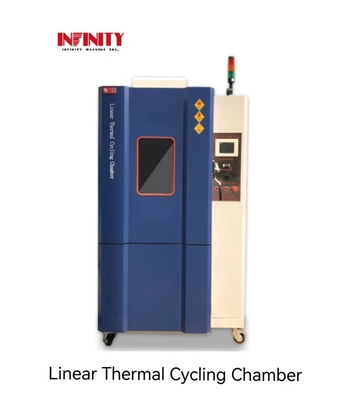

High Reliability Programmable Rapid Temperature Change Test Chamber 1800L
Model:IE20-1800L
Equipment Overview:
This series of constant temperature and humidity chambers is suitable for environmental simulation reliability testing of industrial products, with the characteristics of temperature and humidity control accuracy and wide control range. The performance indicators meet the requirements of GB5170.2.3.5.6-95 "Basic Parameter Calibration Method for Environmental Testing Equipment of Electrical and Electronic Products - Low Temperature, High Temperature, Constant Damp Heat, and Alternating Damp Heat Testing Equipment".
Range of application:
Suitable for electrical, electronic, mechanical and other products, parts, materials and other products, high and low temperature, wet and hot test, simulate the temperature and humidity change conditions of products, parts, materials and other quality and reliability test.
Applicable standards:
GB-2423.1-2008(IEC68-2-1) Test A: Low temperature test method.GB-2423.2-2008 (IEC68-2-2) Test B: High temperature test method.GJB360.8-2009(MIL-STD.202F)High temperature life test.GJBl50.3-2009(MIL-STD-810D)High temperature test method.GJBl50.4-2009(MIL-STD-810D)Low temperature test method.GB2423.3-2008 (IEC68-2-3) Test Ca: Constant Damp Heat Test Method.GB2423.4-2008 (IEC68-2-30) Test Db: Alternating Damp Heat Test Method.GJBl50.9-2009 (MIL-STD-810D) Wet Heat Test Method.
Features:
Specification parameter:
| Model |
IE20-1800L |
| Temperature range |
-70℃ ～ +150℃ |
| Temperature fluctuation |
±0.5℃ |
| Temperature uniformity |
≦2.0℃ |
| Heating rate |
From +100℃ to -50℃,within 35min (Linear 4℃/min) |
| Temperature decrease rate |
From -50℃ to +100℃,within 30min (Linear 5℃/min) |
| Humidity control range |
20%R.H～98%R.H |
| Humidity deviation |
±2.5％RH |
| Humidity evenness |
±2.0％RH(no-load) |
| Humidity fluctuation |
±1.0％RH |
|
Inner box size WxHxD(mm) |
1200×1000×1500 |
|
Outside box size WxHxD(mm) |
2050×1950×2200 |
| Insulated box |
● Outer wall material: high-quality carbon steel plate, surface treated with electrostatic color spraying. The diameter of the hole on the left side of the box is 100mm ● Inner wall material: SUS304 # matte stainless steel plate. ● Thermal insulation material: hard polyurethane foam thermal insulation layer+glass fiber. |
| Door | Single door, install door frame heating wire at the door frame to prevent condensation at the door frame in low temperature conditions. |
| Inspection window | Install a W 500 × H600mm observation window on the box door, and multi-layer hollow electric heating coated glass can effectively insulate and prevent condensation. |
| Lighting device |
One LED lighting device, installed on the window. |
| Sample holder | Stainless steel sample rack with 2 layers, adjustable layer height, and a load-bearing capacity of 30kg per layer. |
| Refrigeration compressor |
France Tecumseh fully closed compressor |
| Refrigerant | Non fluorine environmentally friendly refrigerant R404A, compliant with environmental regulations, safe and non-toxic |
| Condenser system |
Water-cooled |
| Safety protection device | Heater anti-burning protection; Humidifier anti-burn protection; Heater over-current protection; Humidifier over-current protection; Circulating fan over-current overload protection; Compressor high pressure protection; Compressor overheat protection; Compressor over-current protection; Over-voltage under-inverse-phase protection; Circuit breaker; Leakage protection; Humidifier low water level protection; Tank low water level warning. |
| Power supply |
AC380;V50Hz;30KW |
The Environmental Test Chamber product technical support and services include:
- Installation and setup guidance
- Calibration and maintenance services
- Troubleshooting and repair assistance
- Software updates and upgrades
- Training and education on machine operation and safety
- Consultation on testing standards and procedures
