| Product Name: | Packaging Zero Drop Testing Machine | Model: | ID5050 |
|---|---|---|---|
| Application: | It Is Used For Drop Test Of Large Furniture, Office Desk And Chair, Household Appliances And Packaging Etc. | Max Load (kg): | 300 |
| Dropping Height Range (mm): | 0～500 | Testing Way: | Edge, Side, Corner |
| Power: | Electronic | Warranty Period: | 1 Year |
| Highlight: | Large Furniture Drop Test Machine,Packaging Zero Drop Testing Machine,Large Furniture Drop Testing Machine |
||

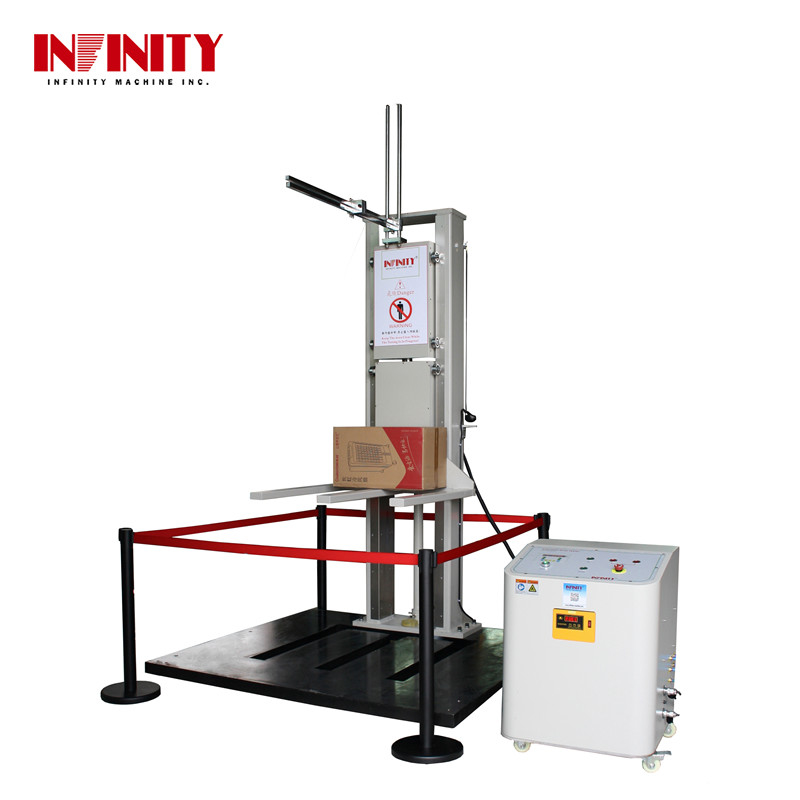

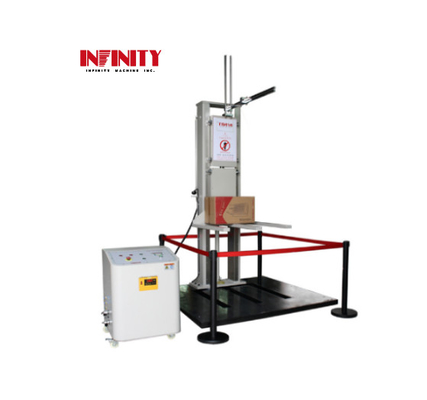

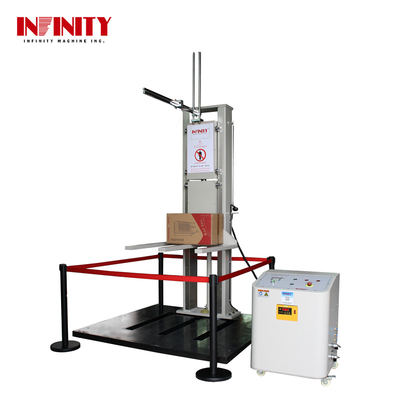

Packaging Zero Drop Testing Machine Used for Large Furniture Drop Test
Model Number:ID5050
Application:
It is used for drop test of large furniture, office desk and chair, household appliances and packaging etc., including naked drop (without packaging) and packaging drop (with packaging). Large packaging is rather heavy and hard to move up, the top surface and sides are less possible to drop, the drop height for test is low, thus this machine is required for test drop. This machine is specially used to test damage of packaging products after drop, and mainly used for assessing the drop bearing capacity of packaging product during transportation, loading and unloading, and further improving and perfecting the packaging design.
Specialties:
1.Testing support table adopts double track, and oil-pressure ascending system and the height is shown by digital display.
2.It is suitable for drop testing of the bigger size package, easy and fast for loading and unloading the testing samples on the support table.
3.It can test the package edges, sides and corners at very low testing height, the testing height can be started from zero.
4.Base board:(Impact side)High stiffness, high flatness, the deformation will not beyond 0.1mm on any 100 mm² area of the base board where load with 10kg static weight.
5.Ascending and descending control device: The dropping height is shown by digital display, the difference between real dropping height
and digital display height is within ±2%.The dropping height is defined as the distance between the lowest point of testing sample before dropping and the impacted table.
Specification:
| Model | ID5050 | |
| Max Load (kg) | 300 | |
| Dropping height range (mm) | 0～500 | |
| Max size of testing sample | L(mm) | 800 |
| Max size of testing sample | W(mm) | 800 |
| Max size of testing sample | H(mm) | 500 |
| Base size | L(mm) | 1000 |
| Base size | W(mm) | 1000 |
| Base size | H(mm) | 40 |
| Testing way | Edge, side, corner | |
|
Size of testing support table |
L(mm) | 1200 |
| Size of testing support table | W(mm) | 1200 |
| Size of testing support table | H(mm) | 2200 |
| Machine weight (kg) | 1800 | |
| Power consumption (KVA) | 3 | |
| Power supply | AC 220V±10%, 50Hz or specified by user | |
| Working condition | 25°± 3°, 55~85% RH | |
Related product recommendation:
Carton Drop Test Machine:This tester is suitable for testing the packing situation after free dropping and to evaluate the anti-impact strength in the process of shipping.
Support and Services:
The Drop Testing Machine product technical support and services include:
- Installation and setup guidance
- Calibration and maintenance services
- Troubleshooting and repair assistance
- Software updates and upgrades
- Training and education on machine operation and safety
- Consultation on testing standards and procedures
