| Product Name: | Packaging Incline Impact Testing Machine | Model: | ID6001 |
|---|---|---|---|
| Testing Standard: | ISO 10531:1992 ;GBT-4857.22 | Power: | Electronic |
| Warranty: | 1 Year | ||
| Highlight: | 1500kg Load Capacity Impact Testing Machine,Flexible Motor Control Impact Testing Machine,Packaging Incline Impact Testing Machine |
||

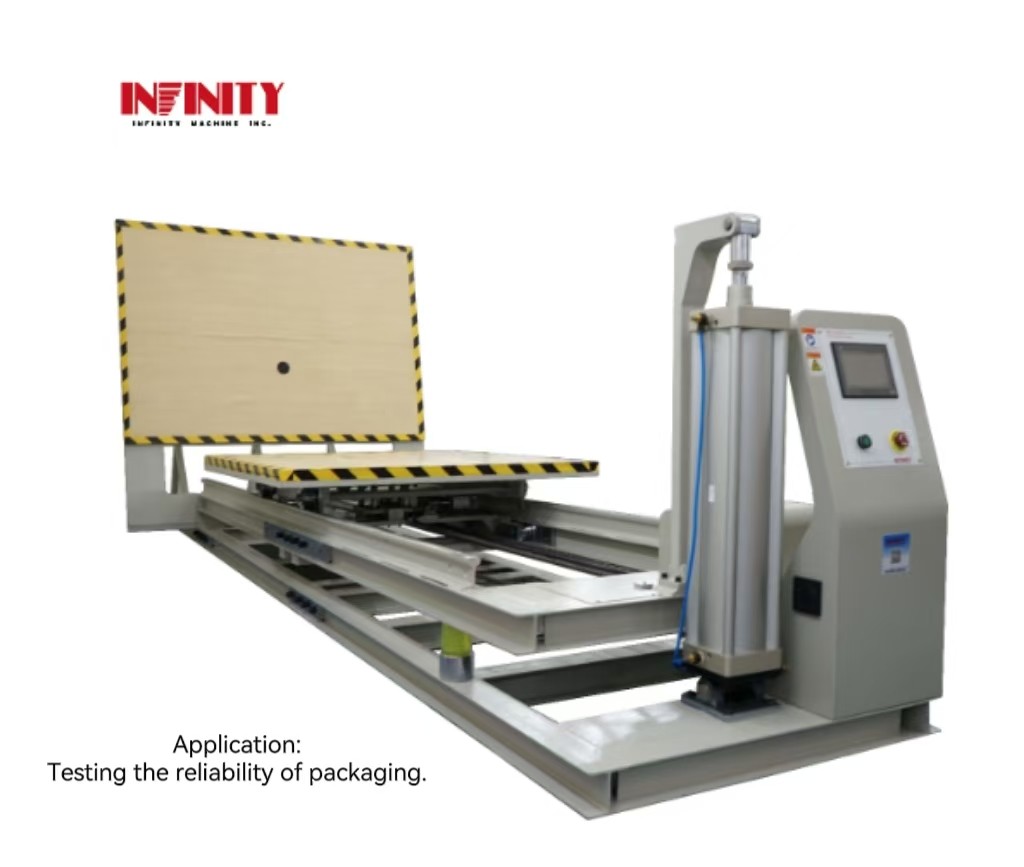

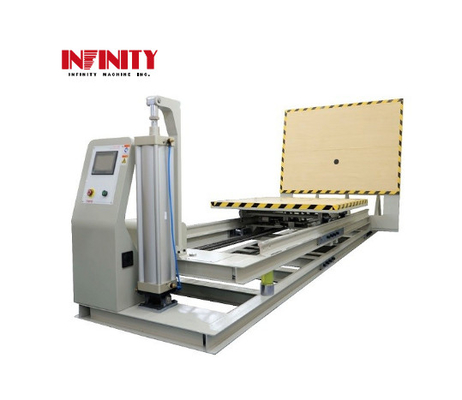

Packaging Incline Impact Testing Machine
Model Number:ID6001
Application of equipment:
It is suitable for product packaging boxes to simulate the slope impact test caused by the package tilting and sliding during transportation or dock handling to test the reliability of the packaging.
Testing standard:
1.ASTM D880 Standard Test Method for Impact Testing for Shipping Containers and Systems
2. ISO 10531:1992
3.GBT-4857.22
4.GB/T4857.11 Horizontal impact test method
Features:
1.Flexible motor control accurately positions the impact pulley, which is easy to operate and accurately positioned to achieve the required speed impact value.
2.The height of the impact pulley is relatively low, and moving the impact pulley nearly horizontally is beneficial to the installation of test pieces.
3.After the impact is ready, the test rail automatically rises and falls to the 10-degree slope.
4.The operation method is controlled away from moving parts to fully ensure the safety of testers.
5.During installation, customers only need to fix the machine on the ground. There is no other complicated operation or installation, and the test is convenient.
6.The impact block can be fixed on the impact plate, or the impact head can be disassembled for flat impact.
7.The test method is simple, and the test is completed in two steps; the impact speed is displayed in real time.
Specification parameter:
|
Project |
Specification |
|
Maximum weight of test piece |
1500Kg |
|
Maximum size of test piece allowed |
1600x1600x1600( L×W×H ) |
|
The angle between the impact surface and the track plane |
90±1° |
|
Maximum sliding length of test piece |
4000mm (or Customized) |
|
Impact speed range |
1.305 ～ 3.78 m/s |
|
Impact velocity error |
≤±5% |
|
Impact plate size |
W1600×H1600 mm |
|
Impact plate description |
1.The surface of the impact baffle should be flat and its size should be larger than the size of the impacted part of the test sample. 2.The impact surface must be sufficiently hard. 3.When its surface bears a load of 200kg, the deformation shall not exceed 2mm. 4.A damper is installed on the baffle structure frame to prevent secondary impact. |
|
Equipment size |
L7600× W1600× H 1950 mm |
|
Device power supply |
AC220V 50HZ(or specify) |
Device control interface:
Related product recommendation:
1.IZOD digital impact testing machine:This device is used to measure the impact resistance of various tough material specimens under specific angles and loads.
2.Falling ball impact testing machine:This machine adopts PLC control mode, and the suction nozzle uses vacuum negative pressure to clamp steel balls of different sizes. When the drop button is pressed, the suction nozzle clamps and instantly releases the steel ball. The steel ball will undergo a free fall test to impact the surface of the sample and test its impact resistance. It is suitable for impact testing of electronic products such as mobile phones, tablets, and speakers.
3.Glass Shot Bag Impact Testing Machine:This device is designed according to the GB/T962-1999-6.11 standard and meets the impact test requirements for safety laminated glass used in buildings, testing the impact resistance of safety laminated glass.
Our services:
Implementation Assistance,Installation,Training,Calibration,Preventive Maintencance,Technical Support,Upgrade,Repair & Parts.
