| Product Name: | Headphone Torsion Life Testing Machine | Product Model: | IZ1011 |
|---|---|---|---|
| Application: | It Is Suitable For The Torsion Life Test Of The Rotating Shaft Of The Headset. | Feature: | Low Noise, Stable And Reliable Performance, Durable. |
| Power: | Electronic | Warranty: | 1 Year |
| Highlight: | Headphone Torsion Life Testing Machine,Torsion Life Testing Machine For Headphone,High Speed Torsion Testing Machine |
||

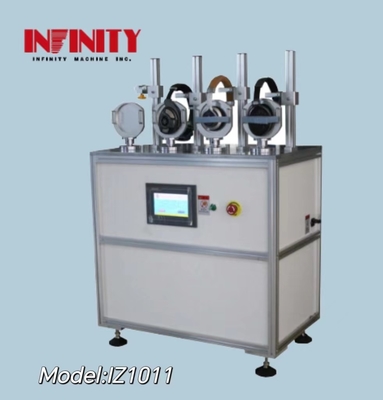

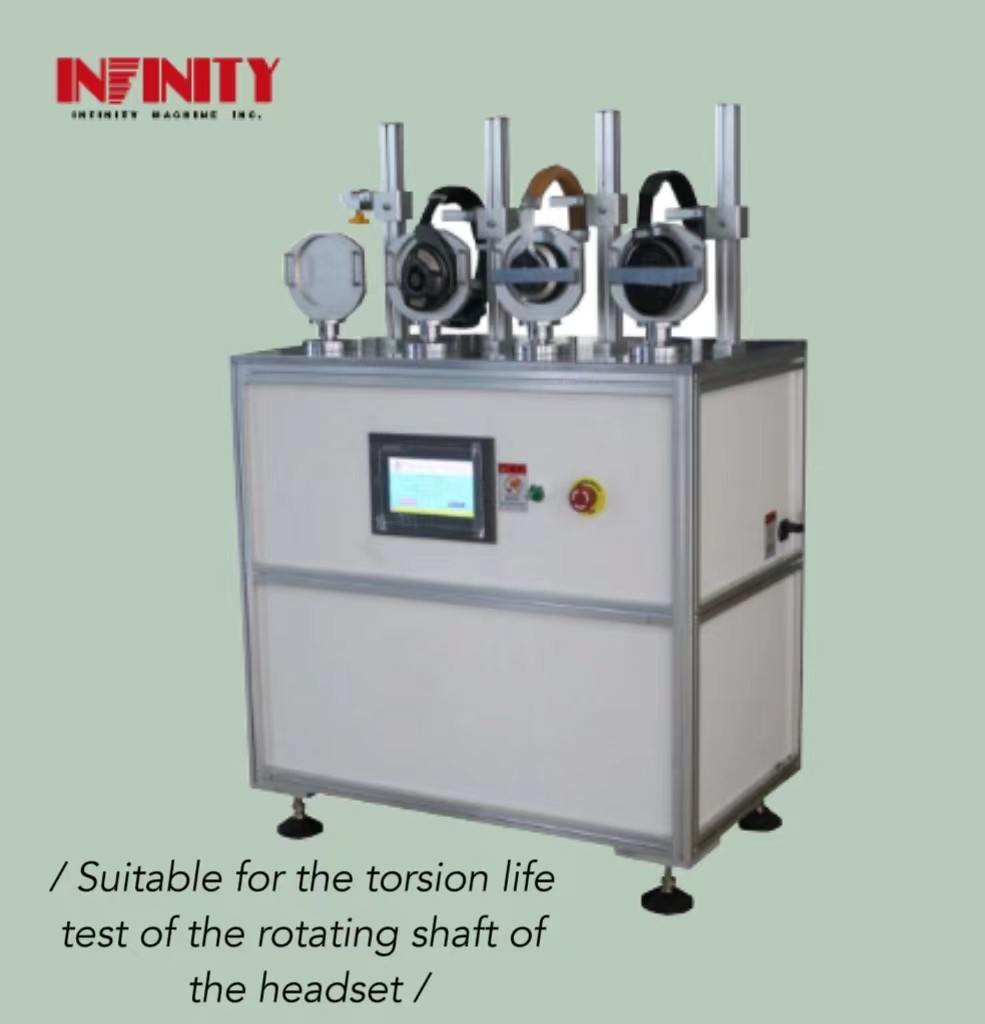

Headphone Torsion Life Testing Machine
Product model:IZ1011
Application:
It is suitable for the torsion life test of the rotating shaft of the headset. The torsion test method is: the left and right receiver of the earphone is fixed on the torsion fixture, the head band is fixed on the support frame, and the test Angle and rotation speed are set. After many tests, remove the earphone to detect the performance of the rotating shaft.
Features:
1.Using TFT 7 inch true color LCD touch screen and Mitsubishi programmable controller for action control.
2.Set rotation angle, test speed, test times, and pause time of test interval can be set.
3.Using the Panasonic servo motor drive, high-speed and low noise, stable and reliable performance, durable.
4.It can synchronously test the twist of 4 groups of headsets, and the twist Angle is accurate and adjustable.
Technical parameter:
| Model: | IZ1011 |
| Drive: | AC servo motor |
| Test Angle: | 5~360° can be set |
| Test speed: | From 10 to 60 times / min |
| Test times: | 1~999999 times can be set |
| Unit Size: (WxDxH) | About W850 x D360 x H 1200mm |
| Weight: | About 125kg |
| Source: | AC220V 3A Or is specified |
