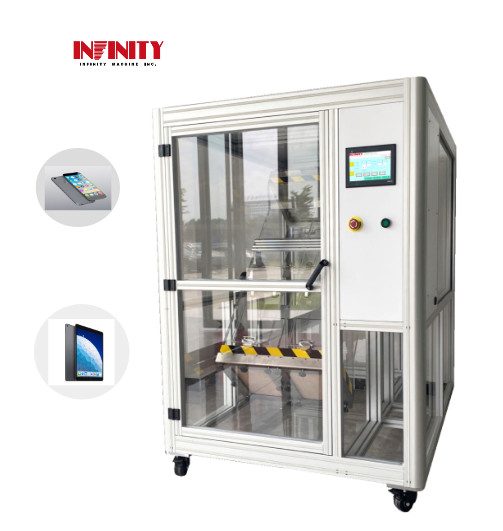

Dual Stations Tumble Drop Test Machine for Mobile Phones Rotational Drop Test

Dual Stations Tumble Drop Test Machine for Mobile Phones Rotational Drop Test

  • Dual Stations Tumble Drop Test Machine for Mobile Phones Rotational Drop Test
  • Dual Stations Tumble Drop Test Machine for Mobile Phones Rotational Drop Test
Dual Stations Tumble Drop Test Machine for Mobile Phones Rotational Drop Test
Product Details:
Place of Origin: Made In China
Brand Name: Infinity Machine
Certification: CE ISO
Model Number: IB1151
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: L/C, T/T
Supply Ability: 200SET PER MONTH
Contact Now
Detailed Product Description
Product Name: Tumble Drop Test Machine Model: IB1151
Implementation Standards: IEC 60068-2-32；GB/T 2423.8-1995 Power: Electronic
Warranty: 1 Year
Highlight:

Mobile Phones Drop Test Machine

,

Dual Stations Drop Test Machine

,

Rotational Drop Test Machine

Tumble Drop Test Machine

Product Model:IB1151





Equipment use:

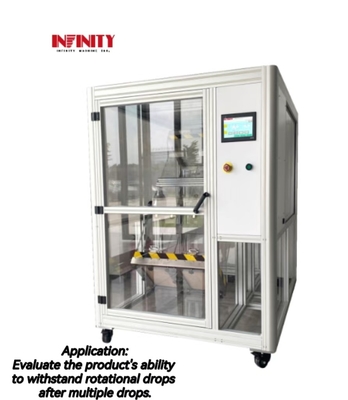

This equipment is suitable for rotational drop testing of mobile phones, smart tablets, and various small portable electronic products to evaluate the product's ability to withstand rotational drops after multiple drops.

Dual Stations Tumble Drop Test Machine for Mobile Phones Rotational Drop Test 0

Features:

  • Designed with dual stations to meet simultaneous testing of 500 and 1000mm drop heights.
  • Using Panasonic servo motor drive to set the rotation speed, ensuring it can stop at any position with low noise and smooth operation.
  • Using touch screen control, you can set the number of tests, test speed, and have a power-down memory function. It will automatically stop when the set number of times is reached.
  • Adopt safety door design: open the safety door, the drum stops running, and close the safety door before it can run.

Specifications:

             Project

                                        Specification

Implementation standards

IEC 60068-2-32；GB/T 2423.8-1995

Drop height

500(1set)1000mm(1set)

Maximum weight of test piece

    5KG

Drop frequency

      1~40 Times / min (customized)

Roller width

   300mm

Barrel material

    Transparent acrylic

Falling plank material

3mm thickness steel plate+19mm Thickness solid wood board (or specified)

Number of drops

1~9999999 (customized)

Machine size (WxDxH)

W1445xD1560xH1650mm

Machine weight

   378KG

Working power supply

     AC220V 5A 50Hz

Equipment power

    750Ｗ





Dimensions:(mm)

Dual Stations Tumble Drop Test Machine for Mobile Phones Rotational Drop Test 1



Recommended products:

1.Repeated Slight drop Test Machine:This machine is suitable for repeated micro drop testing of electronic products such as mobile phones, tablets, laptops, e-books, etc. Intended to simulate the testing of products that are lightly dropped onto surfaces such as desktops, metal surfaces, marble slabs, etc. during use, in order to evaluate the impact of slight drops on the overall product performance, the durability of the shell, and the resistance of the internal structure of the product to light drops.

2.Carton drop test machine:Suitable for testing the packing situation after free dropping and to evaluate the anti-impact strength in the process of shipping.

3.Directional drop test machine:Suitable for drop testing of mobile phones, tablets, and various small consumer electronic products, it can accurately impact the parts that need to be tested to evaluate the product's ability to withstand drops.



Supplier's popular products:

Dual Stations Tumble Drop Test Machine for Mobile Phones Rotational Drop Test 2Dual Stations Tumble Drop Test Machine for Mobile Phones Rotational Drop Test 3

Dual Stations Tumble Drop Test Machine for Mobile Phones Rotational Drop Test 4
