| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IF2441A |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Product Name: | Servo Controlled Universal Tensile And Compressive Testing Machine | Product Model Number: | IF2441A |
|---|---|---|---|
| Force Capacity: | 5000Kg(50KN) | Unit Of Force Value: (switchable): | N, KN, Gf,Kgf, Lbf, Mpa,Lbf/In², Kgf/mm² |
| Force Value Resolution: | 1/500,000 | Force Accuracy: | ±0.5% |
| Motor: | AC Servo Motor | Warranty: | 1 Year |
| Highlight: | High Intelligence Universal Tensile Testing Machine,Compressive Universal Tensile Testing Machine,50KN Universal Tensile Testing Machine |
||

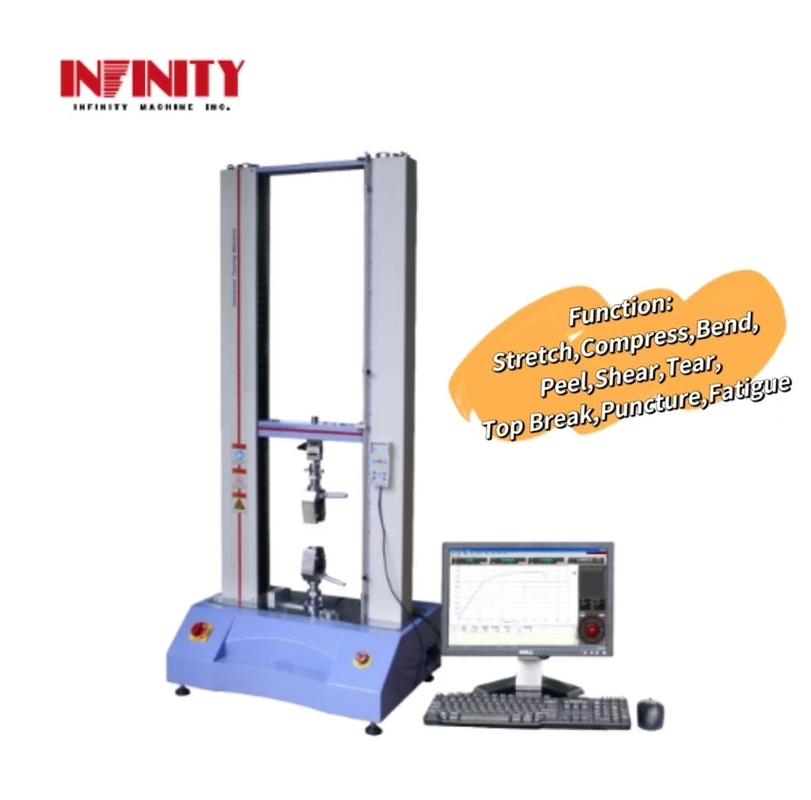

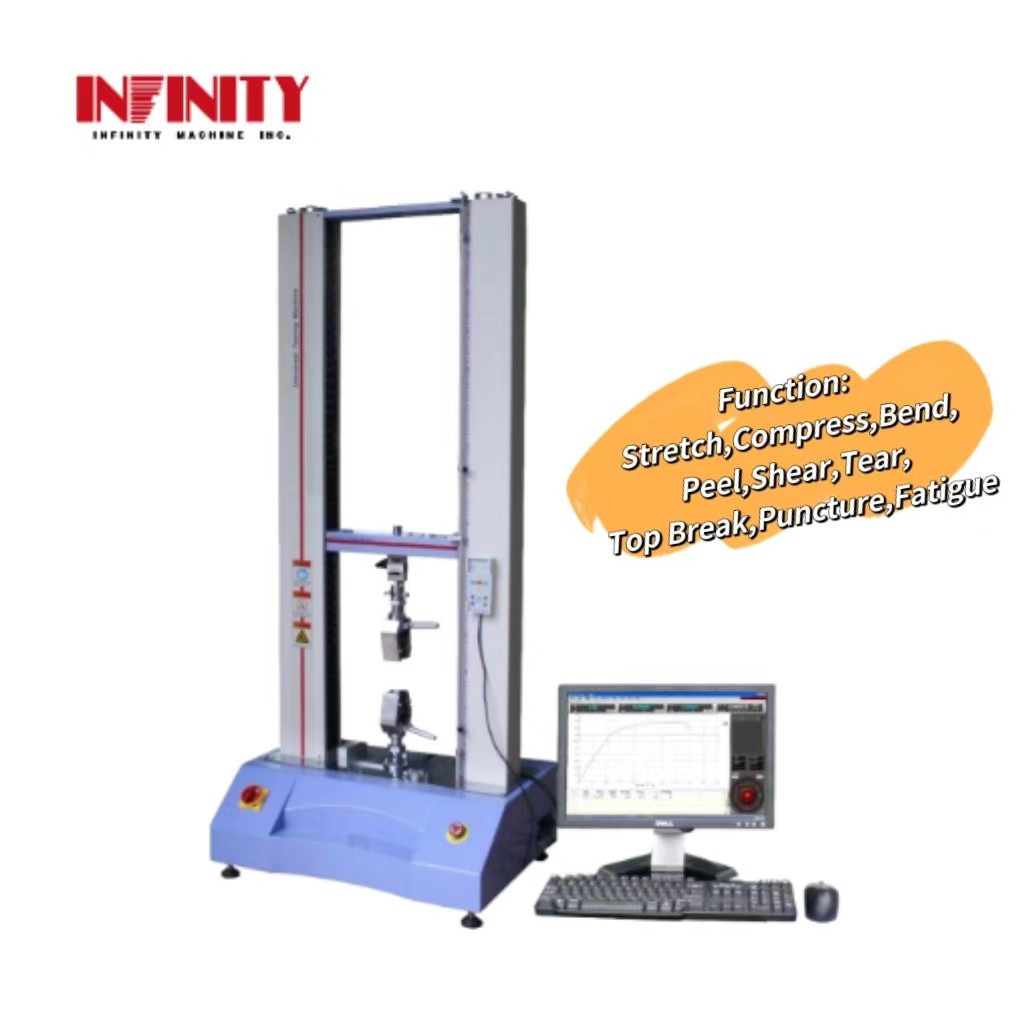

Servo Controlled Universal Tensile and Compressive Testing Machine
Product Model Number:IF2441A
Application:
Suitable for metal wire, metal foil, metal sheet and metal tape, rubber, plastic, sea/foam, waterproof material, wire and cable, textile, net rope, non-woven fabric and other materials tensile, compression, bending, stripping, shearing, tearing, bursting, puncture, fatigue and other tests.
Standards:
This testing machine is based on the <electronic universal testing machine> GB/T 16491-2008, <General Technical requirements for Testing machine> GB2611-2007, <Testing of tensile and compression testing machine force measurement system>, <extension meter technical conditions> JB6146-2007, <General Specifications for the Licensing and Assessment of Manufacturing Measuring instruments>JJF1246-2010 standard manufacturing.

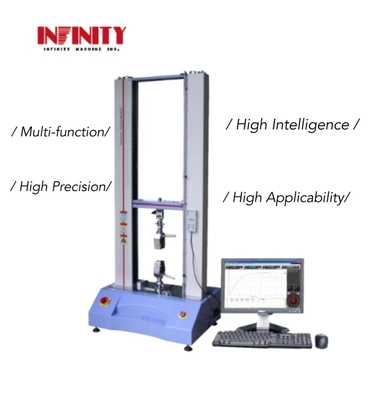

Features:
1.Multi-function:
With different fixtures, tensile, compression, bending, shearing, tearing, stripping and other tests can be carried out.
2.High precision:
Japan Panasonic AC servo motor drive, high-precision no-backlash ball screw transmission, with the United States TRANSCELL high-precision explosion-proof LOADCELL, force accuracy up to: ±0.5%; Displacement accuracy up to 0.01mm.
3.High intelligence:
Automatic identification of fracture, automatic return, curve multi-combination functions, such as load-displacement, load-time, displacement-time stress-strain, strain-time, stress-time and other curve analysis.
4.High applicability:
9 languages can be switched: simple/traditional Chinese, English, Japanese, German, French, Russian, Spanish, Portuguese, universal.
Specification parameter:
| Model: | IF2441A |
| Force capacity: | 5000Kg(50KN) |
| Unit of force value: (switchable) | N, KN, gf,Kgf, Lbf, Mpa,Lbf/In², Kgf/mm² |
| Force value resolution: | 1/500,000 |
| Force accuracy: | ±0.5% |
| Test trip: | 600mm |
| Effective width of test space: | 400mm |
| Testing speed: | 0.01~500mm/min |
| Velocity accuracy: | ±0.5% |
| Displacement resolution: | 0.01mm |
| Motor: | AC servo motor |
| Transmission rod: | High precision ball screw |
| Equipment Size: (WxDxH) | 830x670x1940mm |
| Weight: | 350 Kg |
| Power: | AC220V 50/60Hz or specified by user |
Testing software:
Professional test report:
A report developed based on Crystal Reports version 10.0, which can automatically calculate strength, elastic modulus ERP0.2,ReL,ReH,Extension rate, report header and content can be freely modified, and curves are automatically generated.
Can be exported in Excel, PDF, and other formats.
Our services:
Implementation Assistance,Installation,Training,Calibration,Preventive Maintencance,Technical Support,Upgrade,Repair & Parts.
