High Precision Directional Drop Testing Machine For Electronic Product Drop Test

Product Details:

Place of Origin:	Made In China
Brand Name:	Infinity Machine
Certification:	CE ISO
Model Number:	ID1200

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiate
Packaging Details:	Clear sheet+sponge+wood carton
Delivery Time:	20-30 days after order confirmed
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200SET PER MONTH

Contact Now

Detailed Product Description

Product Name:

Directional Drop Testing Machine

Model:

ID1200

Warranty:

1 Year

Power:

Electronic

Highlight:

High Precision Drop Testing Machine

Electronic Product Drop Testing Machine

Directional Drop Testing Machine

Directional Drop Testing Machine

Model Number :ID1200

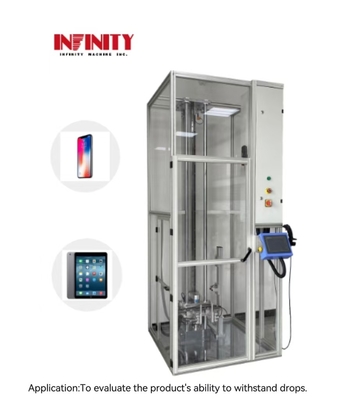

Application of equipment:

This equipment is suitable for drop testing of mobile phones, tablet computers, and various small consumer electronic products. It can accurately impact the parts that need to be tested to evaluate the product's ability to withstand drops.

Features:

Using AC servo motor + synchronous belt to adjust the drop height, the height positioning is accurate.
Adopts color LCD touch screen + PLC for action control and setting. The drop height can be set directly. It will automatically stop when reaching the set height. The number of drops can be preset and has a power-off memory function. All controls are completed on the touch screen: drop, Reset, height setting, times setting, counting, etc.
The product is released at a height of 300mm, and the product drop angle is close to the test setting angle.
A variety of drop boards are available: steel plates, wooden boards, and marble boards, which are suitable for testing requirements in many countries.
Automatic counting (number of falls) function, switchable between maintain fall mode/free fall mode.
It is protected by a protective cover all around, and a safety door is used at the entrance to ensure the safety of operators.
The software can set and save the compensation height formula, up to 999 groups can be saved. Compensation can be quickly switched when applying different size specimen compensation.

Specification parameter:

Project	Specification
Implementation standards	JIS C 0044 ；IEC 60068-2-32
Drop height	300~2000mm(Or customized)
Maximum weight of specimen allowed	3Kg
Maximum sample size allowed	Suitable for 17-inch notebooks, maximum length 40cm
Drop medium	Steel plate, 19mm wooden board, marble plate (or specified)
Sample fixture method	Clamping type
Number of drops	1~999999 (Can be set)
Gas source	≥0.5MPa
Drop acceleration	-5%(Above 0.95G)
Machine size (WxDxH)	W1200xD1200xH2200mm
Machine weight	Around 460Kg
Working power supply	AC220V 5A 50Hz

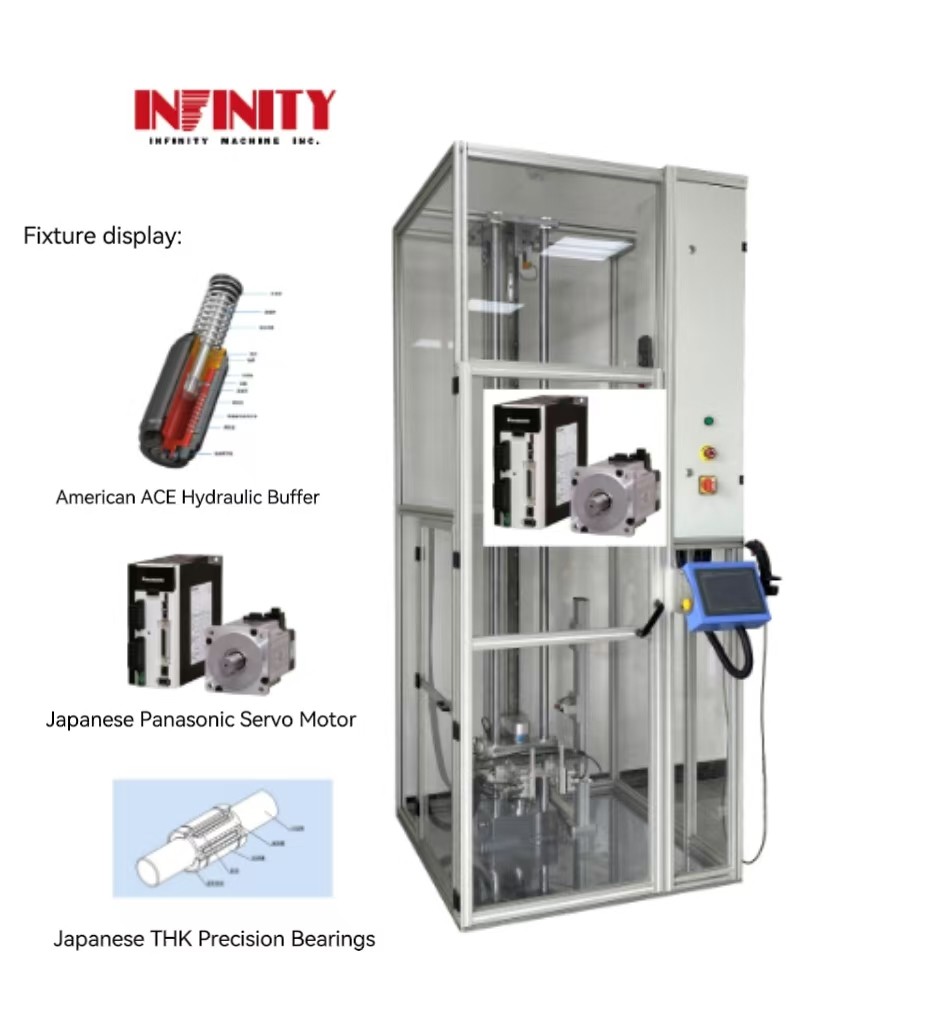

Clamp display:

Clamping method. 0 degree, 45 degree, 90 degree with automatic positioning fixture

High Precision Directional Drop Testing Machine For Electronic Product Drop Test 0

Dimensions:(mm)
