| Product Name: | Programmable Composite Salt Spray Test Chamber | Model: | IE41 Series |
|---|---|---|---|
| Temperature Range: | 5℃ ～ +85℃ | Power: | Electronic |
| Cpacity: | 150L,270L,576L,800L,1200L | Warranty: | 1 Year |
| Highlight: | Performance Composite Salt Spray Testing Machine,Stable Composite Salt Spray Testing Machine,Programmable Composite Salt Spray Testing Machine |
||

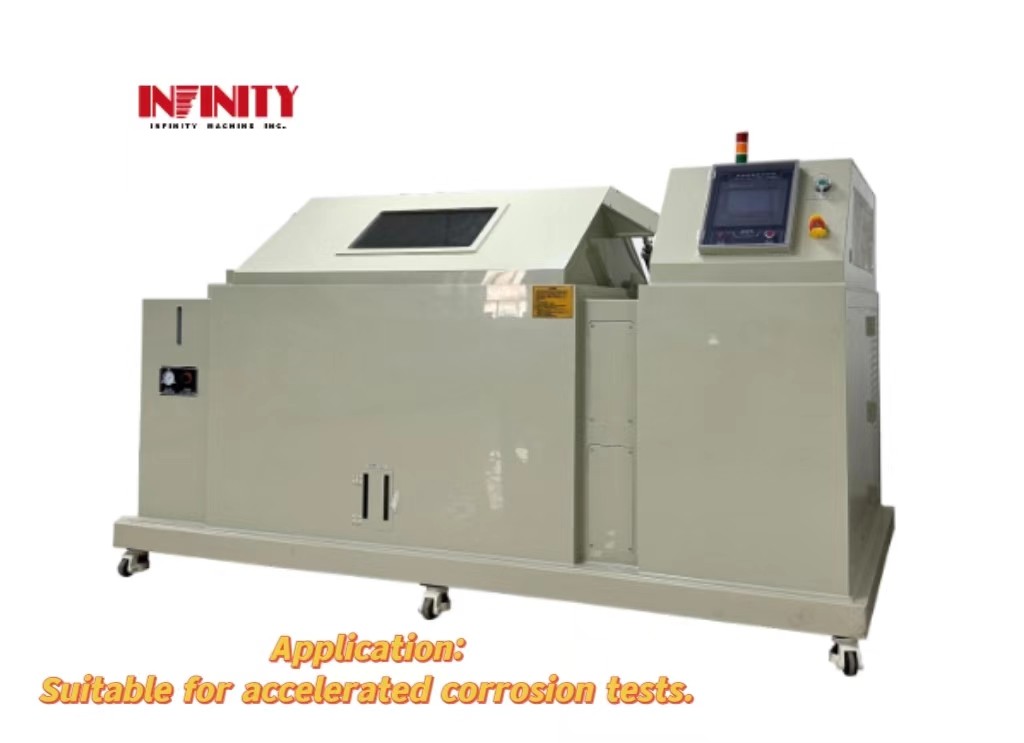

Programmable Composite Salt Spray Test Chamber
Product Model:IE41 Series
Equipment overview :
This equipment is designed to simulate and increase the environmental effects on metal materials exposed to outdoor atmospheres that contain salt contamination and can accelerate corrosion. The equipment includes test methods for cyclic exposure of specimens to salt spray, dryness, and hot and humid environments. This equipment test is a comparative test, and the test results cannot predict the long-term results of the corrosion resistance of the same metal material used under this environmental condition. However, this method can still provide valuable information on the performance of materials exposed to salt contamination similar to the test conditions. Compared with traditional accelerated corrosion tests, such as neutral salt spray test (NSS), acetic acid salt spray test (AASS), and copper accelerated acetic acid salt spray test (CASS), the biggest advantage of this equipment test is that it can perform better Reproduce corrosion that occurs in outdoor salt-contaminated environments.
It is also suitable for accelerated corrosion tests, such as metals and their alloys, metal coatings (anodic and cathodic), conversion coatings, anodized coatings, organic coatings on metal materials, etc.
Applicable standards:
1.GB/T20854-2007/ISO14993-2001 Dry and wet salt spray test
2.GB-T5170.8-2008_Inspection methods for environmental test equipment for electrical and electronic products___Salt spray test equipment
3.GJB150.11A-2009 Military Equipment Laboratory Environmental Test Methods Salt Spray Test
4.GBT2424.17-2008 Salt spray test method
5.GB-T2423.18-2000 Sodium chloride alternating salt spray test method
6.GB-T2423.3-2006(IEC6008-2-78-2001) Test cab: constant damp heat test method
7.GBT2423_4-2008 Humidity and heat alternating test method
8.IEC60068-2-52-2017 Environmental testing Part 2-25 Test Test Kb circulating salt spray (sodium chloride solution)
9.IEC 60068-2-11-1982 Electrical technology. Basic environmental test procedures. Part 2: Test. Section 11: Test Ka: Salt spray
Features:
1.Can be specially designed according to customer needs.
2.PT100 temperature sensor, high accuracy, low maintenance.
3.Water can be added manually or automatically according to the customer's installation location, which is easy to use.
4.The temperature control room and the laboratory are independent and connected through a damper control. They have a complete structure and are easier to maintain.
5.Energy-saving design, individually controlled according to different tests.
6.It can conduct salt spray neutrality test, corrosion resistance test, drying test, humidity test, and standing test separately. It can also perform salt spray, dry and wet, and standing mixed tests with automatic control.
7.Can automatically cycle spray, continuous spray, timed spray.
8.It can realize automatic cycle tests of salt spray, damp heat and drying without moving the product, which is easy to use.
Specifications:
| Model | IE4160L |
IE4190L |
IE41120L |
IE41160L |
IE41200L |
| Temperature range |
5℃ ～ +85℃ |
||||
| Temperature deviation |
±1℃ |
||||
| Temperature fluctuation |
±0.5℃ |
||||
| Temperature uniformity |
≦2.0℃ |
||||
| Humidity range |
20~100%R.H |
||||
| Humidity deviation |
±2%R.H |
||||
| Humidity fluctuation |
±2%R.H |
||||
| Humidity uniformity |
±3%R.H |
||||
|
Heating and cooling rate |
RT→+85℃≤40 min. RT→+0℃≤30 min Salt spray (35℃)→drying (60℃.20~30%RH)≤30 min. Dry (60℃, 20~30%RH)→humidified (50℃, 95%+/-5%RH)≤15 min. Humidity (50℃, 95%+/-5%RH) → salt spray (35℃) ≤ 30 min (spray is required immediately after switching). |
||||
| Test effective content volume |
108L |
270L |
576L |
800L |
1200L |
|
Inner box size: WxHxD(mm) |
600*450*400 | 900*600*500 | 1200*800*600 | 1600*1000*500 | 2000*1000*600 |
|
Outer box size: WxHxD(mm) |
1050*700*950 | 1400*850*1100 | 2080*1050*1300 | 2430*1250*1400 | 2830*1250*1400 |
| Box structure |
●Test chamber box: Made of PP polypropylene board, with a thickness of 10mm and a temperature resistance of about 100 degrees. ●Test outdoor box: Made of PP polypropylene board, with a thickness of 10mm and a temperature resistance of about 100 degrees. ●Laboratory sealing cover: Made of PP polypropylene plate, thickness 10mm, one-touch automatic opening, equipped with a transparent observation window, combined with a defogger device. It is convenient for clear observation of the test during the test, and it can withstand a temperature of about 100 degrees. |
||||
| Hydration method | Automatic/manual dual water supply mode, automatic water inlet with a set of water purifier | ||||
| Sample holder |
●An indexing frame is placed on the inner wall of the PVC polyethylene triangular groove box. The angle of the test piece can be adjusted arbitrarily. The fogging and fogging on all sides are completely consistent and the number of test pieces placed is large. ●The bottom of the test chamber is equipped with a PP plate punched sample placement platform. The uniform openings on the surface of the platform can quickly discharge the spray liquid, and large samples can be placed on the table for testing. |
||||
| Refrigeration Compressors |
French Tecumseh fully enclosed compressor |
||||
| Refrigerant | Non-fluorine environmentally friendly refrigerant R404A complies with environmental regulations, safe and non-toxic | ||||
| Condenser method |
Air-cooled
|
||||
|
Safety protection device |
Cooling System |
Compressor overheat protection Compressor overcurrent protection Compressor overpressure and low pressure protection Condensing fan overheat protection |
|||
|
Safety protection device |
Test chamber |
Adjustable over-temperature protection Air conditioning channel extreme over-temperature protection Fan and motor overheating relay protection |
|||
|
Safety protection device |
Heating system |
Heating tube dry burning protection alarm Water supply abnormality alarm Drainage abnormality alarm |
|||
|
Safety protection device |
Other |
Leakage Protection Overload and short circuit protection Power supply lack of phase protection function |
|||
| Weight(Kg) | Around 300 | Around 400 | Around 500 | Around 600 | Around 700 |
| Power supply | AC380V;50Hz;7KW | AC380;V50Hz;9KW | AC380;V50Hz;11KW | AC380;V50Hz;13KW | AC380;V50Hz;15KW |
Equipment pictures:
