| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IE31A1 series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200SET PER MONTH |
| Product Name: | Programmable Cold And Hot Shock Chamber | Model: | IE31A1 Series |
|---|---|---|---|
| Feature: | High Reliability | Temperature Range: | -65℃ ～ +150℃ |
| Highlight: | Programmable Cold and Hot Shock Chamber,Energy Saving constant humidity chamber,Programmable constant humidity chamber |
||

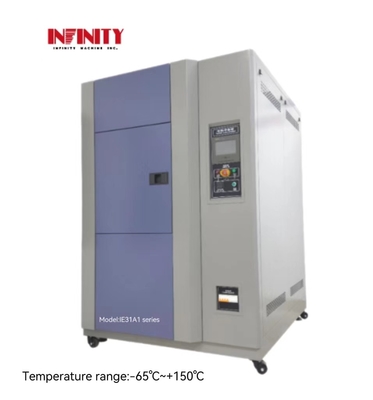

Programmed Cold and Hot Impact Test Chamber
Product model: IE31A1 series
Equipment overview:

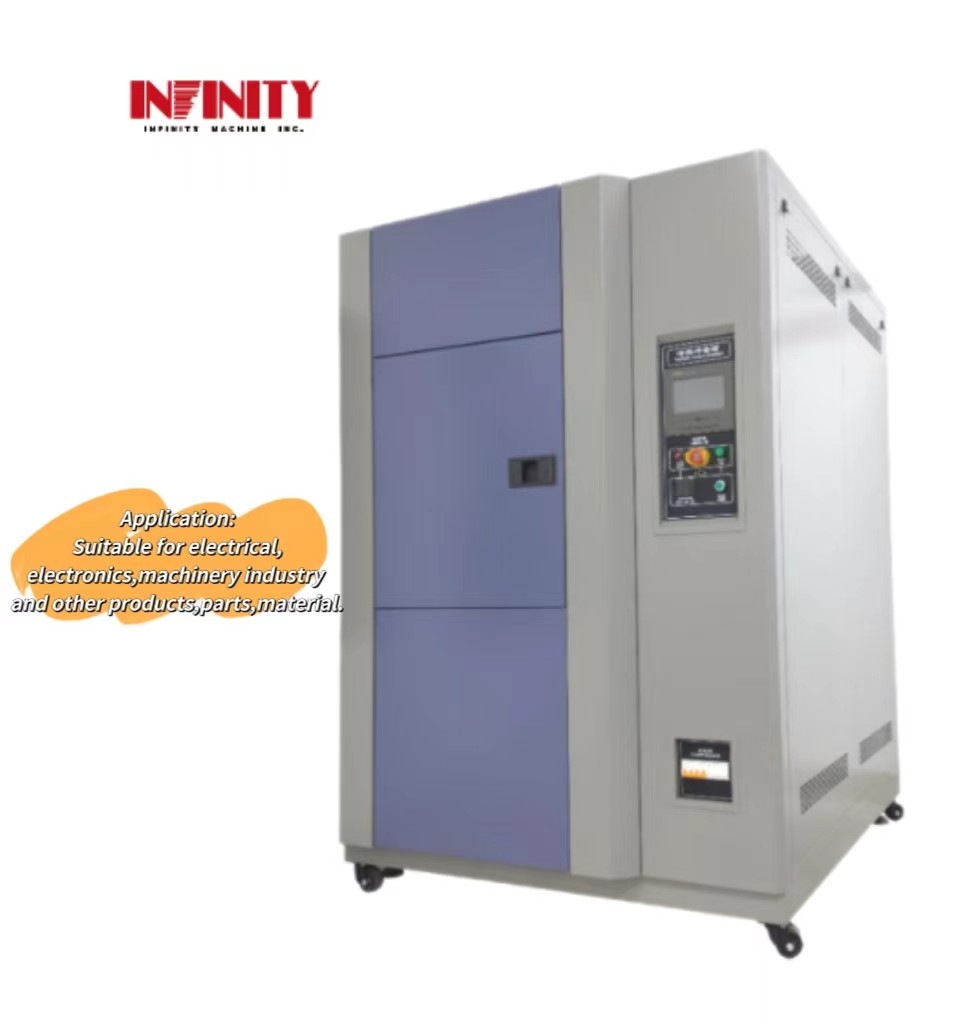

For users to the whole machine (or parts), electrical appliances, instruments, materials, coating, coating for the corresponding climate mutation test, suitable for electrical, electronics, machinery industry and other products, parts, materials, such as high and low temperature, humidity test, simulate the temperature and humidity changes under the condition of cold and hot impact test, so as to evaluate the quality of the test products.
Standards:
GB/T2423.1-2001 Low temperature test method; GB/T2423.2-2001; GB/T2423.22-1989 temperature change test; military standard GJB150.3-86; military standard GJB150.4-86; military standard GJB150.5-86; GJB150.5-86 temperature impact test; GJB360.7-87 temperature shock test; GJB367. 2-87 405 Temperature shock test; J / T10187-91Y73 series temperature change test box-three box type; meet the standard IEC68-2-14_ test method N_ temperature change.
Features:
1.Energy saving and consumption reduction: use gas-liquid bypass mode to adjust the cooling capacity to achieve constant temperature and humidity.
2.Simple operation: programmed color LCD touch controller reference group PID control; experimental data recording and processing mode is flexible.
3.High reliability: the key parts are imported parts to ensure the service life and reliability.
Specification :
|
Model |
IE31A180L |
IE31A1100L |
IE31A1150L |
IE31A1225L |
IE31A1408L |
|
Temperature range |
-65℃ ～ +150℃ |
|
Temperature fluctuation |
±1℃ |
|
Temperature uniformity |
≦2.0℃ |
|
Temperature recovery time |
Within 5 Minc |
|
Heating rate (heat storage area) |
Up from RT to + 150℃ About 50min is required |
Up from RT to + 150℃ About 55min is required |
|
Cooling rate (cold storage area) |
Down from RT to-55℃ About 75min is required |
Down from RT to-55℃ About 75min is required |
|
Internal box size: WxHxD(mm) |
500x400x400 |
500x400x500 |
500x600x500 |
500x750x600 |
600×850×800 |
|
Carton size: WxHxD(mm) |
1480×1450 ×1950 |
1480×1485×2050 |
1500×1750×2150 |
1600×1900×2250 |
1800x2000x2500 |
|
Thermal insulation box |
● Outer wall material: high quality carbon steel plate, the surface for electrostatic color spray plastic treatment. The left side diameter of the box is φ 50mm hole. ● Inner wall material: SUS304 # fog surface stainless steel plate. ● Thermal insulation material: hard polyurethane foam thermal insulation layer + glass fiber. |
|
Box door |
Open the door alone, add the door frame heating wire at the door frame to prevent condensation at the door frame at low temperature. |
|
Observation window |
W300*H400mm observation window is installed on the box door. Multi-layer insulating electric thermal coated glass can effectively provide heat preservation and prevent condensation. |
|
Specimen holder |
Stainless steel sample frame 2 layers, adjustable height, bearing weight of 30kg / layer. |
|
Refrigeration compressor |
Half-compact compressor in Bitzer, Germany |
|
Cooling medium |
Non-fluorine environmental protection refrigerant R404A R23 comply with environmental protection regulations, safe and non-toxic |
|
Condenser mode |
water-cooled |
|
Safety protection device |
Heater air defense incineration protection; heater over current protection; circulation fan over current overload protection; compressor high pressure protection;. Compressor overheat protection; compressor over current protection; over voltage under reverse phase protection; circuit breaker; leakage protection. |
|
Source |
AC380V;50Hz;18KW |
AC380;V50Hz;22KW |
