| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IE10 series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200SET PER MONTH |
| Product Name: | Programmable Constant Temperature And Humidity Test Chamber | Model: | IE10 Series |
|---|---|---|---|
| Fluid Warmers: | ● Outer Wall Material: High Quality Carbon Steel Plate, Surface For Electrostatic Color Spray Treatment. The Left Side Of The Box Is φ50mm Diameter Hole ● Inner Wall Material :SUS304# Stainless Steel Plate. ● Insulation Material: Hard Polyurethane Foam Ins | Door: | For A Single Door, Install A Heating Wire In The Door Frame To Prevent Condensation In The Door Frame At Low Temperature. |
| Inspection Window: | The W 300×H 400mm Observation Window Is Installed On The Door Of The Box, And Multi-layer Hollow Electrothermal Coated Glass Can Effectively Keep Heat And Prevent Condensation. | Lighting Device: | 1 Set LED Lighting Device, Installed On The Window. |
| Sample Holder: | Stainless Steel Sample Rack 2 Layers, Height Adjustable, Bearing Weight 30kg/ Layer. | Refrigeration Compressor: | France Tecumseh Fully Closed Compressor |
| Refrigerant: | Non-fluorine Environmental Refrigerant R404A, In Line With Environmental Regulations, Safe And Non-toxic | Condenser System: | Air-cooled |
Programmable Constant Temperature and Humidity Test Chamber
Product model: IE10 series
Equipment Overview:
This series of constant temperature and humidity box is suitable for environmental simulation reliability test of industrial products, with the characteristics of temperature and humidity control accuracy and wide control range, and the performance indicators meet the requirements of GB5170.2.3.5.6-95 "Low temperature, high temperature, constant wet heat, alternating-wet heat test equipment for environmental test equipment of electrical and electronic products basic Parameter Verification Method".
Range of application:
Suitable for electrical, electronic, mechanical and other products, parts, materials and other products, high and low temperature, wet and hot test, simulate the temperature and humidity change conditions of products, parts, materials and other quality and reliability test.
Applicable standards:
GB-2423.1-2008(IEC68-2-1) Test A: low temperature test method.
GB-2423.2-2008(IEC68-2-2) test B: high temperature test method.
GJB360.8-2009(MIL-STD.202F) High temperature life test.
GJBl50.3-2009(MIL-STD-810D) High temperature test method.
GJBl50.4-2009(MIL-STD-810D) Low temperature test method.
GB2423.3-2008(IEC68-2-3) Test Ca: constant wet heat test method.
GB2423.4-2008(IEC68-2-30) test Db: alternating wet heat test method.
GJBl50.9-2009(MIL-STD-810D) wet heat test method.
Specification parameter:
|
Model |
IE10150L |
IE10225L |
IE10408L |
IE10800L |
IE101000L |
|
Temperature range |
-40℃ ～ +150℃ |
|
Temperature fluctuation |
±0.5℃ |
|
Temperature uniformity |
≦2.0℃ |
|
Heating rate |
From -40℃ to +100℃ within 60min(No load, ambient temperature +25℃) |
|
Temperature decrease rate |
From +20℃ to -40℃ within 60min(No load, ambient temperature +25℃) |
|
Humidity control range |
20%R.H～98%R.H |
|
Humidity deviation |
±3.0％RH(＞75％RH)±5.0％RH(≤75％RH) |
|
Humidity uniformity |
±3.0％RH(no load) |
|
Humidity fluctuation |
±1.0％RH |
|
Inside box size: WxHxD(mm) |
500x600x500 |
500x750x600 |
600×850×800 |
1000×1000×800 |
1000×1000×1000 |
|
Outside box size WxHxD(mm) |
720×1500×1270 |
720×1500×1270 |
820×1750 ×1580 |
1220×1940 ×1620 |
1220×1940 ×1820 |
|
Power supply |
AC220V;50Hz; 5.5KW |
AC380;V50Hz; 7KW |
AC380;V50Hz; 9KW |
AC380;V50Hz; 11KW |
AC380;V50Hz;13KW |

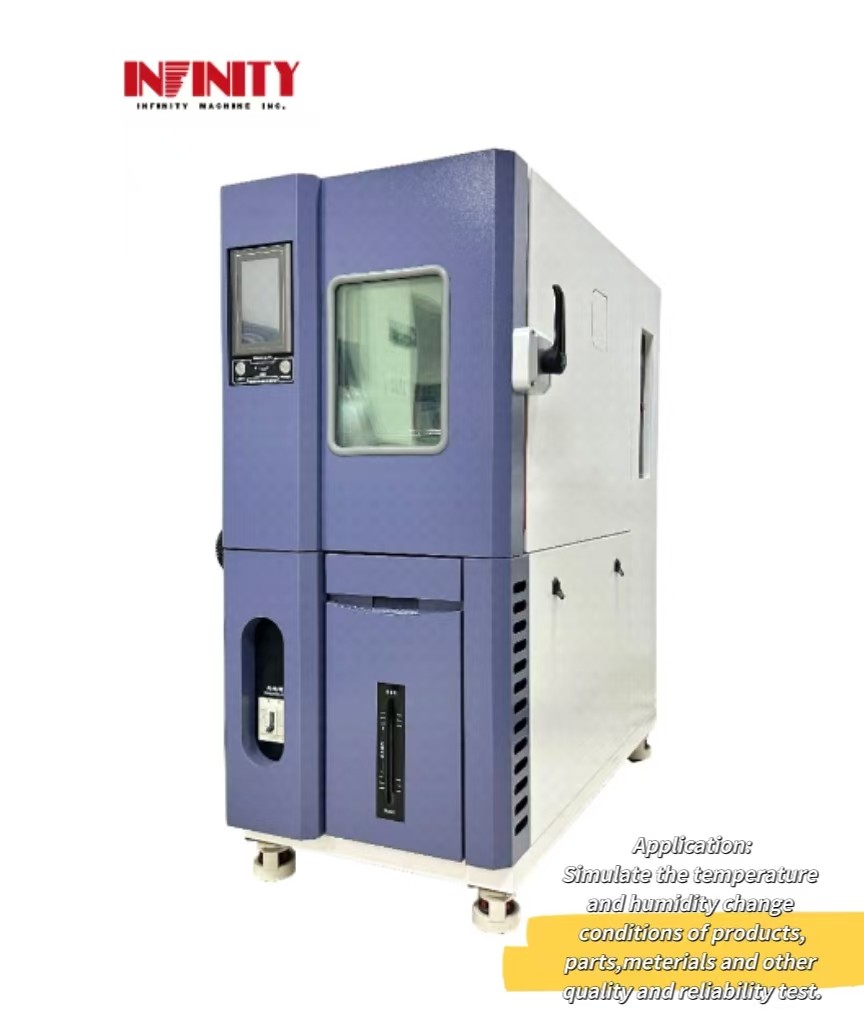

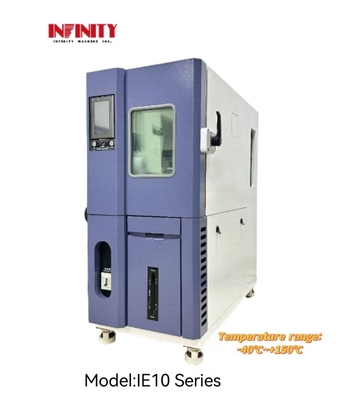

Equipment picture:
