| Product Name: | UV Climatic Chamber | Model: | IE61 Series |
|---|---|---|---|
| Box Structure: | Indoor And Outdoor Boxes: SUS304# Stainless Steel Is Used In The Indoor And Outdoor Boxes | Sample Holder: | Aluminum Frame Type Base Frame Vision Plate, 24pcs |
| Standard Sample Size: | 75×290mm(Special Specifications Need To Be Explained) | Safety Protection Device: | Leakage Circuit Breaker Control Circuit, Overload, Short Circuit Alarm, Over-temperature Alarm, Water Shortage Protection |
| Power Supply: | AC220V;50Hz;5KW | ||
| Highlight: | Fluorescent Ultraviolet Lamp Environmental Test Chamber,environmental chamber For Material UV Resistance,Material UV Resistance environmental test chamber |
||

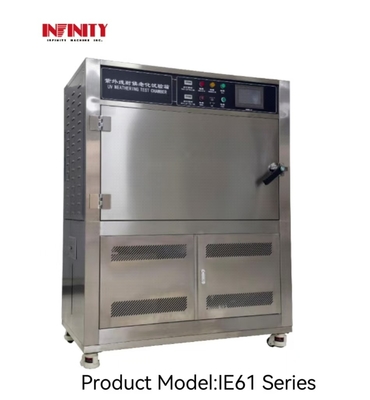

UV Climatic Chamber
Product model: IE61 series
Equipment Overview:
This series uses fluorescent ultraviolet lamps that best simulate the UV spectrum of sunlight, and combines temperature control and humidity supply devices to compare the high temperature, high humidity, condensation, dark rain cycle and other factors that cause discoloration, brightness, strength decline, cracking, peeling, pulverization, oxidation and other damage to the material in sunlight (UV segment). At the same time, through the synergistic effect between ultraviolet light and moisture, the single light resistance or single moisture resistance of the material is weakened or failed, so it is widely used to evaluate the weather resistance of the material.
Applicable standards:
1.ASTM D4329,D499,D4587,D5208,G154,G53；
2.ISO 4892-3,ISO 11507；
3.EN 534；EN 1062-4；BS 2782；JIS D0205；SAE J2020

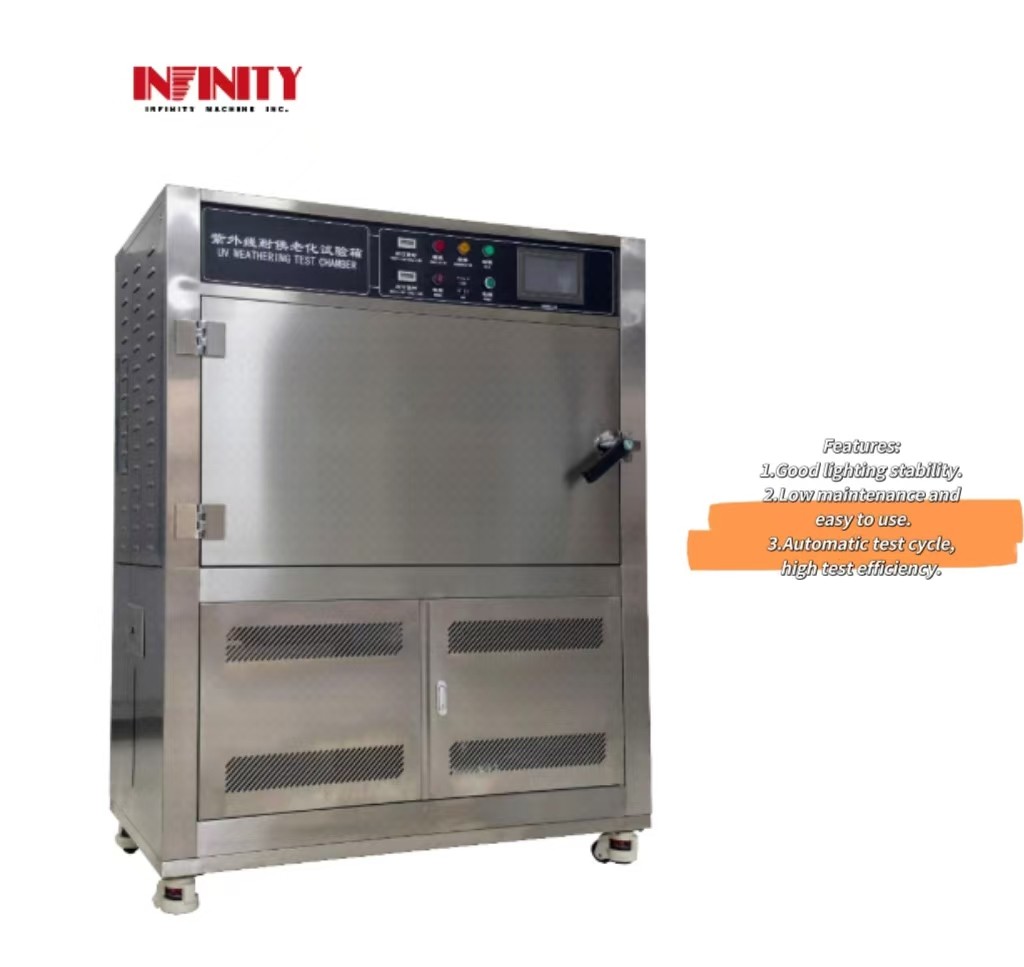

Features:
1. Using the original Q-LAB lamp, the light stability is good, and the test results are high reproducibility.
2. Provides the best sunlight UV simulation, low maintenance and easy to use.
3.Automatic operation of equipment control, automatic test cycle, saving labor, improve test efficiency.
Specification parameter:
|
Model number |
IE61304 |
IE61313 |
|
Temperature range |
RT+20℃~70℃ |
|
Humidity range |
≥90%RH |
|
Temperature fluctuation |
±0.5℃ |
|
Temperature uniformity |
≦1.0℃ |
|
Center distance inside the lamp |
70mm |
|
The distance between Sample and the center of the lamp |
50±3mm |
|
Modulator tube /lamp |
UVA-340 L=1200/40W,8 pieces |
UVB-313 L=1200/40W,8 pieces |
|
Irradiance |
Adjustable within 1.2W/m2 |
Adjustable within 1.0W/m2 |
|
Ultraviolet wavelength |
315-400nm |
280-315nm |
|
Effective irradiation region |
900×210mm |
|
Irradiated blackboard temperature |
50℃~70℃ |
|
Inner box size:WxHxD(mm) |
1180*650*600 |
|
Outside box size:WxDxH(mm) |
1300*620*1630 |
