| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IF1552 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Feature3: | Professional Control Software: Servo Motor Control And Computer Professional Software Control. It Can Do The Compression Strength Test And The Stacking Test And Get Precise Result. The Software Has The Testing Real-time Graph, Can Set The Test Force, Test | Motor: | AC Servo Motor |
|---|---|---|---|
| Feature1: | High Stability: Adopt Servo Motor Driver And Gapless Roll Ball Screw For Transmission To Eliminate Noise And Resonation; With Timing Belt Transmission To Get A Accuracy Location. | Dimension (WxDxH): | 1710x1000x2000mm |
| Software: | Special Close-loop Control Software | Test Standards: | GB/T4857.4, GB/T4857.16, ISO2872, ASTM D642, TAPPI-T804, JIS-Z0212. |
| Feature2: | High Precision: Adopt Highly Precise Explosion-proof Load Cell, Repeat Tolerance: ±0.01%F.S. | Stroke Resolution: | 0.001mm |
| Highlight: | Carton Compression Tester,Corrugated Paper Box compression test machine,Honeycomb Box compression test machine |
||
One of the main features of this product is its high stability. The machine adopts a Servo Motor Driver and Gapless Roll Ball Screw for transmission to eliminate noise and resonance. Additionally, with its timing belt transmission, the machine can achieve an accuracy location, ensuring that the test results are accurate and reliable.
The Carton Compression Tester offers a variety of unit options to choose from, including N, KN, Kgf, Lbf, Mpa, Lbf/In2, and Kgf/mm2. This flexibility allows users to choose the most appropriate unit for their specific testing requirements. In terms of capacity, the machine can handle up to 20KN (2T) load capacity, making it suitable for a wide range of compression tests.

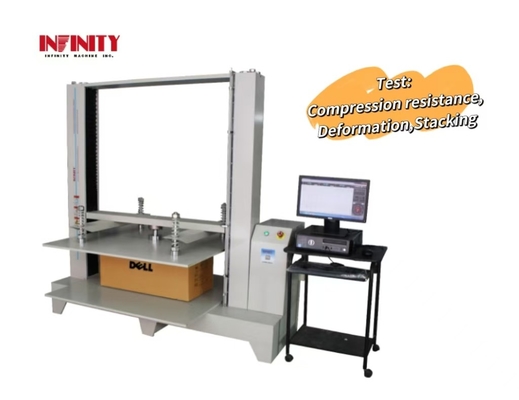

One of the key applications of the Carton Compression Tester is for the compression resistance, deformation, and stacking tests of package containers. Due to its versatility, it is an ideal tool for businesses involved in the packaging industry. The machine is capable of providing accurate and reliable results, making it an essential tool for quality control purposes.
The Carton Compression Tester has a load accuracy of ±1%, which is a testament to its precision and accuracy. With this level of accuracy, users can trust the results produced by the machine, making it a reliable tool in various industries.
In summary, the Carton Compression Tester is a high-quality product that offers a range of features and capabilities suitable for various industries. Its high stability, unit options, load capacity, and accuracy make it an essential tool for businesses involved in the packaging industry. Whether you are performing compression tests on corrugated paper boxes, honeycomb boxes, or wooden packaging boxes, the Compression Test Machine is the ideal tool for your testing requirements.
| Weight | 1250kg |
| Model | IF1552 |
| Test speed | 0.001~200mm/min |
| Unit (switchable) | N, KN, Kgf, Lbf, Mpa,Lbf/In2, Kgf/mm2 |
| Capacity (optional) | 20KN (2T) |
| Power supply | AC220V 50HZ 5A Or Specified By User |
| Dimension (WxDxH) | 1710x1000x2000mm |
| Application | Apply For Compression Resistance, Deformation, Stacking Test Of Package Container Such As Corrugated Paper Box And Honeycomb Box, And Also The Wooden Package Box. |
| Load resolution | 1/250,000 |
| Feature2 | High Precision: Adopt Highly Precise Explosion-proof Load Cell, Repeat Tolerance: ±0.01%F.S. |
The test introduction
1. The compression test.
This tester is with professional computer software control, can output the testing curve and the test report. The test can meet the standards ISO2872, ASTM D642, TAPPI-T804.
1.1 The test setting interface.
1.2 The testing interface and real-time testing graph.
The test graph can be saved and to edit the test report.
There are two graphs can be displayed, Force vs displacement, Force vs Time
1.3 The testing report.
The parameters in the test report can be edited, the testing result is auto created.
The testing report can be printed and also can be converted to be PDF format.
2.The stacking test.
2.1 The stacking test setting and program interface.
2.2. The stacking testing interface and the testing real-time graph.
2.3. The test report.
The parameters in the test report can be edited, the testing result is auto created.
The testing report can be printed and also can be converted to be PDF format.

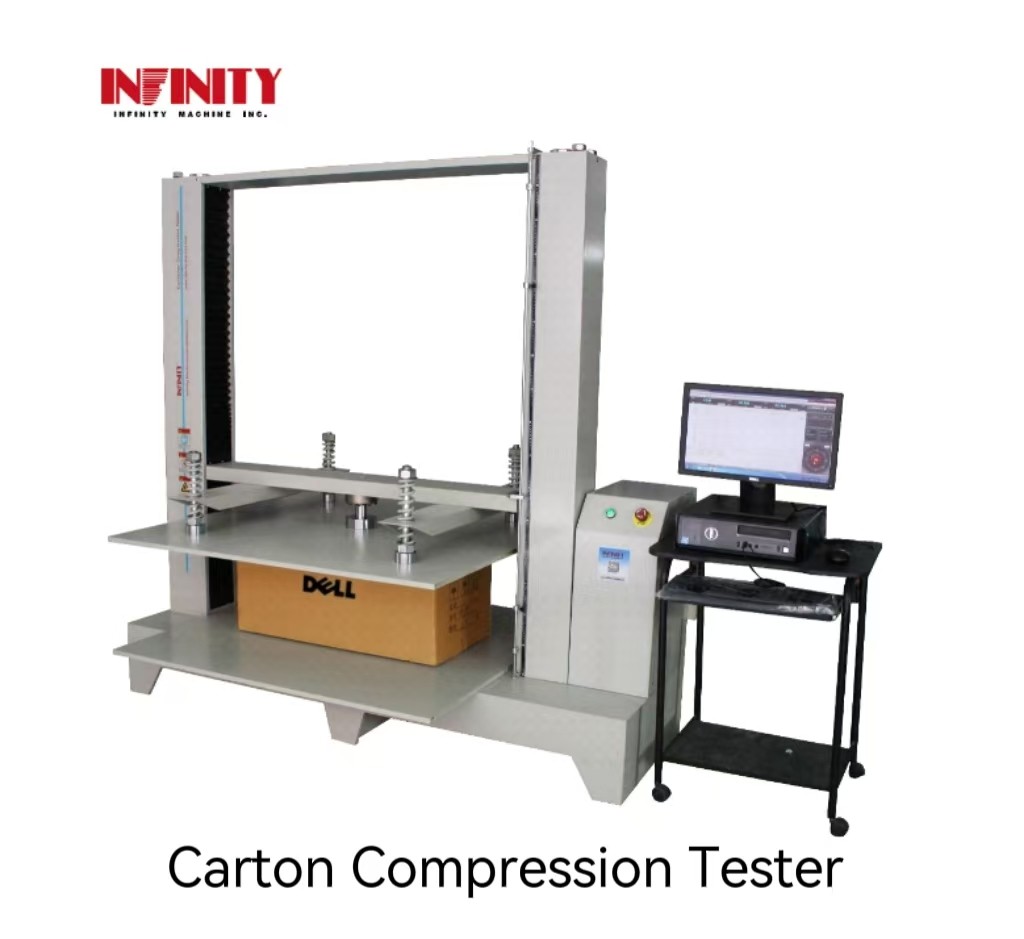

The Infinity Machine IF1552 Carton Compression Tester is a versatile and reliable piece of equipment designed to measure the compressive strength and deformation of various materials. This Carton Compression Tester is made in China and has obtained CE and ISO certifications, ensuring its quality and safety.
The IF1552 Carton Compression Tester is a valuable tool for businesses in the packaging industry, as it can accurately measure the compressive strength of cardboard boxes, cartons, and other packaging materials. It can also be used to test the compressive strength of other materials, including plastics, foam, and rubber.
The IF1552 Carton Compression Tester is ideal for a variety of applications and scenarios, including:
The IF1552 Carton Compression Tester has a high precision load cell with a repeat tolerance of ±0.01%F.S., ensuring accurate and reliable test results. It can test at a speed of 0.001~200mm/min and complies with various international testing standards including GB/T4857.4, GB/T4857.16, ISO2872, ASTM D642, TAPPI-T804, and JIS-Z0212.
The IF1552 Carton Compression Tester features a high stability design, with a servo motor driver and gapless roll ball screw for transmission to eliminate noise and resonance. It also has timing belt transmission to get an accurate location.
The IF1552 Carton Compression Tester has a weight of 1250kg and a supply ability of 200 sets per month. It can be ordered with a minimum order quantity of 1 and the price can be negotiated. The packaging details include a clear sheet, sponge, and wood carton for safe transportation. The delivery time is 20-30 days after order confirmation and payment can be made through various methods including TT, PayPal, and Moneygram.
Brand Name: Infinity Machine
Model Number: IF1552
Place of Origin: Made In China
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Load resolution: 1/250,000
Test standards: GB/T4857.4, GB/T4857.16, ISO2872, ASTM D642, TAPPI-T804, JIS-Z0212.
Test space: 1000x1000x1200mm
Feature1: High Stability: Adopt Servo Motor Driver And Gapless Roll Ball Screw For Transmission To Eliminate Noise And Resonation; With Timing Belt Transmission To Get A Accuracy Location.
The Carton Compression Tester is a high-quality product designed to test the compressive strength of materials. Our technical support team is available to assist with any questions or issues you may encounter during operation. We also offer a range of services to ensure that your machine continues to perform at its best, including:
Our goal is to provide you with reliable and accurate testing results, and our technical support and services are an essential part of achieving that goal. Please do not hesitate to contact us if you require any assistance or have any questions.
Product Packaging:
The Carton Compression Tester is carefully packaged in a sturdy cardboard box to ensure safe transportation. The package includes the Compression Test Machine, power cord, instruction manual, and calibration certificate.
Shipping:
We offer free shipping for the Compression Test Machine to customers within the United States. For international orders, shipping costs will be calculated based on the destination country and shipping method selected at checkout. Estimated delivery times will vary depending on the destination.
What is the brand name of the Carton Compression Tester?
The brand name of the Carton Compression Tester is Infinity Machine.
What is the model number of the Carton Compression Tester?
The model number of the Carton Compression Tester is IF1552.
Where is the Carton Compression Tester made?
The Carton Compression Tester is made in China.
What certifications does the Carton Compression Tester have?
The Carton Compression Tester has CE and ISO certifications.
What is the minimum order quantity for the Carton Compression Tester?
The minimum order quantity for the Carton Compression Tester is 1.
What is the price of the Carton Compression Tester?
The price of the Carton Compression Tester is negotiable.
What are the packaging details for the Carton Compression Tester?
The packaging details for the Carton Compression Tester are clear sheet+sponge+wood carton.
What is the delivery time for the Carton Compression Tester?
The delivery time for the Carton Compression Tester is 20-30 days after order confirmed.
What are the payment terms for the Carton Compression Tester?
The payment terms for the Carton Compression Tester are TT, PayPal, Moneygram, and so on.
What is the supply ability for the Carton Compression Tester?
The supply ability for the Carton Compression Tester is 200 sets/month.
