| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IF2441A |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Product Name: | Servo Control Universal Tension Pressure Testing Machine | Force Capacity: | 5000Kg(50KN) |
|---|---|---|---|
| Velocity Accuracy: | ±0.5% | Power：: | AC220V 50/60Hz Or Specified By User |
| Testing Speed: | 0.01~500mm/min | Unit Of Force Value: (switchable): | N, KN, Gf,Kgf, Lbf, Mpa,Lbf/In², Kgf/mm² |
| Force Accuracy：: | ±0.5% | Transmission Rod: | High Precision Ball Screw |
| Highlight: | Puncture Universal Tension Pressure Testing Machine,Puncture Pressure Testing Machine,830x670x1940mm Universal Tension Pressure Testing Machine |
||

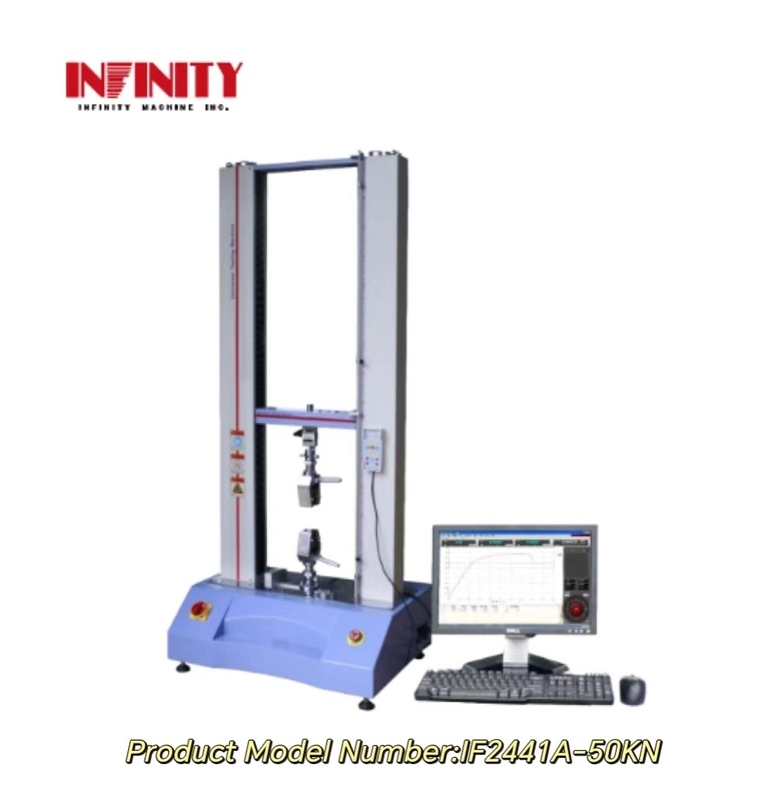

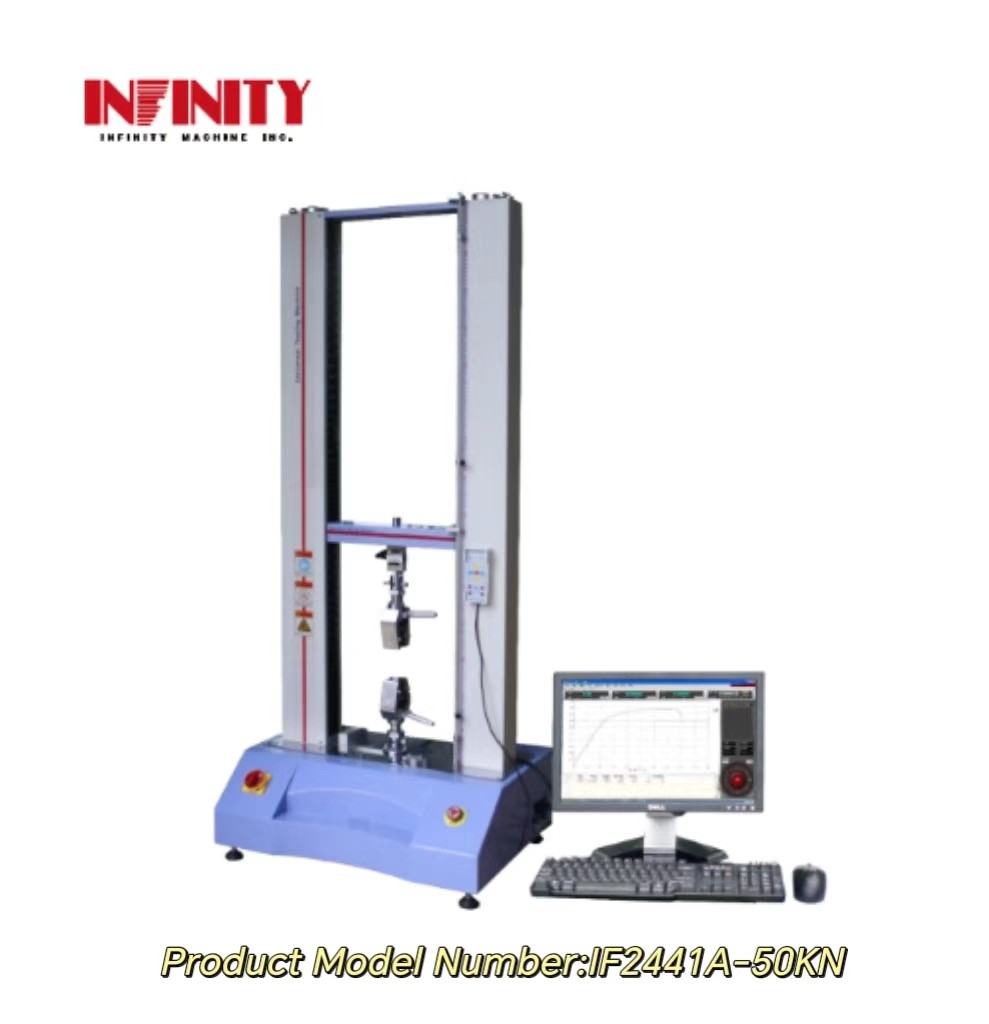

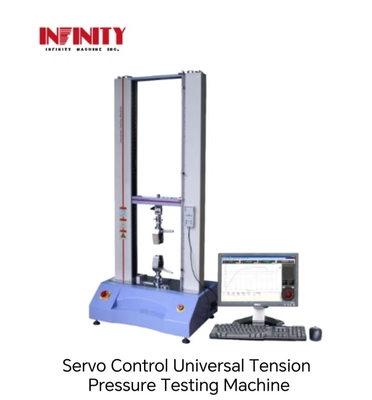

French Servo Control Universal Tension Pressure Testing Machine for Puncture 830x670x1940mm
With an effective width of test space of 400mm, this machine offers ample space for a variety of samples. The high precision of this machine is due to the use of a Japan Panasonic AC servo motor drive and high-precision no-backlash ball screw transmission. Additionally, the United States TRANSCELL high-precision explosion-proof LOADCELL provides force accuracy up to ±0.5%, while the displacement accuracy is up to 0.01mm. The force value resolution is an impressive 1/500,000.
This Servo Control Universal Tension Pressure Testing Machine is also equipped with high intelligence features such as automatic identification of fracture, automatic return, and curve multi-combination functions. This includes load-displacement, load-time, displacement-time stress-strain, strain-time, stress-time, and other curve analysis functions. These features make it easy to analyze the results of tests, saving time and effort in the testing process.
| Product Name | Servo Control Universal Tension Pressure Testing Machine |
| Force Capacity | 5000Kg (50KN) |
| Force Accuracy | ±0.5% |
| Velocity Accuracy | ±0.5% |
| Transmission Rod | High Precision Ball Screw |
| Effective Width of Test Space | 400mm |
| Motor | AC Servo Motor |
| Feature4 | High Applicability: 9 Languages Can Be Switched: Simple/traditional Chinese, English, Japanese, German, French, Russian, Spanish, Portuguese, Universal. |
| Standards | This Testing Machine Is Based On The <electronic Universal Testing Machine> GB/T 16491-2008, <General Technical Requirements For Testing Machine> GB2611-2007, <Testing Of Tensile And Compression Testing Machine Force Measurement System>, <extension Meter Technical Conditions> JB6146-2007, <General Specifications For The Licensing And Assessment Of Manufacturing Measuring Instruments>JJF1246-2010 Standard Manufacturing. |
| Force Value Resolution | 1/500,000 |
Testing software:
The Infinity Machine IF2441A Servo Control Universal Tension Pressure Testing Machine is a high-precision instrument made in China that is certified with CE and ISO. It has a minimum order quantity of 1 and negotiable pricing. The packaging details include clear sheet+sponge+wood carton for safe delivery. The delivery time is 20-30 days after order confirmation, and payment terms include TT, PAYPAL, Moneygram, and other options. The supply ability is 200 sets per month, making it readily available for customers.
One of the key features of this machine is its high precision, which is achieved through a combination of Japan Panasonic AC Servo Motor Drive, High-precision No-backlash Ball Screw Transmission, and the United States TRANSCELL High-precision Explosion-proof LOADCELL. This results in a force accuracy of up to ±0.5% and displacement accuracy up to 0.01mm, making it ideal for applications that require precise measurements.
The IF2441A model has a test trip of 600mm, and the unit of force value is switchable between N, KN, Gf, Kgf, Lbf, Mpa, Lbf/In², and Kgf/mm². This makes it suitable for a wide range of testing scenarios, no matter what the units of measurement are.
Another notable feature of the Infinity Machine IF2441A is its high applicability, thanks to its ability to switch between nine different languages. Simple/traditional Chinese, English, Japanese, German, French, Russian, Spanish, Portuguese, and Universal are all available, making it easy to use in different countries and with different users.
The Servo Control Universal Tension Pressure Testing Machine can be used in a variety of occasions and scenarios, including material testing, quality control, research and development, and production line testing. It is suitable for testing the mechanical properties of materials such as metals, plastics, textiles, rubber, and more. This machine can help ensure that products meet the required standards and specifications, which is vital for maintaining quality and safety in various industries.
Professional test report:
A report developed based on Crystal Reports version 10.0, which can automatically calculate strength, elastic modulus E RP0.2,ReL,ReH,Extension rate, report header and content can be freely modified, and curves are automatically generated. Can be exported in Excel, PDF, and other formats.
The Servo Control Universal Tension Pressure Testing Machine is a versatile and essential testing instrument in materials testing and quality control laboratories. Our Servo Control Universal Tension Pressure Testing Machine product line consists of high-quality machines that are designed to perform various tests including tensile, compression, flexural, shear, peel, tear, and cyclic tests. Our machines are capable of testing a wide range of materials such as metals, plastics, rubber, textiles, paper, and composites.
Our Servo Control Universal Tension Pressure Testing Machine products are equipped with advanced features such as precision load cells, high-resolution displacement sensors, and intuitive software that allows for easy test setup, data acquisition, and analysis. We also offer a wide range of accessories and grips to accommodate different sample geometries and sizes.
We take pride in providing excellent technical support and services to our customers. Our team of experienced engineers and technicians are available to assist with installation, calibration, training, and troubleshooting. We also offer preventive maintenance and calibration services to ensure the optimal performance and accuracy of your Servo Control Universal Tension Pressure Testing Machine .
Contact us today to learn more about our Servo Control Universal Tension Pressure Testing Machine products and services.
Product Packaging:
Shipping:
Q: What is the brand name of this testing machine?
A: The brand name of this testing machine is Infinity Machine.
Q: What is the model number of this testing machine?
A: The model number of this testing machine is IF2441A.
Q: Where is this testing machine made?
A: This testing machine is made in China.
Q: What certifications does this testing machine have?
A: This testing machine has CE and ISO certifications.
Q: What is the minimum order quantity for this testing machine?
A: The minimum order quantity for this testing machine is 1.
Q: What is the price of this testing machine?
A: The price of this testing machine is negotiable.
Q: What are the packaging details for this testing machine?
A: The packaging details for this testing machine are clear sheet+sponge+wood carton.
Q: What is the delivery time for this testing machine?
A: The delivery time for this testing machine is 20-30 days after order confirmed.
Q: What are the payment terms for this testing machine?
A: The payment terms for this testing machine are TT, PayPal, Moneygram, and so on.
Q: What is the supply ability for this testing machine?
A: The supply ability for this testing machine is 200 sets/month.
