| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IF2441A |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Feature2: | High Precision： Japan Panasonic AC Servo Motor Drive, High-precision No-backlash Ball Screw Transmission, With The United States TRANSCELL High-precision Explosion-proof LOADCELL, Force Accuracy Up To: ±0.5%; Displacement Accuracy Up To 0.01mm. | Force Accuracy：: | ±0.5% |
|---|---|---|---|
| Equipment Size: (WxDxH): | 830x670x1940mm | Feature3: | High Intelligence： Automatic Identification Of Fracture, Automatic Return, Curve Multi-combination Functions, Such As Load-displacement, Load-time, Displacement-time Stress-strain, Strain-time, Stress-time And Other Curve Analysis. |
| Weight：: | 350 Kg | Model: | IF2441A |
| Test Trip：: | 600mm | Application: | Suitable For Metal Wire, Metal Foil, Metal Sheet And Metal Tape, Rubber, Plastic, Sea/foam, Waterproof Material, Wire And Cable, Textile, Net Rope, Non-woven Fabric And Other Materials Tensile, Compression, Bending, Stripping, Shearing, Tearing, Bursting, |
| Highlight: | Japan universal tension pressure testing machine,Panasonic universal tension pressure testing machine,Precision universal tension pressure testing machine |
||

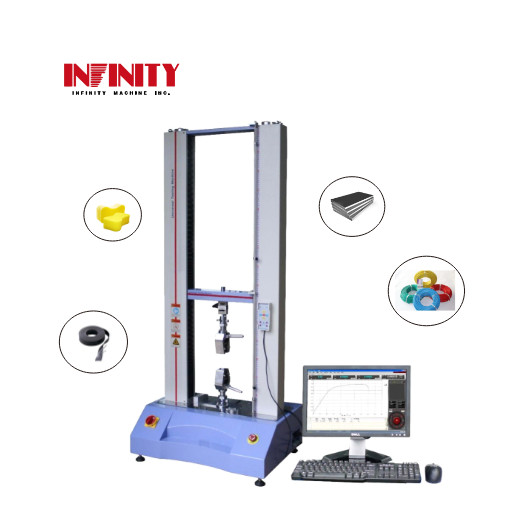

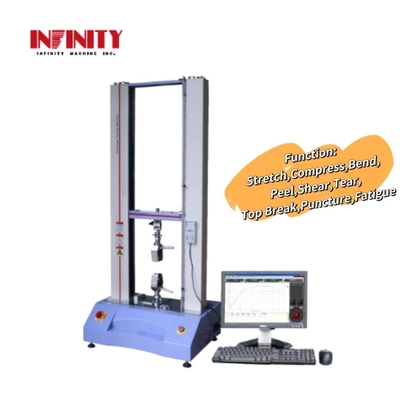

With a force value resolution of 1/500,000, this Servo Control Universal Tension Pressure Testing Machine is designed to provide precise and accurate testing results. The machine is equipped with an AC Servo Motor, which ensures smooth and efficient operation. The motor is highly responsive and provides precise control over the testing process, making it ideal for both research and industrial applications.
One of the key features of this Servo Control Universal Tension Pressure Testing Machine is its high intelligence. The machine can automatically identify fracture, and has automatic return, curve multi-combination functions, such as load-displacement, load-time, displacement-time stress-strain, strain-time, stress-time and other curve analysis. This makes it easy to obtain accurate and reliable testing data for a wide range of materials.
This Servo Control Universal Tension Pressure Testing Machine is easy to use and comes with a user-friendly interface that makes it simple to operate. It is a versatile and reliable machine that is perfect for research and industrial applications. Whether you need to perform tensile, compression, bending, stripping, shearing, tearing, bursting, puncture, fatigue or other tests, this machine is up to the task.
Testing software:
| Product Name: | Servo Control Universal Tension Pressure Testing Machine |
| Model: | IF2441A |
| Feature: | High Applicability |
| Languages: | Simple/traditional Chinese, English, Japanese, German, French, Russian, Spanish, Portuguese, Universal |
| Force Accuracy: | ±0.5% |
| Power: | AC220V 50/60Hz Or Specified By User |
| Application: | Suitable For Metal Wire, Metal Foil, Metal Sheet And Metal Tape, Rubber, Plastic, Sea/foam, Waterproof Material, Wire And Cable, Textile, Net Rope, Non-woven Fabric And Other Materials Tensile, Compression, Bending, Stripping, Shearing, Tearing, Bursting, Puncture, Fatigue And Other Tests. |
| Weight: | 350 Kg |
| Unit of Force Value: | N, KN, Gf, Kgf, Lbf, Mpa, Lbf/In², Kgf/mm² (Switchable) |
| Testing Speed: | 0.01~500mm/min |
| Velocity Accuracy: | ±0.5% |
The Infinity Machine IF2441A is a high-quality Servo Control Universal Tension Pressure Testing Machine, designed to meet the needs of various industries. This top-of-the-line model is made in China and is certified to meet CE and ISO standards, ensuring its quality and reliability. With a minimum order quantity of just 1, you can easily get your hands on this powerful testing machine, and the price is negotiable to fit your budget.
When it comes to packaging, the IF2441A is carefully protected with clear sheet, sponge, and a wood carton to ensure it arrives safely at your doorstep. Delivery time is typically 20-30 days after order confirmation, and payment terms include TT, Paypal, Moneygram, and more. With a supply ability of 200 sets per month, you can rest assured that you'll have access to this amazing machine when you need it.
The IF2441A has a displacement resolution of 0.01mm, powered by an AC Servo Motor. The unit of force value is switchable, allowing you to choose between N, KN, Gf, Kgf, Lbf, Mpa, Lbf/In², and Kgf/mm². With an effective width of test space of 400mm, this machine is capable of handling a force capacity of up to 5000Kg (50KN).
This Servo Control Universal Tension Pressure Testing Machine is incredibly versatile and can be used in a variety of applications and scenarios. It is perfect for testing the strength and durability of materials such as metal, rubber, plastics, textiles, and more. It can be used in industries such as aerospace, automotive, construction, electronics, and even medical devices.
The IF2441A can be used to perform a wide range of tests, such as tensile, compression, bending, shearing, peeling, tearing, and more. It is designed to provide accurate and consistent results, making it an essential tool for quality control and research and development.
In conclusion, the Infinity Machine IF2441A Servo Control Universal Tension Pressure Testing Machine is a top-of-the-line product that is perfect for various industries and applications. Its high-quality construction, powerful capabilities, and versatile nature make it an essential tool for any business that requires accurate and reliable testing results. Contact us today to get your hands on this amazing machine!
Professional test report:
A report developed based on Crystal Reports version 10.0, which can automatically calculate strength, elastic modulus E RP0.2,ReL,ReH,Extension rate, report header and content can be freely modified, and curves are automatically generated. Can be exported in Excel, PDF, and other formats.
Brand Name: Infinity Machine
Model Number: IF2441A
Place of Origin: Made In China
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Feature1: Multi-function: With Different Fixtures, Tensile, Compression, Bending, Shearing, Tearing, Stripping And Other Tests Can Be Carried Out.
Displacement resolution: 0.01mm
Force value resolution: 1/500,000
Feature4: High Applicability: 9 Languages Can Be Switched: Simple/traditional Chinese, English, Japanese, German, French, Russian, Spanish, Portuguese, Universal.
Effective width of test space:: 400mm
Servo Controlled Universal Testing Machine
Servo Control Universal Tension Pressure Testing Machine
The Servo Control Universal Tension Pressure Testing Machine is a precision instrument that is designed to measure the mechanical properties of materials such as tensile strength, compression strength, and shear strength. Our product technical support and services include:
We are committed to providing excellent customer service and support for our Servo Control Universal Tension Pressure Testing Machine product. Contact us for more information.
Product Packaging:
Shipping:
Q: What is the brand name of this testing machine?
A: The brand name of this testing machine is Infinity Machine.
Q: What is the model number of this testing machine?
A: The model number of this testing machine is IF2441A.
Q: Where is this testing machine made?
A: This testing machine is made in China.
Q: What certifications does this testing machine have?
A: This testing machine has CE and ISO certifications.
Q: What is the minimum order quantity for this testing machine?
A: The minimum order quantity for this testing machine is 1.
Q: What is the price of this testing machine?
A: The price of this testing machine is negotiable.
Q: What are the packaging details for this testing machine?
A: The packaging details for this testing machine include a clear sheet, sponge, and a wood carton.
Q: What is the delivery time for this testing machine?
A: The delivery time for this testing machine is 20-30 days after order confirmed.
Q: What are the payment terms for this testing machine?
A: The payment terms for this testing machine include TT, PayPal, Moneygram, and so on.
Q: What is the supply ability for this testing machine?
A: The supply ability for this testing machine is 200 sets per month.
