| Place of Origin: | China |
| Brand Name: | Infinity |
| Certification: | CE ISO |
| Model Number: | IN-F4360 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Feature5: | The Report Can Be Automatically Judged Passed Or Fail According To The Set Upper And Lower Limits, And Automatically Generate The Maximum Torque Value, Minimum Torque Value, Average Value, Etc. Of The Current Test Times. The Maximum Torque Value, Minimum T | Feature1: | Test Conditions Are Set By The Computer Software (including Angle Measurement Range, Stroke Origin Position, Measurement Speed, Measurement Times, Pause Time, N Seconds After Testing N Times... ... Etc.). |
|---|---|---|---|
| Product Name: | 360 Degree Automatic Spindle Test Machine | Power Supply：: | 1∮,AC110V,10A |
| Feature7: | Torsion Attenuation Curve Report: Shows The Relationship Between The Torsion Value Change (attenuation) And The Number Of Times During The Whole Test. | Feature4: | Automatically Keep The Original Data, Old Test Data Can Be Loaded At Any Time, Archived Storage, File Adjustment And Printing. |
| Feature9: | Uses Korea SETECH Precision Torque Sensor To Measure Torque With Accuracy Up To ±0.5%FS | Feature3: | The Title Of The Test Report, Product Specifications, Test Date, Operator, File Number, Etc. Can Be Modified At Any Time (both In Chinese And English). |
| Highlight: | Automatic Spindle Test Machine,360 Degree Spindle Test Machine,Laptop Sizes Spindle Test Machine |
||

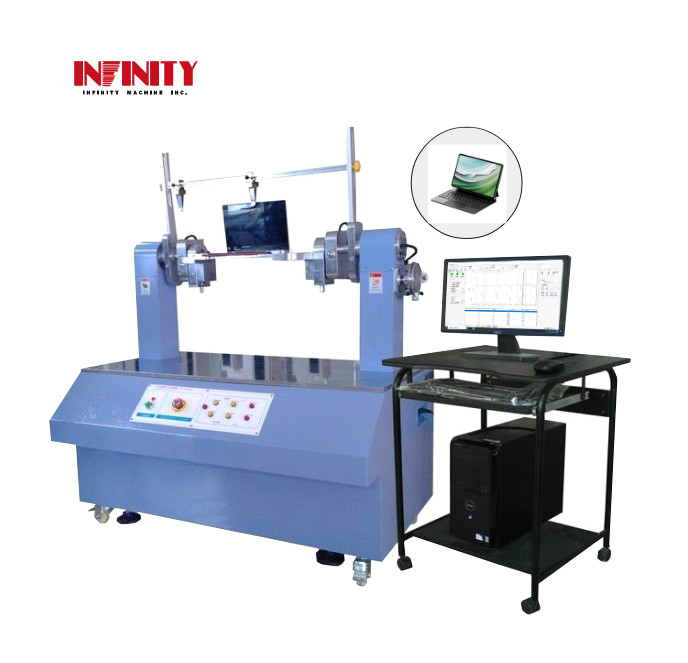

360 Degree Automatic Spindle Test Machine for Laptop Sizes N Seconds After Testing N Times
The 360 Degree Automatic Spindle Test Machine, also known as a Spindle Tester, is a high-quality testing machine designed for measuring the torsion properties of various materials. This machine is capable of ensuring accurate and reliable test results, thanks to its advanced features.
The 360 Degree Automatic Spindle Test Machine comes with a rotation angle range of 5～355〫, making it suitable for a wide range of testing applications. The machine is also equipped with a powerful motor that provides smooth and stable operation, ensuring precision and consistency in test results.
The 360 Degree Automatic Spindle Test Machine is powered by a 1∮, AC110V, 10A power supply, which is energy-efficient and cost-effective. The machine is also designed with a compact size, with dimensions of W1350*D850*H1300, making it easy to integrate into any laboratory or testing facility.
One of the most notable features of the Spindle Tester is its ability to automatically keep the original data. This means that old test data can be loaded at any time, providing a convenient and efficient way to access archived storage. The machine also allows for file adjustment and printing, making it easy to generate reports and documentation.
In summary, the 360 Degree Automatic Spindle Test Machine is a highly advanced and reliable testing machine that is suitable for a wide range of applications. Its precision and accuracy make it an essential tool for any laboratory or testing facility, and its advanced features make it easy to use and maintain.
Other related products: Spindle Tester, 360 Degree Automatic Spindle Test Machine, Spindle Tester
| Maximum test torque | 100kgf.cm (10N.m) |
| Application | This Device Is Applicable To The HINGE And Finished Products Of NOTE-BOOK For Torsion (torsion Attenuation) And Life Test. It Can Measure The Torsion Value Of Each Opening And Closing, And Send The Collected Torsion Signal To PC Through USB3.0 Photoelectric Isolation Communication Module, Which Will Automatically Record The Curve Change And Draw The Torsion Attenuation Life Curve. In Order To Achieve The Purpose Of Measuring The Torque On The Finished Product (no Need To Disassemble The HINGE), The Use Of Software To Set The Test Conditions, Easy To Operate, And All The Data Can Be Stored (test Conditions, Torsion-angle Curve, Life Decay Curve, Test Data Report... Etc.). Meet The New Super Notebook (screen Can Be Rotated 360°, Folded Into A Tablet Computer) Shaft Torsion Curve Test. |
| Minimum display torque | 0.01kgf.cm |
| Model | IN-F4360 |
| Feature4 | Automatically Keep The Original Data, Old Test Data Can Be Loaded At Any Time, Archived Storage, File Adjustment And Printing. |
| Power supply | 1∮,AC110V,10A |
| Test speed range | 1~12000/min |

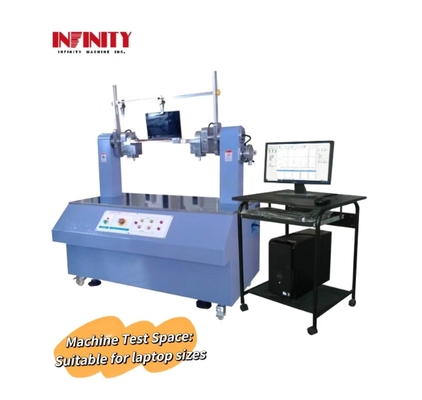

| Machine test space | Suitable For Laptop Sizes |
| Weight (approx) | 300kg |
| Feature7 | Torsion Attenuation Curve Report: Shows The Relationship Between The Torsion Value Change (attenuation) And The Number Of Times During The Whole Test. |
360 Degree Automatic Spindle Test Machine, Automatic Spindle Measurement, 360 Degree Automatic Spindle Test Machine
Shaft test diagram:
The Infinity IN-F4360 360 Degree Automatic Spindle Test Machine is an advanced product designed for testing the torsional properties of various materials. This product is manufactured in China and is CE and ISO certified, ensuring its high quality and performance. The minimum order quantity for this product is 1, and the price is negotiable. The packaging details include clear sheet+sponge+wood carton and the delivery time is 20-30 days after order confirmation. Payment terms include TT PAYPAL Moneygram and more, while the supply ability is 200 sets per month.
This 360 Degree Automatic Spindle Test Machine is equipped with bilateral force application which ensures that the left and right synchronous rocker arms will not shake during the test and the acquisition force is highly accurate. The device is also equipped with a two-sided axis matching device to ensure the consistency and test accuracy of the tested HINGE axis. The main engine size of this product is W1350*D850*H1300.
One of the most notable features of the Infinity IN-F4360 360 Degree Automatic Spindle Test Machine is its ability to print and store graphs such as the torsion-angle curve + data, torque attenuation curve + data, and test reports. This feature makes it easy to analyze and track the progress of each test.
The minimum display torque of this product is 0.01kgf.cm. Additionally, the device alarm condition setting can detect Hingle itself torque loss or partial loss, and judge the failure of the equipment to stop and give a software prompt.
The Infinity IN-F4360 360 Degree Automatic Spindle Test Machine is ideal for a wide range of product application occasions and scenarios. It is suitable for testing the torsional properties of various materials, including metals, plastics, and other materials used in the manufacturing of products such as screws, bolts, and hinges. The product is also suitable for use in research and development laboratories, quality control departments, and other institutions that require automatic spindle measurement.
Brand Name: Infinity
Model Number: IN-F4360
Place of Origin: China
Certification: CE, ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT, PAYPAL, Moneygram and so on
Supply Ability: 200 sets / month
Features:
Maximum Test Torque: 100kgf.cm (10N.m)
Description: The 360 Degree Automatic Spindle Test Machine, also known as a Spindle Tester, is a high-precision piece of equipment that uses Korea SETECH Precision Torque Sensor to measure torque with accuracy up to ±0.5%FS. It can print and store graphs, including the torsion-angle curve + data, torque attenuation curve + data, and test reports. The title of the test report, product specifications, test date, operator, file number, etc. can be modified at any time, in both Chinese and English. Maximum test torque is 100kgf.cm (10N.m).
Our 360 Degree Automatic Spindle Test Machine is designed to provide accurate and reliable measurements of torque and rotational speed. It is equipped with advanced software that allows for data analysis and reporting. Our technical support team is available to assist with installation, calibration, and troubleshooting. Additionally, we offer on-site training to ensure proper usage and maintenance of the equipment. For customers who require regular maintenance and calibration, we offer service agreements to ensure optimal performance and longevity of the machine. Please contact us for more information regarding our technical support and service options.
Product Packaging:
Shipping:
FAQs for Infinity IN-F4360 360 Degree Automatic Spindle Test Machine:
Q: What is the origin of the Infinity IN-F4360 360 Degree Automatic Spindle Test Machine?
A: The IN-F4360 is manufactured in China.
Q: What certifications does the Infinity IN-F4360 360 Degree Automatic Spindle Test Machine have?
A: The IN-F4360 is CE and ISO certified.
Q: What is the minimum order quantity for the Infinity IN-F4360 360 Degree Automatic Spindle Test Machine?
A: The minimum order quantity for the IN-F4360 is 1.
Q: What is the packaging for the Infinity IN-F4360 360 Degree Automatic Spindle Test Machine?
A: The IN-F4360 is packaged with clear sheet, sponge, and a wood carton.
Q: What is the delivery time for the Infinity IN-F4360 360 Degree Automatic Spindle Test Machine?
A: The delivery time for the IN-F4360 is 20-30 days after order confirmation.
Q: What are the payment terms for the Infinity IN-F4360 360 Degree Automatic Spindle Test Machine?
A: Payment terms for the IN-F4360 include TT, PayPal, Moneygram, and more. Prices are negotiable.
Q: What is the supply ability of the Infinity IN-F4360 360 Degree Automatic Spindle Test Machine?
A: The IN-F4360 has a supply ability of 200 sets per month.
