| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IF6112 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Displacement Decomposition Degree:: | 0.001mm | Unit Size (WxDxH):: | 800x560x 1258mm |
|---|---|---|---|
| Force Value Sensor Capacity: | 0.5KN（50Kg F ） | Test Station: | 2Slot |
| Machine Weight: | About 105 Kg | Test Speed Range:: | 0.1~1200mm/min |
| Force Value Accuracy: | ±0.3% | Product Name: | Dual-station Swing Force Testing Machine |
| Highlight: | Precise Swing Force Testing Machine,0.5KN Swing Force Testing Machine,150mm Swing Force Testing Machine |
||

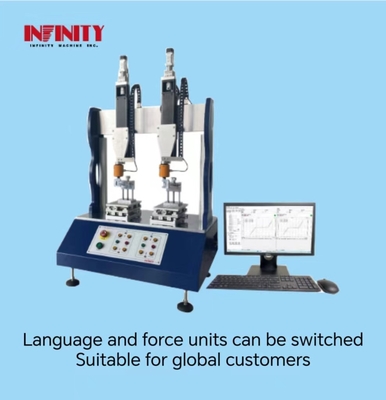

One of the significant features of this Dual-station Testing Machine is its real-time display of the current force value and displacement changes. It can display force-displacement (kgf-mm) or force-time (kgf-time) curve diagram. The machine has three operation interfaces, including Simplified, Traditional, and English languages, which can be switched at any time. The force value unit has N, Lb, Gf, Kgf, which can be switched to meet the requirements of global customers.
The Swing Force Tester also has an open force value protection function that sets the protection value according to conventional test force. When the operation or point movement exceeds the set limit, the machine will stop moving automatically to reduce damage to the equipment and precision samples. The test method management logic is clear, and the new method provides the correctness check of the parameters and provides the error information.
The test data is stored in a local database for easy access and query. The header content of the report can be modified at any time, both in Chinese and English. The report can also be automatically generated without input. Data report, curve report can be printed, and exported in Word, Excel, PDF, and other format documents.
In summary, the Dual-station Swing Force Testing Machine is a versatile and efficient tool for testing force and displacement changes of various products. With its multiple features such as three operation interfaces, open force value protection function, clear test method management logic, and easy data access, this Swing Force Tester is suitable for global customers and can meet the independent control and independent testing of 2 groups of products.
Dual-station Swing Force Testing Machine, Swing Force Tester, Dual-station Testing Machine
| Product Name: | Dual-station Swing Force Testing Machine |
| Features: | Real-time display of the current force value and displacement changes, can be displayed: force-displacement (kgf-mm), or force-time (kgf-time) curve diagram. Language has Simplified / Traditional / English three operation interface can be switched, the force value unit has N, Lb, Gf, Kgf can be switched, suitable for global customers. Open force value protection function, a protection value is set according to the conventional test force, when operation or point movement will automatically stop moving, to reduce damage to the equipment and precision samples. The test method management logic is clear, and the new method provides the correctness check of the parameters and provides the error information. The test data is stored in a local database for easy access and query. The header content of the report can be modified at any time (both Chinese and English), and the report can be automatically generated without input. Data report, curve report can be printed, and exported as Word, Excel, PDF and other format documents. Meet the independent control and independent testing of 2 groups of products. |
| Force value accuracy: | ±0.3% |
| Working power supply: | AC220V 3A 50Hz |
| Test speed range: | 0.1~1200mm/min |
| Displacement measurement accuracy: | ±0.05mm |
| Test speed accuracy: | ±0.5% |
| Unit size (WxDxH): | 800x560x 1258mm |
| Force value sensor capacity: | 0.5KN(50Kg F ) |
| Maximum test trip: | 150mm |

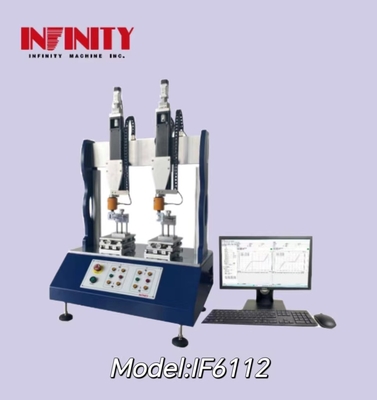

The IF6112 Swing Force Tester comes with a displacement decomposition degree of 0.001mm and a force value accuracy of ±0.3%. The displacement measurement accuracy is also ±0.05mm, making it highly precise and accurate. The product features real-time display of the current force value and displacement changes, which can be displayed in force-displacement (kgf-mm) or force-time (kgf-time) curve diagram. It also has three operation interface languages - Simplified, Traditional, and English - catering to global customers. The force value unit can be switched between N, Lb, Gf, and Kgf, making it highly versatile and adaptable to different testing scenarios.
The IF6112 also comes with an open force value protection function, which automatically stops the movement when the operation or point exceeds the protection value, reducing damage to the equipment and precision samples. The test method management logic is clear, and the new method provides the correctness check of the parameters and provides the error information. The test data is stored in a local database for easy access and query. The header content of the report can be modified at any time (both Chinese and English), and the report can be automatically generated.

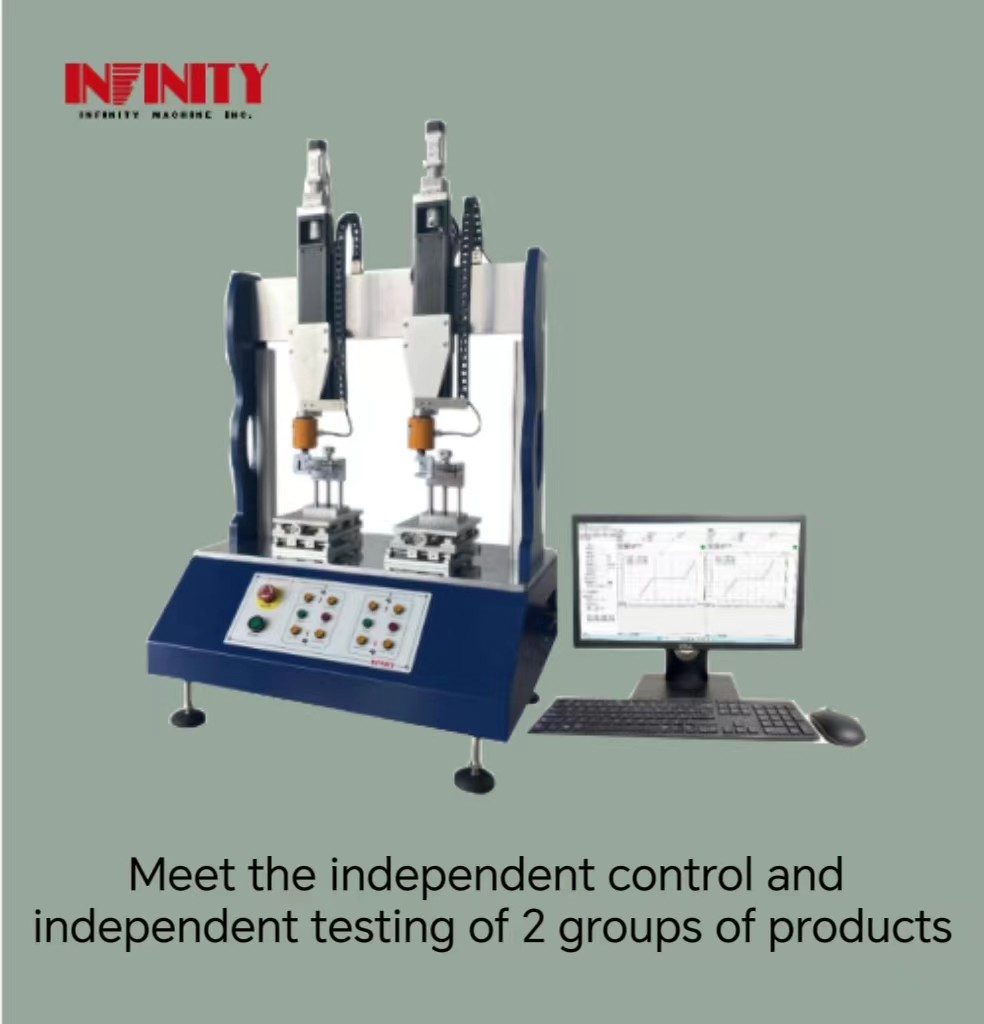

The IF6112 Dual-station Testing Machine meets the independent control and independent testing of 2 groups of products, making it highly efficient and productive. With a supply ability of 200 sets/month, this product is suitable for various occasions and scenarios, such as laboratory testing, product development, and quality control.
Get your hands on the IF6112 Swing Force Tester today and experience the efficiency, reliability, and accuracy of Infinity Machine's high-quality products.

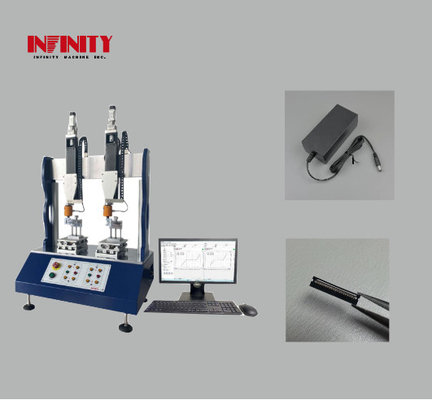

Infinity Machine's Dual-station Swing Force Testing Machine, model number IF6112, is a versatile and accurate piece of equipment made in China. With CE and ISO certification, this testing machine is suitable for all kinds of small appliances, power adapters, and connector line ports for swing force testing. The testing machine has a maximum test trip of 150mm and a force value accuracy of ±0.3%. The dual-station testing machine has 2 slots and a test speed accuracy of ±0.5%.
Infinity Machine's Swing Force Tester has customizable packaging details with clear sheet, sponge, and wooden carton packaging. The delivery time for this product is 20-30 days after order confirmation, with flexible payment terms including TT, PayPal, and Moneygram. The minimum order quantity is 1, and the price is negotiable based on your needs. With a supply ability of 200 sets per month, this testing machine can be tailored to your specific requirements.
Bidirectional swing force curve diagram: Force-displacement (kgf-mm)
The Universal Testing Machine is a precision testing instrument used to measure the mechanical properties of materials such as tension, compression, flexure, and shear. Our product technical support and services include:
1. Installation and set-up assistance
Our team of experts can help with the installation and set-up of your Universal Testing Machine to ensure it is working properly and accurately.
2. Training and education
We offer training and education on how to operate and maintain your Universal Testing Machine to ensure optimal performance and longevity.
3. Calibration and maintenance
We provide calibration and maintenance services to ensure your Universal Testing Machine is always accurate and reliable.
4. Technical support
Our experienced technical support team is available to answer any questions or concerns you may have regarding your Universal Testing Machine.
5. Upgrades and accessories
We offer a variety of upgrades and accessories to enhance the capabilities and functionality of your Universal Testing Machine.
Dimensional drawing:(mm)
Product Packaging:
Shipping:
Q: What is the brand name of the Universal Testing Machine?
A: The brand name of the Universal Testing Machine is Infinity Machine.
Q: What is the model number of the Universal Testing Machine?
A: The model number of the Universal Testing Machine is IF6112.
Q: Where is the Universal Testing Machine made?
A: The Universal Testing Machine is made in China.
Q: What certifications does the Universal Testing Machine have?
A: The Universal Testing Machine has CE and ISO certifications.
Q: What is the minimum order quantity for the Universal Testing Machine?
A: The minimum order quantity for the Universal Testing Machine is 1.
Q: What is the price of the Universal Testing Machine?
A: The price of the Universal Testing Machine is negotiable.
Q: What are the packaging details for the Universal Testing Machine?
A: The packaging details for the Universal Testing Machine include a clear sheet, sponge, and wood carton.
Q: What is the delivery time for the Universal Testing Machine?
A: The delivery time for the Universal Testing Machine is 20-30 days after order confirmed.
Q: What are the payment terms for the Universal Testing Machine?
A: The payment terms for the Universal Testing Machine include TT, PayPal, Moneygram, and so on.
Q: What is the supply ability of the Universal Testing Machine?
A: The supply ability of the Universal Testing Machine is 200 sets per month.
