| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IF6112 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Maximum Test Trip: | 150mm | Force Value Accuracy: | ±0.3% |
|---|---|---|---|
| Machine Weight: | About 105 Kg | Test Station: | 2Slot |
| Displacement Measurement Accuracy: | ±0.05mm | Application: | The Equipment Is Suitable For All Kinds Of Small Appliances, Power Adapter, Connector Line Port For Various Swing Force Test, The Port After The Applied Force After Multiple Swing Test Results, So As To Evaluate Whether The Product Meets The Manufacturing |
| Test Speed Accuracy:: | ±0.5% | Test Speed Range:: | 0.1~1200mm/min |
| Highlight: | Dual-station Testing Machine,High Accuracy Dual-station Testing Machine,2Slot Speed Testing Machine |
||

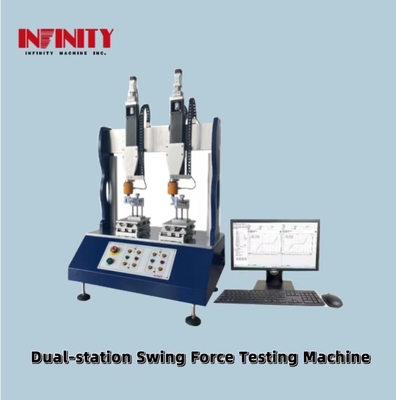

High Accuracy Dual-station Testing Machine with ±0.5% Test Speed and Force Value
The Dual-station Testing Machine is designed to accommodate two samples simultaneously, which makes it a highly efficient tool for testing multiple materials. The machine is equipped with a maximum test trip of 150mm, which ensures the testing of a wide range of samples.
One of the key features of this Swing Force Tester is its high level of accuracy. With a test speed accuracy of ±0.5%, the machine can provide precise and reliable test results. This feature makes it an ideal instrument for research and development, production, and quality control applications.
In addition to its accuracy, the Dual-station Swing Force Testing Machine is also user-friendly. The machine is easy to operate, and the testing process is straightforward. This feature makes it an ideal instrument for both experienced and inexperienced users.
The Dual-station Testing Machine is also lightweight, with a weight of about 105 Kg. This feature makes it easy to move and transport, which is an essential attribute for laboratories and manufacturing facilities.
In summary, the Dual-station Swing Force Testing Machine is a high-precision, accurate, and user-friendly instrument that is designed for measuring the force value of various materials. Its dual-station capability, maximum test trip, and high level of accuracy make it an ideal tool for research and development, production, and quality control applications.
Keywords: Swing Force Tester, Dual-station Swing Force Testing Machine, Dual-station Testing Machine
Bidirectional swing force curve diagram: Force-displacement (kgf-mm)
| Product Name: | Dual-station Swing Force Testing Machine |
| Model: | IF6112 |
| Test Station: | 2Slot |
| Maximum Test Trip: | 150mm |
| Test Speed Range: | 0.1~1200mm/min |
| Test Speed Accuracy: | ±0.5% |
| Displacement Decomposition Degree: | 0.001mm |
| Machine Weight: | About 105 Kg |
| Application: | The Equipment Is Suitable For All Kinds Of Small Appliances, Power Adapter, Connector Line Port For Various Swing Force Test, The Port After The Applied Force After Multiple Swing Test Results, So As To Evaluate Whether The Product Meets The Manufacturing Requirements. |
| Features: | Real-time Display Of The Current Force Value And Displacement Changes, Can Be Displayed: Force-displacement (kgf-mm), Or Force-time (kgf-time) Curve Diagram. Language Has Simplified / Traditional / English Three Operation Interface Can Be Switched, The Force Value Unit Has N, Lb, Gf, Kgf Can Be Switched, Suitable For Global Customers. Open Force Value Protection Function, A Protection Value Is Set According To The Conventional Test Force, When Operation Or Point Movement Will Automatically Stop Moving, To Reduce Damage To The Equipment And Precision Samples. The Test Method Management Logic Is Clear, And The New Method Provides The Correctness Check Of The Parameters And Provides The Error Information. The Test Data Is Stored In A Local Database For Easy Access And Query. The Header Content Of The Report Can Be Modified At Any Time (both Chinese And English), And The Report Can Be Automatically Generated Without Input. Data Report, Curve Report Can Be Printed, And Exported As Word, Excel, PDF And Other Format Documents. Meet The Independent Control And Independent Testing Of 2 Groups Of Products. |
The Universal Testing Machine from Infinity Machine (Model Number: IF6112) is a high-quality testing machine that is made in China and certified with CE and ISO. It has a minimum order quantity of 1 and a negotiable price. It comes with clear sheet+sponge+wood carton packaging and has a delivery time of 20-30 days after order confirmed. The payment terms include TT, PAYPAL, Moneygram, and others. The supply ability of the machine is 200 sets/month.

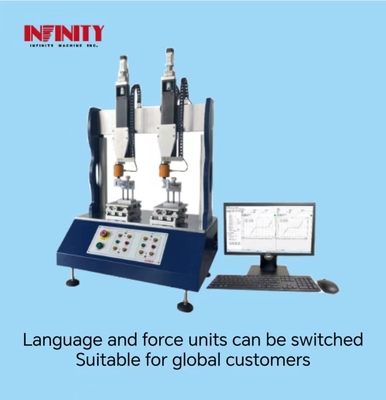

The Universal Testing Machine is perfect for a variety of product application occasions and scenarios. It is a dual-station testing machine that provides real-time display of the current force value and displacement changes. This machine can display force-displacement (kgf-mm) or force-time (kgf-time) curve diagram. It has a language switch option, with Simplified / Traditional / English three operation interfaces. The force value unit can be switched to N, Lb, Gf, and Kgf, making it suitable for customers all over the world.
The Universal Testing Machine has an open force value protection function, which sets a protection value according to the conventional test force. The machine will automatically stop moving to reduce damage to the equipment and precision samples. The test method management logic is clear and new methods provide correctness checks of parameters and error information. The test data is stored in a local database for easy access and queries. The header content of the report can be modified at any time (both Chinese and English), and the report can be automatically generated without input. The data report and curve report can be printed and exported as Word, Excel, PDF, and other format documents.

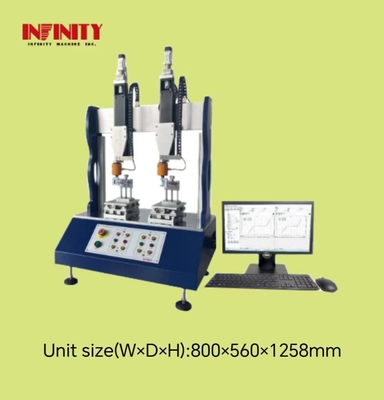

This swing force tester has a force value sensor capacity of 0.5KN(50Kg F )and test station of 2Slot. It measures 800x560x1258mm in size and has a test speed accuracy of ±0.5%. The Universal Testing Machine is perfect for independent control and independent testing of 2 groups of products.
Dimensional drawing:(mm)
The Dual-station Swing Force Testing Machine has a force value sensor capacity of 0.5KN (50Kg F) with a unit size of 800x560x1258mm. It has a test speed accuracy of ±0.5% and a force value accuracy of ±0.3%.
The Universal Testing Machine product comes with a range of technical support and services to ensure optimal performance and customer satisfaction:
Our team of highly skilled technicians and engineers is dedicated to providing exceptional support and service to our customers.
Product Packaging:
Shipping:
Q: What is the brand name of the product?
A: The brand name of the product is Infinity Machine.
Q: What is the model number of the Universal Testing Machine?
A: The model number of the Universal Testing Machine is IF6112.
Q: Where is the product made?
A: The product is made in China.
Q: What certifications does the product have?
A: The product has CE and ISO certifications.
Q: What is the minimum order quantity?
A: The minimum order quantity is 1.
Q: What is the price of the product?
A: The price of the product is negotiable.
Q: What are the packaging details?
A: The packaging details are clear sheet+sponge+wood carton.
Q: What is the delivery time?
A: The delivery time is 20-30 days after order confirmed.
Q: What are the payment terms?
A: The payment terms are TT, PAYPAL, Moneygram, and so on.
Q: What is the supply ability of the product?
A: The supply ability of the product is 200 sets / month.
