| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IF6112 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Force Value Accuracy: | ±0.3% | Displacement Measurement Accuracy: | ±0.05mm |
|---|---|---|---|
| Maximum Test Trip: | 150mm | Test Station: | 2Slot |
| Force Value Sensor Capacity: | 0.5KN（50Kg F ） | Test Speed Accuracy:: | ±0.5% |
| Working Power Supply: | AC220V 3A 50Hz | Machine Weight: | About 105 Kg |
| Highlight: | Dual-station Swing Force Testing Machine,0.5KN Swing Force Testing Machine,Highly Accurate Swing Force Testing Machine |
||

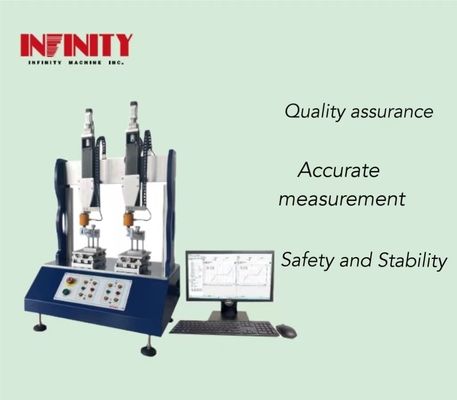

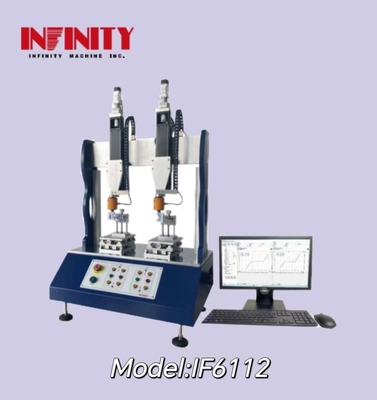

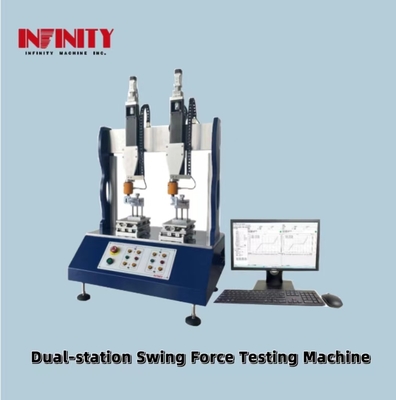

0.5KN Force Value Sensor Capacity Dual-station Swing Force Testing Machine with ±0.3% Accuracy
The IF6112 model has a test speed accuracy of ±0.5%, ensuring precise and reliable results. The equipment can perform multiple swing tests on the port after applying force, allowing for an accurate evaluation of the product's quality.
Manufacturers can use this machine to ensure their products meet industry standards and regulations. The Universal Testing Machine is an essential tool for quality control and assurance, making it a valuable investment for any company.
Dual-station Testing Machine, Dual-station Testing Machine, Dual-station Swing Force Testing Machine
Bidirectional swing force curve diagram: Force-displacement (kgf-mm)

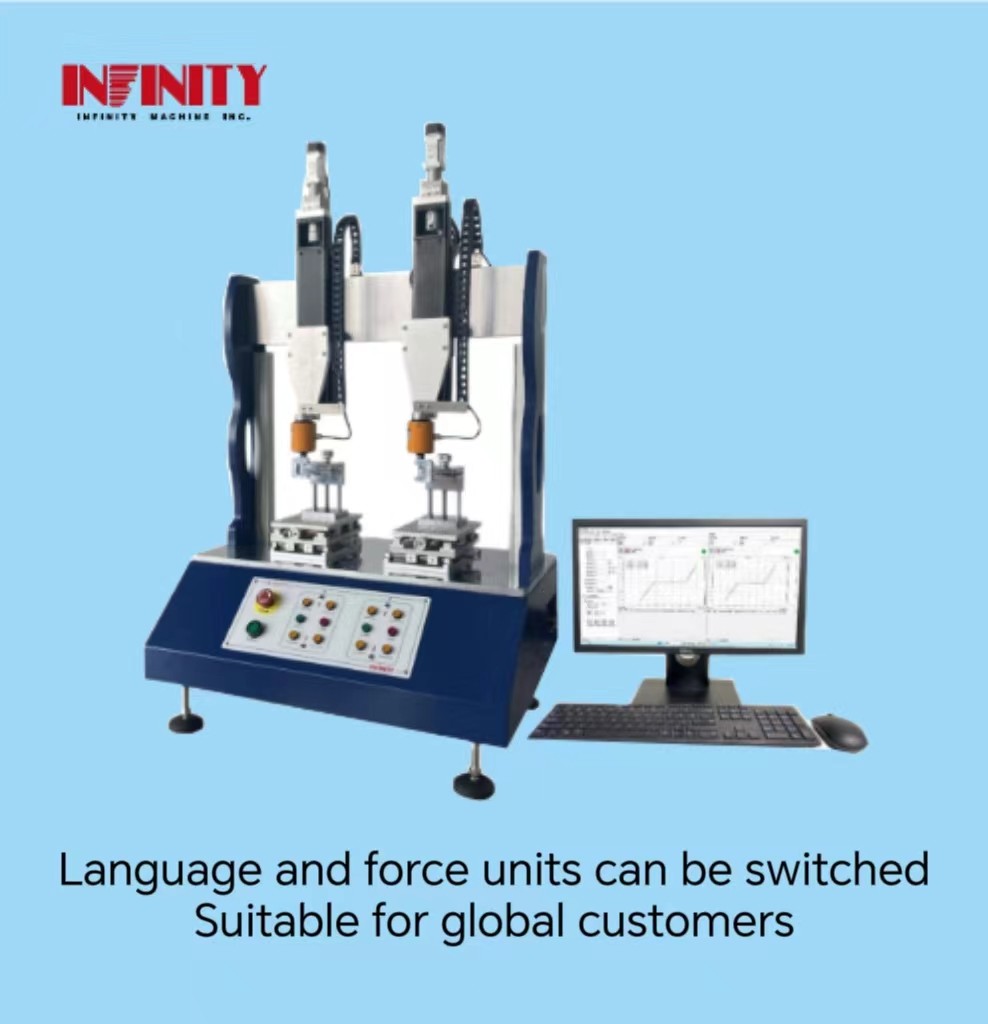

| Features | Real-time Display Of The Current Force Value And Displacement Changes, Can Be Displayed: Force-displacement (kgf-mm), Or Force-time (kgf-time) Curve Diagram. Language Has Simplified / Traditional / English Three Operation Interface Can Be Switched, The Force Value Unit Has N, Lb, Gf, Kgf Can Be Switched, Suitable For Global Customers. Open Force Value Protection Function, A Protection Value Is Set According To The Conventional Test Force, When Operation Or Point Movement Will Automatically Stop Moving, To Reduce Damage To The Equipment And Precision Samples. The Test Method Management Logic Is Clear, And The New Method Provides The Correctness Check Of The Parameters And Provides The Error Information. The Test Data Is Stored In A Local Database For Easy Access And Query. The Header Content Of The Report Can Be Modified At Any Time (both Chinese And English), And The Report Can Be Automatically Generated Without Input. Data Report, Curve Report Can Be Printed, And Exported As Word, Exce L, PDF And Other Format Documents. Meet The Independent Control And Independent Testing Of 2 Groups Of Products. |
|---|---|
| Test speed range | 0.1~1200mm/min |
| Displacement decomposition degree | 0.001mm |
| Machine weight | About 105 Kg |
| Model | IF6112 |
| Test speed accuracy | ±0.5% |
| Maximum test trip | 150mm |

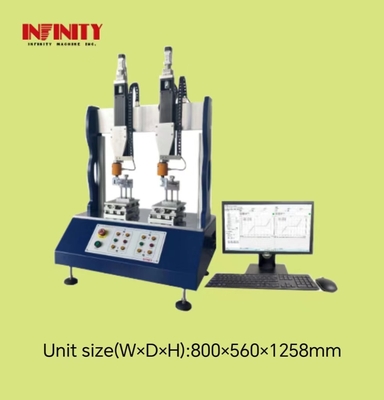

| Unit size (WxDxH) | 800x560x 1258mm |
| Working power supply | AC220V 3A 50Hz |
| Product name | Dual-station Swing Force Testing Machine |
| Product name | Dual-station Swing Force Testing Machine |
| Product name | Dual-station Swing Force Testing Machine |
The Universal Testing Machine product manufactured by Infinity Machine is an excellent device that is suitable for a wide range of product applications and testing scenarios. The product's model number is IF6112, and it is made in China. It is certified by CE ISO and has a minimum order quantity of 1. The price for this product is negotiable, and it is packaged with clear sheets, sponge, and wood cartons. The delivery time for this product is 20-30 days after order confirmation, and it can be paid for with TT, PayPal, Moneygram, and other payment methods. The supply ability of this product is 200 sets per month.
The Universal Testing Machine has a test station of 2 slots, and its maximum test trip is 150mm, making it highly versatile. It is also equipped with a dual-station swing force testing machine that allows for accurate and precise readings. Additionally, this product has a force value accuracy of ±0.3%, which ensures that all readings are reliable and trustworthy. Its displacement decomposition degree is 0.001mm, making it highly sensitive and accurate.
The Dual-station Swing Force Testing Machine is ideal for use in a variety of applications and scenarios, including product testing, quality control, research and development, and many others. It is perfect for testing the strength and durability of different materials, such as metals, plastics, rubber, and more. With its accurate force value accuracy and displacement decomposition degree, it can provide precise and reliable data for all testing purposes.
Overall, the Universal Testing Machine product from Infinity Machine is an excellent investment for anyone in need of a reliable and accurate testing device. Whether you are in the manufacturing industry or conducting research and development, this product can help you achieve accurate and reliable results. Its dual-station swing force testing machine, force value accuracy, and displacement decomposition degree make it a top-of-the-line product that is perfect for a wide range of applications.
If you are interested in purchasing this product, please contact Infinity Machine today to learn more about pricing and availability.
Dimensional drawing:(mm)
Brand Name: Infinity Machine
Model Number: IF6112
Place of Origin: Made In China
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Maximum test trip: 150mm
Model: IF6112
Force value sensor capacity: 0.5KN(50Kg F )
Test station: 2Slot
Application: The Equipment Is Suitable For All Kinds Of Small Appliances, Power Adapter, Connector Line Port For Various Swing Force Test, The Port After The Applied Force After Multiple Swing Test Results, So As To Evaluate Whether The Product Meets The Manufacturing Requirements.
Keywords: Swing Force Tester, Dual-station Testing Machine, Dual-station Swing Force Testing Machine
The Universal Testing Machine is a versatile testing equipment that can perform a wide range of mechanical tests including tension, compression, flexure, shear, and more. Our product technical support and services ensure that your Universal Testing Machine is running at its best:
- Installation and setup assistance
- On-site training and consultation
- Preventive maintenance and calibration
- Repairs and spare parts
- Software updates and upgrades
We are committed to providing excellent customer service and technical support to help you get the most out of your Universal Testing Machine.
