| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IF6112 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Test Speed Range:: | 0.1~1200mm/min | Machine Weight: | About 105 Kg |
|---|---|---|---|
| Force Value Sensor Capacity: | 0.5KN（50Kg F ） | Working Power Supply: | AC220V 3A 50Hz |
| Displacement Measurement Accuracy: | ±0.05mm | Product Name: | Dual-station Swing Force Testing Machine |
| Test Station: | 2Slot | Displacement Decomposition Degree:: | 0.001mm |
| Highlight: | Small Appliances Swing Force Tester,Accurate Swing Force Tester |
||
Swing Force Tester The Most Accurate Testing Equipment for Small Appliances

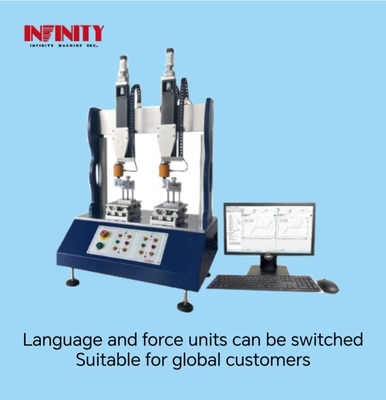

One of the key features of this machine is the real-time display of the current force value and displacement changes. Users can choose to display the force-displacement (kgf-mm) or force-time (kgf-time) curve diagram to track the progress of the test. The machine also offers three operation interfaces in Simplified Chinese, Traditional Chinese, and English, making it suitable for global customers.
The force value unit can be easily switched between N, lb, gf, and kgf, giving users more flexibility in their testing. Additionally, the machine comes with an open force value protection function that automatically stops movement when the protection value is reached, reducing the risk of damage to the equipment and precision samples.
The test method management logic is clear and easy to follow, with parameters that can be checked for correctness and error information provided. The test data is stored in a local database for easy access and query, and the header content of the report can be modified at any time in both Chinese and English. Reports can be automatically generated without input, and data and curve reports can be printed and exported as Word, Excel, PDF, and other format documents.
The Swing Force Tester has a force value sensor capacity of 0.5KN(50Kg F ), a test speed range of 0.1~1200mm/min, and a maximum test trip of 150mm. This machine is perfect for independent control and independent testing of two groups of products.
| Product name: | Dual-station Swing Force Testing Machine |

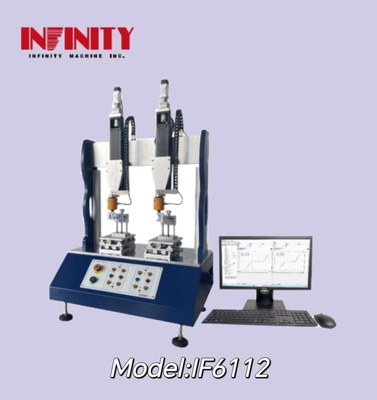

| Model: | IF6112 |
| Displacement decomposition degree: | 0.001mm |
| Maximum test trip: | 150mm |
| Test station: | 2Slot |
| Features: | Real-time Display Of The Current Force Value And Displacement Changes, Can Be Displayed: Force-displacement (kgf-mm), Or Force-time (kgf-time) Curve Diagram. Language Has Simplified / Traditional / English Three Operation Interface Can Be Switched, The Force Value Unit Has N, Lb, Gf, Kgf Can Be Switched, Suitable For Global Customers. Open Force Value Protection Function, A Protection Value Is Set According To The Conventional Test Force, When Operation Or Point Movement Will Automatically Stop Moving, To Reduce Damage To The Equipment And Precision Samples. The Test Method Management Logic Is Clear, And The New Method Provides The Correctness Check Of The Parameters And Provides The Error Information. The Test Data Is Stored In A Local Database For Easy Access And Query. The Header Content Of The Report Can Be Modified At Any Time (both Chinese And English), And The Report Can Be Automatically Generated Without Input. Data Report, Curve Report Can Be Printed, And Exported As Word, Excel, PDF And Other Format Documents. Meet The Independent Control And Independent Testing Of 2 Groups Of Products. |
| Force value accuracy: | ±0.3% |
| Displacement measurement accuracy: | ±0.05mm |
| Test speed accuracy: | ±0.5% |
| Test speed range: | 0.1~1200mm/min |
Tension and Compression Testing: The IF6112 Universal Testing Machine is capable of performing tension and compression tests on a wide range of materials, including metals, plastics, rubber, and more. It is ideal for use in quality control testing, research and development, and product testing.
Swing Force Testing: The IF6112 also serves as a Swing Force Tester, making it ideal for use in testing the swing force of various materials such as golf clubs, tennis rackets, and more. This feature makes it a popular choice among sports equipment manufacturers and retailers.
Dual-station Testing: The dual-station testing feature of the IF6112 allows for simultaneous testing of two different samples, making it a highly efficient and time-saving option for testing labs and manufacturing facilities. This feature can be used for a variety of testing scenarios, including tension and compression testing, bending testing, and more.

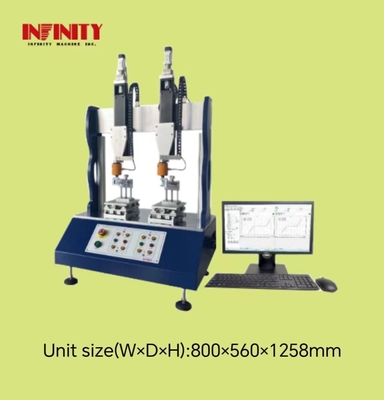

The IF6112 Dual-station Swing Force Testing Machine is made in China and is CE and ISO certified. It has a minimum order quantity of 1 and the price is negotiable. The packaging details include a clear sheet, sponge, and wood carton for safe transport. The delivery time is 20-30 days after order confirmation, and payment terms include TT, PayPal, Moneygram, and more. The IF6112 has a supply ability of 200 sets per month and has a unit size of 800x560x1258mm and a weight of about 105 Kg. The test speed accuracy is ±0.5%, making it a highly reliable and accurate testing machine.
Bidirectional swing force curve diagram: Force-displacement (kgf-mm)
The Universal Testing Machine product comes with comprehensive technical support and services to ensure its optimal performance throughout its lifespan. Our team of experts is available to assist with any product-related inquiries, from installation and training to maintenance and repair. We provide regular software updates to ensure the machine is always up-to-date with the latest technology, as well as calibration services to ensure accurate and precise testing results. Our technical support team is available 24/7 to provide remote assistance and troubleshooting. We also offer on-site support services for more complex issues. Contact us to learn more about our technical support and services.
Dimensional drawing:(mm)
Product Packaging:
The Universal Testing Machine product will be carefully packaged in a sturdy cardboard box to ensure that it arrives in excellent condition. The box will be sealed with strong packing tape to prevent any damage during shipping. Inside the box, the product will be securely held in place with foam padding and other protective materials to prevent any movement or damage during transit.
Shipping:
Our shipping partners will ensure that your Universal Testing Machine product is delivered safely and in a timely manner. We offer a range of shipping options to suit your needs, including standard and express shipping. Once your order has been processed and shipped, we will provide you with a tracking number so you can keep an eye on your package as it makes its way to you.
Q: What is the brand name of this testing machine?
A: The brand name is Infinity Machine.
Q: What is the model number of this testing machine?
A: The model number is IF6112.
Q: Where is this testing machine made?
A: This testing machine is made in China.
Q: What certifications does this testing machine have?
A: This testing machine has CE and ISO certifications.
Q: What is the minimum order quantity for this testing machine?
A: The minimum order quantity for this testing machine is 1.
Q: What is the price of this testing machine?
A: The price of this testing machine is negotiable.
Q: What are the packaging details for this testing machine?
A: The packaging details for this testing machine are clear sheet+sponge+wood carton.
Q: What is the delivery time for this testing machine?
A: The delivery time for this testing machine is 20-30 days after order confirmed.
Q: What are the payment terms for this testing machine?
A: The payment terms for this testing machine are TT, PayPal, Moneygram and so on.
Q: What is the supply ability for this testing machine?
A: The supply ability for this testing machine is 200 sets per month.
