| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IF3231 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Features: | The Code Scanner Is Configured To Scan The QR Code Of The Product, Which Is More Convenient To Manage The Test Data Of The Corresponding Product. Real-time Display Of The Current Force Value And Displacement Changes, Can Be Displayed: Force-stroke (kgf-mm | Machine Weight: | 185kg |
|---|---|---|---|

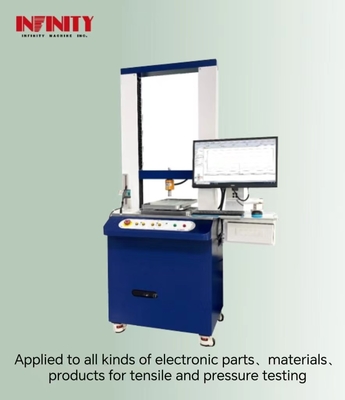

| Model: | IF3231 | Application: | The Equipment Is Used For All Kinds Of Electronic Components, Materials, Products For Stretching, Pressure Testing, So As To Determine Its Structural Resistance Strength. The Destructive Pressing Or Stretching Can Be Implemented, Automatically Judged And T |
| Speed Accuracy: | ±0.5% | Test Speed: | 0~1000mm/min |
| Test Trip: | 0~600mm | Product Name: | Push Tensile Testing Machine |
| Highlight: | 5A Push Pull Testing Machine,AC220V Push Pull Testing Machine |
||
This machine features a code scanner that is configured to scan the QR code of the product, making it more convenient to manage the test data of the corresponding product. The real-time display of the current force value and displacement changes can be displayed in force-stroke (kgf-mm) or force-time (kgf-time) curve diagram.
The test report can be selected, directly printed or saved as Word, Excel, PDF and other formats. The motion shaft is driven by a Japanese Panasonic servo motor, precision ball screw drive, low noise, and durable use.
The machine has a simplified / traditional / English three operation interface that can be switched, and the force value unit can be switched between N, Lb, Gf, and Kgf, making it suitable for global customers. The manual X and Y platforms can be used to change the test position arbitrarily.
The open force value protection function is designed to reduce damage to the equipment and precision samples. A protection value is set according to the conventional test force, and the machine will automatically stop moving when the operation or point movement exceeds this value. The floor structure design of the whole machine makes the operator closer to the test area and more convenient for sample loading and unloading.
The test method management logic is clear, and the new method provides the correctness check of the parameters and provides the error information. The test data is stored in a local database for easy access and query. According to the customer agreement, it has data upload functions such as trace and PDCA.
The Push Tensile Testing Machine has a test trip of 0~600mm, making it perfect for a wide range of testing applications. It is a versatile and reliable machine that can be used for both push and pull testing. With its advanced features and user-friendly interface, it is an excellent choice for laboratories, research institutions, and manufacturing facilities.
| Product Name: | Push and Pull testing machine |
| Model: | IF3231 |
| Application: | The Equipment Is Used For All Kinds Of Electronic Components, Materials, Products For Stretching, Pressure Testing, So As To Determine Its Structural Resistance Strength. The Destructive Pressing Or Stretching Can Be Implemented, Automatically Judged And The Test Can Be Concluded After Rupture, Obtaining The Maximum Force Value And Displacement Of The Product. Constant Force Test Can Be Carried Out To Obtain The Life Of The Product Under A Certain Force. |
| Test Speed: | 0~1000mm/min |
| Force Value Accuracy: | ±0.3% |

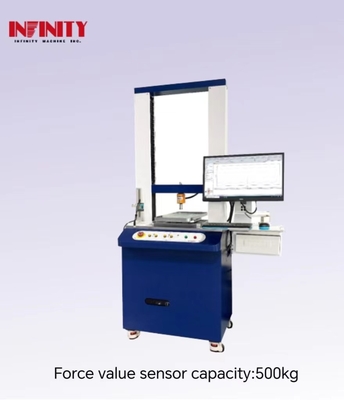

| Force Value Sensor Capacity: | 500Kg |
| Host Size (WxDxH): | 1167x700x1770mm |
| Machine Weight: | 185kg |
| Source: | AC220V 5A 50Hz Or Is Specified |
| Scan The Code Reading Accuracy: | ≥4mil |
The Push and Pull Testing Machine is designed to test the tensile, compression, and bending properties of a wide range of materials, including electronic components, products, and various other materials. It is specifically designed to determine the structural resistance strength of a product through destructive pressing or stretching, and can automatically judge and conclude the test after rupture, obtaining the maximum force value and displacement of the product. The machine is also capable of carrying out constant force tests to obtain the life of the product under a certain force.
The machine has a force value accuracy of ±0.3% and requires a power source of AC220V 5A 50Hz, or as specified. With a weight of 185kg and host size of 1167x700x1770mm, this machine is both sturdy and compact. It has a supply ability of 200 sets per month, making it an ideal choice for a wide range of industries and applications.
The Push and Pull Testing Machine can be used in a variety of scenarios, including testing the strength of materials used in construction, electronic components, and automotive parts. It can also be used in research and development facilities to test the strength and durability of new materials and products. In addition, it can be used in quality control to ensure that products meet the required standards and specifications.
1. All test conditions are input by computer and automatically stored: load measurement range, stroke measurement range, total number of measurements, measurement speed, measurement direction, pause time, stay time, etc.
2. Plot of the conductive force-stroke (kgf-mm) and force-time (kgf-time).
3. Automatically calculate the maximum force value, maximum displacement, test time, product bar code information and so on.
4. The upper and lower limits can be set, and the Passed or Fail is automatically determined by the software.
Brand Name: Infinity Machine
Model Number: IF3231
Place of Origin: Made In China
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Displacement decomposition degree: 0.001mm
Force value accuracy: ±0.3%
Force value sensor capacity: 500Kg
Product Name: Universal Tensile Machine
Test trip: 0~600mm
The Universal Testing Machine product offers technical support and services to ensure that our customers are satisfied with their purchase. Our technical support team is available to answer any questions and provide assistance with installation, calibration, and operation of the machine. We also offer maintenance and repair services to keep the machine running smoothly and efficiently. In addition, we provide training and education on the proper use and care of the machine to ensure optimal performance and longevity. Our goal is to provide our customers with the highest level of support and service to ensure their satisfaction.
Product Packaging:
Shipping:
Q: What is the brand name of the Universal Testing Machine?
A: The brand name of this product is Infinity Machine.
Q: What is the model number of the Universal Testing Machine?
A: The model number of this product is IF3231.
Q: What is the place of origin of the Universal Testing Machine?
A: The Universal Testing Machine is made in China.
Q: What certifications does the Universal Testing Machine have?
A: The Universal Testing Machine has CE and ISO certifications.
Q: What is the packaging details of the Universal Testing Machine?
A: The packaging details of the Universal Testing Machine include clear sheet+sponge+wood carton.
Q: What is the delivery time for the Universal Testing Machine?
A: The delivery time for the Universal Testing Machine is 20-30 days after order confirmed.
Q: What are the payment terms for the Universal Testing Machine?
A: The payment terms for the Universal Testing Machine include TT, PAYPAL, Moneygram, and so on.
Q: What is the minimum order quantity for the Universal Testing Machine?
A: The minimum order quantity for the Universal Testing Machine is 1.
Q: What is the supply ability of the Universal Testing Machine?
A: The supply ability of the Universal Testing Machine is 200 sets per month.
Q: What is the price of the Universal Testing Machine?
A: The price of the Universal Testing Machine is negotiable.
