| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IF3231 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Features: | The Code Scanner Is Configured To Scan The QR Code Of The Product, Which Is More Convenient To Manage The Test Data Of The Corresponding Product. Real-time Display Of The Current Force Value And Displacement Changes, Can Be Displayed: Force-stroke (kgf-mm | Displacement Measurement Accuracy: | ±0.05mm |
|---|---|---|---|
| Force Value Accuracy: | ±0.3% | Model: | IF3231 |
| Displacement Decomposition Degree: | 0.001mm | Test Speed: | 0~1000mm/min |
| Test Trip: | 0~600mm | Scan The Code Reading Accuracy: | ≥4mil |
| Highlight: | Push Pull Testing Machine,Accurate Measurements Push Pull Testing Machine |
||

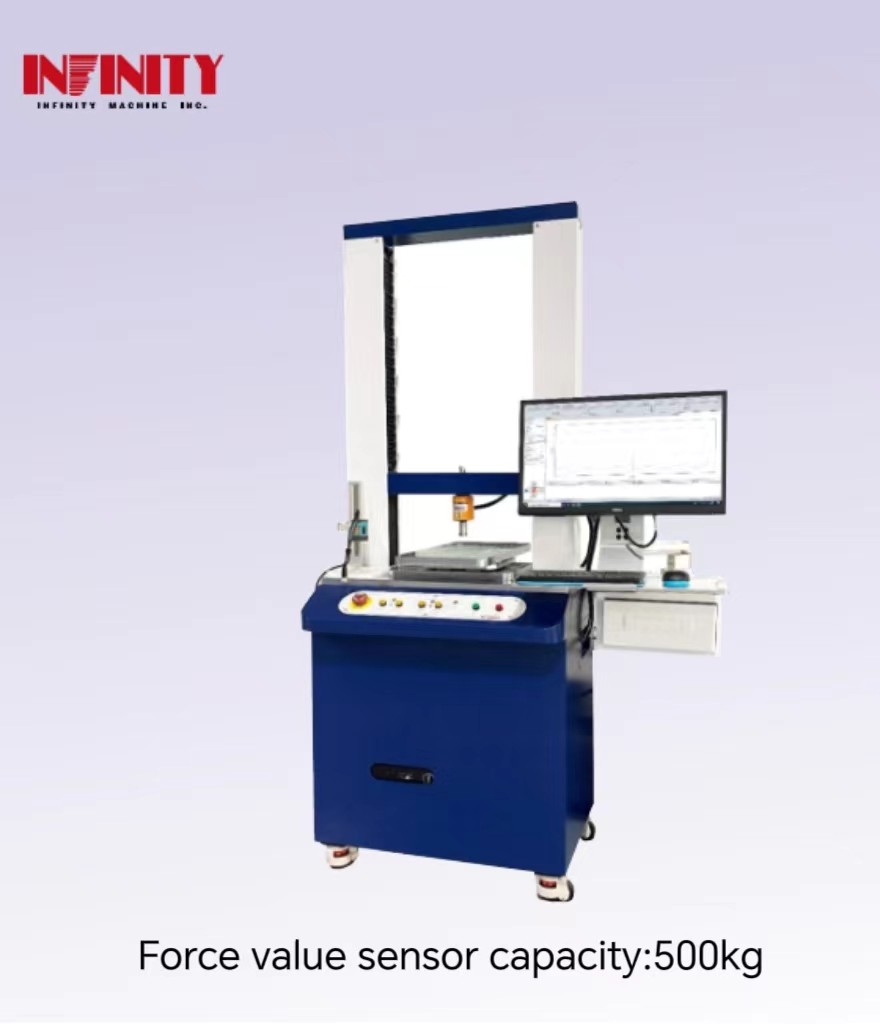

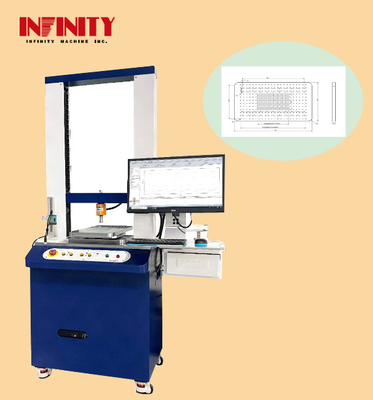

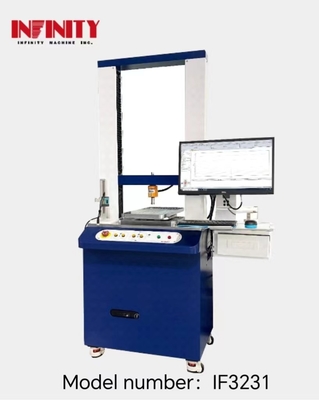

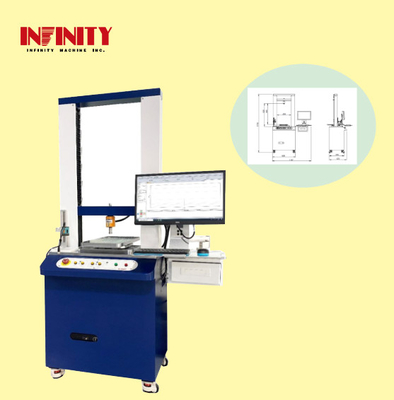

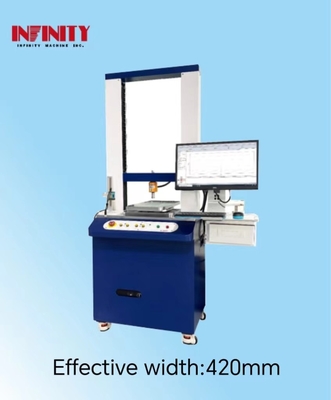

The Push Tensile Testing Machine, model IF3231, has a force value accuracy of ±0.3%, ensuring precise and reliable results. The machine is equipped with a code scanner that can scan the QR code of the product, making it more convenient to manage the test data of the corresponding product. The current force value and displacement changes are displayed in real-time and can be displayed in force-stroke (kgf-mm) or force-time (kgf-time) curve diagram. The test report can be selected, directly printed or saved as Word, Excel, PDF and other formats.
The motion shaft of the machine is driven by Japanese Panasonic servo motor, precision ball screw drive, low noise, and durable use. The language has simplified, traditional, and English three operation interface that can be switched and the force value unit has N, Lb, Gf, Kgf that can be switched, suitable for global customers. The machine is also equipped with manual X and Y platforms to change the test position arbitrarily. The open force value protection function is a significant feature of this machine. A protection value is set according to the conventional test force, when operation or point movement will automatically stop moving, to reduce damage to the equipment and precision samples.
The floor structure design of the whole machine makes the operator closer to the test area and more convenient for sample loading and unloading. The test method management logic is clear, and the new method provides the correctness check of the parameters and provides the error information. The test data is stored in a local database for easy access and query. According to the customer agreement, it has data upload functions such as trace and PDCA.
Push and Pull Testing Machine, Push and Pull Testing Machine, Push and Pull Testing Machine
| Product Name: | Push Tensile Testing Machine |
| Application: | Used for all kinds of electronic components, materials, products for stretching, pressure testing, so as to determine its structural resistance strength. The destructive pressing or stretching can be implemented, automatically judged and the test can be concluded after rupture, obtaining the maximum force value and displacement of the product. Constant force test can be carried out to obtain the life of the product under a certain force. |
| Effective Width: | 420mm |
| Features: | The Code Scanner Is Configured To Scan The QR Code Of The Product, Which Is More Convenient To Manage The Test Data Of The Corresponding Product. Real-time Display Of The Current Force Value And Displacement Changes, Can Be Displayed: Force-stroke (kgf-mm), Or Force-time (kgf-time) Curve Diagram. The Test Report Can Be Selected, Directly Printed Or Saved As Word, E Xcel, PDF And Other Formats. The Motion Shaft Is Driven By Japanese Panasonic Servo Motor, Precision Ball Screw Drive, Low Noise, Durable Use. Language Has Simplified / Traditional / English Three Operation Interface Can Be Switched, The Force Value Unit Has N, Lb, Gf, Kgf Can Be Switched, Suitable For Global Customers. Configure The Manual X And Y Platforms To Change The Test Position Arbitrarily. Open Force Value Protection Function, A Protection Value Is Set According To The Conventional Test Force, When Operation Or Point Movement Will Automatically Stop Moving, To Reduce Damage To The Equipment And Precision Samples. The Floor Structure Design Of The Whole Machine Makes The Operator Closer To The Test Area And More Convenient For Sample Loading And Unloading. The Test Method Management Logic Is Clear, And The New Method Provides The Correctness Check Of The Parameters And Provides The Error Information. The Test Data Is Stored In A Local Database For Easy Access And Query. According To The Customer Agreement, It Has Data Upload Functions Such As Trace And PDCA. |
| Force Value Accuracy: | ±0.3% |
| Displacement Decomposition Degree: | 0.001mm |
| Test Speed: | 0~1000mm/min |
| Displacement Measurement Accuracy: | ±0.05mm |
| Scan the Code Reading Accuracy: | ≥4mil |
| Machine Weight: | 185kg |
The IF3231 Universal Testing Machine is an ideal product for determining the life of products under certain force. With a test speed range of 0~1000mm/min, it can carry out constant force tests and accurately measure the displacement with a measurement accuracy of ±0.05mm. This equipment is Made In China and has been certified by CE ISO. It has a minimum order quantity of 1 and its price is negotiable.
The IF3231 Universal Testing Machine is widely used in various industries such as plastic, rubber, textile, pharmaceutical, and more. In the plastic industry, it is used to determine the mechanical properties of plastic products such as tensile strength, elongation, and modulus of elasticity. In the textile industry, it is used to test the strength and elongation of fibers, yarns, and fabrics. In the pharmaceutical industry, it is used to test the hardness and compression strength of tablets and capsules.
The IF3231 Universal Testing Machine is packed using clear sheets, sponge, and wood carton for protection during transportation. The delivery time is 20-30 days after order confirmation, and payment terms include TT, PayPal, Moneygram, and more. The supply ability is 200 sets per month, ensuring that it can meet the demands of different industries.
In summary, the Infinity Machine IF3231 Universal Testing Machine is a reliable and accurate product suitable for all kinds of electronic components, materials, and products for stretching and pressure testing. It is widely used in various industries and has been certified by CE ISO, ensuring its quality and safety. Get in touch with us today to discuss your testing needs and negotiate the price.
1. All test conditions are input by computer and automatically stored: load measurement range, stroke measurement range, total number of measurements, measurement speed, measurement direction, pause time, stay time, etc.
2. Plot of the conductive force-stroke (kgf-mm) and force-time (kgf-time).
3. Automatically calculate the maximum force value, maximum displacement, test time, product bar code information and so on.
4. The upper and lower limits can be set, and the Passed or Fail is automatically determined by the software.
Brand Name: Infinity Machine
Model Number: IF3231
Place of Origin: Made In China
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Product Name: Push Tensile Testing Machine
Machine Weight: 185kg
Test Trip: 0~600mm
Model: IF3231
Force Value Sensor Capacity: 500Kg
The Universal Testing Machine product offers a range of technical support and services to ensure optimal performance and user satisfaction. Our team of experts is available to provide assistance with product installation, setup, and calibration. We also offer training and user manuals to help users become familiar with the product and its capabilities.
Our technical support team is available to troubleshoot any issues that may arise during product use and can offer on-site repairs or maintenance as necessary. We also offer calibration and validation services to ensure accurate and precise testing results.
In addition to technical support, we offer a range of services to help users get the most out of their Universal Testing Machine. This includes custom test fixture design and fabrication, software customization to meet specific testing requirements, and consulting services to help users optimize their testing procedures and data analysis.
Product Packaging:
The Universal Testing Machine will be packed in a sturdy cardboard box with foam padding for extra protection during transit.
Shipping:
The package will be shipped via a reputable courier service, and a tracking number will be provided to the customer for easy monitoring of the delivery status.
Q1: What is the brand name of this Universal Testing Machine?
A1: The brand name of this machine is Infinity Machine.
Q2: What is the model number of this Universal Testing Machine?
A2: The model number of this machine is IF3231.
Q3: Where is this Universal Testing Machine manufactured?
A3: This machine is made in China.
Q4: What certifications does this Universal Testing Machine have?
A4: This machine is CE and ISO certified.
Q5: What is the minimum order quantity for this Universal Testing Machine?
A5: The minimum order quantity for this machine is 1.
Q6: What is the price of this Universal Testing Machine?
A6: The price of this machine is negotiable.
Q7: What is the packaging of this Universal Testing Machine?
A7: The machine is packaged with clear sheet+sponge+wood carton.
Q8: What is the delivery time for this Universal Testing Machine?
A8: The delivery time for this machine is 20-30 days after order confirmed.
Q9: What are the payment terms for this Universal Testing Machine?
A9: The payment terms for this machine are TT, Paypal, Moneygram, and so on.
Q10: What is the supply ability of this Universal Testing Machine?
A10: The supply ability of this machine is 200 sets/month.
