| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IF3231 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Features: | The Code Scanner Is Configured To Scan The QR Code Of The Product, Which Is More Convenient To Manage The Test Data Of The Corresponding Product. Real-time Display Of The Current Force Value And Displacement Changes, Can Be Displayed: Force-stroke (kgf-mm | Speed Accuracy: | ±0.5% |
|---|---|---|---|
| Force Value Accuracy: | ±0.3% | Displacement Decomposition Degree: | 0.001mm |
| Model: | IF3231 | Displacement Measurement Accuracy: | ±0.05mm |
| Effective Width: | 420mm | Test Speed: | 0~1000mm/min |
| Highlight: | 1167x700x1770mm Push Pull testing machine,Materials Push Pull testing machine,500Kg Capacity Push Pull testing machine |
||

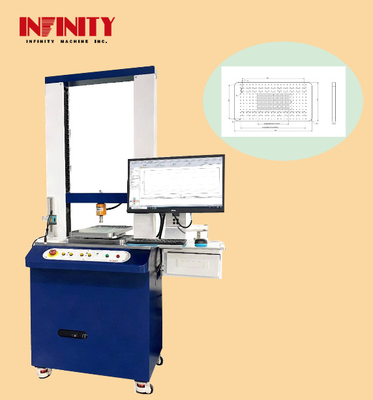

This particular Push and Pull testing machine has a displacement measurement accuracy of ±0.05mm, ensuring precise and accurate test results. It has a test trip of 0~600mm, allowing for a wide range of testing capabilities. The effective width of the machine is 420mm, which allows for larger samples to be tested. The force value sensor capacity of the machine is 500Kg, which is suitable for testing a wide range of materials.
The Push and Pull testing machine runs on an AC220V 5A 50Hz power source, or can be specified to meet specific requirements. It is easy to operate, making it suitable for both experienced and novice users. The machine is made from high-quality materials, ensuring durability and a long lifespan.
The Push and Pull testing machine is an essential piece of equipment for any industry that requires testing of mechanical properties of materials. It is particularly useful for testing the tensile strength of materials, which is the ability of a material to resist breaking under tension. The machine can also be used to test compression strength, bending strength, and shear strength.
In summary, the Push and Pull testing machine is a reliable, accurate, and versatile piece of equipment that is essential for industries that require testing of mechanical properties of materials. Its displacement measurement accuracy of ±0.05mm, test trip of 0~600mm, effective width of 420mm, and force value sensor capacity of 500Kg make it suitable for testing a wide range of materials. Its easy-to-use operation and high-quality materials ensure durability and a long lifespan.

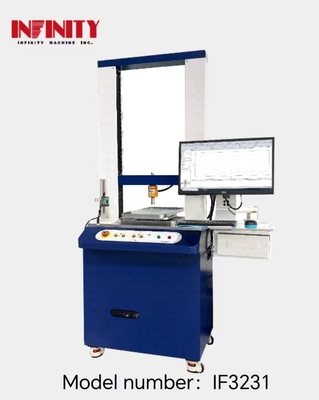

| Model | IF3231 |
| Test speed | 0~1000mm/min |

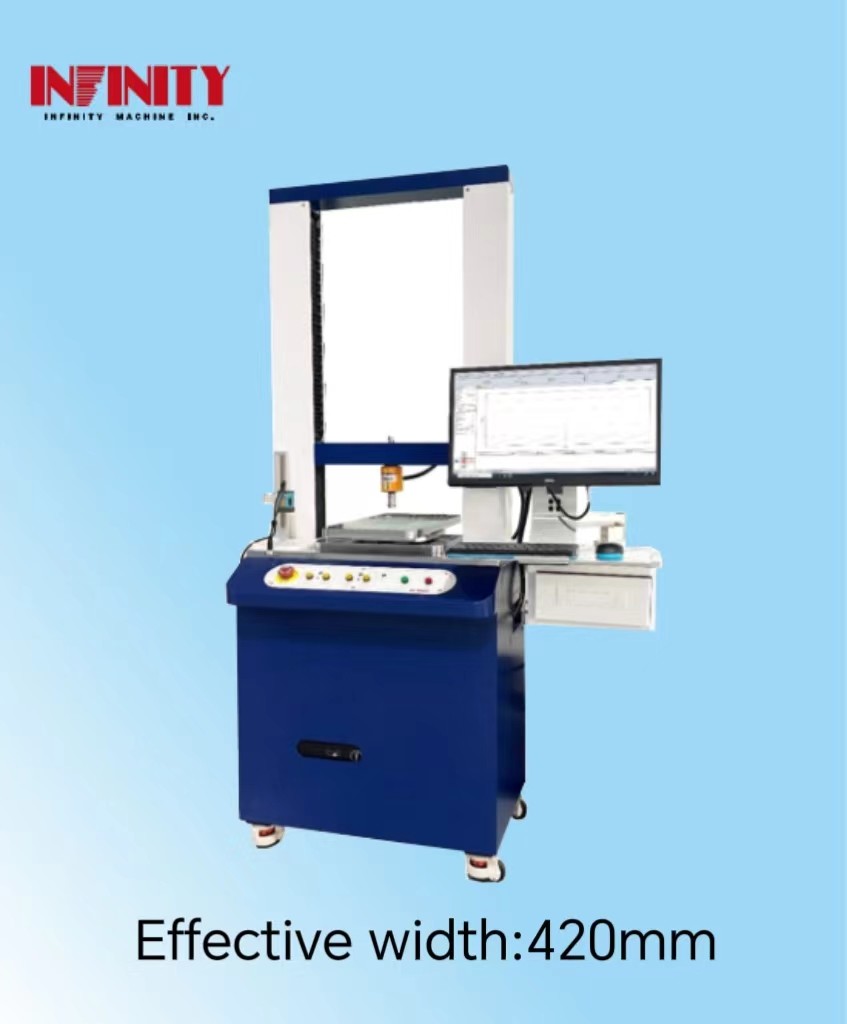

| Effective width | 420mm |
| Speed accuracy | ±0.5% |
| Force value accuracy | ±0.3% |
| Force value sensor capacity | 500Kg |
| Displacement measurement accuracy | ±0.05mm |

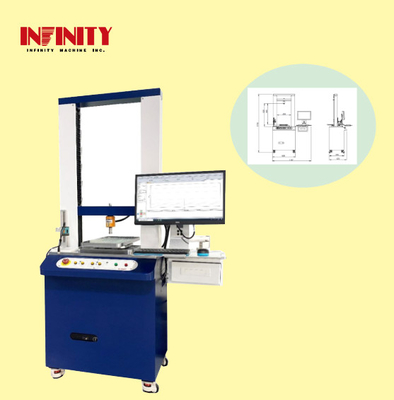

| Host size (WxDxH) | 1167x700x1770mm |
| Features | The Code Scanner Is Configured To Scan The QR Code Of The Product, Which Is More Convenient To Manage The Test Data Of The Corresponding Product. Real-time Display Of The Current Force Value And Displacement Changes, Can Be Displayed: Force-stroke (kgf-mm), Or Force-time (kgf-time) Curve Diagram. The Test Report Can Be Selected, Directly Printed Or Saved As Word, Excel, PDF And Other Formats. The Motion Shaft Is Driven By Japanese Panasonic Servo Motor, Precision Ball Screw Drive, Low Noise, Durable Use. Language Has Simplified / Traditional / English Three Operation Interface Can Be Switched, The Force Value Unit Has N, Lb, Gf, Kgf Can Be Switched, Suitable For Global Customers. Configure The Manual X And Y Platforms To Change The Test Position Arbitrarily. Open Force Value Protection Function, A Protection Value Is Set According To The Conventional Test Force, When Operation Or Point Movement Will Automatically Stop Moving, To Reduce Damage To The Equipment And Precision Samples. The Floor Structure Design Of The Whole Machine Makes The Operator Closer To The Test Area And More Convenient For Sample Loading And Unloading. The Test Method Management Logic Is Clear, And The New Method Provides The Correctness Check Of The Parameters And Provides The Error Information. The Test Data Is Stored In A Local Database For Easy Access And Query. According To The Customer Agreement, It Has Data Upload Functions Such As Trace And PDCA. |
| Application | The Equipment Is Used For All Kinds Of Electronic Components, Materials, Products For Stretching, Pressure Testing, So As To Determine Its Structural Resistance Strength. The Destructive Pressing Or Stretching Can Be Implemented, Automatically Judged And The Test Can Be Concluded After Rupture, Obtaining The Maximum Force Value And Displacement Of The Product. Constant Force Test Can Be Carried Out To Obtain The Life Of The Product Under A Certain Force. |
This product can also be referred to as Push and Pull Testing Machine, Tensile Testing Machine, and Universal Tensile Machine.
The Infinity Machine IF3231 is a versatile push and pull testing machine that can be used in various applications. It is made in China and is certified by CE and ISO, ensuring its quality and reliability. The minimum order quantity is 1 and the price is negotiable. It is packaged in clear sheet+sponge+wood carton and has a delivery time of 20-30 days after order confirmation. Payment terms include TT, PayPal, Moneygram, and others. It has a supply ability of 200 sets per month.
The IF3231 has a scan code reading accuracy of ≥4mil and a test speed range of 0~1000mm/min. It also has a test trip range of 0~600mm and a force value sensor capacity of 500kg. Its key feature is the code scanner, which is configured to scan the QR code of the product, making it more convenient to manage the test data of the corresponding product. The real-time display of the current force value and displacement changes allows for force-stroke (kgf-mm) or force-time (kgf-time) curve diagram display.

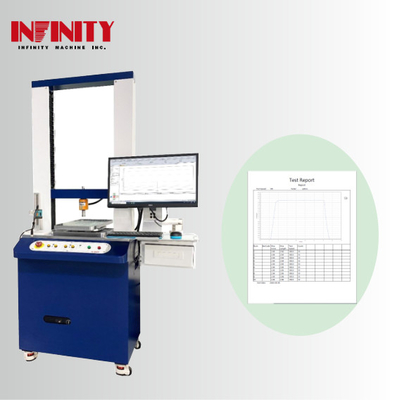

The IF3231 also has the ability to select the test report, which can be directly printed or saved as Word, Excel, PDF, and other formats. It is driven by a Japanese Panasonic servo motor, precision ball screw drive, low noise, and durable use. It has three operation interfaces that can be switched between simplified, traditional, and English languages. The force value unit can also be switched between N, Lb, Gf, and Kgf, making it suitable for global customers. It also comes with manual X and Y platforms to change the test position arbitrarily.
The IF3231 has an open force value protection function that sets a protection value according to the conventional test force. When the operation or point movement reaches this value, it will automatically stop moving to reduce damage to the equipment and precision samples. The floor structure design of the whole machine makes the operator closer to the test area and more convenient for sample loading and unloading. The test method management logic is clear, and the new method provides the correctness check of the parameters and provides the error information.
The test data is stored in a local database for easy access and query. According to the customer agreement, it has data upload functions such as trace and PDCA. The IF3231 is suitable for various applications, including tensile testing machines, push and pull testing machines, and more. Overall, the Infinity Machine IF3231 is a versatile and reliable testing machine that can be used in various scenarios.
1. All test conditions are input by computer and automatically stored: load measurement range, stroke measurement range, total number of measurements, measurement speed, measurement direction, pause time, stay time, etc.
2. Plot of the conductive force-stroke (kgf-mm) and force-time (kgf-time).
3. Automatically calculate the maximum force value, maximum displacement, test time, product bar code information and so on.
4. The upper and lower limits can be set, and the Passed or Fail is automatically determined by the software.
The equipment is used for all kinds of electronic components, materials, and products for stretching and pressure testing to determine their structural resistance strength. The destructive pressing or stretching can be implemented, automatically judged, and the test can be concluded after rupture, obtaining the maximum force value and displacement of the product. Constant force test can be carried out to obtain the life of the product under a certain force. The force value sensor capacity is 500Kg, and the test trip is 0~600mm. The scan the code reading accuracy is ≥4mil, and the source is AC220V 5A 50Hz or as specified.
The Universal Testing Machine product provides exceptional technical support and services to ensure maximum performance and longevity. Our team of experts is available to provide comprehensive installation, training, and maintenance services to guarantee that your machine operates at its optimal level. Additionally, we offer remote technical support and troubleshooting to quickly address any issues that may arise. Our goal is to ensure that our customers receive the best possible support and services throughout the lifetime of their Universal Testing Machine.
Product Packaging:
Shipping:
Q: What is the brand name of the Push and Pull testing machine?
A: The brand name of the Push and Pull testing machine is Infinity Machine.
Q: What is the model number of the Push and Pull testing machine?
A: The model number of the Push and Pull testing machine is IF3231.
Q: Where is the Push and Pull testing machine made?
A: The Push and Pull testing machine is made in China.
Q: What certifications does the Universal Testing Machine have?
A: The Push and Pull testing machine has CE and ISO certifications.
Q: What is the minimum order quantity for the Push and Pull testing machine?
A: The minimum order quantity for the Push and Pull testing machine is 1.
Q: What is the packaging details for the Push and Pull testing machine?
A: The packaging details for the Push and Pull testing machine is clear sheet+sponge+wood carton.
Q: What is the delivery time for the Push and Pull testing machine?
A: The delivery time for the Push and Pull testing machine is 20-30 days after order confirmed.
Q: What payment terms are accepted for the Push and Pull testing machine?
A: TT PAYPAL Moneygram and so on are accepted payment terms for the Universal Testing Machine.
Q: What is the supply ability of the Push and Pull testing machine?
A: The supply ability of the Push and Pull testing machine is 200 sets per month.
