| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IF3231 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Force Value Accuracy: | ±0.3% | Effective Width: | 420mm |
|---|---|---|---|
| Speed Accuracy: | ±0.5% | Product Name: | Push And Pull Testing Machine |
| Displacement Measurement Accuracy: | ±0.05mm | Force Value Sensor Capacity: | 500Kg |
| Test Trip: | 0~600mm | Test Speed: | 0~1000mm/min |
| Highlight: | AC220V Push Pull Testing machine,5A Push Pull Testing machine,50Hz Push Pull Testing machine |
||

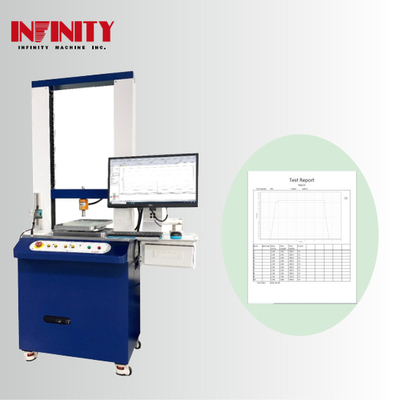

The machine has a weight of 185kg and is equipped with various features that make it more convenient to manage test data. The Code Scanner is configured to scan the QR code of the product, making it easier to manage the test data of the corresponding product. The real-time display of the current force value and displacement changes can be displayed in force-stroke (kgf-mm) or force-time (kgf-time) curve diagram. The test report can be selected, directly printed, or saved as Word, Excel, PDF, and other formats.
The Push and Pull Testing machine is also equipped with a motion shaft driven by a Japanese Panasonic servo motor, precision ball screw drive, low noise, and durable use. The language has a simplified/traditional/English three operation interface that can be switched, and the force value unit has N, lb, gf, kgf that can be switched, making it suitable for global customers. The machine also features manual X and Y platforms to change the test position arbitrarily.
The open force value protection function is a unique feature that sets a protection value according to the conventional test force. It automatically stops moving when the operation or point movement is beyond this protection value to reduce the damage to the equipment and precision samples. The floor structure design of the whole machine makes the operator closer to the test area and more convenient for sample loading and unloading.
The test method management logic is clear, and the new method provides the correctness check of the parameters and provides the error information. The test data is stored in a local database for easy access and query. According to the customer agreement, it has data upload functions such as trace and PDCA. The IF3231 model is equipped with a displacement measurement accuracy of ±0.05mm.
| Product Name | Push and Pull Testing machine |
| Displacement Decomposition Degree | 0.001mm |
| Scan the Code Reading Accuracy | ≥4mil |
| Displacement Measurement Accuracy | ±0.05mm |
| Test Speed | 0~1000mm/min |
| Speed Accuracy | ±0.5% |
| Features | The Code Scanner Is Configured To Scan The QR Code Of The Product, Which Is More Convenient To Manage The Test Data Of The Corresponding Product. Real-time Display Of The Current Force Value And Displacement Changes, Can Be Displayed: Force-stroke (kgf-mm), Or Force-time (kgf-time) Curve Diagram. The Test Report Can Be Selected, Directly Printed Or Saved As Word, Excel, PDF And Other Formats. The Motion Shaft Is Driven By Japanese Panasonic Servo Motor, Precision Ball Screw Drive, Low Noise, Durable Use. Language Has Simplified / Traditional / English Three Operation Interface Can Be Switched, The Force Value Unit Has N, Lb, Gf, Kgf Can Be Switched, Suitable For Global Customers. Configure The Manual X And Y Platforms To Change The Test Position Arbitrarily. Open Force Value Protection Function, A Protection Value Is Set According To The Conventional Test Force, When Operation Or Point Movement Will Automatically Stop Moving, To Reduce Damage To The Equipment And Precision Samples. The Floor Structure Design Of The Whole Machine Makes The Operator Closer To The Test Area And More Convenient For Sample Loading And Unloading. The Test Method Management Logic Is Clear, And The New Method Provides The Correctness Check Of The Parameters And Provides The Error Information. The Test Data Is Stored In A Local Database For Easy Access And Query. According To The Customer Agreement, It Has Data Upload Functions Such As Trace And PDCA. |
| Machine Weight | 185kg |
| Host Size (WxDxH) | 1167x700x1770mm |
| Source | AC220V 5A 50Hz Or Is Specified |
The Infinity Machine IF3231 Push and Pull Testing machine is a state-of-the-art push and pull testing machine designed for a wide range of applications. Made in China, this machine is certified with CE and ISO and has a minimum order quantity of 1. The price is negotiable and packaging details include a clear sheet, sponge, and wood carton. The delivery time is 20-30 days after order confirmation and payment terms include TT, PAYPAL, Moneygram, and more. The supply ability is 200 sets per month.
The IF3231 has a force value sensor capacity of 500kg and a test trip of 0-600mm with a displacement decomposition degree of 0.001mm. Its features include a code scanner that is configured to scan the QR code of the product, making it more convenient to manage the test data of the corresponding product. The machine also has a real-time display of the current force value and displacement changes and can display force-stroke (kgf-mm) or force-time (kgf-time) curve diagram. The test report can be selected, directly printed or saved as Word, Excel, PDF and other formats.
The IF3231 is equipped with a motion shaft that is driven by a Japanese Panasonic servo motor, precision ball screw drive, low noise, and durable use. It has a simplified/traditional/English three operation interface that can be switched, and the force value unit has N, Lb, Gf, Kgf that can be switched, making it suitable for global customers. The machine is also designed with a manual X and Y platform that can change the test position arbitrarily.
The IF3231 also has an open force value protection function that sets a protection value according to the conventional test force. When operation or point movement will automatically stop moving to reduce damage to the equipment and precision samples. Its floor structure design makes the operator closer to the test area and more convenient for sample loading and unloading. The test method management logic is clear, and the new method provides the correctness check of the parameters and provides the error information. The test data is stored in a local database for easy access and query. According to the customer agreement, it has data upload functions such as trace and PDCA.
The Infinity Machine IF3231 Push and Pull Testing machine is ideal for various testing scenarios such as material testing, product testing, and component testing. It is commonly used in the engineering, construction, manufacturing, automotive, aerospace, and research industries. Its versatility and reliability make it an essential tool for quality control and product development.
Get your hands on the Infinity Machine IF3231 Tensile Testing Machine today and experience the quality and precision that it offers.
1. All test conditions are input by computer and automatically stored: load measurement range, stroke measurement range, total number of measurements, measurement speed, measurement direction, pause time, stay time, etc.
2. Plot of the conductive force-stroke (kgf-mm) and force-time (kgf-time).
3. Automatically calculate the maximum force value, maximum displacement, test time, product bar code information and so on.
4. The upper and lower limits can be set, and the Passed or Fail is automatically determined by the software.
The minimum order quantity for our product is 1, and the pricing is negotiable. The packaging details include a clear sheet, sponge, and a wooden carton. The delivery time for our product is 20-30 days after order confirmation.
We accept various payment methods, including TT, PayPal, Moneygram, and more. Our supply ability is 200 sets per month.
The force value sensor capacity for our Universal Tensile Machine is 500Kg, and the source required is AC220V 5A 50Hz or as specified.
The displacement measurement accuracy is ±0.05mm, the force value accuracy is ±0.3%, and the speed accuracy is ±0.5%.
Our product can be customized to perform Push and Pull Testing Machine and Tensile Testing Machine, making it a versatile solution for your testing needs.
Our Push and Pull Testing machine product comes with comprehensive technical support and services to ensure that our customers can maximize the benefits of their purchase. Our technical support team is available to answer any questions and provide guidance on how to operate and maintain the machine. We also offer repair and maintenance services to keep the machine in top condition and minimize downtime. In addition, we provide calibration and verification services to ensure accurate and reliable test results. Our team of experts can also provide customized training and consulting services to meet the specific needs of our customers. Contact us to learn more about our technical support and services.
Product Packaging:
The Universal Testing Machine will be safely packaged in a sturdy cardboard box to prevent any damage during shipping. The box will be labeled with the product name and fragile stickers to ensure careful handling.
Shipping:
Our company uses reliable shipping services to ensure that your Universal Testing Machine will be delivered to you in a timely and secure manner. We offer both standard and expedited shipping options to meet your needs. Once your order is processed and shipped, you will receive a tracking number to monitor the delivery status of your package.
What is the brand name of this testing machine?
The brand name of this testing machine is Infinity Machine.
2.What is the model number of this testing machine?
The model number of this testing machine is IF3231.
3.Where is this testing machine made?
This testing machine is made in China.
4.What certifications does this testing machine have?
This testing machine has CE and ISO certifications.
5.What are the payment terms for purchasing this testing machine?
The payment terms for purchasing this testing machine are TT, PayPal, Moneygram, and other negotiable methods.
