| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IF3231 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Features: | The Code Scanner Is Configured To Scan The QR Code Of The Product, Which Is More Convenient To Manage The Test Data Of The Corresponding Product. Real-time Display Of The Current Force Value And Displacement Changes, Can Be Displayed: Force-stroke (kgf-mm | Model: | IF3231 |
|---|---|---|---|
| Effective Width: | 420mm | Scan The Code Reading Accuracy: | ≥4mil |
| Test Trip: | 0~600mm | Displacement Measurement Accuracy: | ±0.05mm |
| Test Speed: | 0~1000mm/min | Force Value Accuracy: | ±0.3% |
| Highlight: | 500Kg Capacity Tensile Testing Machine,600mm Tensile Testing Machine |
||

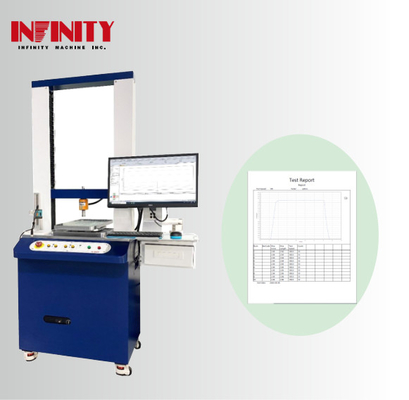

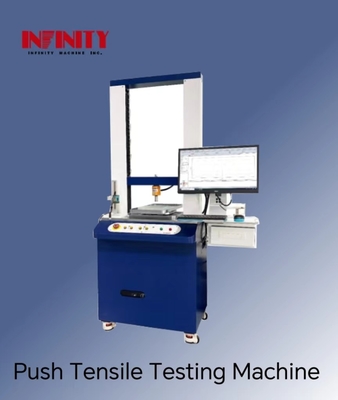

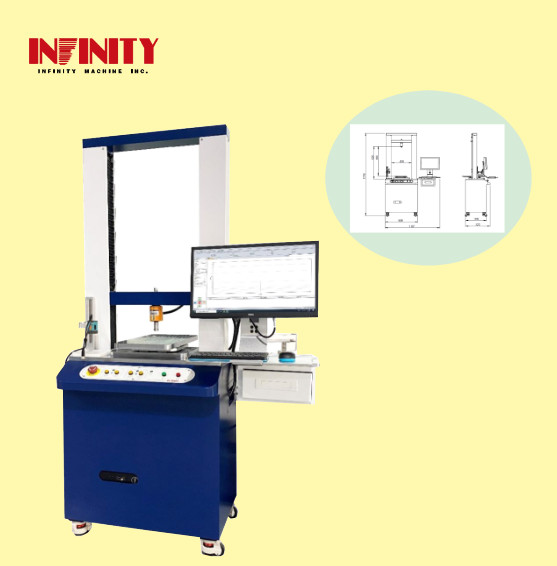

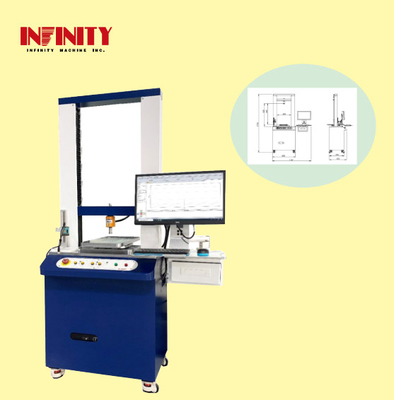

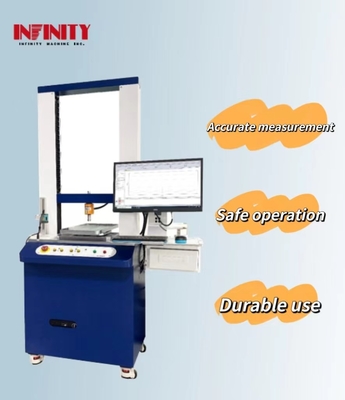

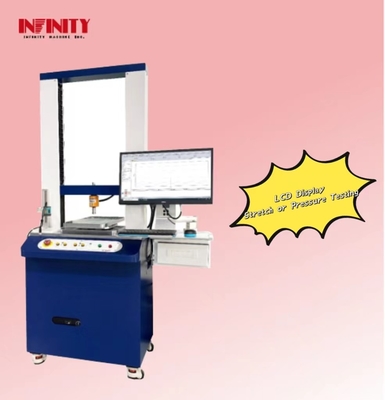

AC220V 5A 50Hz Push and Pull Testing machine for Test Speed 0-1000mm/min
One of the key features of this machine is the code scanner that is configured to scan the QR code of the product. This feature allows for convenient management of the test data of the corresponding product. Moreover, the real-time display of the current force value and displacement changes make it easier to analyze the test data. The force-stroke or force-time curve diagram can be displayed, providing a clear visualization of the test results.
The test report generated by the machine can be directly printed or saved in Word, Excel, PDF, and other formats. The machine is equipped with a Japanese Panasonic servo motor that drives the motion shaft, ensuring low noise and durable use. The language interface of the machine can be switched between Simplified, Traditional, and English, making it suitable for global customers. The force value unit can be switched between N, Lb, Gf, and Kgf.
The machine comes with manual X and Y platforms that allow for changing the test position arbitrarily. The open force value protection function ensures that the equipment and precision samples are not damaged during operation or point movement. The floor structure design of the whole machine makes the operator closer to the test area, making it more convenient for sample loading and unloading.
The test method management logic of the machine is clear, and the new method provides the correctness check of the parameters and provides the error information. The test data is stored in a local database for easy access and query. The machine also has data upload functions such as Trace and PDCA, according to the customer agreement.
The machine requires AC220V 5A 50Hz as the power source, or as specified. The scan code reading accuracy of the machine is ≥4mil, ensuring accurate and reliable scanning of the QR code of the product.
| Test speed | 0~1000mm/min |
| Model | IF3231 |
| Displacement decomposition degree | 0.001mm |
| Product name | Push and Pull Testing Machine/Tensile Testing Machine |
| Speed accuracy | ±0.5% |
| Host size (WxDxH) | 1167x700x1770mm |
| Test trip | 0~600mm |
| Force value accuracy | ±0.3% |
| Force value sensor capacity | 500Kg |
| Features | The Code Scanner Is Configured To Scan The QR Code Of The Product, Which Is More Convenient To Manage The Test Data Of The Corresponding Product. Real-time Display Of The Current Force Value And Displacement Changes, Can Be Displayed: Force-stroke (kgf-mm), Or Force-time (kgf-time) Curve Diagram. The Test Report Can Be Selected, Directly Printed Or Saved As Word, E Xcel, PDF And Other Formats. The Motion Shaft Is Driven By Japanese Panasonic Servo Motor, Precision Ball Screw Drive, Low Noise, Durable Use. Language Has Simplified / Traditional / English Three Operation Interface Can Be Switched, The Force Value Unit Has N, Lb, Gf, Kgf Can Be Switched, Suitable For Global Customers. Configure The Manual X And Y Platforms To Change The Test Position Arbitrarily. Open Force Value Protection Function, A Protection Value Is Set According To The Conventional Test Force, When Operation Or Point Movement Will Automatically Stop Moving, To Reduce Damage To The Equipment And Precision Samples. The Floor Structure Design Of The Whole Machine Makes The Operator Closer To The Test Area And More Convenient For Sample Loading And Unloading. The Test Method Management Logic Is Clear, And The New Method Provides The Correctness Check Of The Parameters And Provides The Error Information. The Test Data Is Stored In A Local Database For Easy Access And Query. According To The Customer Agreement, It Has Data Upload Functions Such As Trace And PDCA. |
With a displacement decomposition degree of 0.001mm and a scan code reading accuracy of ≥4mil, this Universal Tensile Machine is suitable for a variety of applications. The machine is designed to test the tensile strength and compressive strength of various materials, including but not limited to rubber, plastic, metal, textiles, and other materials. The test speed of the machine ranges from 0-1000mm/min, and the test trip ranges from 0-600mm.
The IF3231 model is ideal for use in a variety of industries, such as automotive, aerospace, construction, and manufacturing. It can be used to test the tensile strength of metal components used in automotive and aerospace industries, as well as the compressive strength of building materials. The machine is also suitable for testing the strength of textiles and fabrics, which are commonly used in the clothing and textile industry.
The Universal Tensile Machine is also useful in research and development laboratories, where it can be used to test the strength of new materials and products. It is also suitable for quality control testing in manufacturing facilities, ensuring that products meet the required specifications and standards.
Overall, the IF3231 Universal Tensile Machine by Infinity Machine is a versatile and reliable testing machine that can be used in a variety of applications. Its accuracy and precision make it a useful tool for testing the strength of various materials, and its durability ensures that it will last for years to come.
1. All test conditions are input by computer and automatically stored: load measurement range, stroke measurement range, total number of measurements, measurement speed, measurement direction, pause time, stay time, etc.
2. Plot of the conductive force-stroke (kgf-mm) and force-time (kgf-time).
3. Automatically calculate the maximum force value, maximum displacement, test time, product bar code information and so on.
4. The upper and lower limits can be set, and the Passed or Fail is automatically determined by the software.
Customization Services for the Universal Testing Machine:
Brand Name: Infinity Machine
Model Number: IF3231
Place of Origin: Made In China
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Displacement decomposition degree: 0.001mm
Force value accuracy: ±0.3%
Force value sensor capacity: 500Kg
Effective width: 420mm
Machine weight: 185kg
Product Keywords: Push and Pull Testing Machine, Universal Tensile Machine, Universal Tensile Machine
The Universal Testing Machine product is designed to perform precise and reliable testing of materials such as metals, plastics, rubber, and composites. It offers a wide range of testing capabilities, including tension, compression, flexure, and shear testing. The machine is equipped with advanced software that allows for easy control and monitoring of test parameters, as well as accurate data acquisition and analysis. Our technical support and services include:
Our team of experienced technicians and engineers are dedicated to providing excellent customer support and ensuring the highest level of satisfaction with our products and services.
Product Packaging:
The Universal Testing Machine will be packaged in a sturdy cardboard box with foam padding to ensure safe transport. The product will be disassembled and securely packed with all necessary components and instructions for assembly.
Shipping:
The Universal Testing Machine will be shipped via a reputable courier service to the provided shipping address. Shipping times may vary depending on the destination, but we will provide a tracking number so that you can monitor the progress of your shipment.
Q1: What is the brand name of this testing machine?
A1: The brand name of this product is Infinity Machine.
Q2: What is the model number of this testing machine?
A2: The model number of this product is IF3231.
Q3: Where is this testing machine made?
A3: This testing machine is made in China.
Q4: What certifications does this testing machine have?
A4: This testing machine has CE and ISO certifications.
Q5: What are the payment terms for this product?
A5: The payment terms for this product are TT, PayPal, Moneygram, and other negotiation options.
