| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | ID6150 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Product Name: | Three-axis Automatic Drop Ball-impact Test Machine | Height Error:: | ±1mm |
|---|---|---|---|
| The X-axis Speed Range:: | 1~100mm/s | Z-axis Velocity Range:: | 1-200mm/s |
| Test Height:: | 50-1200mm | Y-axis Itinerary:: | 300mm |
| Application:: | The Machine Adopts PLC Control Mode, The Suction Nozzle Uses Vacuum Negative Pressure, Holding Different Sizes Of Steel Balls, Press The Drop Button, The Suction Nozzle, The Steel Ball Will Be Used As Free Fall Test, Impact The Surface Of The Sample, And T | The Y-axis Velocity Range:: | 1~100mm/s |
| Highlight: | 160g Impact Testing Machine,20g Impact Testing Machine,Acrylic Ball Impact Testing Machine |
||

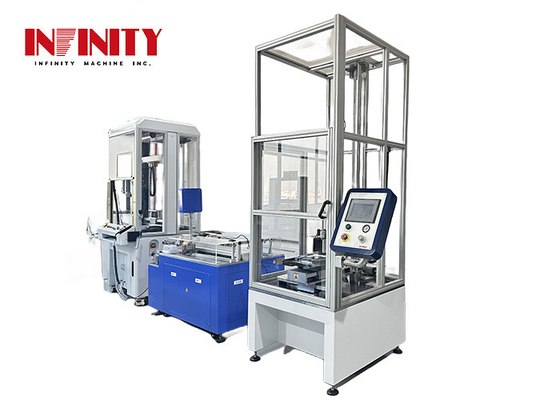

Impact Testing Machine Steel Ball Specifications 20g and Acrylic Ball 160g Specifications
Three-axis automatic falling ball impact testing m...
With its equipment size of 1140×1200×2700mm, the Three-axis Automatic Drop Ball Machine is capable of handling large and small test specimens with ease. The machine features a powerful plant capacity of 1200Ｗ, allowing for efficient testing of even the toughest materials.
The X-axis speed range of this machine is an impressive 1~100mm/s, allowing for precise and controlled impact testing. The X-axis itinerary of 420mm also provides ample space for testing materials of various sizes and shapes.
The Three-axis Automatic Drop Ball Machine comes with an acrylic ball specification of 160g, which can be customized to meet the specific needs of your testing requirements. The acrylic ball is durable and designed to withstand repeated impacts without compromising accuracy.
Whether you are testing materials for automotive, aerospace, or industrial applications, the Three-axis Automatic Drop Ball Machine is the ideal solution. With its advanced features and reliable performance, you can rest assured that your products will meet the required safety standards.
Invest in the Three-axis Automatic Drop Ball Machine today and ensure the safety and quality of your products.
This product is a Drop Ball-impact Tester, also known as a Drop Ball-impact Tester or a Drop Ball-impact Tester.
Device control interface:
| Product Name: | Three-axis Automatic Drop Ball-impact Test Machine |
| Steel Ball Specifications: | 20g, 500g, Or As Specified |
| Test Height: | 50-1200mm |
| Weight of Equipment: | About 530 Kg |
| Equipment Size: | 1140×1200×2700mm |
| Features: | The Equipment Uses Vacuum Adsorption Method To Absorb Steel Balls, Which Is More Accurate Than The Mechanical Claw Drop Method. At The Same Time, With The Integrated High-speed X-Y Platform, It Can Be Programmed To Realize Automatic Multi-point Cycle Test And Improve The Test Efficiency. X, Y And Z Axis Are Driven By Japan Panasonic Servo Motor, Precision Ball Screw Drive, Low Noise And Durable Use. Language Has Simplified / English Interface, Suitable For Global Customers. Software Operation Interface Is Simple And Easy To Operate. The Program Has A Designed Anti-stay Function To Ensure The Accuracy And Safety Of Each Test. Unique Automatic Reset And Automatic Pickup Function, Can Realize Unattended And Automatic Cycle Test. According To The Conventional Test Setting Parameters, The Steel Ball Impacts On The Sample During Starting And Running, And The Steel Ball Springs And Is Clamped By The Splint To Prevent Secondary Impact On The Sample. When The XY Platform Is Positioned At The Position Of The Cone Hole And The Ball Coaxis, The Cylinder Is Released And Drops The Steel Ball, And The Steel Ball Is Automatically Reset To The Center Of The Cone Hole. After The Z Axis Drops The Ball, The Cycle Is Executed. The Whole Machine Adopts Floor Structure Design, The Operation Panel Can Rotate, So That The Operator Closer To The Test Area, More Convenient Sample Loading And Unloading. The Equipment Provides The Perfect Fault Detection Mechanism Of The Operation State, And Provides The Corresponding Error Information Prompt, And Conducts Real-time Detection And Processing Of Servo Failure, Sensor Fault, X, Y And Z Axis Limit Fault, So As To Maximize The Protection Of Personal And Equipment Safety. The Device Is Equipped With Infrared Laser Function, Which Can Accurately Locate The Position Of The Landing Point And Facilitate The Tester To Accurately Determine The Test Position. The Test Formula Is Stored In The ROM Of The System, Which Is Simple And Convenient To Read And Change The Test Position. |
| Application: | The Machine Adopts PLC Control Mode, The Suction Nozzle Uses Vacuum Negative Pressure, Holding Different Sizes Of Steel Balls, Press The Drop Button, The Suction Nozzle, The Steel Ball Will Be Used As Free Fall Test, Impact The Surface Of The Sample, And Test The Impact Resistance Of The Sample, Which Is Suitable For The Impact Test Of Mobile Phone, Tablet, Audio And Other Electronic Products. |
| Working Power Supply: | AC220V 2A 50Hz |
| Height Error: | ±1mm |
| Y-axis Itinerary: | 300mm |
The Drop Ball-impact Tester is widely used in various industries for product quality control, such as electronics, plastics, rubber, and packaging. The machine is perfect for testing the impact resistance of materials, including plastic films, sheets, and laminated films. It can also be used for testing the impact resistance of electronic components, batteries, and other small parts.
The Drop Ball-impact Tester is ideal for use in product development, research, and quality control. It is also useful in product certification and safety testing. The machine is easy to operate and has a user-friendly interface. The results of the tests are accurate and reliable.
The Drop Ball-impact Tester is available for purchase with a minimum order quantity of 1. The price of the machine is negotiable, and the delivery time is 20-30 days after the order is confirmed. The payment terms include TT, PayPal, Moneygram, and other options. The machine has a supply ability of 200 sets per month.
The machine comes with clear sheet+sponge+wood carton packaging details, ensuring that it is safe during transportation. The Drop Ball-impact Tester is perfect for use in various scenarios and occasions, including quality control in manufacturing plants, research and development facilities, testing laboratories, and certification agencies.
Customize your Infinity Machine ID6150 Drop Ball-impact Tester to fit your needs:
Get your customizable Drop Ball-impact Tester now!
The Impact Testing Machine product technical support and services include:
- Installation, calibration, and training services
- Technical support for troubleshooting and maintenance
- Repair services for any malfunctioning parts or components
- Software updates and upgrades
- Consultation services for optimizing machine performance and efficiency
Product Packaging:
Shipping:
Q1: What is the brand name of this impact testing machine?
A1: The brand name is Infinity Machine.
Q2: What is the model number of this impact testing machine?
A2: The model number is ID6150.
Q3: Where is this impact testing machine made?
A3: It is made in China.
Q4: What certifications does this impact testing machine have?
A4: It has CE and ISO certifications.
Q5: What are the payment terms for this impact testing machine?
A5: The payment terms are TT, Paypal, Moneygram, and so on.
