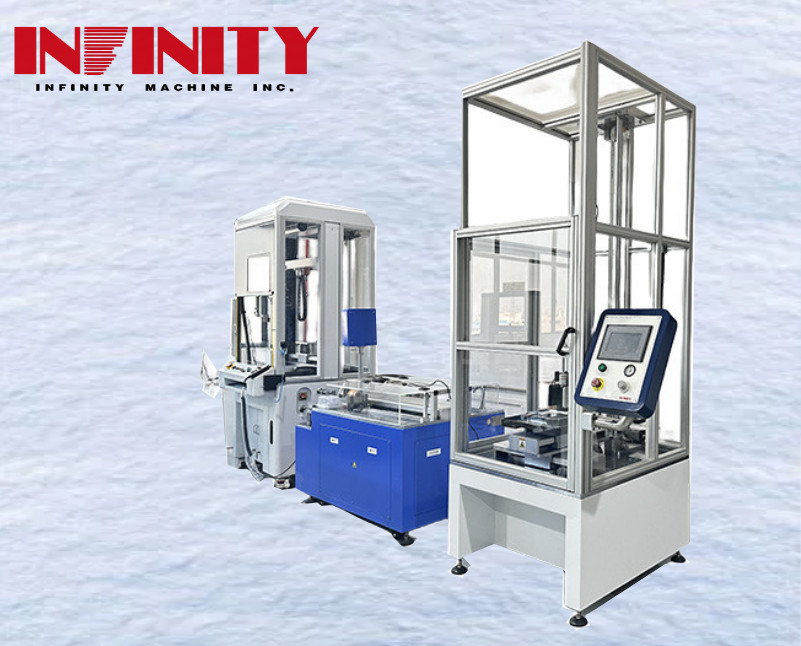

1200W Plant Capacity Impact Testing Machine Programmed For Multi-point Cycle Test

Product Description:

The Three-axis Automatic Drop Ball-impact Test Machine is an advanced testing equipment that is designed to meet the needs of different industries. It is easy to operate and comes with a range of features that make it a top choice for testing laboratories. The machine is equipped with a powerful motor that has a plant capacity of 1200Ｗ. This ensures that the machine can handle different types of samples and can deliver accurate test results.

The Three-axis Automatic Drop Ball-impact Test Machine is a heavy-duty testing equipment that is built to last. It is made of high-quality materials that are resistant to wear and tear. The machine weighs about 530 Kg, which makes it stable and sturdy. This ensures that the machine can withstand the rigors of regular use and can deliver consistent performance over a long period of time.

The Three-axis Automatic Drop Ball-impact Test Machine is a reliable testing equipment that is easy to maintain. The machine is designed to work with a working power supply of AC220V 2A 50Hz. This makes it easy to integrate the machine into different testing laboratories. The machine also comes with a range of safety features that help to protect the operator and the sample being tested.

The Three-axis Automatic Drop Ball-impact Test Machine is also known as a Three-axis Automatic Drop Ball Machine or a Drop Ball-impact Tester. It is a versatile testing equipment that is designed to meet the needs of different industries. Whether you are in the electronics industry, the automotive industry, or any other industry that requires impact testing, the Three-axis Automatic Drop Ball-impact Test Machine is the perfect tool for the job.

Features:

• Product Name: Impact Testing Machine
• Test height: 50-1200mm
• Steel ball specifications: 20g, 500g, Or As Specified
• Z-axis velocity range: 1-200mm/s
• Application: The Machine Adopts PLC Control Mode, The Suction Nozzle Uses Vacuum Negative Pressure, Holding Different Sizes Of Steel Balls, Press The Drop Button, The Suction Nozzle, The Steel Ball Will Be Used As Free Fall Test, Impact The Surface Of The Sample, And Test The Impact Resistance Of The Sample, Which Is Suitable For The Impact Test Of Mobile Phone, Tablet, Audio And Other Electronic Products.
• Features:
  • The Equipment Uses Vacuum Adsorption Method To Absorb Steel Balls, Which Is More Accurate Than The Mechanical Claw Drop Method.
  • At The Same Time, With The Integrated High-speed X-Y Platform, It Can Be Programmed To Realize Automatic Multi-point Cycle Test And Improve The Test Efficiency.
  • X, Y And Z Axis Are Driven By Japan Panasonic Servo Motor, Precision Ball Screw Drive, Low Noise And Durable Use.
  • Language Has Simplified / English Interface, Suitable For Global Customers.
  • Software Operation Interface Is Simple And Easy To Operate.
  • The Program Has A Designed Anti-stay Function To Ensure The Accuracy And Safety Of Each Test.
  • Unique Automatic Reset And Automatic Pickup Function, Can Realize Unattended And Automatic Cycle Test.

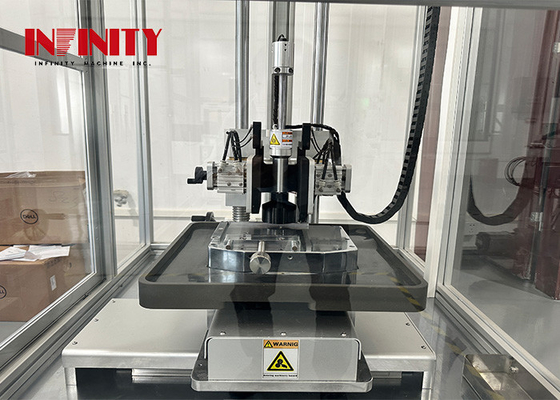

  • According To The Conventional Test Setting Parameters, The Steel Ball Impacts On The Sample During Starting And Running, And The Steel Ball Springs And Is Clamped By The Splint To Prevent Secondary Impact On The Sample.

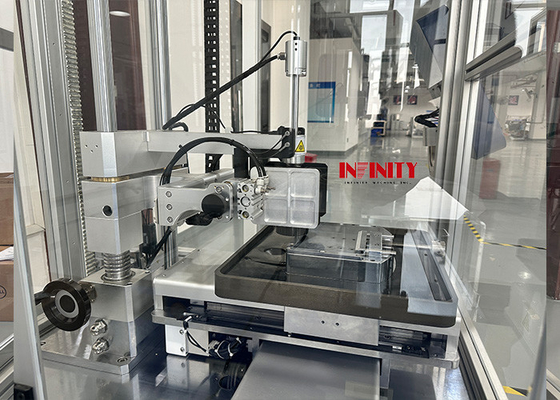

  • When The XY Platform Is Positioned At The Position Of The Cone Hole And The Ball Coaxis, The Cylinder Is Released And Drops The Steel Ball, And The Steel Ball Is Automatically Reset To The Center Of The Cone Hole. After The Z Axis Drops The Ball, The Cycle Is Executed.

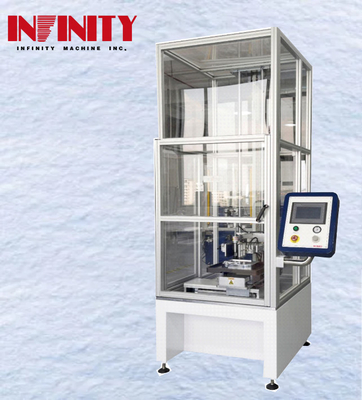

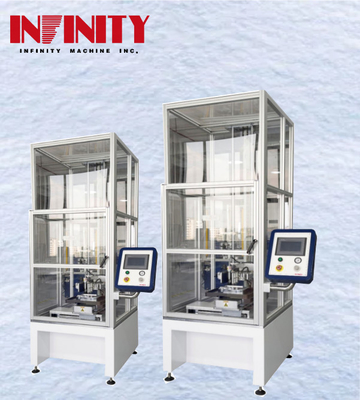

  • The Whole Machine Adopts Floor Structure Design, The Operation Panel Can Rotate, So That The Operator Closer To The Test Area, More Convenient Sample Loading And Unloading.
  • The Equipment Provides The Perfect Fault Detection Mechanism Of The Operation State, And Provides The Corresponding Error Information Prompt, And Conducts Real-time Detection And Processing Of Servo Failure, Sensor Fault, X, Y And Z Axis Limit Fault, So As To Maximize The Protection Of Personal And Equipment Safety.
  • The Device Is Equipped With Infrared Laser Function, Which Can Accurately Locate The Position Of The Landing Point And Facilitate The Tester To Accurately Determine The Test Position.
  • The Test Formula Is Stored In The ROM Of The System, Which Is Simple And Convenient To Read And Change The Test Position.
  • Three-axis Automatic Drop Ball Machine, Three-axis Automatic Drop Ball Machine, Three-axis Automatic Drop Ball Machine

Device control interface:

Technical Parameters:

Applications:

Introducing the Infinity Machine ID6150, a CE and ISO certified Three-axis Automatic Drop Ball Machine designed and made in China. With a supply ability of 200 sets per month, the ID6150 is perfect for impact testing of mobile phones, tablets, audio, and other electronic products.

The ID6150 adopts a PLC control mode and vacuum negative pressure suction nozzle, which can hold different sizes of steel balls. Press the drop button, and the steel ball will be used as a free fall test to impact the surface of the sample, testing its impact resistance. The equipment uses a vacuum adsorption method to absorb steel balls, which is more accurate than the mechanical claw drop method.

The integrated high-speed X-Y platform can be programmed to realize automatic multi-point cycle tests, improving test efficiency. The X, Y, and Z axis are driven by Japan Panasonic servo motor, precision ball screw drive, low noise, and durable use. The language has a simplified/English interface suitable for global customers, and the software operation interface is simple and easy to operate.

The ID6150 features a unique automatic reset and automatic pickup function, which can realize unattended and automatic cycle tests. The whole machine adopts a floor structure design, and the operation panel can rotate, making it more convenient for sample loading and unloading.

This Three-axis Automatic Drop Ball Machine provides the perfect fault detection mechanism of the operation state, providing corresponding error information prompts and conducting real-time detection and processing of servo failure, sensor fault, X, Y, and Z axis limit fault to maximize the protection of personal and equipment safety.

The device is equipped with an infrared laser function, which can accurately locate the position of the landing point and facilitate the tester to accurately determine the test position. The test formula is stored in the ROM of the system, which is simple and convenient to read and change the test position. The ID6150 is compatible with a 160g acrylic ball specification, and the steel ball specifications are 20g, 500g, or as specified. The Z-axis velocity range is 1-200mm/s.

The ID6150 comes with clear sheet+sponge+wood carton packaging and has a delivery time of 20-30 days after order confirmation. Payment terms include TT, PAYPAL, Moneygram, and other options. The minimum order quantity is one, and the price is negotiable.

In summary, the Infinity Machine ID6150 is a top-of-the-line Drop Ball-impact Tester capable of automatic multi-point cycle tests, accurate fault detection, and infrared laser function. It is perfect for impact testing of mobile phones, tablets, audio, and other electronic products, making it an ideal choice for manufacturers, quality control personnel, and electronic product designers.

Customization:

Brand Name: Infinity Machine

Model Number: ID6150

Place of Origin: Made In China

Certification: CE ISO

Minimum Order Quantity: 1

Price: Negotiate

Packaging Details: Clear sheet+sponge+wood carton

Delivery Time: 20-30 days after order confirmed

Payment Terms: TT PAYPAL Moneygram and so on

Supply Ability: 200 sets / month

Steel ball specifications: 20g, 500g, Or As Specified

Application: The Three-axis Automatic Drop Ball Machine adopts PLC Control Mode, The Suction Nozzle Uses Vacuum Negative Pressure, Holding Different Sizes Of Steel Balls, Press The Drop Button, The Suction Nozzle, The Steel Ball Will Be Used As Free Fall Test, Impact The Surface Of The Sample, And Test The Impact Resistance Of The Sample, Which Is Suitable For The Impact Test Of Mobile Phone, Tablet, Audio And Other Electronic Products.

Weight of equipment: About 530 Kg

Z-axis velocity range: 1-200mm/s

The Y-axis velocity range: 1~100mm/s

Support and Services:

- Installation and commissioning of the machine

- Training on machine operation, maintenance, and safety

- Technical assistance for diagnosis and repair

- Calibration and verification of the machine to ensure accuracy and compliance with standards

- Upgrades and retrofits to enhance performance and extend machine life

Our technical support and services are designed to meet the needs of our customers and ensure that the Impact Testing Machine performs at its best. Please contact us for more information on our services.

Packing and Shipping:

Product Packaging:

The Impact Testing Machine will be packaged in a sturdy cardboard box with foam inserts to protect the machine during transportation. The box will be labeled with the product name and any necessary handling instructions.

Shipping:

The Impact Testing Machine will be shipped via a reputable courier service such as UPS or FedEx. The shipping cost will be calculated based on the weight and destination of the package. The customer will be provided with a tracking number to monitor the progress of the shipment.

FAQ:

Q1: What is the brand name of the impact testing machine?

A1: The brand name of the impact testing machine is Infinity Machine.

Q2: What is the model number of the impact testing machine?

A2: The model number of the impact testing machine is ID6150.

Q3: Where is the impact testing machine made?

A3: The impact testing machine is made in China.

Q4: What certifications does the impact testing machine have?

A4: The impact testing machine is certified with CE and ISO.

Q5: What is the minimum order quantity for the impact testing machine?

A5: The minimum order quantity for the impact testing machine is 1.

Q6: What is the price of the impact testing machine?

A6: The price of the impact testing machine is negotiable.

Q7: What are the packaging details for the impact testing machine?

A7: The packaging details for the impact testing machine are clear sheet+sponge+wood carton.

Q8: What is the delivery time for the impact testing machine?

A8: The delivery time for the impact testing machine is 20-30 days after order confirmed.

Q9: What payment terms are accepted for the impact testing machine?

A9: The payment terms accepted for the impact testing machine are TT, PAYPAL, Moneygram, and so on.

Q10: What is the supply ability of the impact testing machine?

A10: The supply ability of the impact testing machine is 200 sets/month.
