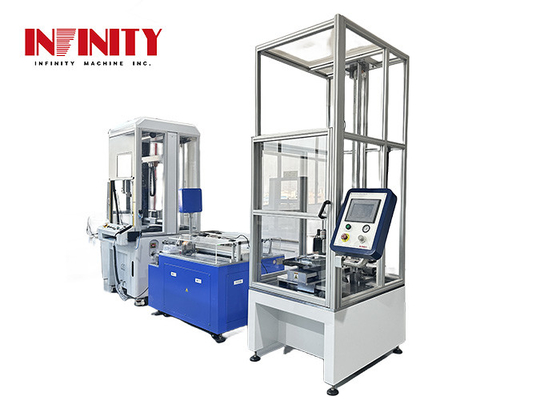

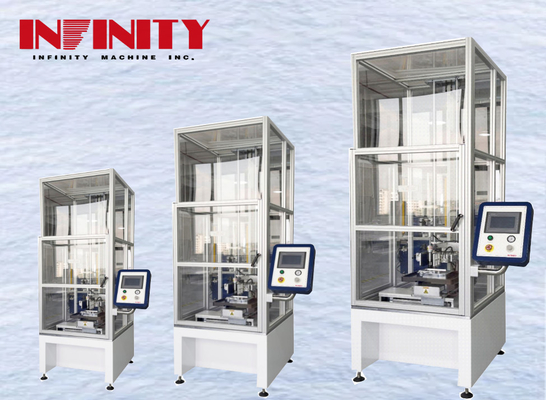

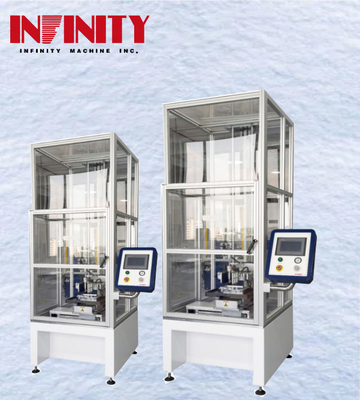

300mm Y-axis Range Three-axis Automatic Drop Ball Machine For Mobile Phone Impact Test

300mm Y-axis Range Three-axis Automatic Drop Ball Machine for Mobile Phone Impact Test

Three-axis automatic falling ball impact testing m...

Product Description:

The Steel ball specifications of the Three-axis Automatic Drop Ball-impact Test Machine are 20g, 500g, or as specified. The machine also comes with an Acrylic ball specification of 160g or as specified. The equipment uses a vacuum adsorption method to absorb steel balls, which is more accurate than the mechanical claw drop method. The integrated high-speed X-Y platform can be programmed to realize automatic multi-point cycle tests, thereby improving the test efficiency.



The Three-axis Automatic Drop Ball-impact Test Machine features X, Y, and Z axis driven by Japan Panasonic Servo Motor, precision ball screw drive, low noise, and durable use. The machine has simplified/English language interface, suitable for global customers. The software operation interface is simple and easy to operate. The program has a designed anti-stay function to ensure the accuracy and safety of each test.

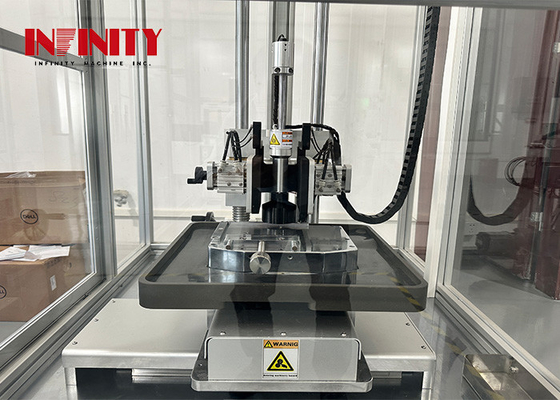

The machine has a unique automatic reset and automatic pickup function, which can realize unattended and automatic cycle tests. According to the conventional test setting parameters, the steel ball impacts on the sample during starting and running, and the steel ball springs and is clamped by the splint to prevent secondary impact on the sample. When the XY platform is positioned at the position of the cone hole and the ball coaxis, the cylinder is released, and the steel ball drops. The steel ball is automatically reset to the center of the cone hole, and after the Z axis drops the ball, the cycle is executed.

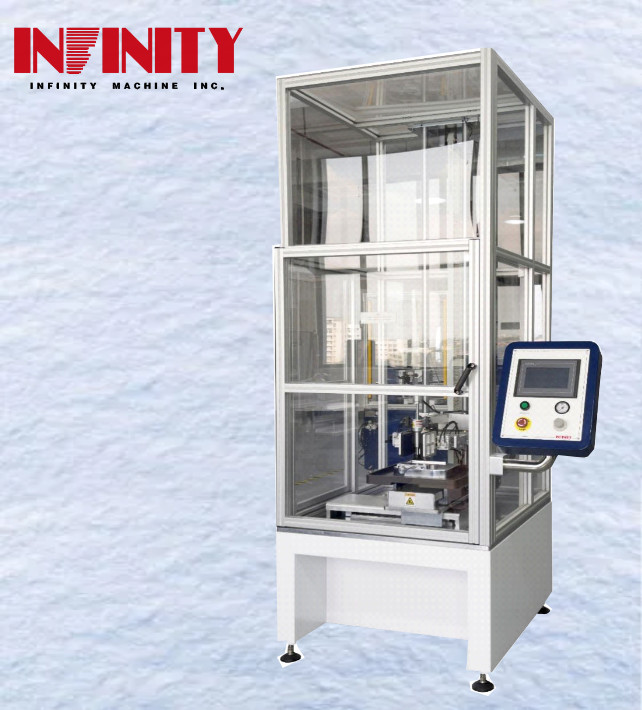

The whole machine adopts a floor structure design, and the operation panel can rotate, so that the operator is closer to the test area, making sample loading and unloading more convenient. The equipment provides the perfect fault detection mechanism of the operation state and provides the corresponding error information prompt. The machine conducts real-time detection and processing of servo failure, sensor fault, X, Y, and Z axis limit fault, so as to maximize the protection of personal and equipment safety. The device is equipped with an infrared laser function, which can accurately locate the position of the landing point and facilitate the tester to determine the test position accurately. The test formula is stored in the ROM of the system, which is simple and convenient to read and change the test position.



The Three-axis Automatic Drop Ball-impact Test Machine is also known as Drop Ball-impact Tester and Drop Ball-impact Tester. With its unique features, it is a highly reliable and efficient testing equipment suitable for various electronic products testing.



Features:

• Product Name: Impact Testing Machine
• Acrylic ball specification: 160g Or As Specified
• Steel ball specifications: 20g, 500g, Or As Specified
• X-axis itinerary: 420mm
• Y-axis itinerary: 300mm
• Plant capacity: 1200Ｗ
• Three-axis Automatic Drop Ball Machine
• Three-axis Automatic Drop Ball Machine
• Three-axis Automatic Drop Ball Machine



Device control interface:

Technical Parameters:

Product Name	Three-axis Automatic Drop Ball-impact Test Machine
Working Power Supply	AC220V 2A 50Hz
Plant Capacity	1200W
Equipment Size	1140×1200×2700mm
Weight of Equipment	About 530 Kg
X-axis Itinerary	420mm
Y-axis Itinerary	300mm
Y-axis Velocity Range	1~100mm/s
Z-axis Velocity Range	1-200mm/s
Steel Ball Specifications	20g, 500g, Or As Specified



Applications:

One of the main applications for the Drop Ball-impact Tester is in the testing of packaging materials, such as bottles, cans, and other containers. By subjecting these materials to controlled impacts, the machine can help manufacturers ensure that their products will withstand the rigors of shipping and handling, reducing the risk of damage and waste.



Another common use for the Drop Ball-impact Tester is in the testing of materials used in the construction of buildings and infrastructure. By simulating the impact of falling objects, the machine can help engineers and architects ensure that their designs meet safety standards and can withstand real-world conditions.



The ID6150 model, made in China, is designed to meet the highest standards of quality and performance, with CE and ISO certification and a minimum order quantity of 1. The machine features precise height control, with an error of ±1mm and a test height range of 50-1200mm, making it suitable for a wide range of applications.



In addition to its advanced testing capabilities, the Drop Ball-impact Tester is also easy to use, with intuitive controls and a user-friendly interface. The machine is powered by a 1200W plant capacity and features a Y-axis velocity range of 1~100mm/s, ensuring accurate and consistent results every time.



When you order the ID6150 Three-axis Automatic Drop Ball-impact Test Machine from Infinity Machine, you can expect prompt and reliable service, with a delivery time of 20-30 days after order confirmation. Payment terms can be negotiated and multiple options are available, including TT, PayPal, and Moneygram. The machine is also backed by a supply ability of 200 sets per month, ensuring that you can get the equipment you need when you need it.



The Drop Ball-impact Tester is an essential tool for anyone involved in product testing or quality control, and the ID6150 model from Infinity Machine is one of the best on the market. With its advanced features, reliable performance, and user-friendly design, this machine is sure to meet your testing needs and help you ensure the safety and durability of your products.

Customization:

Model Number: ID6150
Place of Origin: Made In China
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Product name: Three-axis Automatic Drop Ball-impact Test Machine
Height error:: ±1mm
Test height:: 50-1200mm
Features:: The Equipment Uses Vacuum Adsorption Method To Absorb Steel Balls, Which Is More Accurate Than The Mechanical Claw Drop Method. At The Same Time, With The Integrated High-speed X-Y Platform, It Can Be Programmed To Realize Automatic Multi-point Cycle Test And Improve The Test Efficiency. X, Y And Z Axis Are Driven By Japan Panasonic Servo Motor, Precision Ball Screw Drive, Low Noise And Durable Use. Language Has Simplified / English Interface, Suitable For Global Customers. Software Operation Interface Is Simple And Easy To Operate. The Program Has A Designed Anti-stay Function To Ensure The Accuracy And Safety Of Each Test. Unique Automatic Reset And Automatic Pickup Function, Can Realize Unattended And Automatic Cycle Test. According To The Conventional Test Setting Parameters, The Steel Ball Impacts On The Sample During Starting And Running, And The Steel Ball Springs And Is Clamped By The Splint To Prevent Secondary Impact On The Sample. When The XY Platform Is Positioned At The Position Of The Cone Hole And The Ball Coaxis, The Cylinder Is Released And Drops The Steel Ball, And The Steel Ball Is Automatically Reset To The Center Of The Cone Hole. After The Z Axis Drops The Ball, The Cycle Is Executed. The Whole Machine Adopts Floor Structure Design, The Operation Panel Can Rotate, So That The Operator Closer To The Test Area, More Convenient Sample Loading And Unloading. The Equipment Provides The Perfect Fault Detection Mechanism Of The Operation State, And Provides The Corresponding Error Information Prompt, And Conducts Real-time Detection And Processing Of Servo Failure, Sensor Fault, X, Y And Z Axis Limit Fault, So As To Maximize The Protection Of Personal And Equipment Safety. The Device Is Equipped With Infrared Laser Function, Which Can Accurately Locate The Position Of The Landing Point And Facilitate The Tester To Accurately Determine The Test Position. The Test Formula Is Stored In The ROM Of The System, Which Is Simple And Convenient To Read And Change The Test Position.
Steel ball specifications:: 20g, 500g, Or As Specified


Support and Services:

The Impact Testing Machine product comes with comprehensive technical support and services to ensure optimal performance and longevity. Our team of experienced technicians and engineers are available to assist with installation, calibration, and maintenance of the equipment. Additionally, we offer training programs to ensure proper usage and handling of the Impact Testing Machine. Our support services also include troubleshooting assistance and repair services in case of any issues or malfunctions. We are committed to providing timely and reliable support to our customers to ensure their satisfaction with our product.



Packing and Shipping:

Product Packaging:

The Impact Testing Machine will be packaged securely in a cardboard box with foam padding to prevent any damage during shipping. The product will also be wrapped in plastic to protect it from any moisture or dust during transit.

Shipping:

The Impact Testing Machine will be shipped via a reputable courier service such as UPS, FedEx, or DHL. The shipping cost will be calculated based on the destination and weight of the product.



FAQ:

Q1: What is the brand name of the impact testing machine?

A1: The brand name of the impact testing machine is Infinity Machine.

Q2: What is the model number of the impact testing machine?

A2: The model number of the impact testing machine is ID6150.

Q3: Where is the impact testing machine made?

A3: The impact testing machine is made in China.

Q4: Does the impact testing machine have any certifications?

A4: Yes, the impact testing machine has CE and ISO certifications.

Q5: What is the minimum order quantity for the impact testing machine?

A5: The minimum order quantity for the impact testing machine is 1.

Q6: What is the price of the impact testing machine?

A6: The price of the impact testing machine is negotiable.

Q7: What are the packaging details for the impact testing machine?

A7: The packaging details for the impact testing machine include clear sheet, sponge, and wood carton.

Q8: What is the delivery time for the impact testing machine?

A8: The delivery time for the impact testing machine is 20-30 days after order confirmed.

Q9: What are the payment terms for the impact testing machine?

A9: The payment terms for the impact testing machine include TT, PayPal, Moneygram and so on.

Q10: What is the supply ability of the impact testing machine?

A10: The supply ability of the impact testing machine is 200 sets/month.
