| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IF2001A1 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Drive Link:: | High-precision Ball-rolling Screw | Test Trip:: | 650mm |
|---|---|---|---|
| Force Value Accuracy: | ±0.5% | Equipment Size: (WxDxH): | 500X 600X 1200mm |
| Product Name: | Non-woven Fabric Internal Bond Testing Universal Pull Pressure Test Machine | Displacement Resolution:: | 0.001mm |
| Weight Of Equipment: | 140 Kg | Professional Test Report:: | Based On The Report Developed In Crystal Reports10.0, It Can Automatically Calculate The Strength And Elastic Modulus E And RP0.2、ReL 、ReH 、 Extension Rate, Etc., The Report Title And Content Can Be Freely Changed, The Curve Is Automatically Generated. Can |
| Highlight: | 1200mm Internal Bond Testing Machine,500X Internal Bond Testing Machine,AC220V Internal Bond Testing Machine |
||
AC220V 50 / 60Hz Non-woven Fabric Internal Bond Testing Machine Mpa Force Value Unit 500X 600X 1200mm

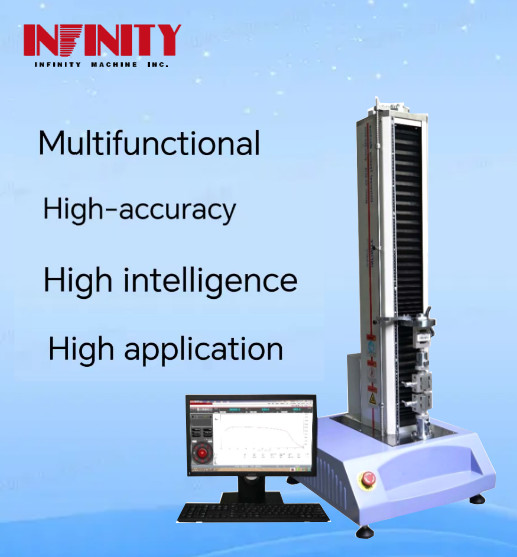

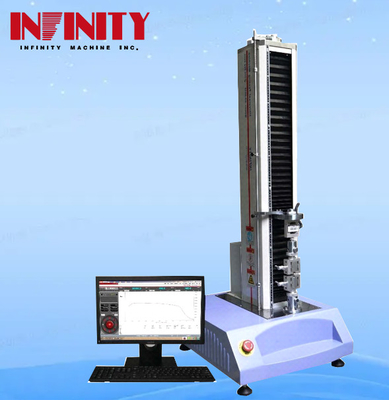

Equipped with a Japanese Panasonic AC servo motor drive and a high-precision gap-free ball screw drive, this Universal Testing Machine is highly accurate. It also features a high-precision TRANSCELL explosion-proof LOADCELL, with force value accuracy up to ±0.5% and displacement accuracy up to 0.01mm.
The machine also has high intelligence, with the functions of automatic discrimination break, automatic return, and curve combination. It can perform load-to-time displacement, displacement-time stress-strain, strain-time, stress-time, and other curve analyses, making it an ideal choice for material testing.
In terms of application, this Universal Testing Machine supports 9 languages, including Simple/Traditional Chinese, English, Japanese, German, French, Russian, Spanish, Portuguese, and global general use. The force value unit is switchable, with N, KN, Gf, Kgf, Lbf, Mpa, Lbf/In², and Kgf/mm available.

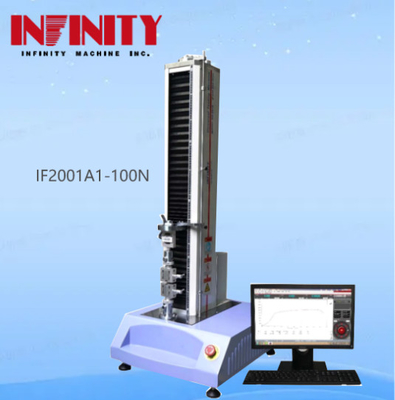

With a force value capacity of 100N and equipment size of (WxDxH) 500X 600X 1200mm, this Universal Testing Machine is a reliable and accurate testing equipment that is suitable for a wide range of material testing applications. It is a great investment for businesses that require precise and reliable testing equipment.

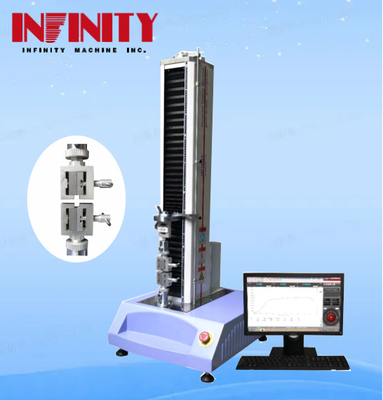

With different fixtures, stretching, compression, bending, shear, tear, stripping and other tests.
2.High-accuracy:
Japanese Panasonic AC servo motor drive, high precision gap-free ball screw drive, with high precision TRANSCELL explosion-proof LOADCELL, force value accuracy up to ± 0.5%; displacement accuracy up to 0.01mm.
3.High intelligence:
The functions of automatic discrimination break, automatic return, and curve combination, such as load-to-time displacement, displacement-time stress-strain, strain-time, stress-time and other curve analysis.
4.High application:
9 languages can be switched: Simple / Traditional Chinese, English, Japanese, German, French, Russian, Spanish, Portuguese, global general use.
| Drive link | High-precision Ball-rolling Screw |
| Product Name | Non-woven Fabric Internal Bond Testing Universal Pull Pressure Test Machine |
| Force value decomposition degree | 1/500,000 |
| Force value accuracy | ±0.5% |
| Force value capacity | 100N |
| Equipment Size (WxDxH) | 500X 600X 1200mm |
| Speed accuracy | ±0.5% |
| Weight of equipment | 140 Kg |
| Standards | This Test Machine Is Manufactured According To The "Electronic Universal Test Machine" GB / T 16491-2008, "General Technical Requirements Of Test Machine" GB2611-2007, "Detection Of Force Measurement System Of Tensile Test Machine", "Technical Conditions Of Extension Meter" JB6146-2007, "General Code For Licensing Assessment Of Manufacturing Measuring Instruments" JJF1246-2010 Standard. |
| Professional test report | Based On The Report Developed In Crystal Reports10.0, It Can Automatically Calculate The Strength And Elastic Modulus E And RP0.2,ReL ,ReH , Extension Rate, Etc., The Report Title And Content Can Be Freely Changed, The Curve Is Automatically Generated. Can Be Remitted As Excel, PDF And Other Formats. |
Infinity Machine's universal testing machine, model IF2001A1, is a multifunctional and high-accuracy testing machine manufactured in China. It is certified by CE and ISO, ensuring its quality and reliability. This product has a minimum order quantity of 1 and negotiable pricing. It is packaged with clear sheet, sponge, and wood carton, and it has a delivery time of 20-30 days after order confirmation. Payment terms include TT, PayPal, Moneygram, and other methods, and its supply ability is 200 sets per month.
The test space effective width of this universal testing machine is 130mm with a displacement resolution of 0.001mm and force value decomposition degree of 1/500,000. It is a high-intelligence machine with functions such as automatic discrimination break, automatic return, and curve combination. This machine is capable of performing stretching, compression, bending, shear, tear, stripping, and other tests with different fixtures. The Japanese Panasonic AC servo motor drive and high-precision gap-free ball screw drive ensure high precision, and the high-precision TRANSCELL explosion-proof LOADCELL provides force value accuracy up to ± 0.5% and displacement accuracy up to 0.01mm.
The universal testing machine is highly applicable with its ability to switch between 9 languages, including simple/traditional Chinese, English, Japanese, German, French, Russian, Spanish, Portuguese, and global general use. Standards this machine adheres to include the "Electronic Universal Test Machine" GB/T 16491-2008, "General Technical Requirements of Test Machine" GB2611-2007, "Detection of Force Measurement System of Tensile Test Machine", "Technical Conditions of Extension Meter" JB6146-2007, and "General Code for Licensing Assessment of Manufacturing Measuring Instruments" JJF1246-2010 Standard.
This universal testing machine is suitable for various product application occasions and scenarios, such as for non-woven fabric internal bond testing, universal pull pressure testing, and other testing needs. Its high-accuracy and multifunctional features make it a reliable and efficient choice for testing various materials and products.
Infinity Machine's Universal Pull Pressure Test Machine, model number IF2001A1, is a multifunctional testing machine that can perform stretching, compression, bending, shear, tear, stripping, and other tests. Made in China, this machine is manufactured according to the "Electronic Universal Test Machine" GB / T 16491-2008, "General Technical Requirements Of Test Machine" GB2611-2007, "Detection Of Force Measurement System Of Tensile Test Machine", "Technical Conditions Of Extension Meter" JB6146-2007, "General Code For Licensing Assessment Of Manufacturing Measuring Instruments" JJF1246-2010 Standard.
The Universal Pull Pressure Test Machine is certified with CE and ISO, and has a minimum order quantity of 1. The price is negotiable, and packaging details include clear sheet+sponge+wood carton. Delivery time is estimated at 20-30 days after order confirmation, and payment terms include TT PAYPAL Moneygram and others. The machine has a supply ability of 200 sets per month and can achieve test speeds of 0.01~500mm/min.
The machine features a high-precision ball-rolling screw drive link and can perform force value decomposition degree of 1/500,000. The machine has high-accuracy performance due to its Japanese Panasonic AC servo motor drive, high precision gap-free ball screw drive, and high precision TRANSCELL explosion-proof LOADCELL. Force value accuracy is up to ± 0.5%, and displacement accuracy is up to 0.01mm.
The Universal Pull Pressure Test Machine has high intelligence with functions of automatic discrimination break, automatic return, and curve combination, such as load-to-time displacement, displacement-time stress-strain, strain-time, stress-time, and other curve analysis. The machine can switch between 9 languages: simple / traditional Chinese, English, Japanese, German, French, Russian, Spanish, Portuguese, and is suitable for global general use.

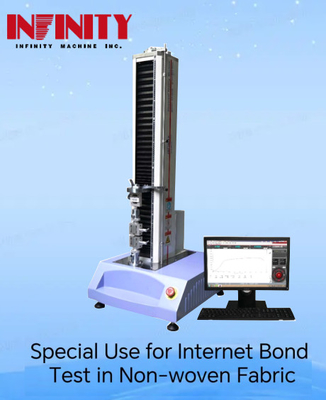

This universal test machine is highly suitable for a range of purposes, including testing non-woven fabric internal bond strength.
Our Universal Testing Machine product comes with comprehensive technical support and services to ensure that you get the most out of your investment. Our team of experienced professionals is always available to provide assistance with installation, calibration, and operation of the machine. We also offer regular maintenance services to keep your machine in optimal condition and minimize downtime.
In addition, we provide training programs to educate your team on the proper use of the Universal Testing Machine, including testing procedures, data analysis, and troubleshooting. We also offer customized testing solutions to meet the specific needs of your industry and applications.
Our commitment to customer satisfaction means that we are always working to improve our products and services, and we welcome any feedback or suggestions from our customers. Contact us today to learn more about our technical support and services for the Universal Testing Machine.
Product Packaging:
The Universal Testing Machine will be securely packaged to ensure safe delivery to our customers. The machine will be packed in a wooden crate to protect it from damage during transportation.
Shipping:
Our standard shipping method is ground shipping which takes approximately 5-7 business days for delivery. We also offer expedited shipping options for customers who need their Universal Testing Machine delivered more quickly. Please contact our customer support team for more information on expedited shipping options.
Q: What is the brand name of this testing machine?
A: The brand name of this testing machine is Infinity Machine.
Q: What is the model number of this testing machine?
A: The model number of this testing machine is IF2001A1.
Q: Where is this testing machine made?
A: This testing machine is made in China.
Q: What certifications does this testing machine have?
A: This testing machine has CE and ISO certifications.
Q: What is the minimum order quantity for this testing machine?
A: The minimum order quantity for this testing machine is 1.
Q: What is the price of this testing machine?
A: The price of this testing machine is negotiable.
Q: What are the packaging details for this testing machine?
A: The packaging details for this testing machine are clear sheet+sponge+wood carton.
Q: How long does it take to deliver this testing machine?
A: It takes 20-30 days after order confirmed to deliver this testing machine.
Q: What are the payment terms for this testing machine?
A: The payment terms for this testing machine are TT, PAYPAL, Moneygram, and so on.
Q: What is the supply ability for this testing machine?
A: The supply ability for this testing machine is 200 sets per month.
