Shell Climate Sand Dust Test Chamber With IP Code Protection Grade

Product Description:

This Sand Dust Test Chamber is equipped with a powder spraying and dust removal method, which provides a free dust removal feature. This feature ensures that the testing chamber is always clean and ready for use, which is crucial for accurate and reliable test results.

This Environmental Test Chamber complies with various industry standards, including IEC60529:1989 + A1:1999 + A2:2013, Degrees Of Protection Provided By Enclosures (IP Code), GB4208-2017 Article 13.4, Shell Protection Grade (IP Code), 13.5 And Figure 3, and GB7000.1 Article 9.2.1 And No.9.2.2 And Fig. 6. These standards ensure that the testing chamber is safe, reliable, and meets the requirements of various industries.

The Total Test Time of this Sand Dust Test Chamber is adjustable, ranging from 0 to 9999999 minutes. This feature allows users to customize the testing time according to their specific needs, ensuring that the testing results are accurate and reliable.

The Inner Box Size of this Environmental Test Chamber is customizable, with a standard size of 800 * 800 * 800mm. This size is perfect for testing a wide range of products, including large components and materials.

The Vacuum Table Range of this Climate Sand Dust Test Chamber is adjustable, ranging from 0 to -10 Kpa. This feature enables users to simulate various environmental conditions accurately, ensuring that the testing results are reliable and accurate.

Features:

• Product Name: Environmental Test Chamber
• Product Name: Sand Dust Test Chamber
• Inner box size: (W * D * H): 800 * 800 * 800mm (customizable)
• External dimensions: (W * D * H): 1250 * 1050 * 1755mm (customizable)
• Test dust: Arizona DUST A2 (standard With 2 Kg)
• Features:
  • Suitable For IP5X, IP6X Dust Proof Grade Test Of Products.
  • The Shell Is Made Of Domestic High Quality Steel Plate, The Surface Spraying Paint, Beautiful And Durable.
  • The Inner Box And Sample Frame Are Made Of Stainless Steel Plate To Ensure No Rust For A Long Time.
  • There Is A Transparent Observation Window (tempered Glass Is Made Of Material) On The Door, And LED Lights Are Installed In The Box To Observe The Internal Test Situation.
  • The Bottom Of The Equipment Has A Replaceable Dust Device, Which Can Easily Replace The Used Dust.
  • The Box Is Installed With A Vibration Device, Which Can Work Automatically Alternately To Prevent Dust From Sticking To The Wall Of The Box And Condensation.
  • There Is A Suction Pipe In The Box, And The Vacuum Action Can Be Performed For The Sample (the Suction Hole Should Be Reserved For The Sample).
  • Control System Of Sand Dust Test Box: Using 7-inch Touch Screen + Panasonic PLC, Can Display The Year, Month, Day, Time, Working Time, Etc.
  • Control The Dust Blower, Dust Vibration And Total Test Time Respectively; This Controller Has The Following Arbitrary Setting Control Functions;
    • A. Dust Blowing Time (stop And Blow): Arbitrarily Select The Time Setting Of Continuous And Periodic Dust Blowing;
    • B. Vibration Time: Vibration And Stop Vibration Time Automatically Alternate;
    • C. Preset Test Time: The Test Time Range Is 0-999999 Minutes;
    • D. Power On: Off —— On —— Off.
  • Heating System: A Heater Is Installed In The Circulating Air Duct To Avoid Dust Condensation, Pipe Wrap Hoop Mica Sheet Heating Ring, The Heat Is Safe And Stable;
  • Vacuum System: Equipped With Vacuum Pump, Vacuum Meter, Air Filter, Flow Meter And Connecting Pipe.

Technical Parameters:

Applications:

The Infinity Machine IE7 series Environmental Test Chamber is a top-of-the-line product made in China, designed to meet the highest standards of quality and performance. With certifications like CE and ISO, this product is a reliable choice for a wide range of industries and applications.

The Climate Sand Dust Test Chamber is ideal for testing the resistance of various products to environmental factors like sand and dust. It can be used in a variety of scenarios, including:

• Electronics manufacturing
• Aerospace and defense
• Automotive industry
• Research and development
• Quality control and assurance

With a minimum order quantity of 1 and negotiable pricing, the Climate Sand Dust Test Chamber is accessible to businesses of all sizes. It comes in master carton packaging and has a delivery time of 200 sets per month, with payment terms of T/T, D/P, and L/C.

The Environmental Test Chamber has a supply ability of 200 sets per month and features a metal screen standard line via of 50um, a vacuum table range of 0 to -10 Kpa (adjustable), and a standard spacing between the lines of 75um. It also has a vibration time range of 0 to 999999S (adjustable).

This product complies with IEC60529:1989 + A1:1999 + A2:2013, Degrees Of Protection Provided By Enclosures (IP Code), as well as GB4208-2017 Article 13.4, Shell Protection Grade (IP Code), 13.5 And Figure 3. GB7000.1 Article 9.2.1 And No.9.2.2 And Fig. 6. These certifications demonstrate the reliability and effectiveness of the Climate Sand Dust Test Chamber in harsh environmental conditions.

Customization:

The Sand Dust Test Chamber is suitable for IP5X, IP6X dustproof grade testing of products. The shell is made of high-quality steel plate and has a surface spraying paint that is beautiful and durable. The inner box and sample frame are made of stainless steel plate to ensure no rust for a long time. There is a transparent observation window (tempered glass) on the door, and LED lights are installed in the box to observe the internal test situation. The bottom of the equipment has a replaceable dust device, which can easily replace the used dust. The box is installed with a vibration device, which can work automatically alternately to prevent dust from sticking to the wall of the box and condensation. There is a suction pipe in the box, and the vacuum action can be performed for the sample (the suction hole should be reserved for the sample).

The control system of the Environmental Sand Dust Simulation Test Chamber uses a 7-inch touch screen + Panasonic PLC and can display the year, month, day, time, working time, etc. The dust blower, dust vibration, and total test time can be controlled respectively. This controller has the following arbitrary setting control functions: a. Dust Blowing Time (stop and blow): arbitrarily select the time setting of continuous and periodic dust blowing; b. Vibration Time: vibration and stop vibration time automatically alternate; c. Preset Test Time: the test time range is 0-999999 minutes; d. Power On: Off —— On —— Off.

The Heating System includes a heater that is installed in the circulating air duct to avoid dust condensation, pipe wrap hoop mica sheet heating ring, and the heat is safe and stable. The Vacuum System is equipped with a vacuum pump, vacuum meter, air filter, flow meter, and connecting pipe. The standard dosage of talc powder is 2～4kg/m³, and the metal screen standard line via is 50um.

With safety protection functions such as Leakage Protection and Short-circuit Protection, the Environmental Sand Dust Simulation Test Chamber is a reliable solution for dustproof grade testing of products.

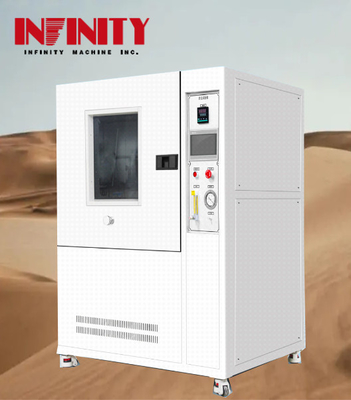

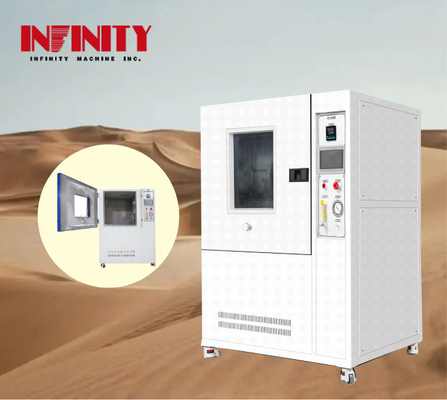

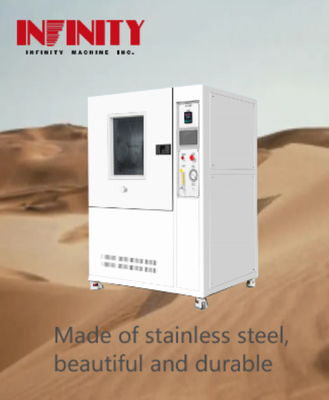

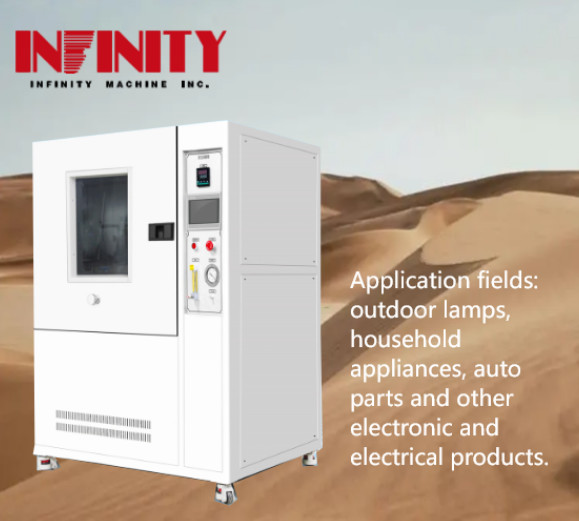

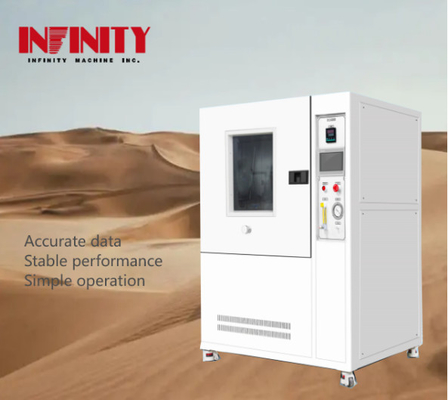

Device picture:

Support and Services:

Our Environmental Test Chamber product comes with comprehensive technical support and services to ensure that your testing needs are met. Our team of experts are available to assist with:

• Installation and setup
• Calibration and maintenance
• Troubleshooting and repairs
• User training and education
• Customization and modifications

We understand the importance of reliable and accurate testing, which is why we offer ongoing support to ensure that your Environmental Test Chamber is operating at its best. Contact us for more information on our technical support and services.

Packing and Shipping:

Product Packaging:

• The Environmental Test Chamber will be securely packaged in a wooden crate to ensure safe transportation.
• All necessary components and accessories will also be included in the packaging.
• The crate will be labeled with the product name, model number, and handling instructions.

Shipping:

• The Environmental Test Chamber will be shipped via a reputable freight carrier.
• The shipping cost will be calculated based on the destination and weight of the crate.
• The customer will be provided with a tracking number to monitor the shipment.
• Upon delivery, the customer should inspect the crate for any damage and report it to the carrier immediately.

FAQ:

Q1: What is the brand name of this environmental test chamber?

A1: The brand name of this environmental test chamber is Infinity Machine.

Q2: What is the model number of this environmental test chamber?

A2: The model number of this environmental test chamber is IE7 series.

Q3: What is the place of origin of this environmental test chamber?

A3: This environmental test chamber is made in China.

Q4: What certifications does this environmental test chamber have?

A4: This environmental test chamber is CE and ISO certified.

Q5: What is the minimum order quantity of this environmental test chamber?

A5: The minimum order quantity of this environmental test chamber is 1 unit. However, it is recommended to contact us to negotiate the price and delivery terms.
