| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE,ISO |
| Model Number: | IE7 series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negociate |
| Packaging Details: | Master carton |
| Delivery Time: | 200 sets per monthes |
| Payment Terms: | T/T,D/P,L/C |
| Supply Ability: | 200 sets / month |
| Vibration Time:: | 0-999999S (adjustable) | Product Name: | Sand Dust Test Chamber |
|---|---|---|---|
| External Dimensions: (W * D * H): | 1250 * 1050 * 1755mm (customizable) | Speed Of Evacuation:: | 0-60L / H (Adjustable) |
| Standard Dosage Of Talc Powder:: | 2～4kg/m³ | Powder Spraying And Dust Removal Method:: | Free Dust Removal |
| Equipment Power Supply Power:: | 220V 50Hz 1.5KW (or Specified) | Metal Screen Standard Line Via:: | 50um |
| Highlight: | Simulation Test Chamber,Environmental Sand Dust Simulation Test Chamber |
||
± 1 Second Timeline Accuracy Environmental Sand Dust Simulation Test Chamber for Testing
The product has external dimensions of (W * D * H): 1250 * 1050 * 1755mm, which can be customized to suit the user's specific requirements. It has a standard dosage of talc powder of 2～4kg/m³ and a timeline accuracy of ±1 second.
The shell of the testing equipment is made of high-quality steel plate, with a beautiful and durable surface spraying paint. The inner box and sample frame are made of stainless steel plate to ensure that no rust occurs for a long time. The door is equipped with a transparent observation window made of tempered glass, and LED lights are installed inside the box to observe the internal test situation. The bottom of the equipment has a replaceable dust device that can easily replace the used dust.
The box is equipped with a vibration device that can work automatically alternately to prevent dust from sticking to the wall of the box and condensation. It also has a suction pipe in the box, and the vacuum action can be performed for the sample (the suction hole should be reserved for the sample).
The control system of the Sand Dust Test Box uses a 7-inch touch screen and Panasonic PLC, which can display the year, month, day, time, working time, and other information. It can control the dust blower, dust vibration, and total test time respectively. The controller also has the following arbitrary setting control functions: A. Dust Blowing Time (stop and blow): Arbitrarily select the time setting of continuous and periodic dust blowing; B. Vibration Time: Vibration and stop vibration time automatically alternate; C. Preset Test Time: The test time range is 0-999999 minutes; D. Power On: Off —— On —— Off.
The heating system of the Sand Dust Test Box has a heater installed in the circulating air duct to avoid dust condensation. It has a pipe wrap hoop mica sheet heating ring, which is safe and stable. The vacuum system is equipped with a vacuum pump, vacuum meter, air filter, flow meter, and connecting pipe.
The Sand Dust Test Box is suitable for IP5X, IP6X dustproof grade testing of products. It is widely used in outdoor lamps, household appliances, auto parts, and other electronic and electrical products. The main function of this equipment is to test the physical and other related properties of the products under the climatic conditions of simulating dust. After the test, the performance of the product is judged through verification to facilitate the design, improvement, verification, and factory inspection of the product.
Keywords: Sand Dust Test Chamber, Environmental Sand Dust Simulation Test Chamber, Climate Sand Dust Test Chamber
| Product Name | Environmental Sand Dust Simulation Test Chamber |
| Climate Sand Dust Test Chamber | |
| Sand Dust Test Chamber | |
| External Dimensions | 1250 * 1050 * 1755mm (customizable) |
| Standard Spacing Between the Lines | 75um |
| Speed of Evacuation | 0-60L / H (Adjustable) |
| Test Dust | Arizona DUST A2 (standard With 2 Kg) |
| Vacuum Table Range | 0- -10 Kpa (adjustable) |
| Standard Dosage of Talc Powder | 2～4kg/m³ |
| Standards | Comply With IEC60529:1989 + A1:1999 + A2:2013, Degrees Of Protection Provided By Enclosures (IP Code). GB4208-2017 Article 13.4, Shell Protection Grade (IP Code), 13.5 And Figure 3. GB7000.1 Article 9.2.1 And No.9.2.2 And Fig. 6. |
| Power Supply for the Test Samples | 220V (or Specified) |
| Powder Spraying and Dust Removal Method | Free Dust Removal |
The Infinity Machine IE7 series Environmental Test Chamber is a powerful tool for testing the durability of products in varying environmental conditions. This Climate Sand Dust Test Chamber is specifically designed to test the resistance of products to sand and dust. The sand and dust test chamber is an Environmental Dust Proof Testing Machine that is perfect for testing products that are going to be used in harsh environments.
The IE7 series Sand Dust Test Chamber is made in China and comes with CE and ISO certification. The minimum order quantity is 1 and the price is negotiable. The packaging details include master cartons and the delivery time is 200 sets per month. Payment terms include T/T, D/P, and L/C. The supply ability of the product is also 200 sets per month.
The metal screen standard line via is 50um and the equipment power supply power is 220V 50Hz 1.5KW (or Specified). The Vacuum table range is 0- -10 Kpa (adjustable) and the powder spraying and dust removal method is Free Dust Removal. The Sand Dust Test Chamber conforms to the standards of IEC60529:1989 + A1:1999 + A2:2013, Degrees Of Protection Provided By Enclosures (IP Code), GB4208-2017 Article 13.4, Shell Protection Grade (IP Code), 13.5 And Figure 3, GB7000.1 Article 9.2.1 And No.9.2.2 And Fig. 6.
The Environmental Test Chamber is perfect for a variety of product application occasions and scenarios. It is ideal for testing products that will be used in harsh and dusty environments such as construction sites, mining sites, and deserts. It is also perfect for testing electronic devices such as smartphones, tablets, and laptops that need to be durable and resistant to dust and sand.
Brand Name: Infinity Machine
Model Number: IE7 series
Place of Origin: Made In China
Certification: CE,ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Master carton
Delivery Time: 200 sets per month
Payment Terms: T/T,D/P,L/C
Supply Ability: 200 sets / month
Total Test Time: 0-9999999 Min (Adjustable)
Product Name: Environmental Dust Proof Testing Machine/Sand Dust Test Chamber/Environmental Sand Dust Simulation Test Chamber
Standard Dosage of Talc Powder: 2～4kg/m³
Inner Box Size: (W * D * H): 800 * 800 * 800mm (customizable)
Power Supply for the Test Samples: 220V (or Specified)

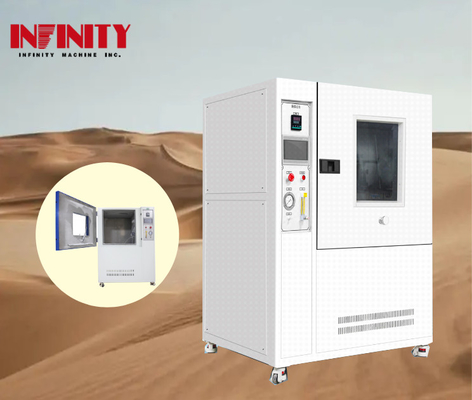

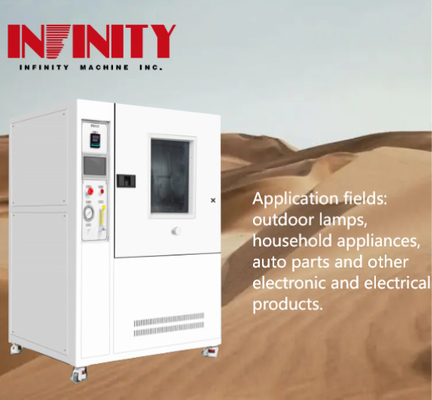

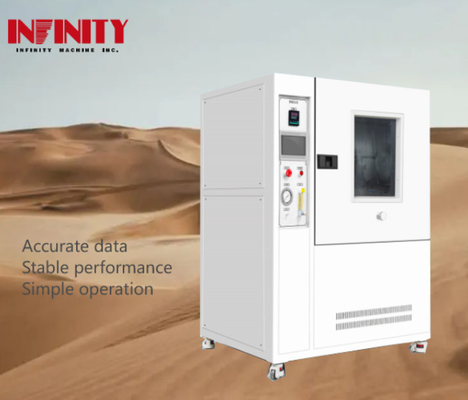

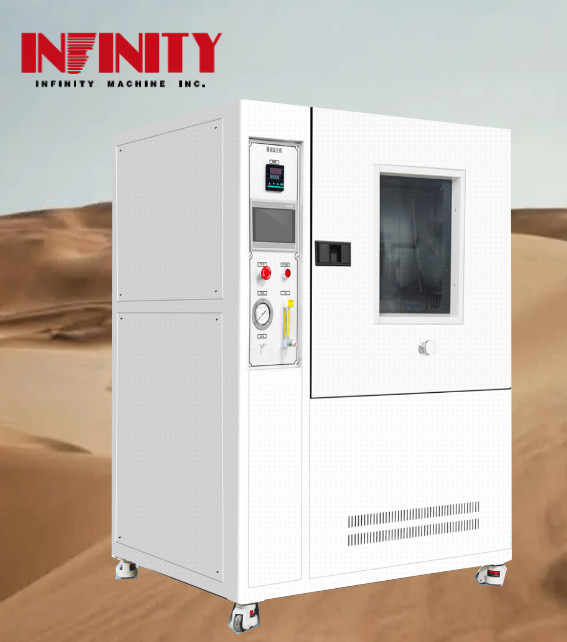

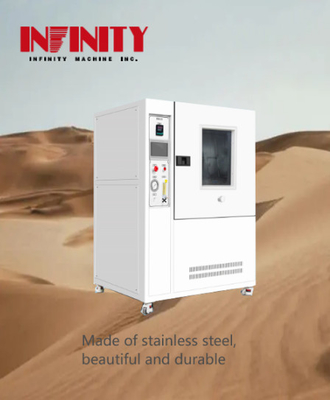

Device picture:
Our Environmental Test Chamber product comes with a range of technical support and services to ensure optimal performance and customer satisfaction. These include:
1. Installation and commissioning services to ensure the chamber is set up correctly and functioning properly.
2. Training services to ensure proper operation and maintenance of the chamber by the customer's staff.
3. Calibration and validation services to ensure accurate and reliable performance of the chamber.
4. Technical support services to assist with any troubleshooting or issues that may arise with the chamber.
5. Preventive maintenance services to help keep the chamber in good working condition and extend its lifespan.
6. Spare parts and accessories to ensure continuous operation and functionality of the chamber.
Product Packaging:
The environmental test chamber will be packaged carefully to ensure its safe delivery. It will be placed in a sturdy cardboard box with ample padding to prevent any damage during transit. The box will also be clearly labeled with the product name, model number, and handling instructions for the carrier.
Shipping:
The environmental test chamber will be shipped via a reputable carrier to ensure timely and safe delivery. The shipping cost will be calculated based on the destination and weight of the package. Customers can choose from a variety of shipping options to best suit their needs and budget. Once the package is shipped, customers will receive a tracking number to monitor the status of their delivery.
Q: What is the brand name of the environmental test chamber?
A: The brand name of the environmental test chamber is Infinity Machine.
Q: What is the model number of the environmental test chamber?
A: The model number of the environmental test chamber is IE7 series.
Q: Where is the environmental test chamber made?
A: The environmental test chamber is made in China.
Q: What certifications does the environmental test chamber have?
A: The environmental test chamber is CE and ISO certified.
Q: What is the minimum order quantity for the environmental test chamber?
A: The minimum order quantity for the environmental test chamber is 1.
Q: What is the packaging details of the environmental test chamber?
A: The environmental test chamber is packaged in master carton.
Q: What is the delivery time for the environmental test chamber?
A: The delivery time for the environmental test chamber is 200 sets per month.
Q: What are the payment terms for the environmental test chamber?
A: The payment terms for the environmental test chamber are T/T, D/P, and L/C.
Q: What is the supply ability of the environmental test chamber?
A: The supply ability of the environmental test chamber is 200 sets per month.
Q: What is the price of the environmental test chamber?
A: The price of the environmental test chamber is negotiable.
