| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IF7931 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| The Overall Size Of The Host Is About (length * Width * Height): | 5000x1200x500mm | A Variety Of Test Curves Can Be Shown: | Force-displacement, Force-time, Force-deformation, Stress-strain, Etc |
|---|---|---|---|
| Displacement Measurement Range: | 500mm | Test Speed: | 0-100mm / Min |
| Force Measurement Mode: | Load Sensor Load Measurement | The Console Is Separated From The Host, With A Safe Distance, And The Host Should Have Safety Prote: | The Configuration Facilities Should Be Complete, Including The Force Value Calibration System, Anchor Bolts, Etc. |
| Product Name: | Microcomputer Control Hydraulic Horizontal Tensile Test Machine | Test Force Accuracy:: | ± 1% |
| Highlight: | Microcomputer Control Hydraulic Tensile Test Machine,Horizontal Tensile Test Machine,Microcomputer Control Tensile Test Machine |
||

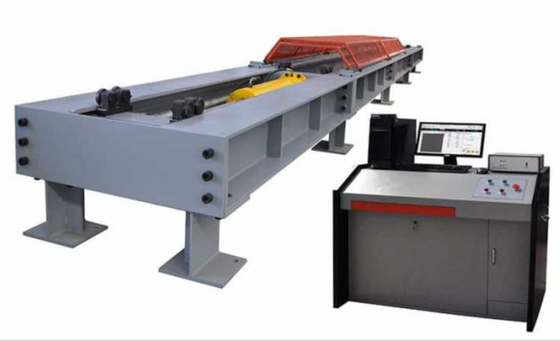

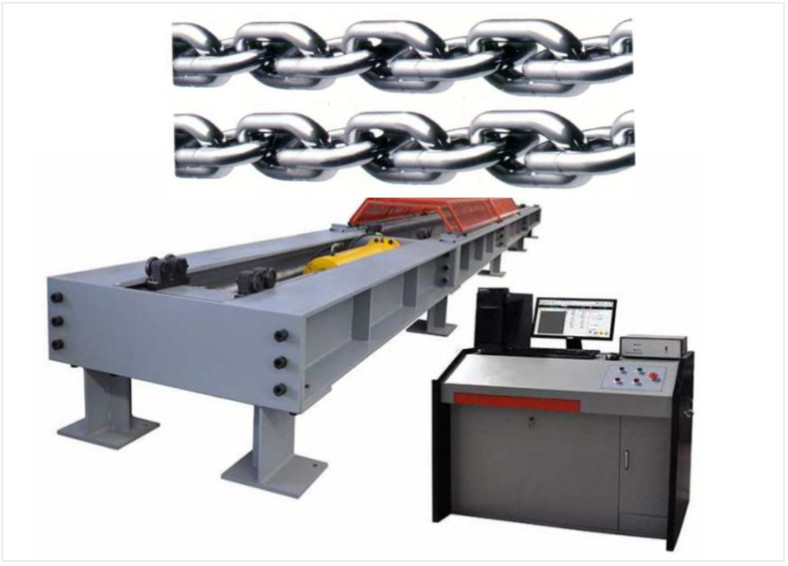

Tensile Testing Microcomputer Control Hydraulic Horizontal Tensile Test Machine Measurement Range 12 KN 600 KN
Welcome to the world of advanced material testing with our Universal Testing Machine. This state-of-the-art product is designed to provide accurate and reliable testing results for a wide range of materials. With its advanced technology and innovative features, our Universal Testing Machine is the perfect solution for all your testing needs.
Also known as a Universal Material Testing Machine or Tensile Strength Tester, our product is designed to perform a variety of tests on different materials, including metal, plastic, rubber, and more. Its advanced microcomputer control technology ensures precise and efficient testing results.
Our Universal Testing Machine offers a displacement measurement range of 500mm, making it suitable for a wide range of materials and testing applications. This range allows for accurate and detailed measurement of displacement during testing.
Our Universal Testing Machine is designed for ease of use and safety. The console and host are separated, ensuring a safe distance for the operator. Additionally, the host is equipped with safety protection measures to ensure the safety of the operator during testing. The overall size of the host is approximately 5000x1200x500mm, making it compact and suitable for various testing environments.
Our Universal Testing Machine is equipped with an advanced control, measurement, and display system to ensure accurate and efficient testing results. Some of the key features of this system include:
With these advanced features, our Universal Testing Machine offers an efficient and safe testing experience for all users.
In conclusion, our Microcomputer Control Hydraulic Horizontal Tensile Test Machine is a top-of-the-line product that offers accurate and reliable testing results for a wide range of materials. With its advanced technology, safety features, and user-friendly design, it is the ideal choice for all your material testing needs.
The Universal Testing Machine, also known as Material Testing Equipment, is a versatile testing machine used for various types of tests such as tensile, compression, and bending tests. It is an essential equipment in industries such as construction, manufacturing, and research and development.
Infinity Machine offers high-quality and reliable universal material testing machines with the brand name "Infinity Machine" and model number IF7931. These machines are manufactured in China and have obtained the necessary certifications such as CE and ISO, ensuring their quality and safety.
The minimum order quantity for the Universal Testing Machine is 1, and the price is negotiable. The packaging is done with a clear sheet, sponge, and wood carton to ensure the machine's safety during transportation. The delivery time is estimated to be 20-30 days after the order is confirmed, and various payment methods such as TT, PAYPAL, and Moneygram are accepted.
The Universal Testing Machine has a supply ability of 200 sets per month, making it readily available for customers. It has a piston travel of 500mm, allowing for a wide range of test space. The force measurement mode is through a load sensor, providing accurate and reliable force measurements.
The console of the Universal Testing Machine is separated from the host, with a safe distance to ensure the operator's safety. The host also has safety protection measures to prevent any accidents. The configuration facilities of the machine are complete, including the force value calibration system and anchor bolts, to ensure the accuracy of the test results.

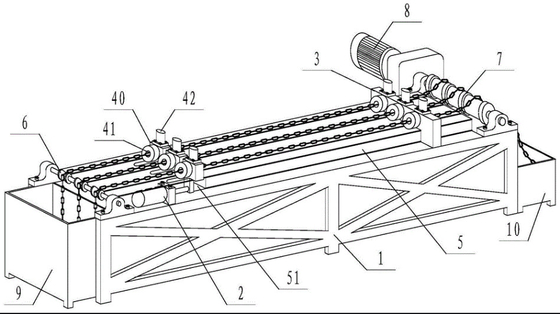

The main engine of the Universal Testing Machine is mainly composed of a cylinder holder, cylinder piston, moving beam, fixed beam, and load sensor. The cylinder holder, steel plate welding frame, moving beam, and fixed beam form the force frame, and the moving beam and fixed beam are equipped with tensile clamping to hold the two ends of the sample. The single out rod low friction piston cylinder drives the moving beam under the action of hydraulic oil, applying the test force to the sample. The pin between the fixed beam and the stressed frame can be manually adjusted to alter the test space according to the sample's size.
The displacement measurement range of the Universal Testing Machine is 500mm, allowing for various types of tests on different sizes of samples. With its high-quality and reliable performance, the Universal Testing Machine from Infinity Machine is an essential tool for any material testing needs.
Experience the power of Infinity Machine's Universal Testing Machine and enhance your testing capabilities. Contact us now to get a quote or request for more information.
Contact Us
The main engine is mainly composed of cylinder holder, cylinder piston, moving beam, fixed beam, and load sensor. The cylinder holder, steel plate welding frame, moving beam, and fixed beam form the force frame, while the moving beam and fixing beam are equipped with tensile clamping to hold the two ends of the sample. The single out rod low friction piston cylinder drives the moving beam under the action of hydraulic oil, applying the test force to the sample. The pin between the fixed beam and the stressed frame can be manually adjusted to control the test space. The console is separated from the host with a safe distance and should have safety protection measures. Configuration facilities should be complete, including the force value calibration system, anchor bolts, etc.
2.1. The hydraulic test machine special valve is used to control the loading of the test force, making it easy to operate.
2.2. Microcomputer control technology is adopted to realize the load maintenance of the test force.
2.3. The load sensor measures the test force.
2.4. The computer screen displays all kinds of test data, draws the test force-time curve, and automates the curve data processing.
2.5. With complete file operation and data storage functions, the test data is completed by ASC code, making it convenient for users' secondary data processing.
2.6. The system also has a complete safety protection device.
2.7. When the test force exceeds 2% -5% of the maximum test force of each gear, overload protection is activated and the system unloads.
2.8. When the piston displacement reaches the front and rear limit position, travel protection is activated and the oil pump motor stops.
Our Universal Testing Machine is carefully packaged to ensure safe delivery to our customers. The machine is first wrapped in a layer of protective foam and then placed in a sturdy cardboard box. The box is then sealed with high-quality tape to prevent any damage during transit.
We offer different shipping options to our customers, depending on their location and delivery preferences. Our standard shipping option is through trusted courier services, with tracking information provided to the customer for their convenience. For larger orders, we also offer the option of shipping via freight carriers.
All our products undergo thorough quality checks before being shipped to ensure they meet our high standards and are in perfect working condition. In the unlikely event that any damage occurs during shipping, we have a dedicated customer service team to assist with any returns or replacements.
For international orders, we take special care to comply with all necessary regulations and customs requirements to ensure a smooth delivery process. We also provide all necessary documentation and certificates to facilitate customs clearance.
At Universal Testing Machine, we take pride in our efficient and reliable packaging and shipping process, ensuring that our customers receive their products in top condition and on time.
