0.001mm Displacement Resolution Mechanical Universal Testing Machine for Precise Testing

Product Description:

The Tensile Push Pull Test Universal Testing Machine is a high-quality mechanical testing equipment designed for testing the strength and performance of various materials. This machine is essential for industries such as manufacturing, construction, and research and development, as it can accurately measure and analyze the tensile and compressive strength of materials.

With its advanced features and user-friendly interface, the Tensile Push Pull Test Universal Testing Machine is a reliable and efficient choice for conducting various mechanical tests.

• The Code Scanner Is Configured To Scan The QR Code Of The Product, Which Is More Convenient To Manage The Test Data Of The Corresponding Product.
• Real-time Display Of The Current Force Value And Displacement Changes, Can Be Displayed: Force-stroke (kgf-mm), Or Force-time (kgf-time) Curve Diagram.
• The Test Report Can Be Selected, Directly Printed Or Saved As Word, Excel, PDF And Other Formats.
• The Motion Shaft Is Driven By Japanese Panasonic Servo Motor, Precision Ball Screw Drive, Low Noise, Durable Use.
• Language Has Simplified / Traditional / English Three Operation Interface Can Be Switched, The Force Value Unit Has N, Lb, Gf, Kgf Can Be Switched, Suitable For Global Customers.
• Configure The Manual X And Y Platforms To Change The Test Position Arbitrarily.
• Open Force Value Protection Function, A Protection Value Is Set According To The Conventional Test Force, When Operation Or Point Movement Will Automatically Stop Moving, To Reduce Damage To The Equipment And Precision Samples.
• The Floor Structure Design Of The Whole Machine Makes The Operator Closer To The Test Area And More Convenient For Sample Loading And Unloading.
• The Test Method Management Logic Is Clear, And The New Method Provides The Correctness Check Of The Parameters And Provides The Error Information.
• The Test Data Is Stored In A Local Database For Easy Access And Query.
• According To The Customer Agreement, It Has Data Upload Functions Such As Trace And PDCA.

• Product Name: Tensile Push Pull Test Universal Testing Machine
• Model Number: IF3231 Series
• Displacement Measurement Accuracy: ±0.05mm
• Effective Width: 420mm

The Tensile Push Pull Test Universal Testing Machine is designed and manufactured with the highest quality standards to ensure accurate and reliable test results. Its robust construction and advanced features make it the ideal choice for conducting mechanical tests on various materials.

Applications:

The Universal Testing Machine from Infinity Machine, also known as a mechanical universal testing machine, is a highly versatile and reliable product designed for material testing in various industries. It is an essential tool for quality control and research purposes, providing accurate and precise results for various mechanical tests.

The mechanical universal testing machine is suitable for a wide range of applications, including but not limited to:

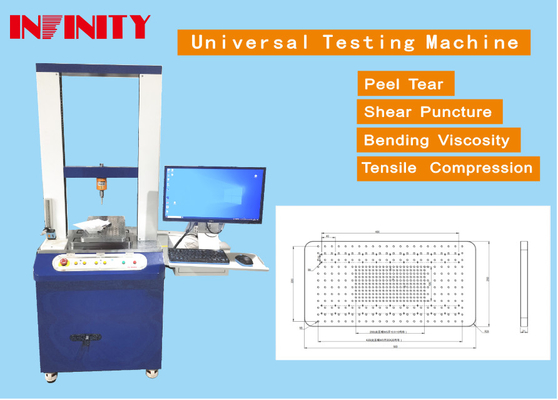

• Tensile, compression, and bending tests for metals, plastics, rubber, textiles, and other materials
• Testing the strength, durability, and elasticity of materials used in construction, automotive, aerospace, and other industries
• Quality control and research in manufacturing processes, such as casting, forging, and welding
• Measuring the performance of components and products, such as springs, cables, bolts, and pipes

• Test trip range: 0~600mm
• Test speed: 0~1000mm/min
• Displacement measurement accuracy: ±0.05mm
• Highly accurate and reliable results
• Easy to use and operate
• Durable and long-lasting
• Compact and portable design
• Wide range of testing capabilities for different materials and applications

The Infinity Machine Universal Testing Machine is a versatile and high-performing product designed for mechanical testing. It is capable of performing various tests such as tension, compression, bending, and more on a wide range of materials. With its test trip range of 0~600mm and test speed of 0~1000mm/min, it can handle different types of materials and provide precise and accurate results.

The displacement measurement accuracy of ±0.05mm ensures reliable and repeatable results, making it ideal for quality control and research purposes. This mechanical universal testing machine is made in China and is certified with CE and ISO, guaranteeing its quality and performance.

• Product Name: Tensile Push Pull Test Universal Testing Machine
• Brand Name: Infinity Machine
• Model Number: IF3231
• Place of Origin: Made In China
• Certification: CE ISO
• Minimum Order Quantity: 1
• Price: Negotiate
• Packaging Details: Clear
• Delivery Time: 20-30 days after order confirmed
• Payment Terms: TT PAYPAL Moneygram and so on
• Supply Ability: 200 sets / month
• Test trip range: 0~600mm
• Test speed: 0~1000mm/min
• Displacement measurement accuracy: ±0.05mm
• Machine weight: 185kg

The Infinity Machine Universal Testing Machine is a top-of-the-line product in the field of mechanical testing. With its accurate and reliable results, it is suitable for a wide range of applications in different industries. Made in China and certified with CE and ISO, it is a high-quality and cost-effective option for your testing needs. Contact us today to learn more and negotiate a price for your order!

Customization:

Brand Name: Infinity Machine

Model Number: IF3231

Place of Origin: Made In China

Certification: CE ISO

Minimum Order Quantity: 1

Price: Negotiate

Packaging Details: Clear

Delivery Time: 20-30 days after order confirmed

Payment Terms: TT PAYPAL Moneygram and so on

Supply Ability: 200 sets / month

Displacement decomposition degree: 0.001mm

Force value accuracy: ±0.3%

Test speed: 0~1000mm/min

Force value sensor capacity: 500Kg

Speed accuracy: ±0.5%

Key words: mechanical universal testing machine, mechanical universal testing machine for sale

Packing and Shipping:

The Universal Testing Machine will be carefully packaged to ensure safe shipping and delivery to our customers. The packaging process will follow these steps:

1. The machine will be placed in a sturdy and durable wooden crate to protect it from any potential damage during transportation.
2. The crate will be securely sealed and labeled with the necessary shipping information, including the customer's address and contact details.
3. The crate will then be loaded onto a pallet and shrink-wrapped to provide extra protection and stability during transit.
4. For international shipping, the necessary customs forms and documentation will be completed and attached to the crate.
5. The loaded pallet will be transported to the shipping carrier's facility for delivery.

Our team will closely monitor the shipping process to ensure the safe and timely arrival of the Universal Testing Machine to our customers. Once the machine has been delivered, our customers will be notified and provided with any necessary tracking information.

For any special shipping requests or arrangements, please contact our customer service team for assistance. We are committed to providing the best possible packaging and shipping experience for our valued customers.

FAQ:

• Q: What is the brand name of this product?
  A: The brand name of this product is Infinity Machine.
• Q: What is the model number of this product?
  A: The model number of this product is IF3231.
• Q: Where is this product made?
  A: This product is made in China.
• Q: What certifications does this product have?
  A: This product is certified with CE and ISO.
• Q: What is the minimum order quantity for this product?
  A: The minimum order quantity for this product is 1.
