| Observation Window: | A W 300 H 400mm Observation Window Is Installed On The Box Door. Multi-layer Insulating Electric Thermal Coated Glass Can Effectively Provide Heat Preservation And Prevent Condensation. | Temperature Uniformity: | ≦2.0℃ |
|---|---|---|---|
| Machine Features: | GB/T2423.1-2001 Low-temperature Test Method; GB/T2423.2-2001； GB/T2423.22-1989 Temperature Change Test ; Military Standard GJB150.3-86; Military Standard GJB150.4-86; Military Standard GJB150.5-86; GJB150.5-86 Temperature Shock Test GJB360.7-87 Temperatu | Cooling Rate (cold Storage Area): | Down From RT To-55℃ About 75min Is Required Down From RT To-55℃ Approximately 75min Is Required |
| Refrigeration Compressor: | Half-compact Compressor In Bitzer, Germany | Thermal Insulation Box: | ● Outer Wall Material: High Quality Carbon Steel Plate, The Surface For Electrostatic Color Spray Plastic Treatment. The Left Side Diameter Of The Box Is φ 50mm Hole. ● Inner Wall Material: SUS304 # Fog Surface Stainless Steel Plate. ● Thermal Insulation M |
| Cooling Medium: | Non-fluorine Environmental Protection Refrigerant R404A R23 Comply With Environmental Protection Regulations, Safe And Non-toxic | Product Name: | Environmental Climate Programmable Cold / Hot& High Low Temperature Impact Thermal Shock Test Chamber |

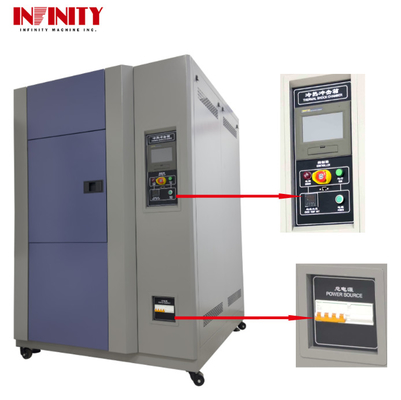

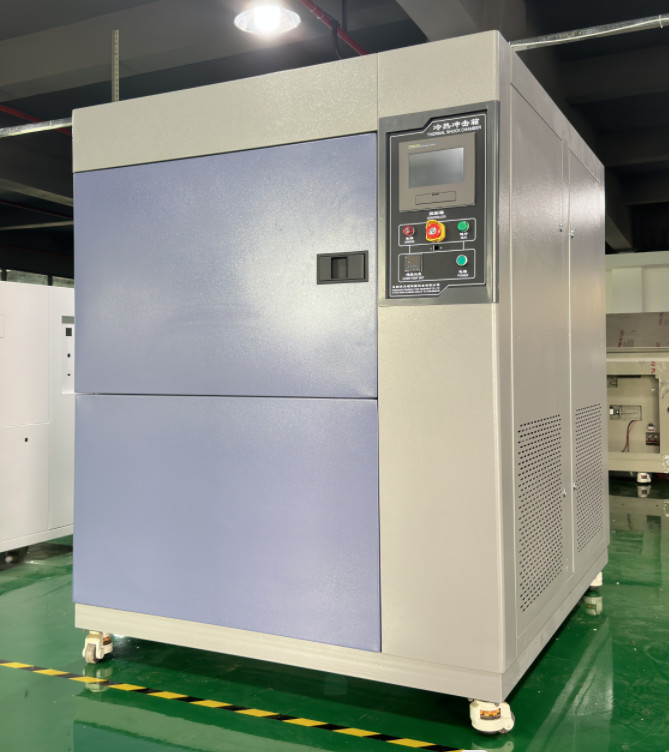

Thermal Shock Hot Cold Impact Test Chamber Cooling Rate Cold Storage Area Down From RT To-55C In Only 75min IE31A1
Thermal Shock Hot Cold Impact Climate Test Chamber is a state-of-the-art tester equipment designed for a wide range of industrial applications. It is specifically designed to test the quality of finished products or semi-finished parts, electrical appliances, instruments, materials, and coatings under different climate conditions. With its advanced features and precise control, it is suitable for various industries such as electrical, electronics, and machinery.
Thermal Shock Hot Cold Impact Climate Test Chamber is a highly efficient and versatile tester equipment suitable for a wide range of products and materials. It is specially designed to simulate climate mutations and evaluate the quality of various products and materials. It is suitable for testing high and low temperatures, humidity, and cold impact, making it an essential tool for industries such as electrical, electronics, and machinery.
The Climate Test Chamber is widely used in different industries, including electrical, electronics, machinery, and more. It is suitable for testing the quality of various products, parts, and materials, making it an essential tool for any testing machine manufacture.
Thermal Shock Hot Cold Impact Climate Test Chamber is designed to provide accurate and precise temperature control. It has a temperature uniformity of ≦2.0℃, ensuring that the temperature remains consistent throughout the testing process. This feature is crucial in evaluating the quality of products and materials under different climate conditions.
Thermal Shock Hot Cold Impact Climate Test Chamberis equipped with a special box door that can be opened independently. It also has a door frame heating wire that prevents condensation at the door frame at low temperatures. This feature ensures that the testing process is not affected by external factors, providing accurate and reliable results.
Thermal Shock Hot Cold Impact Climate Test Chamber is designed to operate on AC380V with a frequency of 50Hz. It has different power options, including 18KW, 22KW, and 25KW, depending on the specific requirements of the testing process. This feature makes it suitable for various industrial applications and ensures efficient and reliable operation.
Thermal Shock Hot Cold Impact Climate Test Chamber is equipped with a half-compact compressor from Bitzer, Germany. This compressor is known for its high efficiency and reliability, making it an ideal choice for the Climate Test Chamber. It ensures precise temperature control and provides stable and consistent results.
Thermal Shock Hot Cold Impact Climate Test Chamber is a highly efficient and versatile tester equipment suitable for a wide range of products and materials. It is designed to simulate climate mutations and evaluate the quality of different products and materials, making it an essential tool for industries such as electrical, electronics, and machinery. With its advanced features and precise control, the Climate Test Chamber is a must-have for any tester equipment factory, water spray test chamber for LED light, testing machine manufacture, or any company in need of environmental testing equipment.
| Model | IE31A180L | IE31A1100L | IE31A1150L | IE31A1225L | IE31A1408L |
| Temperature range | -65℃ ～ +150℃ | ||||
| Temperature fluctuation | ±1℃ | ||||
| Temperature uniformity | ≦2.0℃ | ||||
| Temperature recovery time | Within 5Min | ||||
|
(heat storage area) |
Up from RT to + 150℃ About 50m in is required | Up from RT to + 150℃ About 55m in is required | |||
|
(cold storage area) |
Down from RT to-55℃ About 75min is required | Down from RT to-55℃ Approximately 75min is required | |||
|
Internal box size: WxHxD(mm ) |
500x 400x400 | 500x 400x500 | 500x 600x500 | 500x750x600 | 600×850×800 |
|
Out box size: WxHxD(mm ) |
1480×1450 ×1950 | 1480×1485×2050 | 1500×1750×2150 | 1600×1900×2250 | 1800x2000x2500 |
|
Thermal insulation box |
● Inner wall material: SUS304 # fog surface stainless steel plate. ● Thermal insulation material: hard polyurethane foam thermal insulation layer + glass fiber. |
||||
| Box door | Open the door alone, add the door frame heating wire at the door frame to prevent condensation at the door frame at low temperature. | ||||
| Observation window | A W 300 H 400mm observation window is installed on the box door. Multi-layer insulating electric thermal coated glass can effectively provide heat preservation and prevent condensation. | ||||
| specimen holder | Stainless steel sample frame 2 layers, adjustable height, bearing weight of 30kg / layer. | ||||
|
Refrigeration compressor |
Half-compact compressor in Bitzer, Germany | Half-compact compressor in Bitzer, Germany | Half-compact compressor in Bitzer, Germany | Half-compact compressor in Bitzer, Germany | Half-compact compressor in Bitzer, Germany |
| Cooling medium | Non-fluorine environmental protection refrigerant R404A R23 comply with environmental protection regulations, safe and non-toxic | ||||
| Condenser mode |
|
water-cooled
|
water-cooled
|
water-cooled
|
water-cooled
|
| Safety protection device | Heater air defense incineration protection; heater over current protection; circulation fan over current overload protection; compressor high pressure protection;. Compressor overheat protection; compressor over current protection; over voltage under reverse phase protection; circuit breaker; leakage protection. | ||||
| Power | AC380V;50Hz;18KW | AC 380;V50Hz;18KW | AC 380;V50Hz;22KW | AC 380;V50Hz;22KW | AC 380;V50Hz;25KW |
The Infinity IE31A1 Thermal Shock Hot Cold Impact Climate Test Chamber is a high-quality, versatile product designed for testing the performance of various materials and products in extreme temperature and humidity conditions. It is the perfect solution for industries such as electronics, automotive, aerospace, and pharmaceuticals to ensure the reliability and durability of their products in different environments.
The Infinity IE31A1 Thermal Shock Hot Cold Impact Climate Test Chamber is suitable for a wide range of applications. Some of the common usage scenarios are:
The Infinity IE31A1 Thermal Shock Hot Cold Impact Climate Test Chamber is a reliable and efficient product that can meet various testing requirements in different industries. With its advanced features and customizable options, it is a valuable investment for businesses looking to ensure the quality and performance of their products in extreme environments.
The Infinity Thermal Shock Hot Cold Impact Climate Test Chamberr IE31A1 is a highly customizable and advanced testing equipment designed to simulate extreme weather conditions for various products. This chamber is perfect for conducting water spray tests for metal parts, rain tests for outdoor lamps, and salt spray tests for electronic products.
Down From RT To-55℃ About 75min Is Required Down From RT To-55℃ Approximately 75min Is Required
±1℃
Water-cooled
Up From RT To + 150℃ About 50m In Is Required Up From RT To + 150℃ About 55m In Is Required
Half-compact Compressor In Bitzer, Germany
Thermal Shock Hot Cold Impact Climate Test Chamber are carefully packaged to ensure safe and secure delivery to our customers. Each unit is individually wrapped with protective materials and placed in a sturdy wooden crate. The crate is then sealed and labeled with the necessary shipping information.
We offer both domestic and international shipping options for our Thermal Shock Hot Cold Impact Climate Test Chamber. For domestic orders, we use trusted shipping companies such as UPS, FedEx, and DHL. International orders are shipped via air or ocean freight, depending on the customer's preference and location.
We strive to provide timely delivery of our products and work closely with our shipping partners to ensure that your order arrives on time and in good condition. Once your order has been shipped, we will provide you with a tracking number so you can monitor the progress of your shipment.
If you have any special shipping requirements, please let us know and we will do our best to accommodate your needs. We value our customers and want to ensure that your Climate Test Chamber arrives in perfect condition.
