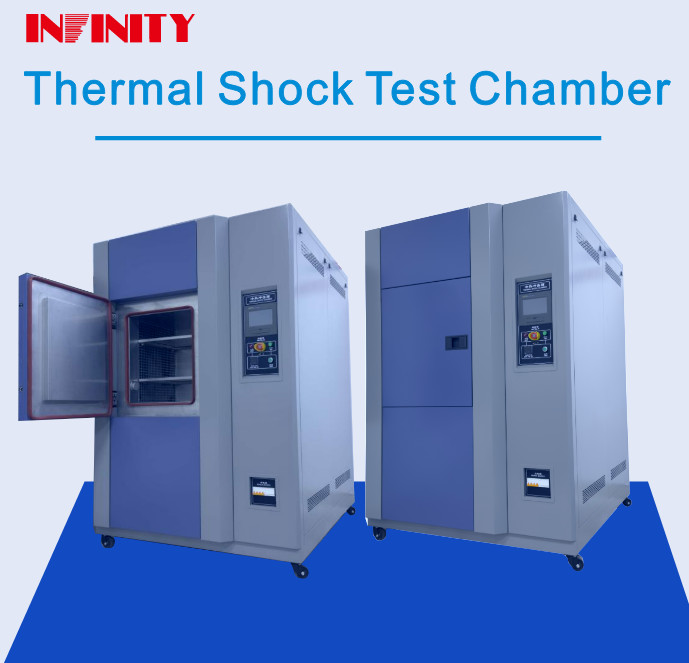

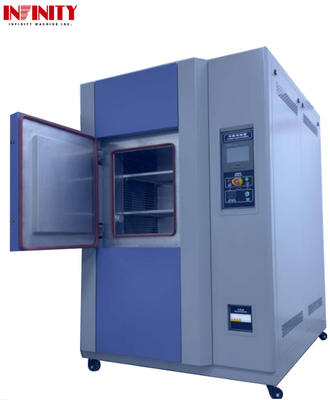

Observation Window A W 300 H 400mm Climate Thermal Shock Test Chamber For Military Standard Testing

Product Description:

The Climate Thermal Shock Test Chamber is a specialized testing equipment designed for the simulation of various climate conditions such as temperature, humidity, and water spray, in order to evaluate the quality and durability of products. It is widely used in industries such as electrical, electronics, machinery, and materials.

The Climate Thermal Shock Test Chamber has a temperature range of -65℃ to +150℃, providing extreme hot and cold conditions for testing.

The Climate Thermal Shock Test Chamber is equipped with various safety protection devices to ensure the safety of both the operator and the equipment. These include:

• Heater Air Defense Incineration Protection
• Heater Over Current Protection
• Circulation Fan Over Current Overload Protection
• Compressor High Pressure Protection
• Compressor Overheat Protection
• Compressor Over Current Protection
• Over Voltage Under Reverse Phase Protection
• Circuit Breaker
• Leakage Protection

The Climate Thermal Shock Test Chamber is suitable for testing a wide range of products, including finished products, semi-finished parts, electrical appliances, instruments, materials, coatings, and more. It can simulate climate mutations and temperature and humidity changes, as well as conduct cold and cold impact tests to evaluate the quality of the products being tested.

The Climate Thermal Shock Test Chamber comes with a stainless steel sample frame with 2 layers. The height of the sample frame is adjustable, and each layer can bear a weight of up to 30kg, making it suitable for testing various types of products.

In addition to temperature and humidity testing, the Climate Test Chamber also has the capability to perform water spray tests on metal parts. This feature is particularly useful for industries such as automotive, aerospace, and marine, where products are exposed to harsh weather conditions and need to be tested for their resistance to water ingress.

The Climate Thermal Shock Test Chamber has a fast temperature recovery time of within 5 minutes, ensuring efficient and accurate testing of products.

The Climate Thermal Shock Test Chamber is a versatile and reliable testing equipment that is essential for industries that require high quality and durable products. With its advanced features and safety protection devices, it provides a comprehensive and accurate evaluation of products' performance under different climate conditions, making it an indispensable tool for product development and quality control.

Model	IE31A180L	IE31A1100L	IE31A1150L	IE31A1225L	IE31A1408L
Temperature range	-65℃ ～ +150℃
Temperature fluctuation	±1℃
Temperature uniformity	≦2.0℃
Temperature recovery time	Within 5Min
Heating rate (heat storage area)	Up from RT to + 150℃ About 50m in is required		Up from RT to + 150℃ About 55m in is required
Cooling rate (cold storage area)	Down from RT to-55℃ About 75min is required		Down from RT to-55℃ Approximately 75min is required
Internal box size: WxHxD(mm )	500x 400x400	500x 400x500	500x 600x500	500x750x600	600×850×800
Out box size: WxHxD(mm )	1480×1450 ×1950	1480×1485×2050	1500×1750×2150	1600×1900×2250	1800x2000x2500
Thermal insulation box	● Outer wall material: high quality carbon steel plate, the surface for electrostatic color spray plastic treatment. The left side diameter of the box is φ 50mm hole. ● Inner wall material: SUS304 # fog surface stainless steel plate. ● Thermal insulation material: hard polyurethane foam thermal insulation layer + glass fiber.
Box door	Open the door alone, add the door frame heating wire at the door frame to prevent condensation at the door frame at low temperature.
Observation window	A W 300 H 400mm observation window is installed on the box door. Multi-layer insulating electric thermal coated glass can effectively provide heat preservation and prevent condensation.
specimen holder	Stainless steel sample frame 2 layers, adjustable height, bearing weight of 30kg / layer.
Refrigeration compressor	Half-compact compressor in Bitzer, Germany	Half-compact compressor in Bitzer, Germany	Half-compact compressor in Bitzer, Germany	Half-compact compressor in Bitzer, Germany	Half-compact compressor in Bitzer, Germany
Cooling medium	Non-fluorine environmental protection refrigerant R404A R23 comply with environmental protection regulations, safe and non-toxic
Condenser mode	water-cooled	water-cooled	water-cooled	water-cooled	water-cooled
Safety protection device	Heater air defense incineration protection; heater over current protection; circulation fan over current overload protection; compressor high pressure protection;. Compressor overheat protection; compressor over current protection; over voltage under reverse phase protection; circuit breaker; leakage protection.
Power	AC380V;50Hz;18KW	AC 380;V50Hz;18KW	AC 380;V50Hz;22KW	AC 380;V50Hz;22KW	AC 380;V50Hz;25KW



Applications:

Brand Name: Infinity

Model Number: IE31A1

Place of Origin: China

Certification: CE, ISO

Minimum Order Quantity: 1

Price: Negotiate

Packaging Details: Clear sheet+sponge+wood carton

Delivery Time: 20-30 days after order confirmed

Payment Terms: TT, PAYPAL, Moneygram and so on

Supply Ability: 200 sets/month

---

Condenser mode: Water-cooled

Machine Features: GB/T2423.1-2001 Low-temperature Test Method; GB/T2423.2-2001； GB/T2423.22-1989 Temperature Change Test ; Military Standard GJB150.3-86; Military Standard GJB150.4-86; Military Standard GJB150.5-86; GJB150.5-86 Temperature Shock Test GJB360.7-87 Temperature Shock Test; GJB367.2-87 405 Temperature Shock Test; J / T10187-91Y73 Series Temperature Change Test Box- -three-box Type; Meet The Standard IEC68-2-14_ Test Method Temperature Change.

Power: AC380V;50Hz;18KW / AC 380;V50Hz;18KW / AC 380;V50Hz;22KW / AC 380;V50Hz;22KW / AC 380;V50Hz;25KW

Cooling medium: Non-fluorine Environmental Protection Refrigerant R404A R23 Comply With Environmental Protection Regulations, Safe And Non-toxic

---

The Infinity IE31A1 Climate Thermal Shock Test Chamber is designed for electronic and metal parts testing, specifically for rain and water spray testing. It is commonly used in various industries such as electronics, automotive, aerospace, and military to ensure the durability and reliability of products in extreme environmental conditions.

The chamber is equipped with advanced features to simulate various temperature and humidity conditions, making it suitable for a wide range of applications. It can perform GB/T2423.1-2001 Low-temperature Test Method, GB/T2423.2-2001, GB/T2423.22-1989 Temperature Change Test, Military Standard GJB150.3-86, GJB150.4-86, GJB150.5-86, GJB360.7-87, GJB367.2-87, J / T10187-91Y73 Series Temperature Change Test Box- -three-box Type, and IEC68-2-14_ Test Method Temperature Change.

The chamber has a water-cooled condenser mode and uses non-fluorine environmental protection refrigerants R404A and R23, which comply with environmental regulations and are safe and non-toxic. This ensures the safety of both the products being tested and the environment.

The Infinity IE31A1 Climate Thermal Shock Test Chamber has a sturdy construction, with a clear sheet, sponge, and wood carton packaging, making it suitable for transportation and long-term use. It has a high supply ability of 200 sets per month and can be customized according to specific requirements.

Overall, the Infinity IE31A1 Climate Thermal Shock Test Chamber is an essential tool for product testing and quality control, ensuring that products can withstand extreme environmental conditions and meet industry standards. It is a valuable investment for any company looking to produce high-quality and durable products.



Customization:

Brand Name: Infinity

Model Number: IE31A1

Place of Origin: China

Certification: CE, ISO

Minimum Order Quantity: 1

Price: Negotiate

Packaging Details: Clear sheet+sponge+wood carton

Delivery Time: 20-30 days after order confirmed

Payment Terms: TT, PAYPAL, Moneygram, and more

Supply Ability: 200 sets / month

The Infinity IE31A1 is a top-of-the-line Climate Thermal Shock Test Chamber designed for rain and spray testing. As a trusted China manufacturer, we offer customized solutions for all your testing needs.

Our Climate Thermal Shock Test Chamber is CE and ISO certified, ensuring that it meets international standards for quality and performance.

We understand that every customer has unique needs and requirements. That's why we offer a minimum order quantity of 1 and a negotiable price to fit your budget.

We take extra care in packaging our products to ensure they arrive in perfect condition. Our Climate Thermal Shock Test Chamber is packaged with clear sheet, sponge, and a sturdy wood carton. Delivery time is 20-30 days after order confirmation.

We offer various payment options such as TT, PAYPAL, Moneygram, and more for your convenience.

With our efficient production process, we are able to supply 200 sets of our Climate Thermal Shock Test Chamber every month, ensuring that we can meet the demands of our customers.

The Infinity IE31A1 is built with high quality materials to ensure durability and longevity. This includes:

• Outer Wall Material: High Quality Carbon Steel Plate with Electrostatic Color Spray Plastic Treatment
• Inner Wall Material: SUS304 # Fog Surface Stainless Steel Plate
• Thermal Insulation Material: Hard Polyurethane Foam Thermal Insulation Layer + Glass Fiber

The thermal insulation box of our climate test chamber is designed to maintain precise testing conditions. It includes:

• High quality materials for efficient thermal insulation
• φ 50mm hole on the left side for easy access

Our climate test chamber is built to withstand thermal shock testing, with features such as:

• Open the door alone for easy access
• Door frame with heating wire to prevent condensation at low temperatures

The specimen holder of our climate test chamber is made of stainless steel and can hold up to 30kg per layer. It is also adjustable in height, allowing for versatile testing options.

The Infinity IE31A1 has a cooling rate of approximately 75 minutes when going from room temperature to -55℃, making it ideal for cold storage testing.



Packing and Shipping:

Our Climate Thermal Shock Test Chamber is carefully packaged to ensure safe delivery to our customers.

The Climate Thermal Shock Test Chamber is first wrapped in protective material to prevent any damage during transportation. This includes a layer of foam padding and a sturdy outer cardboard box.

For international shipments, the product is placed in a wooden crate to provide additional protection during long-distance travel.

Each package also contains a user manual and other necessary documentation for the product.

We offer worldwide shipping for our Climate Thermal Shock Test Chamber. The shipping method and cost will vary depending on the destination and weight of the package.

For domestic shipments, we use trusted courier services to ensure timely and secure delivery. For international shipments, we work with reliable freight forwarding companies to ensure the product arrives at its destination safely.

Customers can also choose to use their own shipping methods and provide us with the necessary information for the shipment.

Once the package is shipped, customers will receive a tracking number to monitor the delivery status of their order.

At Climate Thermal Shock Test Chamber, we strive to provide the best packaging and shipping services to ensure our customers receive their products in perfect condition.



FAQ:

• Q: What is the brand name of this product?
• A: The brand name is Infinity.
• Q: What is the model number of this product?
• A: The model number is IE31A1.
• Q: Where is this product manufactured?
• A: It is manufactured in China.
• Q: Is this product certified?
• A: Yes, it is certified with CE and ISO.
• Q: What is the minimum order quantity for this product?
• A: The minimum order quantity is 1 set.
• Q: Can the price for this product be negotiated?
• A: Yes, the price can be negotiated.
• Q: How is the packaging for this product?
• A: The packaging includes clear sheet, sponge, and wood carton.
• Q: What is the delivery time for this product?
• A: The delivery time is 20-30 days after order confirmed.
• Q: What are the payment terms for this product?
• A: The payment terms include TT, PAYPAL, Moneygram, and other options.
• Q: What is the supply ability for this product?
• A: The supply ability is 200 sets per month.
