| Place of Origin: | China |
| Brand Name: | Infinity |
| Certification: | CE,ISO |
| Model Number: | IE31 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Power: | AC380V;50Hz;18KW AC 380;V50Hz;18KW AC 380;V50Hz;22KW AC 380;V50Hz;22KW AC 380;V50Hz;25KW | Heating Rate (heat Storage Area): | Up From RT To + 150℃ About 50m In Is Required Up From RT To + 150℃ About 55m In Is Required |
|---|---|---|---|
| Cooling Medium: | Non-fluorine Environmental Protection Refrigerant R404A R23 Comply With Environmental Protection Regulations, Safe And Non-toxic | Observation Window: | A W 300 H 400mm Observation Window Is Installed On The Box Door. Multi-layer Insulating Electric Thermal Coated Glass Can Effectively Provide Heat Preservation And Prevent Condensation. |
| Temperature Fluctuation: | ±1℃ | Temperature Uniformity: | ≦2.0℃ |
| Specimen Holder: | Stainless Steel Sample Frame 2 Layers, Adjustable Height, Bearing Weight Of 30kg / Layer. | Test Standards: | GB/T2423.1-2001 Low-temperature Test Method; GB/T2423.2-2001； GB/T2423.22-1989 Temperature Change Test ; Military Standard GJB150.3-86; Military Standard GJB150.4-86; Military Standard GJB150.5-86; GJB150.5-86 Temperature Shock Test GJB360.7-87 Temperatu |

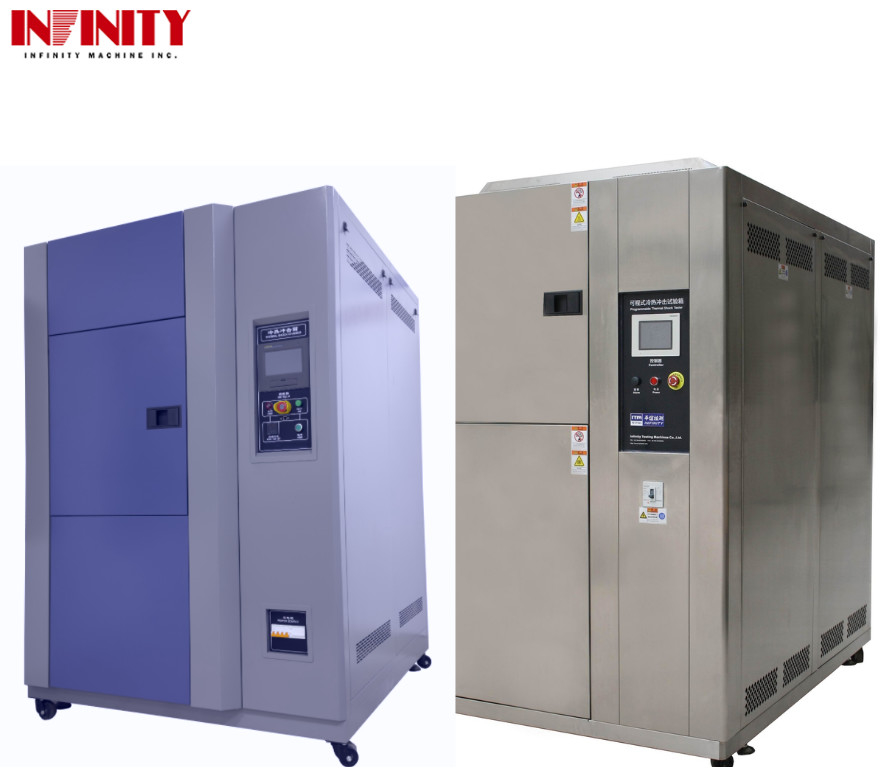

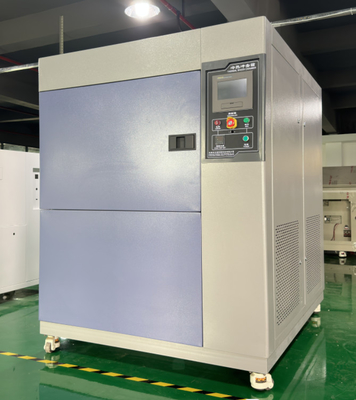

±1C Temperature Fluctuation Thermal Shock Test Chamber With Water-Cooled Condenser Mode IE31A1
Product Description:Welcome to the world of environmental testing with our Climate Thermal Shock Test Chamber. Our company, a leading Environmental Test Chamber Manufacturer, has designed this product to meet all your testing needs. With advanced technology and superior quality, our Climate Test Chamber is the perfect choice for your testing requirements.
Our Climate Thermal Shock Test Chamber is a specially designed chamber for climate testing, also known as a shower testing equipment. It can simulate various environmental conditions such as temperature, humidity, and pressure, to test the performance and durability of your products. With a temperature range of -65℃ to +150℃, our chamber can test products under extreme conditions and provide accurate results.
Equipped with a power supply of AC380V;50Hz;18KW, our chamber can provide stable and efficient performance. We also offer options of AC 380;V50Hz;18KW, AC 380;V50Hz;22KW, AC 380;V50Hz;22KW, and AC 380;V50Hz;25KW to cater to your specific power requirements.
Our Climate Thermal Shock Test Chamber is equipped with an observation window of W 300 x H 400mm, which is installed on the box door. The multi-layer insulating electric thermal coated glass of the observation window effectively provides heat preservation and prevents condensation, allowing you to observe the testing process clearly.
Product Attributes:
| Model | IE31A180L | IE31A1100L | IE31A1150L | IE31A1225L | IE31A1408L |
| Temperature range | -65℃ ～ +150℃ | ||||
| Temperature fluctuation | ±1℃ | ||||
| Temperature uniformity | ≦2.0℃ | ||||
| Temperature recovery time | Within 5Min | ||||
|
(heat storage area) |
Up from RT to + 150℃ About 50m in is required | Up from RT to + 150℃ About 55m in is required | |||
|
(cold storage area) |
Down from RT to-55℃ About 75min is required | Down from RT to-55℃ Approximately 75min is required | |||
|
Internal box size: WxHxD(mm ) |
500x 400x400 | 500x 400x500 | 500x 600x500 | 500x750x600 | 600×850×800 |
|
Out box size: WxHxD(mm ) |
1480×1450 ×1950 | 1480×1485×2050 | 1500×1750×2150 | 1600×1900×2250 | 1800x2000x2500 |
|
Thermal insulation box |
● Inner wall material: SUS304 # fog surface stainless steel plate. ● Thermal insulation material: hard polyurethane foam thermal insulation layer + glass fiber. |
||||
| Box door | Open the door alone, add the door frame heating wire at the door frame to prevent condensation at the door frame at low temperature. | ||||
| Observation window | A W 300 H 400mm observation window is installed on the box door. Multi-layer insulating electric thermal coated glass can effectively provide heat preservation and prevent condensation. | ||||
| specimen holder | Stainless steel sample frame 2 layers, adjustable height, bearing weight of 30kg / layer. | ||||
|
Refrigeration compressor |
Half-compact compressor in Bitzer, Germany | Half-compact compressor in Bitzer, Germany | Half-compact compressor in Bitzer, Germany | Half-compact compressor in Bitzer, Germany | Half-compact compressor in Bitzer, Germany |
| Cooling medium | Non-fluorine environmental protection refrigerant R404A R23 comply with environmental protection regulations, safe and non-toxic | ||||
| Condenser mode |
|
water-cooled
|
water-cooled
|
water-cooled
|
water-cooled
|
| Safety protection device | Heater air defense incineration protection; heater over current protection; circulation fan over current overload protection; compressor high pressure protection;. Compressor overheat protection; compressor over current protection; over voltage under reverse phase protection; circuit breaker; leakage protection. | ||||
| Power | AC380V;50Hz;18KW | AC 380;V50Hz;18KW | AC 380;V50Hz;22KW | AC 380;V50Hz;22KW | AC 380;V50Hz;25KW |
Climate Thermal Shock Test Chamber is an essential product for testing the environmental simulation of various products. It is widely used in the fields of electronic appliances, communication, automobiles, aerospace, and other industries. The product is designed and manufactured by Infinity, a renowned testing machine manufacturer in China.
With the Model Number IE31, the Climate Test Chamber is designed to provide accurate and reliable testing results. It is suitable for testing the impact of extreme temperatures on products, such as high and low temperature impact, thermal shock, and temperature cycling.
The Outer Wall Material of the chamber is made of high-quality carbon steel plate, which is coated with electrostatic color spray plastic treatment. This ensures durability and protection against corrosion. The Inner Wall Material is made of SUS304 # fog surface stainless steel plate, which is resistant to high temperatures and has a sleek finish. The Thermal Insulation Material is composed of hard polyurethane foam thermal insulation layer and glass fiber, which effectively maintains the temperature inside the chamber.
The Climate Test Chamber comes in different models, including IE31A180L, IE31A1100L, IE31A1150L, IE31A1225L, and IE31A1408L, with different capacities to meet the specific testing needs of different industries. It is equipped with a Half-compact Compressor from Bitzer, Germany, which provides efficient and stable refrigeration performance.
The chamber operates on AC380V and 50Hz power supply, with a power of 18KW, 22KW, or 25KW, depending on the model. It also has a 50mm hole on the left side diameter for easy access and monitoring during testing.
The Climate Thermal Shock Test Chamber has received CE and ISO certification, ensuring its quality and reliability. It is also customizable according to the specific testing requirements of customers. The chamber is designed to simulate various climate conditions, making it an ideal choice for environmental simulation equipment. It can also be used for IPX1234 Rain Test, making it a versatile product for different industries.
With a minimum order quantity of 1 and a supply ability of 200 sets per month, Infinity's Climate Test Chamber is a cost-effective and efficient solution for testing the impact of extreme temperatures on products. The packaging includes a clear sheet, sponge, and wood carton to ensure safe transportation. Customers can also negotiate the price and pay through various payment methods, including TT, PayPal, and Moneygram.
Overall, Climate Thermal Shock Test Chamber is a reliable and high-quality product that is essential for various industries to ensure the durability and functionality of their products. With Infinity's expertise and experience in manufacturing testing equipment, customers can trust the accuracy and efficiency of this product for their testing needs.
Brand Name: Infinity
Model Number: IE31A1
Place of Origin: China
Certification: CE,ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Cooling Rate (cold storage area): Down From RT To-55℃ Approximately 75min Is Required
Temperature Uniformity: ≦2.0℃
Power: AC380V;50Hz;18KW, AC380V;50Hz;18KW, AC380V;50Hz;22KW, AC380V;50Hz;22KW, AC380V;50Hz;25KW
Heating Rate (heat storage area): Up From RT To +150℃ About 50min Is Required
Temperature Fluctuation: ±1℃
Key words: IPX1234 Rain Test Chamber, Chamber for rain test, shower testing equipment
The Climate Thermal Shock Test Chamber is packaged and shipped with utmost care to ensure safe and secure delivery. The packaging and shipping process is carried out in accordance with international standards to protect the chamber from any potential damage during transportation.
The Climate Thermal Shock Test Chamber is carefully packed in a sturdy wooden crate to provide maximum protection during transit. The chamber is placed in the crate and secured with shock-absorbing materials to prevent any movement or impact. The crate is then sealed and labeled with necessary handling instructions and product information.
The Climate Thermal Shock Test Chamber is shipped using reputable and reliable shipping companies to ensure timely and efficient delivery. We offer various shipping options based on the customer's preference and location. The chamber is shipped with insurance to cover any potential damages during transit.
Upon arrival, our team will assist with the unloading and placement of the chamber at the designated location. We also provide installation and setup services for an additional fee, if required.
For international shipments, customs and import duties may apply and are the responsibility of the customer. Our team will assist with any necessary documentation and declarations to facilitate a smooth customs clearance process.
Overall, we strive to provide a hassle-free and reliable packaging and shipping process to ensure the safe delivery of the Climate Test Chamber to our valued customers.
