| Place of Origin: | China |
| Brand Name: | Infinity |
| Certification: | CE,ISO |
| Model Number: | IE31A1 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Safety Protection Device: | Heater Air Defense Incineration Protection; Heater Over Current Protection; Circulation Fan Over Current Overload Protection; Compressor High Pressure Protection;. Compressor Overheat Protection; Compressor Over Current Protection; Over Voltage Under Rever | Temperature Fluctuation: | ±1℃ |
|---|---|---|---|
| Test Standards: | GB/T2423.1-2001 Low-temperature Test Method; GB/T2423.2-2001； GB/T2423.22-1989 Temperature Change Test ; Military Standard GJB150.3-86; Military Standard GJB150.4-86; Military Standard GJB150.5-86; GJB150.5-86 Temperature Shock Test GJB360.7-87 Temperatu | Cooling Medium: | Non-fluorine Environmental Protection Refrigerant R404A R23 Comply With Environmental Protection Regulations, Safe And Non-toxic |
| Model: | IE31A180L, IE31A1100L, IE31A1150L, IE31A1225L, IE31A1408L | Thermal Insulation Box: | ● Outer Wall Material: High Quality Carbon Steel Plate, The Surface For Electrostatic Color Spray Plastic Treatment. The Left Side Diameter Of The Box Is φ 50mm Hole. ● Inner Wall Material: SUS304 # Fog Surface Stainless Steel Plate. ● Thermal Insulation M |
| Refrigeration Compressor: | Half-compact Compressor In Bitzer, Germany | Observation Window: | A W 300 H 400mm Observation Window Is Installed On The Box Door. Multi-layer Insulating Electric Thermal Coated Glass Can Effectively Provide Heat Preservation And Prevent Condensation. |

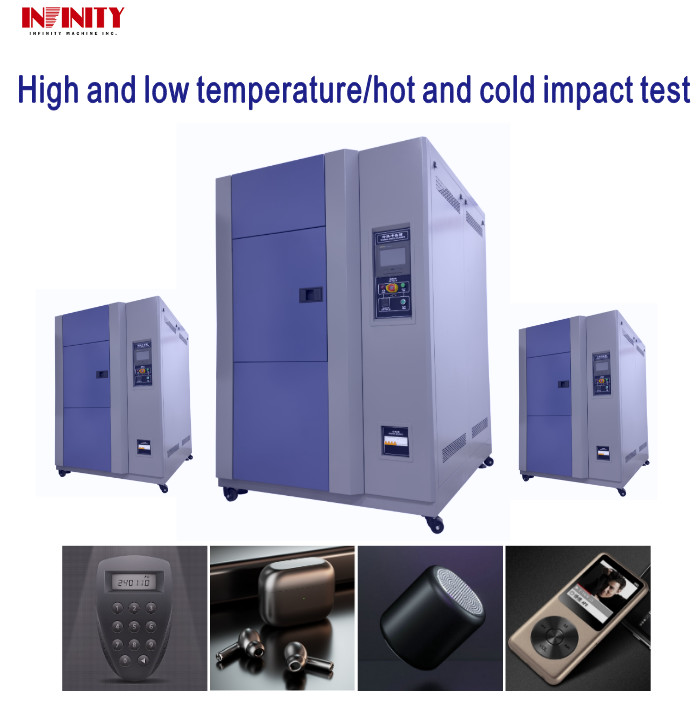

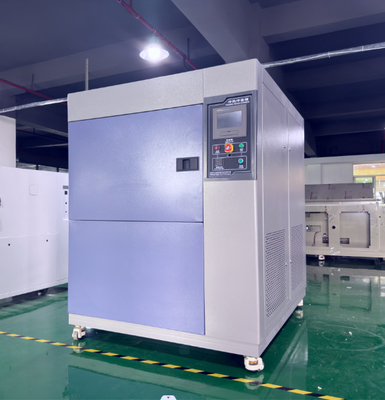

80L Climate Thermal Shock Test Chamber -65C ～ 150C With Observation Window A W 300 H 400mm IE31A1
The Climate Thermal Shock Test Chamber is a highly advanced and versatile testing equipment designed to simulate extreme environmental conditions for the testing of various products and materials. This chamber is equipped with various features and meets multiple test standards, making it an ideal choice for reliability and quality testing.
The Climate Thermal Shock Test Chamber is equipped with advanced features to ensure accurate and reliable testing results. These features include:
The Climate Thermal Shock Test Chamber is suitable for a wide range of products, including finished products, semi-finished parts, electrical appliances, instruments, materials, coating, and coating for the corresponding climate mutation test. It is ideal for testing products in the electrical, electronics, machinery industries, and other industries where high and low temperature and humidity testing is required. The chamber can simulate temperature and humidity changes, as well as cold and cold impact tests, to evaluate the quality of the test products.
The Climate Thermal Shock Test Chamber is equipped with multiple safety protection devices to ensure the safety of the operator and the equipment. These include:
In conclusion, the Climate Thermal Shock Test Chamber is a reliable and efficient testing equipment that meets various test standards and is suitable for a wide range of industries. With its advanced features and safety protection devices, it is the perfect choice for accurate and precise testing of products and materials.
| Model | IE31A180L | IE31A1100L | IE31A1150L | IE31A1225L | IE31A1408L |
| Temperature range | -65℃ ～ +150℃ | ||||
| Temperature fluctuation | ±1℃ | ||||
| Temperature uniformity | ≦2.0℃ | ||||
| Temperature recovery time | Within 5Min | ||||
|
(heat storage area) |
Up from RT to + 150℃ About 50m in is required | Up from RT to + 150℃ About 55m in is required | |||
|
(cold storage area) |
Down from RT to-55℃ About 75min is required | Down from RT to-55℃ Approximately 75min is required | |||
|
Internal box size: WxHxD(mm ) |
500x 400x400 | 500x 400x500 | 500x 600x500 | 500x750x600 | 600×850×800 |
|
Out box size: WxHxD(mm ) |
1480×1450 ×1950 | 1480×1485×2050 | 1500×1750×2150 | 1600×1900×2250 | 1800x2000x2500 |
|
Thermal insulation box |
● Inner wall material: SUS304 # fog surface stainless steel plate. ● Thermal insulation material: hard polyurethane foam thermal insulation layer + glass fiber. |
||||
| Box door | Open the door alone, add the door frame heating wire at the door frame to prevent condensation at the door frame at low temperature. | ||||
| Observation window | A W 300 H 400mm observation window is installed on the box door. Multi-layer insulating electric thermal coated glass can effectively provide heat preservation and prevent condensation. | ||||
| specimen holder | Stainless steel sample frame 2 layers, adjustable height, bearing weight of 30kg / layer. | ||||
|
Refrigeration compressor |
Half-compact compressor in Bitzer, Germany | Half-compact compressor in Bitzer, Germany | Half-compact compressor in Bitzer, Germany | Half-compact compressor in Bitzer, Germany | Half-compact compressor in Bitzer, Germany |
| Cooling medium | Non-fluorine environmental protection refrigerant R404A R23 comply with environmental protection regulations, safe and non-toxic | ||||
| Condenser mode |
|
water-cooled
|
water-cooled
|
water-cooled
|
water-cooled
|
| Safety protection device | Heater air defense incineration protection; heater over current protection; circulation fan over current overload protection; compressor high pressure protection;. Compressor overheat protection; compressor over current protection; over voltage under reverse phase protection; circuit breaker; leakage protection. | ||||
| Power | AC380V;50Hz;18KW | AC 380;V50Hz;18KW | AC 380;V50Hz;22KW | AC 380;V50Hz;22KW | AC 380;V50Hz;25KW |
Brand Name: Infinity
Model Number: IE31
Place of Origin: China
Certification: CE, ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT, PAYPAL, Moneygram and so on
Supply Ability: 200 sets / month
Model: IE31A180L, IE31A1100L, IE31A1150L, IE31A1225L, IE31A1408L
Cooling medium: Non-fluorine Environmental Protection Refrigerant R404A R23 Comply With Environmental Protection Regulations, Safe And Non-toxic
Temperature Uniformity: ≦2.0℃
Cooling Rate (cold storage area): Down From RT To -55℃ About 75min Is Required Down From RT To -55℃ Approximately 75min Is Required
The Infinity IE31 Climate Thermal Shock Test Chamber is a state-of-the-art tester equipment designed for various industries and applications. As a leading tester equipment factory in China, Infinity is committed to providing high-quality and reliable products to meet the demands of our customers worldwide.
The Climate Thermal Shock Test Chamber is ideal for testing the temperature and humidity resistance of various products in extreme environmental conditions. It is commonly used in industries such as automotive, electronics, aerospace, and pharmaceuticals to ensure the quality and durability of their products. With its precise and programmable control, the Climate Test Chamber can simulate a wide range of temperature and humidity conditions, making it an essential tool for product development and quality control.
One of the most common applications of the Climate Thermal Shock Test Chamber is in the automotive industry. With the increasing demand for high-quality and durable car spare parts, manufacturers need to ensure that their products can withstand extreme conditions such as extreme heat, cold, and humidity. The Climate Test Chamber provides a controlled environment to test these parts and ensure their reliability and safety. The water spray test chamber for car spare parts is a specialized version of the Climate Test Chamber that simulates conditions such as rain and humidity, making it an essential tool for testing the durability of car parts.
Another common scene for the Climate Thermal Shock Test Chamber is in the electronics industry. With the rise of smart devices and technology, manufacturers need to ensure that their products can withstand extreme temperatures and humidity. The Climate Test Chamber can simulate these conditions and help identify potential issues in the product design, ensuring a high-quality and reliable end product for consumers.
The Climate Thermal Shock Test Chamber is also widely used in the aerospace industry, where the reliability and safety of components are crucial. With its precise and programmable control, the Chamber can simulate the extreme conditions that aircraft and spacecraft may encounter, ensuring the durability and safety of the components used.
In the pharmaceutical industry, the Climate Thermal Shock Test Chamber is used to test the stability and shelf life of drugs and vaccines. With its ability to simulate various temperature and humidity conditions, the Chamber can help pharmaceutical companies ensure the quality and effectiveness of their products.
With its advanced features and versatile applications, the Infinity IE31 Climate Test Chamber is an essential tool for industries that require precise and reliable testing of their products. Contact us today to learn more about our products and how they can benefit your business.
Brand Name: Infinity
Model Number: IE31A1
Place of Origin: China
Certification: CE,ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Up From RT To + 150℃ About 50m In Is Required
Up From RT To + 150℃ About 55m In Is Required
Stainless Steel Sample Frame 2 Layers, Adjustable Height, Bearing Weight Of 30kg / Layer.
A W 300 H 400mm Observation Window Is Installed On The Box Door. Multi-layer Insulating Electric Thermal Coated Glass Can Effectively Provide Heat Preservation And Prevent Condensation.
The Climate Thermal Shock Test Chamber will be packaged in a sturdy wooden crate to ensure its safe delivery. The crate will be lined with foam and secured with packing straps to prevent any damage during transportation.
Inside the crate, the Climate Thermal Shock Test Chamber will be wrapped in bubble wrap and placed in a custom-fitted foam insert to provide additional protection.
The crate will be labeled with the product name, model number, and any handling instructions to help ensure a smooth delivery process.
For shipping, we will use a trusted and reliable courier service to deliver the Climate Test Chamber to your desired location. The shipping cost will be included in the final invoice.
Upon delivery, please inspect the package and report any damages or issues to our customer service team within 24 hours. We strive to provide the best quality products and services, and we will work with you to resolve any shipping concerns.
We thank you for choosing our Climate Thermal Shock Test Chamber and look forward to providing you with a seamless packaging and shipping experience.
