| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE 44 Series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Box Structure: | ● Test Room And Outer Boxes: The Inner And Outer Boxes Of The Laboratory Adopt A Grade PVC Polyethylene Board, The Thickness Of The Whole Machine Is 8mm, Acid And Base Resistance And Temperature Resistance To 78℃. ● Laboratory Sealing Cover: Laboratory Sea | Temperature Uniformity: | ≦1.0℃ |
|---|---|---|---|
| Temperature Fluctuation: | ±0.5℃ | Application: | Widely Used In Electronics, Electrician And Automobile, Motorcycle, Hardware, Plastic, FPC Soft Board, And Other Industry Products After Electroplating, Spray Paint, Paint, Anode Treatment For Salt Spray Corrosion Test, To Evaluate Its Surface Corrosion Re |
| Safety Protection Devices: | ● When Low Brine, Automatically Cut Off The Heater Power Supply. ● Over-temperature, Automatically Cut Off The Heater Power Supply. ● When The Laboratory Is At Low Water Level, Automatically Cut Off The Heater Power Supply. | Valid Test Capacity: | 150L 270L 576L 800L 1200L |
| Test Standards: | GB / T242317-2008 GB / T242318-2000 Basic Procedure Test Ka For Electrical And Electronic Products GB / T10125-1997 Artificial Atmosphere Corrosion Test Salt Spray Test Technical Conditions Of The GB / T10587-2006 Salt Spray Test Box GB105932-1990 Environm | Specimen Holder: | The Basket Holder Of The Laboratory Adopts The Plane Dividing Frame, The Placement Angle Of 15 Degrees And 30 Degrees Is Optional, And The Fog On All Sides And The Fog Direction Is Completely Consistent. |
| Highlight: | Paint Salt Spray Fog Test Chamber,270L Salt Spray Fog Test Chamber |
||
Open Cover Way: Manual Open Cover & One-click Automatic Open-cover
Spray Way: Continuous Spray + Intermittent Spray
Features: The Salt Spray Test Chamber (New) is designed with convenience and efficiency in mind. It offers two different ways to open the cover - manual and one-click automatic - providing flexibility for users. The spray way includes both continuous and intermittent spray options, making it suitable for a variety of testing needs.
The test drug supplement is hidden, eliminating the need to open the cover and fill the chamber. The side of the chamber also features a water level observation window for easy cleaning. The special glass nozzle and saline filter ensure that the spray water pipe remains unobstructed for up to 4000 hours. The control components are chosen from well-known brands and the upper and lower water and electricity separation structure minimizes safety risks and prevents circuit corrosion and aging, maximizing the service life of electrical components. The new version also features hydropower up and down independent separation, providing more convenience for maintenance.
Safety Protection Devices: The Salt Spray Test Chamber (New) is equipped with several safety protection devices to ensure safe operation. These include automatic power cutoff when low brine or over-temperature is detected, as well as automatic power cutoff when the laboratory is at low water level.
Box Structure: The test room and outer boxes of the chamber are made of grade PVC polyethylene board with a thickness of 8mm, ensuring resistance to acid, base, and temperatures up to 78°C. The laboratory sealing cover is made of a class PVC plate with a thickness of 8mm and is reinforced with 13mm for added strength. It can also withstand acid, alkali, and temperatures up to 78°C.
Key Words: Salt Spray Fog Test Chamber, Salt Spray Testing Machine, Salt Spray Corrosion Testing Equipment, Corrosion Resistance Testing Equipment, Anti-corrosion Testing Equipment
Brand Name: INFINITY
Model Number: IE 44 Series
Place of Origin: MADE IN CHINA
Certification: CE, ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT, PAYPAL, Moneygram and so on
Supply Ability: 200 sets/month
Temperature range: RT+5℃~60℃
Specimen holder: The Basket Holder Of The Laboratory Adopts The Plane Dividing Frame, The Placement Angle Of 15 Degrees And 30 Degrees Is Optional, And The Fog On All Sides And The Fog Direction Is Completely Consistent.
Box structure:
Pressure Barrel Temperature Range: RT+5℃~70℃
Open cover way: Manual Open Cover & One-click Automatic Open-cover

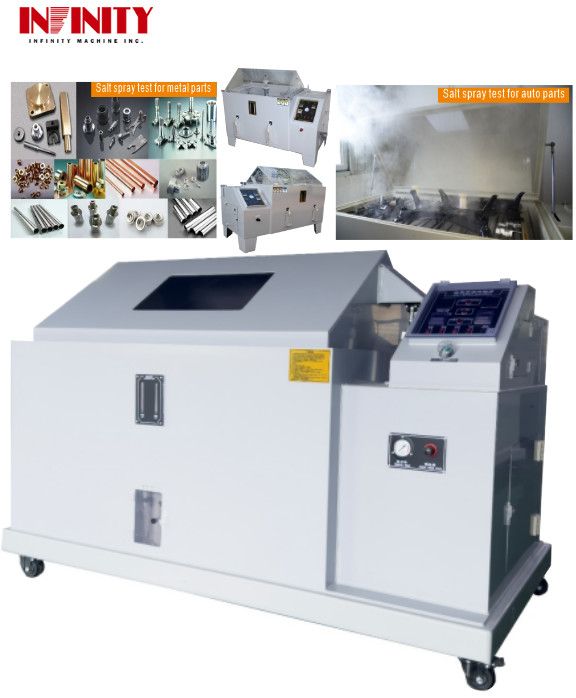

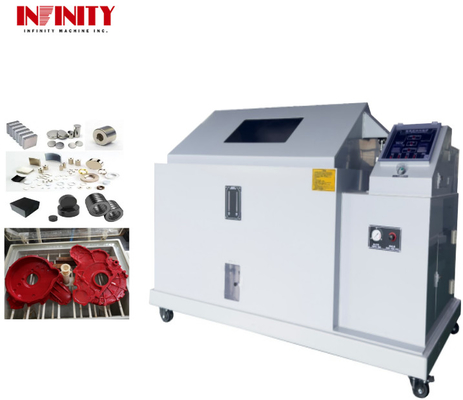

The INFINITY IE 44 Series Salt Spray Test Chamber is an advanced environmental salt spraying tester designed to simulate and test the corrosion resistance of various materials and coatings. It is widely used in industries such as electronics, automotive, aerospace, and metal finishing to evaluate the quality and durability of products under harsh environmental conditions.
With its precise temperature and humidity control, the IE 44 Series can accurately replicate the corrosive effects of salt spray, making it an essential tool for conducting corrosion resistance testing. The test chamber is suitable for a wide range of materials, including metals, plastics, coatings, and plating, making it a versatile and essential piece of equipment for any quality control or research laboratory.
The IE 44 Series test chamber is also equipped with a specimen holder that allows for flexible placement and testing of different angles and directions, ensuring consistent and accurate results. Its sturdy box structure, made of PVC polyethylene board, provides excellent acid and base resistance and can withstand temperatures up to 78℃, making it suitable for long-term and intensive testing.
The pressure barrel of the test chamber also has a wide temperature range of RT+5℃~70℃, allowing for more comprehensive corrosion resistance testing under different conditions. The open cover way is also designed with convenience in mind, offering both manual and one-click automatic options for easy access to the test chamber.
Overall, the INFINITY IE 44 Series Salt Spray Test Chamber is a highly reliable and efficient corrosion testing machine that meets international standards and certifications. Its advanced features and sturdy construction make it an ideal choice for any laboratory or industrial setting looking to ensure the quality and durability of their products.
| Model | I E4460L | I E4490L | I E44120L | I E44160L | I E44200L | |
| Laboratory temperature range | RT+5℃~60℃ | |||||
| Pressure barrel temperature range | RT+5℃~70℃ | |||||
| Temperature fluctuation | ±0.5℃ | |||||
| Temperature uniformity | ≦1.0℃ | |||||
| Salt mist settlement | 1～3ml/h.80cm2 | |||||
| Spray pressure | 1.00±0.01kgf/cm² | |||||
| Spray way | Continuous spray + intermittent spray | |||||
| Valid test capacity | 150L | 270L | 576L | 800L | 1200L | |
| Internal box size:WxHxD(mm ) | 600*450*400 | 900*600*500 | 1200*800*600 | 1600*1000*500 | 2000*1000*600 | |
| Out box size:WxHxD(mm ) | 1050*700*950 | 1400*850*1100 | 2080*1050*1300 | 2430*1250*1400 | 2730*1250*1400 | |
| Box structure |
● Test room and outer boxes: the inner and outer boxes of the laboratory adopt A grade PVC polyethylene board, the thickness of the whole machine is 8mm, acid and base resistance and temperature resistance to 78℃. ● Laboratory sealing cover: laboratory sealing cover adopts A class PVC plate, thickness of 8mm, surround reinforcement of 13mm, acid and alkali resistance and temperature resistance of 78℃ |
|||||
| Open cover way | Manual open cover | One-click automatic open-cover | ||||
| Water filling method | Automatic / manual dual water supply mode, automatic water inlet with a set of water purifier | |||||
| Specimen holder | The basket holder of the laboratory adopts the plane dividing frame, the placement Angle of 15 degrees and 30 degrees is optional, and the fog on all sides and the fog direction is completely consistent. | |||||
| Safety protection device |
● When low brine, automatically cut off the heater power supply. ● Over-temperature, automatically cut off the heater power supply. ● When the laboratory is at low water level, automatically cut off the heater power supply. |
|||||
| Power | AC220V;50Hz;1.5KW | AC 220;V50Hz;2.5KW | AC 220;V50Hz;3.5KW | AC 220;V50Hz;4.5KW | AC 380;V50Hz;5KW | |
Brand Name: INFINITY
Model Number: IE 44 Series
Place of Origin: MADE IN CHINA
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Temperature range: RT+5℃~60℃
Power: AC220V;50Hz;1.5KW AC 220;V50Hz;2.5KW AC 220;V50Hz;3.5KW AC 220;V50Hz;4.5KW AC 380;V50Hz;5KW
Spray Way: Continuous Spray + Intermittent Spray
Temperature fluctuation: ±0.5℃
Water filling methods: Automatic / Manual Dual Water Supply Mode, Automatic Water Inlet With A Set Of Water Purifier
Our Salt Spray Test Chamber (New) is carefully packaged to ensure safe delivery to our customers. The packaging materials used are chosen to protect the chamber from any potential damage during transportation.
The Salt Spray Test Chamber (New) is packed in a sturdy wooden crate to provide maximum protection. The chamber is first wrapped in a layer of plastic bubble wrap and then placed inside the crate. The crate is then sealed and labeled with the necessary shipping information.
We offer various shipping methods to meet our customers' needs. The most common methods are by sea, air, or land. Our team will work with you to determine the most efficient and cost-effective shipping method based on your location and delivery time requirements.
The delivery time for our Salt Spray Test Chamber (New) varies depending on the shipping method chosen and the destination. Once the order is confirmed, we will provide you with an estimated delivery time and keep you updated on the status of your shipment.
Please note that customers are responsible for any customs, duties, or taxes that may be incurred upon delivery. We recommend checking with your local customs office for more information on these charges.
Thank you for choosing our Salt Spray Test Chamber (New). We are committed to ensuring that it arrives at your location safely and on time.
