| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE 44 Series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Features: | The Test Drug Supplement Is Hidden, Without Opening The Cover And Filling. At The Same Time, The Side Has The Water Level Observation Window For Convenient Cleaning. Using Special Glass Nozzle, Spray Water Pipe With Saline Filter, Can Be Used For 4000 Ho | Models: | I E4460L， I E4490L， I E44120L， I E44160L， I E44200L |
|---|---|---|---|
| Temperature Range: | RT+5℃~60℃ | Safety Protection Devices: | ● When Low Brine, Automatically Cut Off The Heater Power Supply. ● Over-temperature, Automatically Cut Off The Heater Power Supply. ● When The Laboratory Is At Low Water Level, Automatically Cut Off The Heater Power Supply. |
| Temperature Uniformity: | ≦1.0℃ | Temperature Fluctuation: | ±0.5℃ |
| Water Filling Methods: | Automatic / Manual Dual Water Supply Mode, Automatic Water Inlet With A Set Of Water Purifier | Pressure Barrel Temperature Range: | RT+5℃~70℃ |
| Highlight: | Salt Spray Corrosion Test Chamber,Efficiency Salt Spray Corrosion Test Chamber |
||

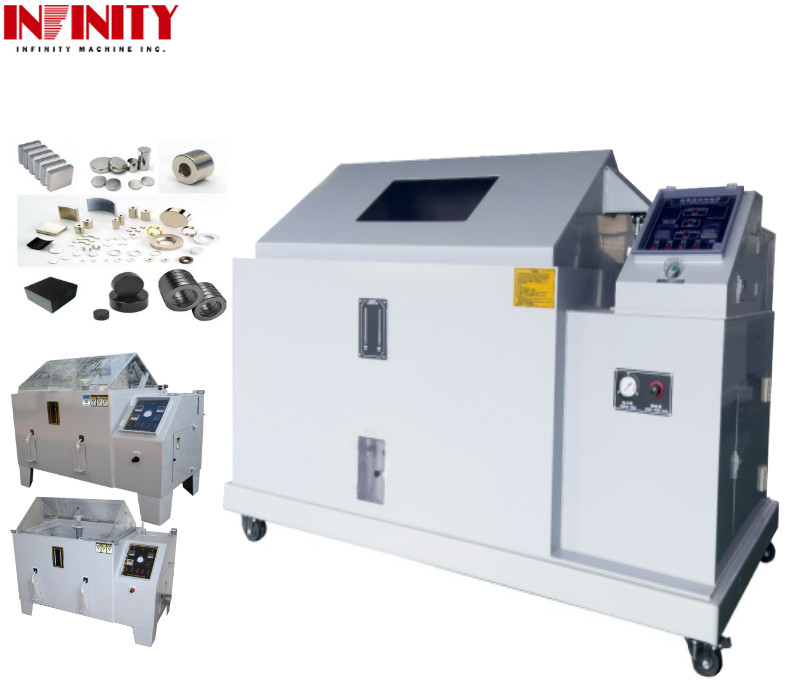

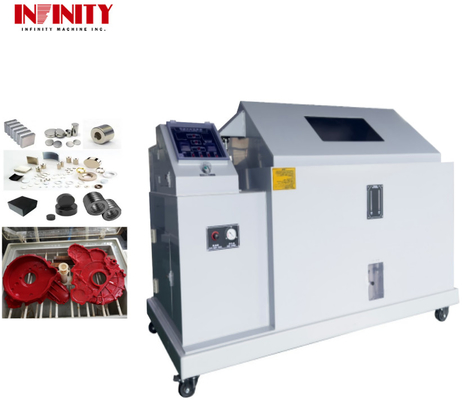

The salt spray test chamber (new) is a state-of-the-art equipment designed to simulate the effects of salt spray on various industrial products. With a valid test capacity ranging from 150L to 1200L, this equipment is suitable for testing the corrosion resistance of electronics, electrician, automobile, motorcycle, hardware, plastic, FPC soft board, and other industry products.
The design principle of this series of equipment is to simulate the atmosphere salt droplets diffusion system, which is widely used in various industries for testing the corrosion resistance of products after electroplating, spray paint, paint, anode treatment, etc. The results of the salt spray corrosion test help evaluate the surface corrosion resistance of the products.
Safety is a top priority for this equipment, which is why it is equipped with various safety protection devices. These include an automatic power cut-off feature in case of low brine or over-temperature, as well as a low water level detection system that automatically cuts off the heater power supply.
One of the key features of this equipment is its hidden test drug supplement, eliminating the need to open the cover and manually fill the testing solution. Additionally, the equipment has a water level observation window on the side for easy cleaning. The spray water pipe is equipped with a saline filter, ensuring no crystalline salt obstruction for up to 4000 hours. The control components are from well-known brands and the upper and lower water and electricity separation structure helps prevent safety risks and circuit corrosion. This also maximizes the service life of electrical components and makes maintenance more convenient. The new version of the equipment also has the option of hydropower up and down independent separation for added safety.
The equipment is designed to meet various testing standards, including GB/T242317-2008, GB/T242318-2000, GB/T10125-1997, GB/T10587-2006, GB105932-1990, GB/T1765-1979, GB/T242317-1993, GB/T1771-2007, GB5938-86, and GB/T1771-91. These standards cover various aspects of the salt spray corrosion test, such as test methods, technical conditions, measurement methods, and determination of resistance.
The salt spray test chamber (new) offers both manual and automatic water addition options, making it easy to use and convenient for different installation environments. It also provides the option of continuous or intermittent spray, allowing for quick and easy switching between the two modes for efficient operation.
In summary, the salt spray test chamber (new) is a reliable and advanced equipment that is ideal for testing the corrosion resistance of various industrial products. With its large test capacity, safety features, and compliance with industry standards, it is a valuable addition to any testing laboratory.
This is a salt spray test chamber designed and manufactured by INFINITY, a leading environmental testing equipment brand based in China.
Brand Name: INFINITY
Model Number: IE 44 Series
Place of Origin: MADE IN CHINA
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
The INFINITY IE 44 Series Salt Spray Test Chamber is designed for testing the corrosion resistance of various materials and coatings in a simulated salt fog environment. It is widely used in industries such as automotive, aerospace, electronics, and coatings.
The IE 44 Series Salt Spray Test Chamber offers two water filling methods for convenience and flexibility:
The temperature inside the chamber can be maintained with a fluctuation of only ±0.5℃, ensuring accurate and reliable test results.
The IE 44 Series Salt Spray Test Chamber is available in different sizes to meet different testing needs:
The temperature range of the chamber is from RT+5℃ to 60℃, providing a wide range of testing conditions for various materials and coatings.
The IE 44 Series Salt Spray Test Chamber is available in the following models:
| Model | I E4460L | I E4490L | I E44120L | I E44160L | I E44200L | |
| Laboratory temperature range | RT+5℃~60℃ | |||||
| Pressure barrel temperature range | RT+5℃~70℃ | |||||
| Temperature fluctuation | ±0.5℃ | |||||
| Temperature uniformity | ≦1.0℃ | |||||
| Salt mist settlement | 1～3ml/h.80cm2 | |||||
| Spray pressure | 1.00±0.01kgf/cm² | |||||
| Spray way | Continuous spray + intermittent spray | |||||
| Valid test capacity | 150L | 270L | 576L | 800L | 1200L | |
| Internal box size:WxHxD(mm ) | 600*450*400 | 900*600*500 | 1200*800*600 | 1600*1000*500 | 2000*1000*600 | |
| Out box size:WxHxD(mm ) | 1050*700*950 | 1400*850*1100 | 2080*1050*1300 | 2430*1250*1400 | 2730*1250*1400 | |
| Box structure |
● Test room and outer boxes: the inner and outer boxes of the laboratory adopt A grade PVC polyethylene board, the thickness of the whole machine is 8mm, acid and base resistance and temperature resistance to 78℃. ● Laboratory sealing cover: laboratory sealing cover adopts A class PVC plate, thickness of 8mm, surround reinforcement of 13mm, acid and alkali resistance and temperature resistance of 78℃ |
|||||
| Open cover way | Manual open cover | One-click automatic open-cover | ||||
| Water filling method | Automatic / manual dual water supply mode, automatic water inlet with a set of water purifier | |||||
| Specimen holder | The basket holder of the laboratory adopts the plane dividing frame, the placement Angle of 15 degrees and 30 degrees is optional, and the fog on all sides and the fog direction is completely consistent. | |||||
| Safety protection device |
● When low brine, automatically cut off the heater power supply. ● Over-temperature, automatically cut off the heater power supply. ● When the laboratory is at low water level, automatically cut off the heater power supply. |
|||||
| Power | AC220V;50Hz;1.5KW | AC 220;V50Hz;2.5KW | AC 220;V50Hz;3.5KW | AC 220;V50Hz;4.5KW | AC 380;V50Hz;5KW | |
The salt spray test chamber is packaged in a sturdy wooden case to ensure safe and secure transportation. The chamber is thoroughly inspected and tested before being carefully packed to ensure optimal performance upon arrival.
For international shipping, the chamber will be securely packed and loaded onto a pallet for easy and efficient handling. All necessary documentation and labeling will be included to comply with customs and import regulations.
Our experienced logistics team will work closely with trusted shipping partners to ensure timely delivery and provide tracking information for your convenience. We strive to provide the best shipping options to suit your specific needs.
Upon arrival, the chamber can be easily unpacked and set up with the help of our comprehensive user manual and technical support team. We are committed to providing a smooth and hassle-free shipping experience for our customers.
