| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE 42 Series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Box Structure: | ● Test Room And Outer Box: The Inner And Outer Box Of The Laboratory Adopts A Class PP Polyethylene Dilute Board, The Thickness Of The Whole Machine Is 10mm, Acid And Base Resistance And Temperature Resistance To 90℃. ● Laboratory Sealing Cover: Laboratory | Spray Pressure: | 1.00±0.01kgf/cm² |
|---|---|---|---|
| Test Standards: | GB / T242317-2008 GB / T242318-2000 Basic Procedure Test Ka For Electrical And Electronic Products GB / T10125-1997 Artificial Atmosphere Corrosion Test Salt Spray Test Technical Conditions Of The GB / T10587-2006 Salt Spray Test Box GB105932-1990 Environm | Salt Mist Settlement: | 1～3ml/h.80cm2 |
| Safety Protection Devices: | ● When Low Brine, Automatically Cut Off The Heater Power Supply. ● Over-temperature, Automatically Cut Off The Heater Power Supply. ● When The Laboratory Is At Low Water Level, Automatically Cut Off The Heater Power Supply. | Pressure Barrel Temperature Range: | RT+5℃~70℃ |
| Models: | I E4260L I E4290L, I E42120L, I E42160L, I E42200L | Humidity Range: | 20~100%R.H |
Humidity Range 20-100%R.H Salt Fog Spray Test Chamber Spray Pressure 1.00±0.01kgf/Cm² IE42

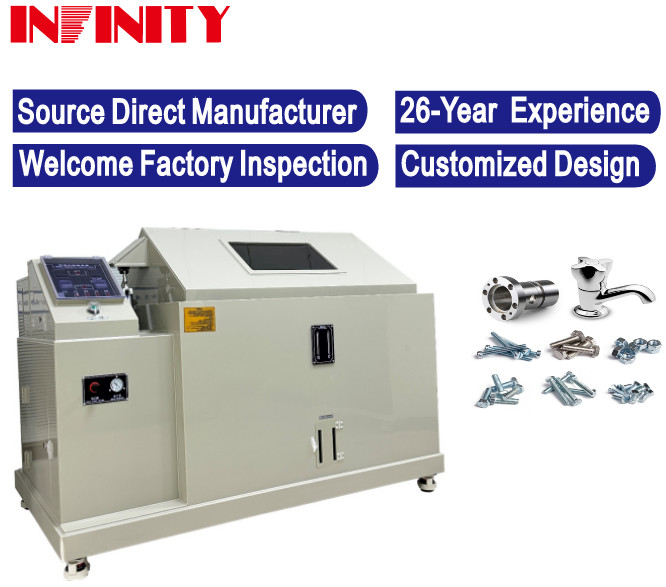

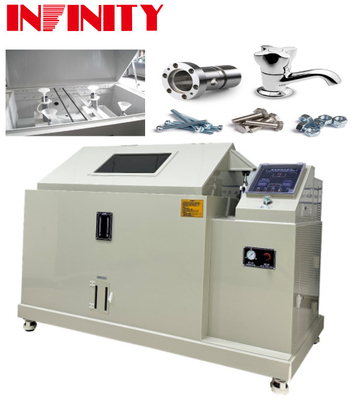

The Salt Spray Test Chamber (New) is the latest addition to our line of corrosion resistance testing equipment. It is a state-of-the-art machine designed to perform accelerated corrosion tests on a variety of materials, including metals, alloys, and metal overlays.
The Salt Spray Test Chamber is suitable for a wide range of applications, including accelerated corrosion tests on metals and their alloys, metal overlays (anodic and cathodic), conversion overlays, anodic overlays, organic overlays on metal materials, and more. Its versatility and precision make it an essential tool for any laboratory or research facility.
The Salt Spray Test Chamber boasts an impressive temperature uniformity of ≦1.0℃. This means that the temperature inside the chamber remains consistent and stable, ensuring accurate test results every time. With such precise temperature control, you can trust the results of your corrosion resistance tests.
The temperature fluctuation of the Salt Spray Test Chamber is ±0.5℃, which is well within the industry standard. This level of accuracy ensures that your tests are reliable and reproducible, giving you confidence in the performance of your materials.

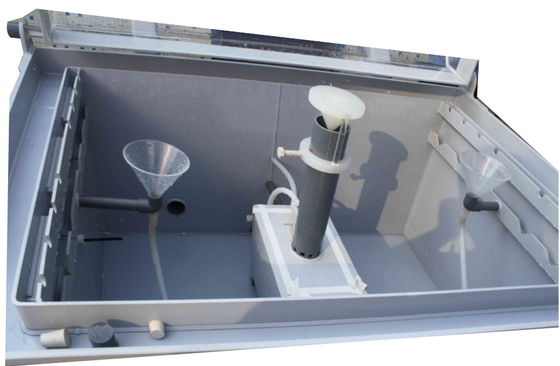

In the laboratory, the placement frame of the Salt Spray Test Chamber adopts a plane dividing frame. This allows you to test multiple samples at once, increasing efficiency and productivity. You also have the option to adjust the placement angle of the frame to 15 degrees or 30 degrees, depending on your specific testing needs. Additionally, the fog on all sides and the fog direction are completely consistent, providing a uniform testing environment for all samples.
The Salt Spray Test Chamber is equipped with several safety protection devices to ensure the safety of both the machine and the operator. These include automatically cutting off the heater power supply when low brine is detected, over-temperature protection, and automatically cutting off the heater power supply when the laboratory is at a low water level.
In conclusion, the Salt Spray Test Chamber (New) is a top-of-the-line salt spray testing machine that offers precise temperature control, uniform testing conditions, and advanced safety features. Its versatility and accuracy make it an essential tool for any laboratory or research facility conducting accelerated corrosion tests. Invest in the Salt Spray Test Chamber today and ensure the quality and durability of your materials.
| Model | I E4260L | I E4290L | I E42120L | I E42160L | I E42200L | |
| Laboratory Temperature Range | RT+5℃~60℃ | |||||
| Pressure Barrel Temperature Range | RT+5℃~70℃ | |||||
| Temperature Fluctuation | ±0.5℃ | |||||
| Temperature Uniformity | ≦1.0℃ | |||||
| Salt Mist Settlement | 1～3ml/h.80cm2 | |||||
| Spray Pressure | 1.00±0.01kgf/cm² | |||||
| Spray Way | Continuous spray + intermittent spray | |||||
| Valid Capacity for Testing | 150L | 270L | 576L | 800L | 1200L | |
|
WxHxD(mm ) |
600*450*400 | 900*600*500 | 1200*800*600 | 1600*1000*500 | 2000*1000*600 | |
|
Out box size: WxHxD(mm ) |
1050*700*950 | 1400*850*1100 | 2080*1050*1300 | 2430*1250*1400 | 2830*1250*1400 | |
| Box structure |
● Laboratory sealing cover: laboratory sealing cover adopts A class PP plate, thickness of 10mm, surround reinforcement of 15mm, acid and base resistance and temperature resistance of 90℃ |
|||||
| Open cover way | Manual open cover | One-click automatic open-cover | ||||
| Water filling methods | Automatic / manual dual water supply mode, automatic water inlet with a set of water purifier | |||||
| Specimen holder | In the laboratory, the placement frame adopts the plane dividing frame, the placement Angle of 15 degrees and 30 degrees is optional, and the fog on all sides and the fog direction is completely consistent. | |||||
| Safety protection devices |
● When low brine, automatically cut off the heater power supply. ● Over-temperature, automatically cut off the heater power supply. ● When the laboratory is at low water level, automatically cut off the heater power supply. |
|||||
| Power | AC220V;50Hz;1.5KW | AC 220;V50Hz;2.5KW | AC 220;V50Hz;3.5KW | AC 220;V50Hz;4.5KW | AC 380;V50Hz;5KW | |
The INFINITY IE 42 Series salt spray test chamber is a top-of-the-line product designed for testing the corrosion resistance of materials and coatings under various environmental conditions. It is an essential equipment for quality control and research in industries such as automotive, electronics, metal plating, chemical treatment and more.
Model Number: IE 42 Series
Place of Origin: MADE IN CHINA
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
The salt spray test chamber is suitable for testing the corrosion resistance of various materials and coatings, including but not limited to:
Order your INFINITY IE 42 Series Salt Spray Test Chamber today and ensure the quality and durability of your products!
The INFINITY IE 42 Series Salt Spray Test Chamber is a high-quality, customizable product designed for conducting accelerated corrosion tests. It is suitable for testing a variety of materials, including metals, alloys, and organic overlays. With precise temperature control and a spray pressure of 1.00±0.01kgf/cm², this chamber ensures accurate and reliable test results.
Contact us now to get a quote for our INFINITY IE 42 Series Salt Spray Test Chamber and learn more about our customized service options. Our team is dedicated to providing you with the best products and services to meet your corrosion testing needs.
Our salt spray test chamber (new) is carefully packaged to ensure that it arrives at your doorstep in perfect condition. Each unit is securely packed in a wooden case and then placed in a sturdy shipping container for added protection during transportation.
The dimensions of the wooden case and shipping container are specifically designed to fit the size of the chamber, reducing the risk of damage during transit.
For domestic orders, we offer standard shipping options such as ground and express delivery. International orders may require additional shipping fees and longer delivery times.
We also offer the option of customized packaging to meet your specific needs.
